XZU710-TKFRC3 (2011)
Toyota Dyna/Toyoace

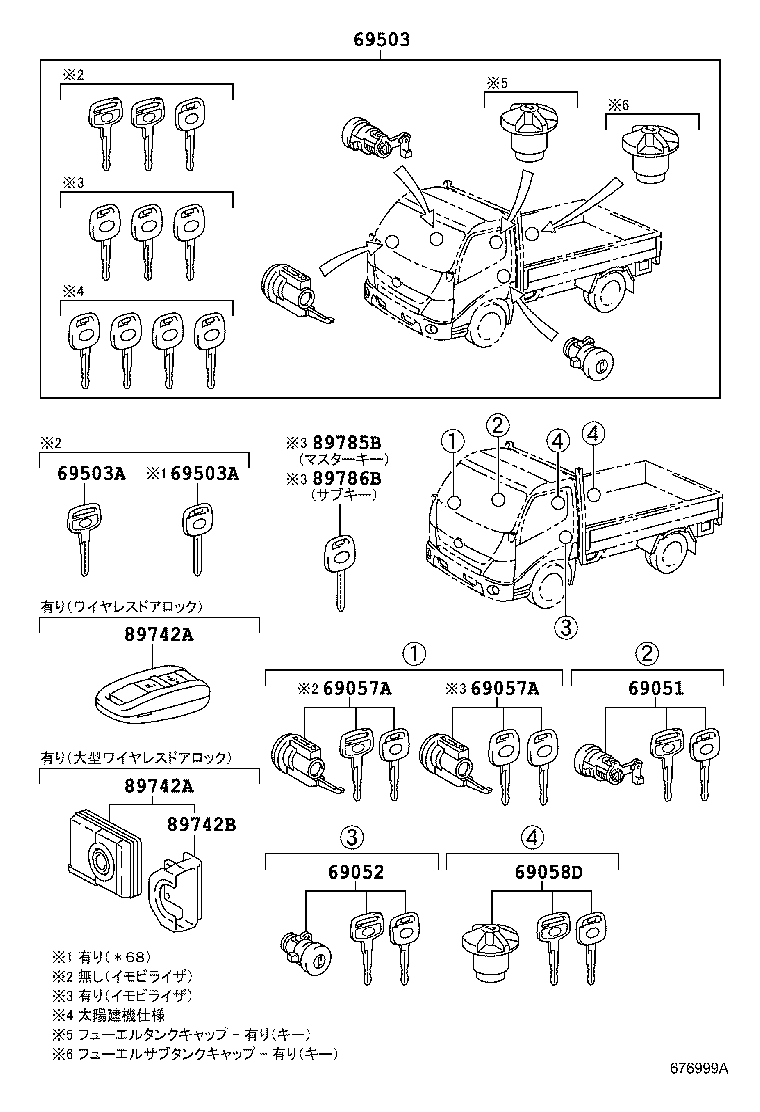

(8708- )V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 6762 | ||||

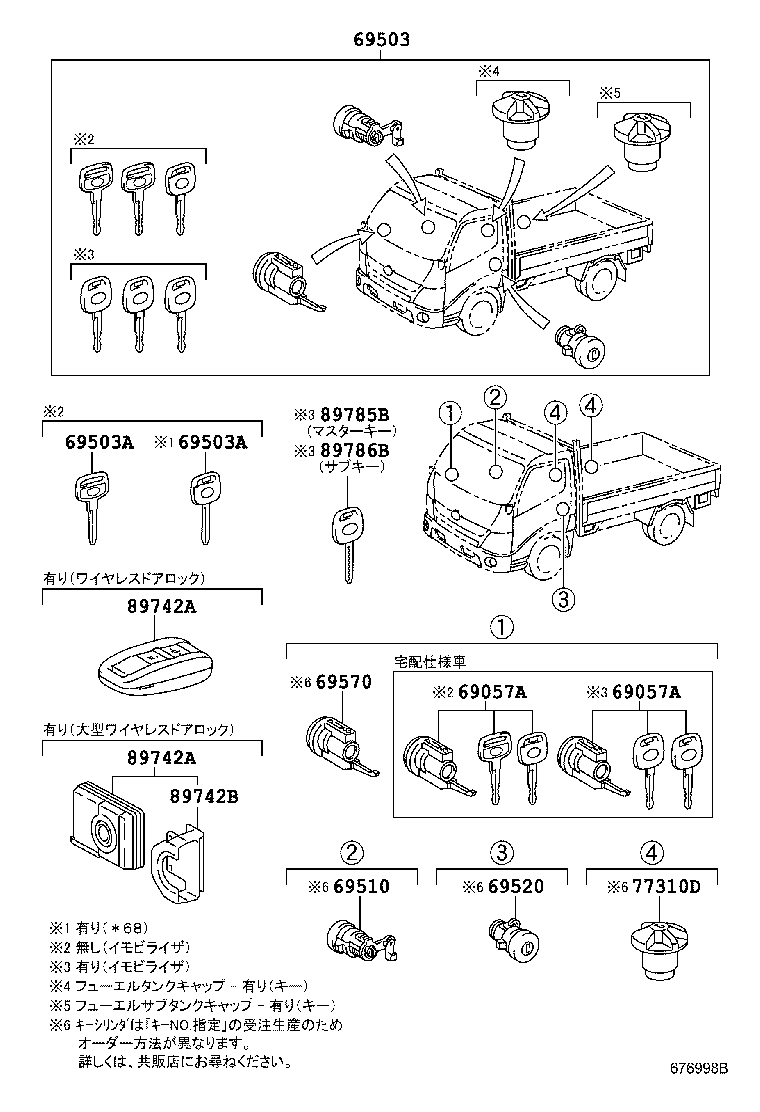

(8808- )V
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 6762 | ||||

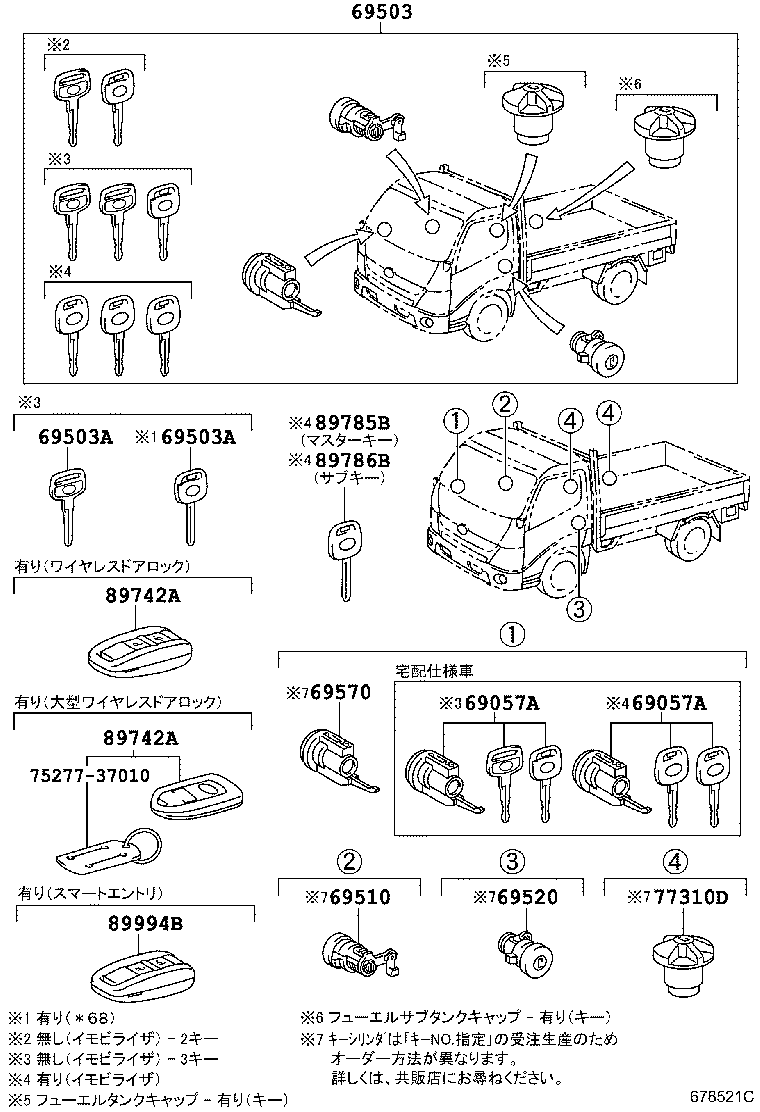

(1107-1505)
DYNA,TOYOACE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-37220 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 69057-37210 |
XZU720..35T..DCRTK..IV3;XZU720..MTM..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 69057-37230 |
XZU720..35T..DCRTK..IV3;XZU720..MTM..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾃﾞｭﾄﾛ専用&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-37220 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 69057-37210 |
XZU720..35T..DCRTK..IV3;XZU720..MTM..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 69057-37230 |
XZU720..35T..DCRTK..IV3;XZU720..MTM..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾃﾞｭﾄﾛ専用&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-37A61 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L),有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37A81 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L),有り(ｲcrﾗｲｻﾞ) |
1 | ||
| 69005-37801 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37A71 |
XZU720..T3..DCRTK..IV3;XZU720..T5..DCRTJ..IV3;XZU710..(T3,T5)..MTM..(DCRTJ,DCRTK)..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ｽﾀｰﾀ−宅配仕様,有閨iｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37821 |
XZU720..35T..DCRTK..IV3;XZU720..MTM..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37861 |
XZU720..35T..DCRTK..IV3;XZU720..MTM..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾃﾞｭﾄﾛ専用&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37842 |
XZC710,XZU700,710,720,730,775 ﾃﾞｭﾄﾛ専用,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37F30 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様,無しiｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37A91 |
XZU720..T3..DCRTK..IV3;XZU720..T5..DCRTJ..IV3;XZU710..(T3,T5)..MTM..(DCRTJ,DCRTK)..IV3 ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37F10 |
XZC710,XZU700,710,720,730,775..SCB ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ),無し(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37841 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 ﾃﾞｭﾄﾛ専用,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37F10 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様,無し(ｲﾓﾋﾞﾗｲｻﾞj |
1 | ||
| 69005-37F50 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ),無し(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37F30 |
XZC710,XZU700,710,720,730,775..SCB ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ),無し(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37F50 |
XZU720..T3..DCRTK..IV3;XZU720..T5..DCRTJ..IV3;XZU710..(T3,T5)..MTM..(DCRTJ,DCRTK)..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様,無し(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37F70 |
XZU720..T3..DCRTK..IV3;XZU720..T5..DCRTJ..IV3;XZU710..(T3,T5)..MTM..(DCRTJ,DCRTK)..IV3 ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様,無し(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37F70 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ),無し(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37G00 |
XZC710,XZU700,710,720,775..SCB..(DCRTJ,DCRTK) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37G00 |
XZU700..DM7..IV3;XZU700,710..T3..35T..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37G40 |
XZU700..DM7..IV3;XZU700,710..T3..35T..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),有り(ｲﾓﾋﾞﾗｲU) |
1 | ||
| 69005-37G10 |
XZU700,720..5F..IV3;XZU720..T3..30T..IV3;XZU720..30T..DCRTJ..IV3;XZU720..35T..DCRTK..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｽﾀｰﾀ−宅配仕様,有り(Cﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37G40 |
XZC710,XZU700,710,720,775..SCB..(DCRTJ,DCRTK) ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),有り(ｲﾓﾋﾞ宴Cｻﾞ) |
1 | ||
| 69005-37G10 |
XZU700,710..T3..35T..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓrﾗｲｻﾞ) |
1 | ||
| 69005-37G50 |
XZU700,710..T3..35T..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37J60 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37J60 |
XZU710..T3..35T..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37K20 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37G50 |
XZU700,720..5F..IV3;XZU720..T3..30T..IV3;XZU720..30T..DCRTJ..IV3;XZU720..35T..DCRTK..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37J70 |
XZU710..T3..35T..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37K20 |
XZU710..T3..35T..IV3 ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37822 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37A62 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L),有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37A92 |
XZU720..T3..DCRTK..IV3;XZU720..T5..DCRTJ..IV3;XZU710..(T3,T5)..MTM..(DCRTJ,DCRTK)..IV3 ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37802 |
XZC710,XZU700,710,720,730,775 有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37K30 |
XZU710..T3..35T..IV3 ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞj |
1 | ||
| 69005-37862 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾃﾞｭﾄﾛ専用&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37K30 |
XZU720..T3..DCRTK..IV3;XZU720..T5..DCRTJ..IV3;XZU710..(T3,T5)..MTM..(DCRTJ,DCRTK)..IV3 ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗCｻﾞ) |
1 | ||
| 69005-37A82 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L),有り(ｲcrﾗｲｻﾞ) |
1 | ||
| 69005-37J70 |
XZU720..T3..DCRTK..IV3;XZU720..T5..DCRTJ..IV3;XZU710..(T3,T5)..MTM..(DCRTJ,DCRTK)..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37A72 |
XZU720..T3..DCRTK..IV3;XZU720..T5..DCRTJ..IV3;XZU710..(T3,T5)..MTM..(DCRTJ,DCRTK)..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ｽﾀｰﾀ−宅配仕様,有閨iｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 69515-37061 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−配仕様 |
1 | ||
| 69515-37051 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,W(*68),ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘj |
1 | ||
| 69515-37120 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,W(*68),ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69515-37120 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,W(*68),ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−配仕様 |
1 | ||
| 69515-37130 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69515-37130 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 69515-37061 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69515-37051 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,W(*68),ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘj&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 90999-00185 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,*68付き,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅z仕様 |
1 | ||
| 90999-00186 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 90999-00224 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,*68付き,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)父Xﾀｰﾀ−宅配仕様 |
1 | ||
| 90999-00185 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,*68付き,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00225 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−配仕様 |
1 | ||
| 90999-00186 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00224 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,*68付き,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00225 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 69515-37061 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−配仕様 |
1 | ||
| 69515-37051 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,W(*68),ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘj |
1 | ||
| 69515-37120 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,W(*68),ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69515-37120 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,W(*68),ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−配仕様 |
1 | ||
| 69515-37130 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69515-37130 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 69515-37061 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69515-37051 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,W(*68),ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘj&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 90999-00185 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,*68付き,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅z仕様 |
1 | ||
| 90999-00186 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 90999-00224 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,*68付き,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)父Xﾀｰﾀ−宅配仕様 |
1 | ||
| 90999-00185 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,*68付き,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00225 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−配仕様 |
1 | ||
| 90999-00186 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00224 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,*68付き,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00225 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-37020 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH | ||||
| 69520-37040 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-37070 |
XZU710..SCB..(T3,T4);XZU710..T5..DCRTL..IV3;XZC710,XZU700,720,730,775;XZU710..SCB..T5..(DCRTJ,DCRTK) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69570-37070 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 69570-37070 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 69570-37070 |
XZU710..SCB..(T3,T4);XZU710..T5..DCRTL..IV3;XZC710,XZU700,720,730,775;XZU710..SCB..T5..(DCRTJ,DCRTK) ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69570-37070 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 77310D - CAP ASSY, FUEL TANK | ||||
| 77310-37020 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 77310-37020 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L) |
2 | ||
| 89742A - TRANSMITTER, DOOR CONTROL | ||||
| 89742-37010 |
XZC710,XZU700,710,720,775..SCB..(DCRTJ,DCRTK) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742-37080 |
XZU700..DM7..IV3;XZU720..40T..IV3;XZU700,710,720..T3..35T..DCRTK..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742-37110 |
XZC710,XZU700,710,720,775..SCB..(DCRTJ,DCRTK) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742-37090 |
XZU700..DM7..IV3;XZU720..40T..IV3;XZU700,710,720..T3..35T..DCRTK..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742-37120 |
XZC710,XZU700,710,720,775..SCB..(DCRTJ,DCRTK) ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742A - TRANSMITTER, DOOR CONTROL | ||||
| 89742-37010 |
XZC710,XZU700,710,720,775..SCB..(DCRTJ,DCRTK) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742-37080 |
XZU700..DM7..IV3;XZU720..40T..IV3;XZU700,710,720..T3..35T..DCRTK..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742-37110 |
XZC710,XZU700,710,720,775..SCB..(DCRTJ,DCRTK) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742-37090 |
XZU700..DM7..IV3;XZU720..40T..IV3;XZU700,710,720..T3..35T..DCRTK..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742-37120 |
XZC710,XZU700,710,720,775..SCB..(DCRTJ,DCRTK) ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742B - BRACKET, DOOR CONTROL TRANSMITTER | ||||
| 85999-36040 |
XZC710,XZU700,710,720,775..SCB..(DCRTJ,DCRTK) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89785B - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-37020 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89785-60160 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-37021 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 ﾌﾞﾗﾝｸｷｰ,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89786-37040 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 ﾌﾞﾗﾝｸｷｰ |
1 | ||
(1107-1505)
DUTRO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69051 - CYLINDER & KEY SET, DOOR LOCK, RH | ||||
| 69051-37080 |
XZC710,XZU700,710,720,730,775..SCB ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69051-37080 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 69052 - CYLINDER & KEY SET, DOOR LOCK, LH | ||||
| 69052-37120 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-37220 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 69057-37210 |
XZU720..35T..DCRTK..IV3;XZU720..MTM..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 69057-37230 |
XZU720..35T..DCRTK..IV3;XZU720..MTM..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾃﾞｭﾄﾛ専用&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-37220 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 69057-37210 |
XZU720..35T..DCRTK..IV3;XZU720..MTM..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 69057-37230 |
XZU720..35T..DCRTK..IV3;XZU720..MTM..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾃﾞｭﾄﾛ専用&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 69058D - CYLINDER & KEY SET, FUEL TANK FILLER | ||||
| 69058-37080 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 69058-37080 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L) |
2 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-37A61 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L),有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37A81 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L),有り(ｲcrﾗｲｻﾞ) |
1 | ||
| 69005-37801 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37A71 |
XZU720..T3..DCRTK..IV3;XZU720..T5..DCRTJ..IV3;XZU710..(T3,T5)..MTM..(DCRTJ,DCRTK)..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ｽﾀｰﾀ−宅配仕様,有閨iｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37821 |
XZU720..35T..DCRTK..IV3;XZU720..MTM..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37861 |
XZU720..35T..DCRTK..IV3;XZU720..MTM..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾃﾞｭﾄﾛ専用&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37842 |
XZC710,XZU700,710,720,730,775 ﾃﾞｭﾄﾛ専用,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37F30 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様,無しiｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37A91 |
XZU720..T3..DCRTK..IV3;XZU720..T5..DCRTJ..IV3;XZU710..(T3,T5)..MTM..(DCRTJ,DCRTK)..IV3 ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37F10 |
XZC710,XZU700,710,720,730,775..SCB ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ),無し(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37841 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 ﾃﾞｭﾄﾛ専用,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37F10 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様,無し(ｲﾓﾋﾞﾗｲｻﾞj |
1 | ||
| 69005-37F50 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ),無し(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37F30 |
XZC710,XZU700,710,720,730,775..SCB ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ),無し(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37F50 |
XZU720..T3..DCRTK..IV3;XZU720..T5..DCRTJ..IV3;XZU710..(T3,T5)..MTM..(DCRTJ,DCRTK)..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様,無し(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37F70 |
XZU720..T3..DCRTK..IV3;XZU720..T5..DCRTJ..IV3;XZU710..(T3,T5)..MTM..(DCRTJ,DCRTK)..IV3 ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様,無し(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37F70 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ),無し(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37G00 |
XZC710,XZU700,710,720,775..SCB..(DCRTJ,DCRTK) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37G00 |
XZU700..DM7..IV3;XZU700,710..T3..35T..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37G40 |
XZU700..DM7..IV3;XZU700,710..T3..35T..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),有り(ｲﾓﾋﾞﾗｲU) |
1 | ||
| 69005-37G10 |
XZU700,720..5F..IV3;XZU720..T3..30T..IV3;XZU720..30T..DCRTJ..IV3;XZU720..35T..DCRTK..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｽﾀｰﾀ−宅配仕様,有り(Cﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37G40 |
XZC710,XZU700,710,720,775..SCB..(DCRTJ,DCRTK) ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),有り(ｲﾓﾋﾞ宴Cｻﾞ) |
1 | ||
| 69005-37G10 |
XZU700,710..T3..35T..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓrﾗｲｻﾞ) |
1 | ||
| 69005-37G50 |
XZU700,710..T3..35T..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37J60 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37J60 |
XZU710..T3..35T..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37K20 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37G50 |
XZU700,720..5F..IV3;XZU720..T3..30T..IV3;XZU720..30T..DCRTJ..IV3;XZU720..35T..DCRTK..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37J70 |
XZU710..T3..35T..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37K20 |
XZU710..T3..35T..IV3 ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37822 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37A62 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L),有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37A92 |
XZU720..T3..DCRTK..IV3;XZU720..T5..DCRTJ..IV3;XZU710..(T3,T5)..MTM..(DCRTJ,DCRTK)..IV3 ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37802 |
XZC710,XZU700,710,720,730,775 有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37K30 |
XZU710..T3..35T..IV3 ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞj |
1 | ||
| 69005-37862 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾃﾞｭﾄﾛ専用&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37K30 |
XZU720..T3..DCRTK..IV3;XZU720..T5..DCRTJ..IV3;XZU710..(T3,T5)..MTM..(DCRTJ,DCRTK)..IV3 ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗCｻﾞ) |
1 | ||
| 69005-37A82 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L),有り(ｲcrﾗｲｻﾞ) |
1 | ||
| 69005-37J70 |
XZU720..T3..DCRTK..IV3;XZU720..T5..DCRTJ..IV3;XZU710..(T3,T5)..MTM..(DCRTJ,DCRTK)..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37A72 |
XZU720..T3..DCRTK..IV3;XZU720..T5..DCRTJ..IV3;XZU710..(T3,T5)..MTM..(DCRTJ,DCRTK)..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ｽﾀｰﾀ−宅配仕様,有閨iｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 69515-37061 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−配仕様 |
1 | ||
| 69515-37051 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,W(*68),ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘj |
1 | ||
| 69515-37120 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,W(*68),ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69515-37120 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,W(*68),ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−配仕様 |
1 | ||
| 69515-37130 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69515-37130 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 69515-37061 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69515-37051 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,W(*68),ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘj&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 90999-00185 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,*68付き,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅z仕様 |
1 | ||
| 90999-00186 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 90999-00224 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,*68付き,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)父Xﾀｰﾀ−宅配仕様 |
1 | ||
| 90999-00185 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,*68付き,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00225 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−配仕様 |
1 | ||
| 90999-00186 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00224 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,*68付き,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00225 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 69515-37061 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−配仕様 |
1 | ||
| 69515-37051 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,W(*68),ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘj |
1 | ||
| 69515-37120 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,W(*68),ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69515-37120 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,W(*68),ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−配仕様 |
1 | ||
| 69515-37130 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69515-37130 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 69515-37061 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69515-37051 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,W(*68),ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘj&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 90999-00185 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,*68付き,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅z仕様 |
1 | ||
| 90999-00186 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 90999-00224 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,*68付き,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)父Xﾀｰﾀ−宅配仕様 |
1 | ||
| 90999-00185 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,*68付き,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00225 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−配仕様 |
1 | ||
| 90999-00186 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00224 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,*68付き,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00225 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 89742A - TRANSMITTER, DOOR CONTROL | ||||
| 89742-37010 |
XZC710,XZU700,710,720,775..SCB..(DCRTJ,DCRTK) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742-37080 |
XZU700..DM7..IV3;XZU720..40T..IV3;XZU700,710,720..T3..35T..DCRTK..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742-37110 |
XZC710,XZU700,710,720,775..SCB..(DCRTJ,DCRTK) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742-37090 |
XZU700..DM7..IV3;XZU720..40T..IV3;XZU700,710,720..T3..35T..DCRTK..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742-37120 |
XZC710,XZU700,710,720,775..SCB..(DCRTJ,DCRTK) ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742A - TRANSMITTER, DOOR CONTROL | ||||
| 89742-37010 |
XZC710,XZU700,710,720,775..SCB..(DCRTJ,DCRTK) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742-37080 |
XZU700..DM7..IV3;XZU720..40T..IV3;XZU700,710,720..T3..35T..DCRTK..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742-37110 |
XZC710,XZU700,710,720,775..SCB..(DCRTJ,DCRTK) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742-37090 |
XZU700..DM7..IV3;XZU720..40T..IV3;XZU700,710,720..T3..35T..DCRTK..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742-37120 |
XZC710,XZU700,710,720,775..SCB..(DCRTJ,DCRTK) ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742B - BRACKET, DOOR CONTROL TRANSMITTER | ||||
| 85999-36040 |
XZC710,XZU700,710,720,775..SCB..(DCRTJ,DCRTK) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89785B - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-37020 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89785-60160 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-37021 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 ﾌﾞﾗﾝｸｷｰ,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89786-37040 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 ﾌﾞﾗﾝｸｷｰ |
1 | ||
(1505-1705)
DYNA,TOYOACE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-37220 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 69057-37210 |
XZU720..35T..DCRTK..IV3;XZU720..MTM..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 69057-37230 |
XZU720..35T..DCRTK..IV3;XZU720..MTM..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾃﾞｭﾄﾛ専用&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 69057A - CYLINDER & KEY SET, IGNITION SWITCH LOCK | ||||
| 69057-37220 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 69057-37210 |
XZU720..35T..DCRTK..IV3;XZU720..MTM..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 69057-37230 |
XZU720..35T..DCRTK..IV3;XZU720..MTM..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾃﾞｭﾄﾛ専用&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 69503 - CYLINDER SET, LOCK | ||||
| 69005-37A61 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L),有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37A81 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L),有り(ｲcrﾗｲｻﾞ) |
1 | ||
| 69005-37801 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37A71 |
XZU720..T3..DCRTK..IV3;XZU720..T5..DCRTJ..IV3;XZU710..(T3,T5)..MTM..(DCRTJ,DCRTK)..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ｽﾀｰﾀ−宅配仕様,有閨iｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37821 |
XZU720..35T..DCRTK..IV3;XZU720..MTM..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37861 |
XZU720..35T..DCRTK..IV3;XZU720..MTM..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾃﾞｭﾄﾛ専用&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37842 |
XZC710,XZU700,710,720,730,775 ﾃﾞｭﾄﾛ専用,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37F30 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様,無しiｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37A91 |
XZU720..T3..DCRTK..IV3;XZU720..T5..DCRTJ..IV3;XZU710..(T3,T5)..MTM..(DCRTJ,DCRTK)..IV3 ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37F10 |
XZC710,XZU700,710,720,730,775..SCB ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ),無し(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37841 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 ﾃﾞｭﾄﾛ専用,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37F10 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様,無し(ｲﾓﾋﾞﾗｲｻﾞj |
1 | ||
| 69005-37F50 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ),無し(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37F30 |
XZC710,XZU700,710,720,730,775..SCB ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ),無し(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37F50 |
XZU720..T3..DCRTK..IV3;XZU720..T5..DCRTJ..IV3;XZU710..(T3,T5)..MTM..(DCRTJ,DCRTK)..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様,無し(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37F70 |
XZU720..T3..DCRTK..IV3;XZU720..T5..DCRTJ..IV3;XZU710..(T3,T5)..MTM..(DCRTJ,DCRTK)..IV3 ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様,無し(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37F70 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ),無し(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37G00 |
XZC710,XZU700,710,720,775..SCB..(DCRTJ,DCRTK) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37G00 |
XZU700..DM7..IV3;XZU700,710..T3..35T..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37G40 |
XZU700..DM7..IV3;XZU700,710..T3..35T..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),有り(ｲﾓﾋﾞﾗｲU) |
1 | ||
| 69005-37G10 |
XZU700,720..5F..IV3;XZU720..T3..30T..IV3;XZU720..30T..DCRTJ..IV3;XZU720..35T..DCRTK..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｽﾀｰﾀ−宅配仕様,有り(Cﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37G40 |
XZC710,XZU700,710,720,775..SCB..(DCRTJ,DCRTK) ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),有り(ｲﾓﾋﾞ宴Cｻﾞ) |
1 | ||
| 69005-37G10 |
XZU700,710..T3..35T..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓrﾗｲｻﾞ) |
1 | ||
| 69005-37G50 |
XZU700,710..T3..35T..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37J60 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37J60 |
XZU710..T3..35T..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37K20 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37G50 |
XZU700,720..5F..IV3;XZU720..T3..30T..IV3;XZU720..30T..DCRTJ..IV3;XZU720..35T..DCRTK..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37J70 |
XZU710..T3..35T..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37K20 |
XZU710..T3..35T..IV3 ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き),有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37822 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37A62 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L),有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37A92 |
XZU720..T3..DCRTK..IV3;XZU720..T5..DCRTJ..IV3;XZU710..(T3,T5)..MTM..(DCRTJ,DCRTK)..IV3 ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37802 |
XZC710,XZU700,710,720,730,775 有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37K30 |
XZU710..T3..35T..IV3 ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞj |
1 | ||
| 69005-37862 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾃﾞｭﾄﾛ専用&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37K30 |
XZU720..T3..DCRTK..IV3;XZU720..T5..DCRTJ..IV3;XZU710..(T3,T5)..MTM..(DCRTJ,DCRTK)..IV3 ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗCｻﾞ) |
1 | ||
| 69005-37A82 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾃﾞｭﾄﾛ専用&ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L),有り(ｲcrﾗｲｻﾞ) |
1 | ||
| 69005-37J70 |
XZU720..T3..DCRTK..IV3;XZU720..T5..DCRTJ..IV3;XZU710..(T3,T5)..MTM..(DCRTJ,DCRTK)..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｽﾀｰﾀ−宅配仕様,有り(ｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69005-37A72 |
XZU720..T3..DCRTK..IV3;XZU720..T5..DCRTJ..IV3;XZU710..(T3,T5)..MTM..(DCRTJ,DCRTK)..IV3 ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L)&ｽﾀｰﾀ−宅配仕様,有閨iｲﾓﾋﾞﾗｲｻﾞ) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 69515-37061 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−配仕様 |
1 | ||
| 69515-37051 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,W(*68),ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘj |
1 | ||
| 69515-37120 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,W(*68),ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69515-37120 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,W(*68),ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−配仕様 |
1 | ||
| 69515-37130 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69515-37130 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 69515-37061 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69515-37051 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,W(*68),ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘj&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 90999-00185 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,*68付き,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅z仕様 |
1 | ||
| 90999-00186 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 90999-00224 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,*68付き,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)父Xﾀｰﾀ−宅配仕様 |
1 | ||
| 90999-00185 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,*68付き,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00225 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−配仕様 |
1 | ||
| 90999-00186 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00224 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,*68付き,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00225 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69503A - KEY, BLANK | ||||
| 69515-37061 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−配仕様 |
1 | ||
| 69515-37051 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,W(*68),ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘj |
1 | ||
| 69515-37120 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,W(*68),ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69515-37120 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,W(*68),ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−配仕様 |
1 | ||
| 69515-37130 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69515-37130 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 69515-37061 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69515-37051 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,W(*68),ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘj&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 90999-00185 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,*68付き,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅z仕様 |
1 | ||
| 90999-00186 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 90999-00224 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,*68付き,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)父Xﾀｰﾀ−宅配仕様 |
1 | ||
| 90999-00185 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,*68付き,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00225 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−配仕様 |
1 | ||
| 90999-00186 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00224 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,*68付き,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 90999-00225 |
XZC710,XZU700,710,720,730,775..SCB ﾏｽﾀｰｷｰ,ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69510 - CYLINDER ASSY, FRONT DOOR LOCK, RH | ||||
| 69510-37020 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 69520 - CYLINDER ASSY, FRONT DOOR LOCK, LH | ||||
| 69520-37040 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 69570 - CYLINDER ASSY, IGNITION SWITCH LOCK | ||||
| 69570-37070 |
XZU710..SCB..(T3,T4);XZU710..T5..DCRTL..IV3;XZC710,XZU700,720,730,775;XZU710..SCB..T5..(DCRTJ,DCRTK) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69570-37070 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 69570-37070 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 69570-37070 |
XZU710..SCB..(T3,T4);XZU710..T5..DCRTL..IV3;XZC710,XZU700,720,730,775;XZU710..SCB..T5..(DCRTJ,DCRTK) ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
1 | ||
| 69570-37070 |
XZU700,720..5F..IV3;XZU720..35T..DCRTK..IV3;XZU720..30T..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)&ｽﾀｰﾀ−宅配仕様 |
1 | ||
| 77310D - CAP ASSY, FUEL TANK | ||||
| 77310-37020 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 77310-37020 |
XZU710,720..SCB..(T3,T5)..MTM..(DCRTJ,DCRTK) ﾌｭｰｴﾙﾀﾝｸ−100L & 有り(ｻﾌﾞﾀﾝｸ:70L) |
2 | ||
| 89742A - TRANSMITTER, DOOR CONTROL | ||||
| 89742-37010 |
XZC710,XZU700,710,720,775..SCB..(DCRTJ,DCRTK) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742-37080 |
XZU700..DM7..IV3;XZU720..40T..IV3;XZU700,710,720..T3..35T..DCRTK..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742-37110 |
XZC710,XZU700,710,720,775..SCB..(DCRTJ,DCRTK) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742-37090 |
XZU700..DM7..IV3;XZU720..40T..IV3;XZU700,710,720..T3..35T..DCRTK..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742-37120 |
XZC710,XZU700,710,720,775..SCB..(DCRTJ,DCRTK) ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742A - TRANSMITTER, DOOR CONTROL | ||||
| 89742-37010 |
XZC710,XZU700,710,720,775..SCB..(DCRTJ,DCRTK) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742-37080 |
XZU700..DM7..IV3;XZU720..40T..IV3;XZU700,710,720..T3..35T..DCRTK..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742-37110 |
XZC710,XZU700,710,720,775..SCB..(DCRTJ,DCRTK) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742-37090 |
XZU700..DM7..IV3;XZU720..40T..IV3;XZU700,710,720..T3..35T..DCRTK..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89742-37120 |
XZC710,XZU700,710,720,775..SCB..(DCRTJ,DCRTK) ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(大型ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 89785B - TRANSMITTER, TRANSPONDER KEY MASTER | ||||
| 89785-37020 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89785-60160 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 89786B - TRANSMITTER, TRANSPONDER KEY SUB | ||||
| 89786-37021 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 ﾌﾞﾗﾝｸｷｰ,ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89786-37040 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 ﾌﾞﾗﾝｸｷｰ |
1 | ||
| 89994B - TRANSMITTER, ELECTRICAL KEY | ||||
| 89994-37010 |
XZC710,XZU700,710,720,730,775..SCB ﾃﾞｭﾄﾛ専用&ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
2 | ||
| 89994-37020 |
XZC710,XZU700,710,720,730,775..SCB ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ) |
2 | ||
| Common parts | ||||
| 75277-37010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
