XZU710-TKFRC3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2017
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

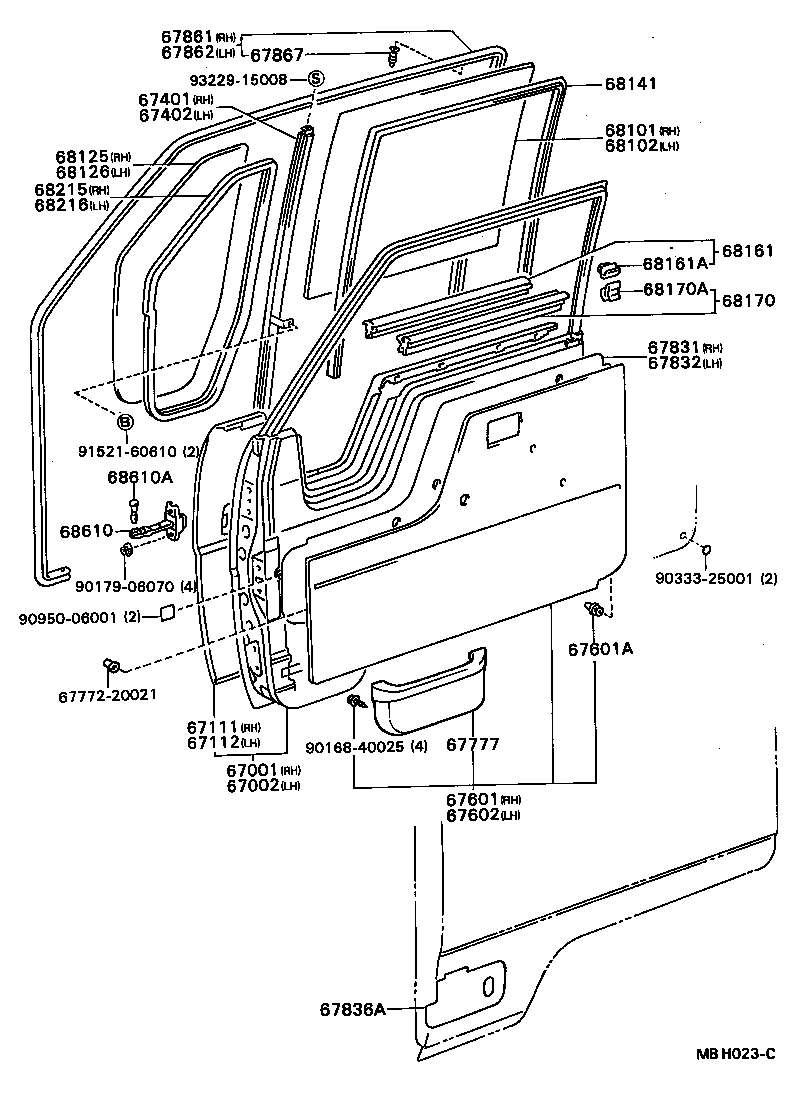

Click highlighted areas on diagram

diagram 67001 67002 67111 67112 67401 67402 67601 67601A 67602 6777220021 67777 67831 67832 67836A 67861 67862 67867 68101 68102 68125 68126 68141 68161 68161A 68170 68170A 68215 68216 68610 68610A 9016840025 9017906070 9033325001 9095006001 9152160610 9322915008
Part # Description Qty Price
Common parts
67772-20021
90168-40025
90179-06070
90333-25001
90950-06001
91521-60610
93229-15008

(8708- )

Click highlighted areas on diagram

diagram 67001 67002 67111 67112 67503A 67504A 67601 67601A 67601B 67602 67626A 67831 67832 67836B 67861 67862 67867C 67868C 68101 68102 68125 68126 68141 68160C 68161A 68170 68170A 68210C 68215 68216 68610 68617 7451 9015960047 9017906070 9018906018 9033325001 9152160610 9322915008
Part # Description Qty Price
Common parts
90159-60047
90179-06070
90189-06018
90333-25001
91521-60610
93229-15008
Linked diagrams
7451

(8808- )

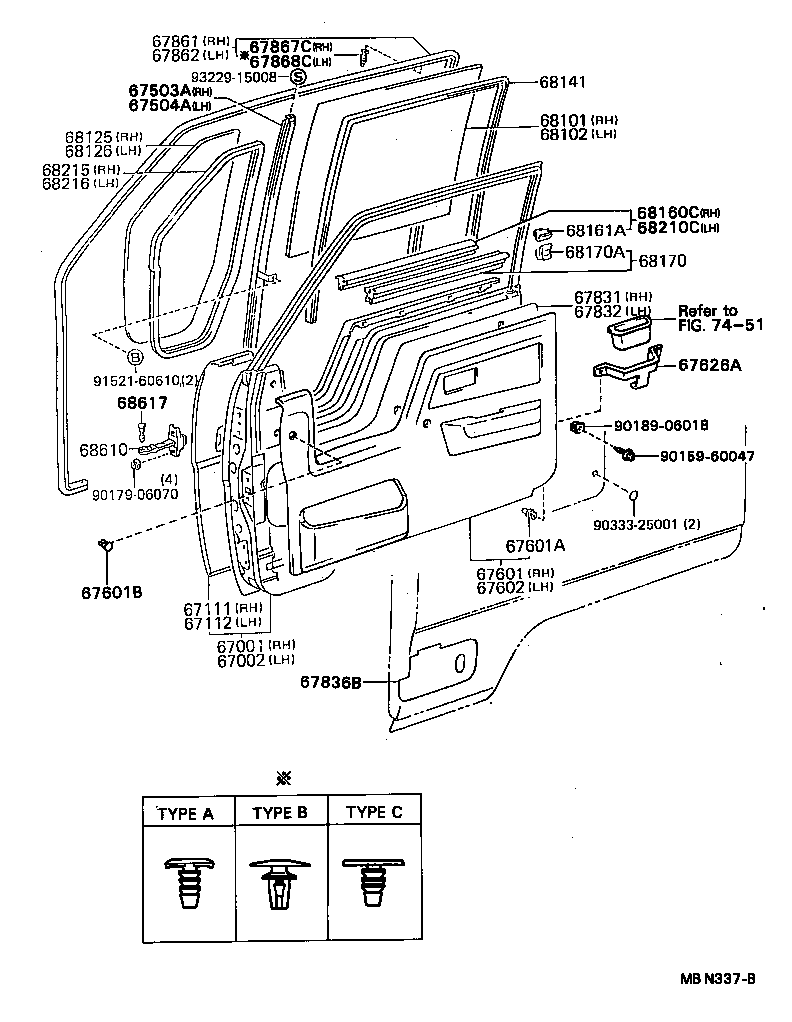

Click highlighted areas on diagram

diagram 67001 67002 67111 67112 67403F 67404F 67485E 67491A 67492A 67504A 67601 67601A 67601B 67601B 67602 67626A 67831 67832 67832 67836B 67861 67862 67867C 67868C 68101 68102 68102 68126 68141 68141 68160C 68161A 68161A 68170 68170 68170A 68170A 68210C 68210C 68216 68610 68617 7451 9011906110 9015960047 9017906070 9018906018 9095006031 9095006057 9095006057 9152140610 9165140612 9322915008 9354054012 9356615516
Part # Description Qty Price
Common parts
90119-06110
90159-60047
90179-06070
90189-06018
90950-06031
90950-06057
91521-40610
91651-40612
93229-15008
93540-54012
93566-15516
Linked diagrams
7451

(7708- )

Click highlighted areas on diagram

diagram 67001 67002 67027 67027A 67111 67112 67401 67402 67407 67408 67439 67601 67601 67602 67602 6777120022 6777120022 6777222010 67777 67831 67832 67861 67862 67867 68101 68102 68141 68161 68170 9011906060 9016840025 9095006001 9152140610 9166140614 9166140614 9351016020
Part # Description Qty Price
Common parts
67771-20022
67772-22010
90119-06060
90168-40025
90950-06001
91521-40610
91661-40614
93510-16020

ILLUST NO. 2 OF 2(1107- )

Click highlighted areas on diagram

ﾄﾞｱﾄﾘﾑ

diagram 6753 67601 67601B 67601L 67602 68171B 68172A 74141A 7451 7451 7456
Part # Description Qty Price

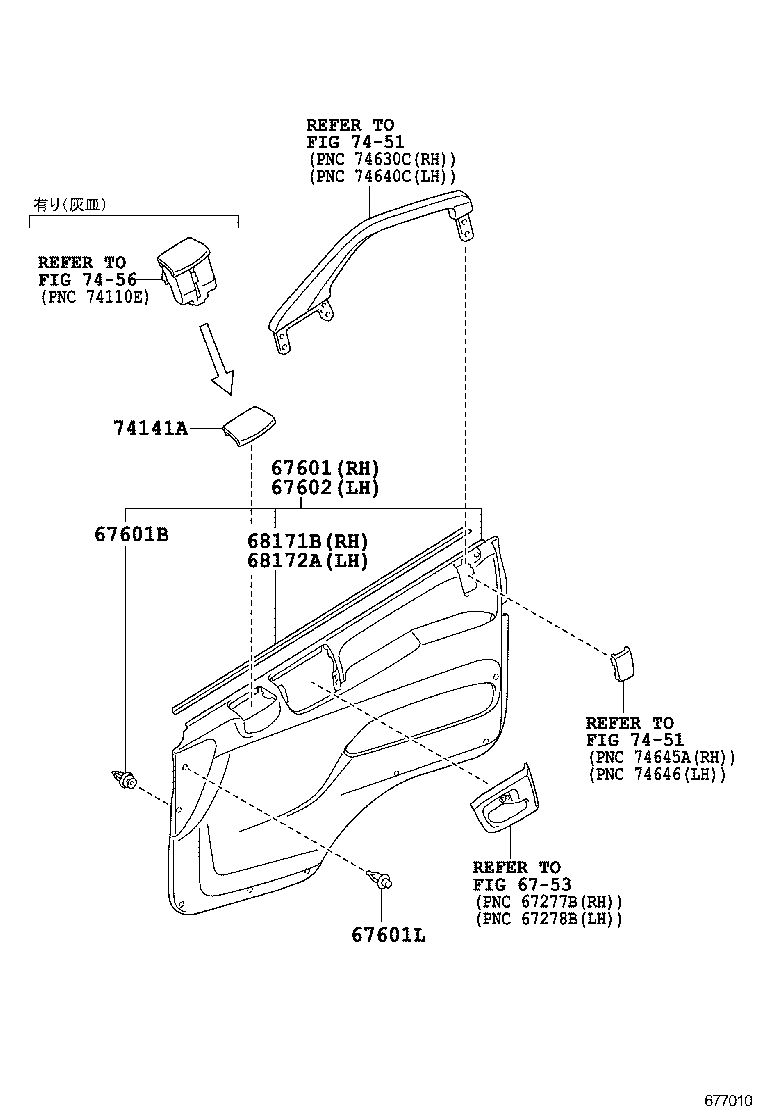

67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-37180B0

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

GRAY,TRIM1#

 1
67601B - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-09206

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 16
67601L - CLIP(FOR FRONT DOOR TRIM BOARD)
90467-07071P4

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

GRAY,TRIM1#

 2
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-37240B0

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

GRAY,TRIM1#

 1
68171B - WEATHERSTRIP, FRONT DOOR GLASS, INNER RH
68171-37040

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
68172A - WEATHERSTRIP, FRONT DOOR GLASS, INNER LH
68172-37030

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
74141A - GARNISH, FRONT ASH RECEPTACLE, NO.1
74141-37020B0

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

GRAY,TRIM1#

 1
Linked diagrams
6753
7451
7456

ILLUST NO. 1 OF 2(1107- )

Click highlighted areas on diagram

ﾄﾞｱﾊﾟﾈﾙ

diagram 53866F 53867F 6221737010 67001 67001A 67002 67403F 67404F 67495A 67496A 67701A 67701A 6777112050 67831 67832 67855B 67856B 67861 67862 67863C 67863C 67867A 67867C 67867G 67868C 67868L 67869E 67869J 67869J 67869J 68101 68102 68141E 68151D 68160C 68210C 68610 68617 68618E 7552 9011908C86 9033325001 9033335004 9046706084 9167180618 9167180618
Part # Description Qty Price
53866F - SEAL, FRONT FENDER TO COWL SIDE, RH
53866-37050

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
53867F - SEAL, FR FENDER TO COWL SIDE, LH
53867-37040

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-37431

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
67001-37430

XZC710,XZU700,710,720,730,775

 1
67001-37590

XZC710,XZU700,710,720,730,775..SCB

ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ｽﾏｰﾄｴﾝﾄﾘ)

 1
67001A - CUSHION, FRONT DOOR PANEL
90541-09031

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 4
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-37461

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
67002-37460

XZC710,XZU700,710,720,730,775

 1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-37040

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-37030

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
67495A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67495-37020

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
67496A - COVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
67496-37020

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
67701A - CLIP(FOR FRONT DOOR TRIM COVER)
90467-07219

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 6
67701A - CLIP(FOR FRONT DOOR TRIM COVER)
90467-07219

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 6
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-37060

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67832-37070

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
67855B - PROTECTOR, FRONT DOOR PANEL, RH
67701-37010

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
67856B - PROTECTOR, FRONT DOOR PANEL, LH
67702-37010

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-37050

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-37060

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
67863C - CLIP(FOR FRONT DOOR NO.2 WEATHERSTRIP)
90467-1001722

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

BLACK

 4
67863C - CLIP(FOR FRONT DOOR NO.2 WEATHERSTRIP)
90467-1001722

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

BLACK

 4
67867A - CLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
90467-04034

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 6
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67867-12150

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 27
67867G - RETAINER, DOOR WEATHERSTRIP, RH
67867-52040

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 10
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67867-12150

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 27
67868L - RETAINER, DOOR WEATHERSTRIP, LH
67867-52010

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 10
67869E - CLIP, FRONT DOOR WEATHERSTRIP
67869-22010

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 2
67869J - CLIP, FRONT DOOR WEATHERSTRIP
90467-1001722

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

BLACK

 6
67869J - CLIP, FRONT DOOR WEATHERSTRIP
90467-1001722

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

BLACK

 6
67869J - CLIP, FRONT DOOR WEATHERSTRIP
90467-1001722

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

BLACK

 6
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68101-37140

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

*UVCT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68102-37150

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

*UVCT,厚さ=3.5,ｸﾞﾘｰﾝ

 1
68141E - RUN, FRONT DOOR GLASS, RH
68141-37060

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
68151D - RUN, FRONT DOOR GLASS, LH
68151-37060

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
68160C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH
68161-37031

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
68161-37030

XZC710,XZU700,710,720,730

 1
68210C - WEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH
68162-37021

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
68162-37020

XZC710,XZU700,710,720,730

 1
68610 - CHECK ASSY, FRONT DOOR
68610-37050

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 2
68610-37060

XZU700,775..IV3;XZU710,720..(30T,35T,40T)..IV3

塵芥車仕様

 2
68610-37060

XZU720..35T..DCRTK..IV3;XZU720..MTM..DCRTJ..IV3;XZU720..T3..(30T,40T)..IV3;XZU710..SCB..(5F,6FC)..DCRTJ..IV3;XZU710..6F..(30T,40T)..(DCRTJ,DCRTK)..IV3;XZU700,710..(T3,T5)..(20T,35T)..DCRTK..IV3

ｽﾀｰﾀ−宅配仕様

 2
68617 - PIN, FRONT DOOR CHECK
68617-20011

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 2
68618E - BRACKET, FRONT DOOR CHECK ARM
68618-37030

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 2
Common parts
62217-37010
67771-12050
90119-08C86
90333-25001
90333-35004
90467-06084
91671-80618
Linked diagrams
7552
