XZU710-TKFRC3 (2011)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(7708- )HU30,JU20,RU2#,3#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90117-12003 | ||||
| 90119-08108 | ||||
| 90179-08146 | ||||
| 90201-09368 | ||||
| 90950-01004 | ||||
| 91121-40865 | ||||
| 91611-40820 | ||||
| 91611-40825 | ||||
| 91611-41025 | ||||
| 91651-40816 | ||||
| 91651-41025 | ||||
| 91661-40840 | ||||
| 91669-61245 | ||||
| 91669-61250 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94115-51200 | ||||
| 94120-40800 | ||||
| 94125-41200 | ||||
| 94612-11001 | ||||
| 94614-10800 | ||||
| 94614-11200 | ||||

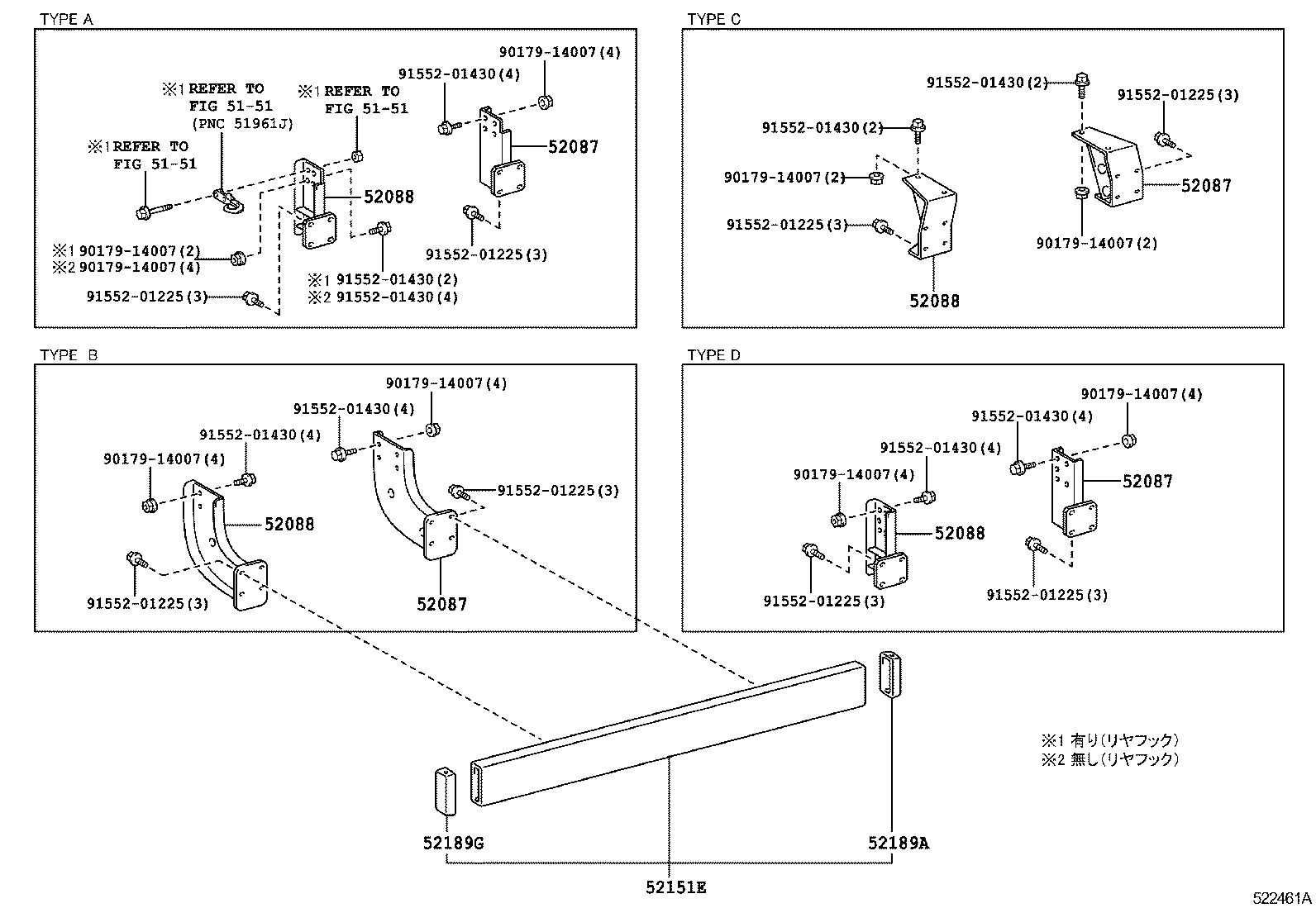

ILLUST NO. 1 OF 2(1107-1705) ; (1705- )DCRTJ,DCRTK,DCRTL,DCRVT,DCRVU..CBU,IV3 ; (1905- )DCRWD,
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52151-37420 |
XZU710..T3,T4;XZC710,XZU720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 52151-37420 |
XZU710..SCB..5F..CBU;XZC710,XZU710,720,730..SCB..IV3 ﾘﾔﾊﾞﾝﾊﾟ−無し,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52151-37420 |
XZU710..T3,T4;XZC710,XZU720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 52151-37420 |
XZU710..SCB..5F..CBU;XZC710,XZU710,720,730..SCB..IV3 ﾘﾔﾊﾞﾝﾊﾟ−無し,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52151-37420 |
XZU710..T3,T4;XZC710,XZU720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 52151-37420 |
XZU710..SCB..5F..CBU;XZC710,XZU710,720,730..SCB..IV3 ﾘﾔﾊﾞﾝﾊﾟ−無し,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 52087 - STAY SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52151-37420 |
XZU710..T3,T4;XZC710,XZU720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 52151-37420 |
XZU710..SCB..5F..CBU;XZC710,XZU710,720,730..SCB..IV3 ﾘﾔﾊﾞﾝﾊﾟ−無し,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52152-37170 |
XZU710..T3,T4;XZC710,XZU720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 52152-37170 |
XZU710..SCB..5F..CBU;XZC710,XZU710,720,730..SCB..IV3 ﾘﾔﾊﾞﾝﾊﾟ−無し,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52152-37170 |
XZU710..T3,T4;XZC710,XZU720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 52152-37170 |
XZU710..SCB..5F..CBU;XZC710,XZU710,720,730..SCB..IV3 ﾘﾔﾊﾞﾝﾊﾟ−無し,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52152-37170 |
XZU710..T3,T4;XZC710,XZU720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 52152-37170 |
XZU710..SCB..5F..CBU;XZC710,XZU710,720,730..SCB..IV3 ﾘﾔﾊﾞﾝﾊﾟ−無し,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 52088 - STAY SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52152-37170 |
XZU710..T3,T4;XZC710,XZU720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 52152-37170 |
XZU710..SCB..5F..CBU;XZC710,XZU710,720,730..SCB..IV3 ﾘﾔﾊﾞﾝﾊﾟ−無し,TYPE B:ｲﾗｽﾄ参照 |
1 | ||
| 52151E - BAR, REAR BUMPER | ||||
| 52105-37320 |
XZU700,710,720,730..30T,35T,40T 塗装不要 |
1 | ||
| 52105-37320 |
XZU700,710,720,730..(30T,35T,40T)..IV3 ﾘﾔﾊﾞﾝﾊﾟ−無し |
1 | ||
| 52189A - PROTECTOR, REAR BUMPER ARM EDGE, RH | ||||
| 52189-37060 |
XZU710..SCB..5F..CBU;XZC710,XZU700,710,720,730,775..SCB..IV3 ﾘﾔﾊﾞﾝﾊﾟ−無し |
1 | ||
| 52189-37060 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 52189G - PROTECTOR, REAR BUMPER ARM EDGE, LH | ||||
| 52189-37060 |
XZU710..SCB..5F..CBU;XZC710,XZU700,710,720,730,775..SCB..IV3 ﾘﾔﾊﾞﾝﾊﾟ−無し |
1 | ||
| 52189-37060 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| Common parts | ||||
| 90179-14007 | ||||
| 91552-01225 | ||||
| 91552-01430 | ||||
| Linked diagrams | ||||
| 5151 | ||||
