XZU710-TKFRC3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2017
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8708- )CBU,IV3

Click highlighted areas on diagram

diagram 33111G 33203B 33205 33205A 33205D 33205H 33208 33212A 33213B 33213B 33213B 33213G 33214G 33232A 33234A 33243A 33244D 33251 33251F 33251P 33251P 33252A 33252B 33253 33257 33261C 33263C 33263D 33263E 33264 33264A 33264B 33265 33275A 33275A 33275A 33275B 33275B 33275B 33276E 33282 33282 33531B 9011908332 9161160835 9411040600 9411040800 9451200600 9451200800
Part # Description Qty Price
Common parts
90119-08332
91611-60835
94110-40600
94110-40800
94512-00600
94512-00800

(1107- )XZU700,710,720..6F..DCRTJ,DCRTK ; (1705- )6F..DCRTJ,DCRTK

Click highlighted areas on diagram

MYY6S

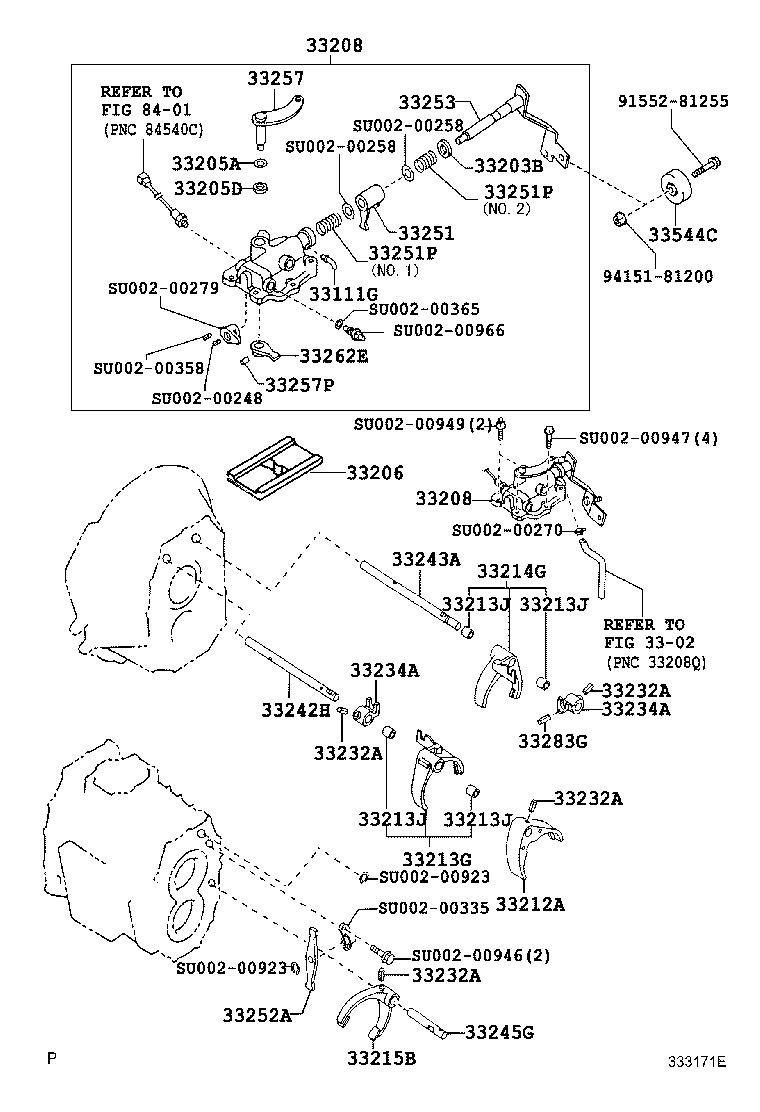

diagram 3302 33111G 33203B 33205A 33205D 33206 33208 33212A 33213G 33213J 33213J 33213J 33213J 33214G 33215B 33232A 33232A 33232A 33232A 33234A 33234A 33242H 33243A 33245G 33251 33251P 33251P 33252A 33253 33257 33257P 33262E 33283G 33544C 8401 9155281255 9415181200 SU00200248 SU00200258 SU00200258 SU00200270 SU00200279 SU00200335 SU00200358 SU00200365 SU00200923 SU00200923 SU00200946 SU00200947 SU00200949 SU00200966
Part # Description Qty Price
33111G - PLUG, BREATHER(FOR MANUAL TRANSMISSION)
SU002-00471

XZU700,710,720..6F..(DCRTJ,DCRTK)

 1
33203B - SEAL, OIL(FOR SHIFT LEVER SHAFT)
SU002-00355

XZU775;XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU

 1
33205A - SEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
SU002-00264

XZU775;XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU

 1
33205D - WASHER(FOR OUTER LEVER OIL SETTING)
SU002-00357

XZU775;XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU

 1
33206 - PLATE SUB-ASSY, SHIFT INTER LOCK
SU002-01049

XZU710..T5..6F..IV3;XZU710..40T..DCRTK..IV3;XZU720..6F..(20T,30T,35T);XZU710..(T3,T5)..(20T,40T)..DCRTK..CBU;XZU700,710,730..(T3,T4)..6F..(20T,30T,35T)

 1
33208 - HOUSING SUB-ASSY, SHIFT LEVER SHAFT
SU002-00986

XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU

 1
33212A - FORK, GEAR SHIFT, NO.1
SU002-00240

XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK)

 1
33213G - FORK, GEAR SHIFT, NO.2
SU002-00939

XZU700,710,720..6F..(DCRTJ,DCRTK)

 1
SU002-01056

XZU700,710,720..6F..(DCRTJ,DCRTK)

 1
33213J - BUSHING, SHIFT ARM
SU002-01017

XZU700,710,720..6F..(DCRTJ,DCRTK)

 4
33213J - BUSHING, SHIFT ARM
SU002-01017

XZU700,710,720..6F..(DCRTJ,DCRTK)

 4
33213J - BUSHING, SHIFT ARM
SU002-01017

XZU700,710,720..6F..(DCRTJ,DCRTK)

 4
33213J - BUSHING, SHIFT ARM
SU002-01017

XZU700,710,720..6F..(DCRTJ,DCRTK)

 4
33214G - FORK, GEAR SHIFT, NO.3
SU002-00708

XZU700,710,720..6F..(DCRTJ,DCRTK)

 1
33215B - FORK, GEAR SHIFT, NO.4
SU002-00331

XZU700,710,720..6F..(DCRTJ,DCRTK)

 1
33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
SU002-00127

XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK)

 4
33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
SU002-00127

XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK)

 4
33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
SU002-00127

XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK)

 4
33232A - PIN, SLOTTED SPRING (FOR SHIFT HEAD SET)
SU002-00127

XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK)

 4
33234A - HEAD, GEAR SHIFT, NO.3
SU002-00281

XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU

 2
33234A - HEAD, GEAR SHIFT, NO.3
SU002-00281

XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU

 2
33242H - SHAFT, GEAR SHIFT FORK, NO.1
SU002-00518

XZU775;XZU700,710,720..6F..(DCRTJ,DCRTK)

 1
33243A - SHAFT, GEAR SHIFT FORK, NO.2
SU002-00709

XZU700,710,720..6F..(DCRTJ,DCRTK)

 1
33245G - SHAFT, GEAR SHIFT FORK, NO.4
SU002-01033

XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU

 1
33251 - LEVER, SHIFT & SELECT
SU002-00249

XZU775;XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU

 1
33251P - SPRING (FOR SHIFT & SELECT LEVER)
SU002-00353

XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU

NO.2

 1
SU002-00352

XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU

NO.1

 1
33251P - SPRING (FOR SHIFT & SELECT LEVER)
SU002-00353

XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU

NO.2

 1
SU002-00352

XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU

NO.1

 1
33252A - LEVER, SHIFT, INNER NO.2
SU002-00334

XZU700,710,720..6F..(DCRTJ,DCRTK)

 1
33253 - LEVER, SHIFT OUTER, NO.1
SU002-00246

XZU700,710,720..6F..(DCRTJ,DCRTK)

 1
33257 - LEVER, SELECT OUTER
SU002-00983

XZU710..T5..6F..IV3;XZU710..40T..DCRTK..IV3;XZU720..6F..(20T,30T,35T);XZU710..(T3,T5)..(20T,40T)..DCRTK..CBU;XZU700,710,730..(T3,T4)..6F..(20T,30T,35T)

 1
33257P - PIN, SELECT OUTER LEVER LOCK
SU002-00271

XZU775;XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU

 1
33262E - SHAFT, SELECT LEVER
SU002-00252

XZU775;XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU

 1
33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN)
SU002-00272

XZU775;XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU

 1
33544C - DAMPER, SHIFT LEVER
33544-37020

XZU700,720,730..6F;XZU710..(T3,T4)..6F;XZU710..T5..6F..IV3;XZU710..T5..DCRTK..CBU

 1
Common parts
91552-81255
94151-81200
SU002-00248
SU002-00258
SU002-00270
SU002-00279
SU002-00335
SU002-00358
SU002-00365
SU002-00923
SU002-00946
SU002-00947
SU002-00949
SU002-00966
