XZU710-TKFRC (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2017
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8409- )

Click highlighted areas on diagram

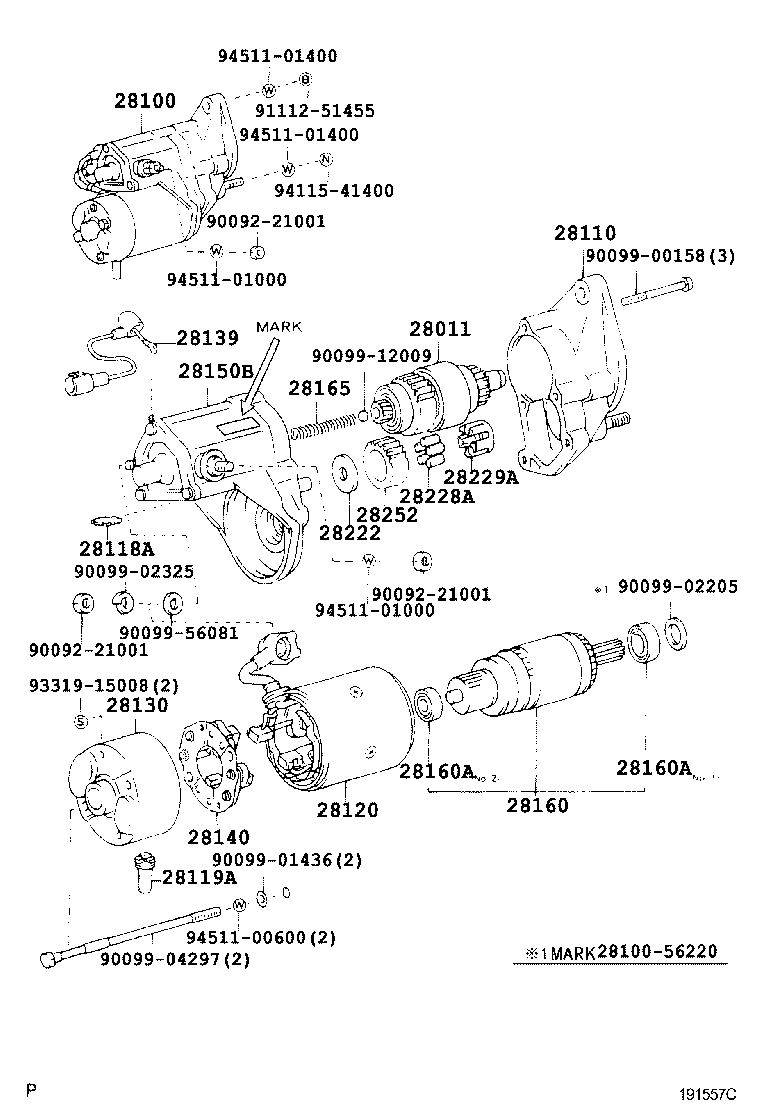

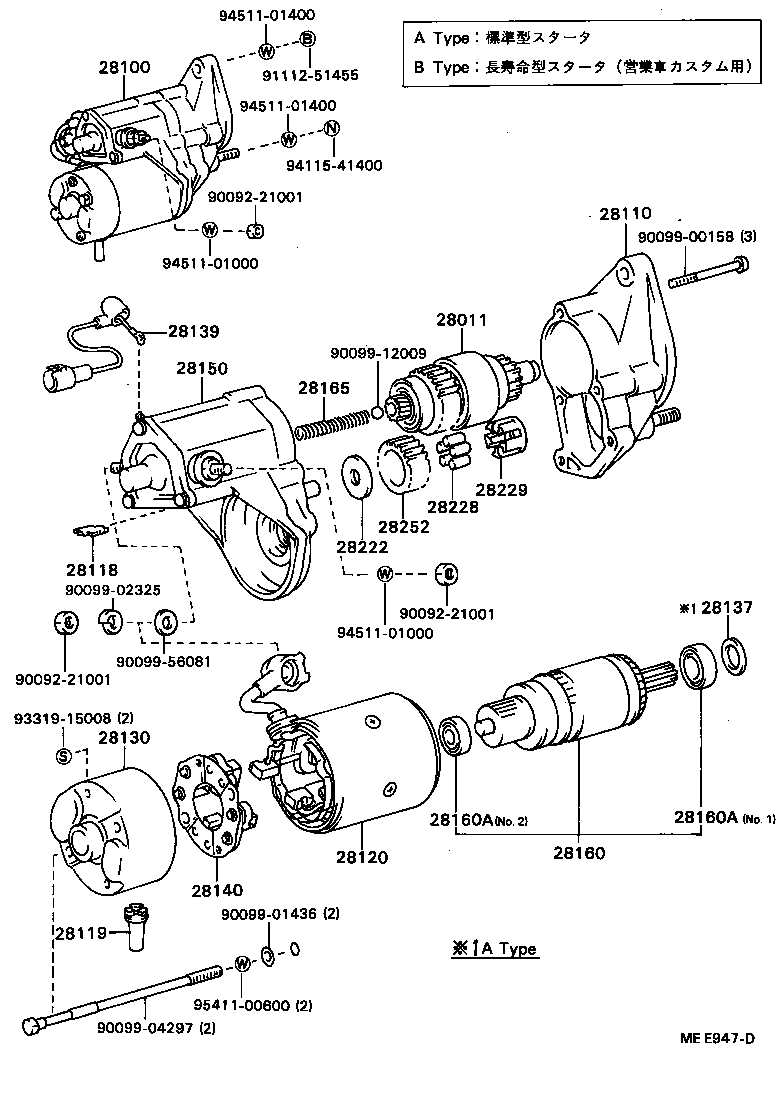

24V 4.5KW

diagram 28011 28100 28110 28118 28119 28120 28130 28137 28139 28140 28150 28160 28160A 28160A 28165 28222 28228 28229 28252 9009221001 9009221001 9009221001 9009900158 9009901436 9009902325 9009904297 9009912009 9009956081 9111251455 9331915008 9411541400 9451101000 9451101000 9451101400 9451101400 9541100600
Part # Description Qty Price
Common parts
90092-21001
90099-00158
90099-01436
90099-02325
90099-04297
90099-12009
90099-56081
91112-51455
93319-15008
94115-41400
94511-01000
94511-01400
95411-00600

(8708- )

Click highlighted areas on diagram

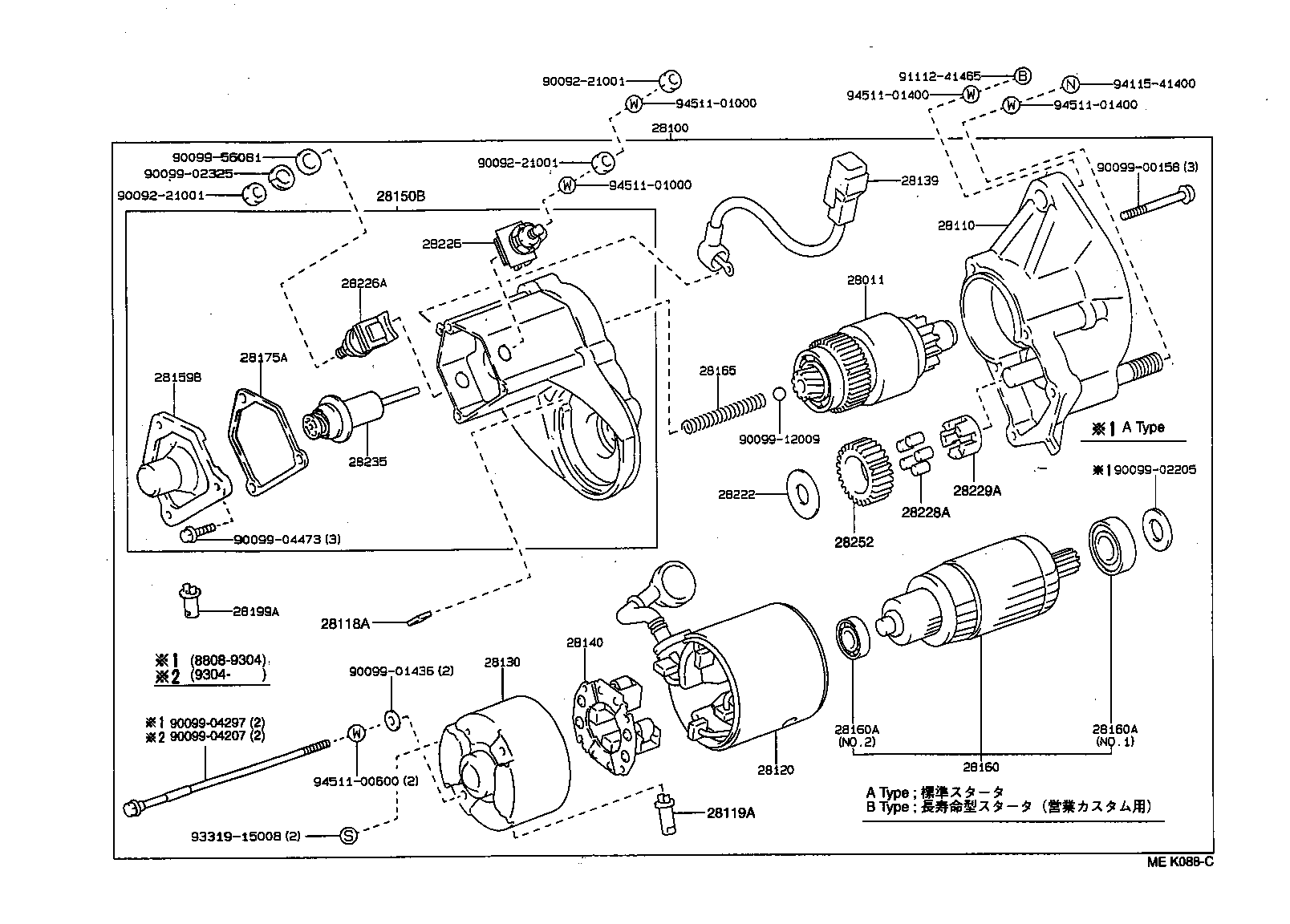

24V 4.5KW

diagram 28011 28100 2810056220 28110 28118A 28119A 28120 28130 28139 28140 28150B 28160 28160A 28160A 28165 28222 28228A 28229A 28252 9009221001 9009221001 9009221001 9009900158 9009901436 9009902205 9009902325 9009904297 9009912009 9009956081 9111251455 9331915008 9411541400 9451100600 9451101000 9451101000 9451101400 9451101400
Part # Description Qty Price
Common parts
28100-56220
90092-21001
90099-00158
90099-01436
90099-02205
90099-02325
90099-04297
90099-12009
90099-56081
91112-51455
93319-15008
94115-41400
94511-00600
94511-01000
94511-01400

(8708- )

Click highlighted areas on diagram

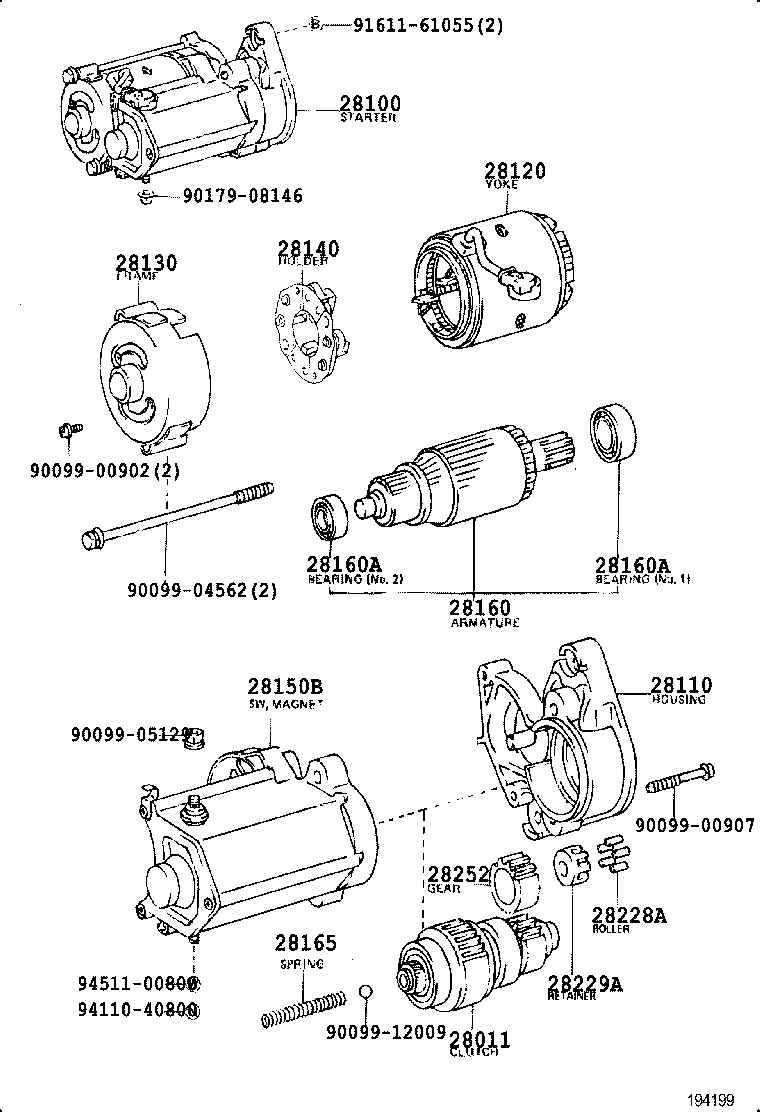

12V 1.0KW

diagram 28011 28100 28110 28120 28130 28140 28150B 28160 28160A 28160A 28165 28228A 28229A 28252 9009900902 9009900907 9009904562 9009905129 9009912009 9017908146 9161161055 9411040800 9451100800
Part # Description Qty Price
Common parts
90099-00902
90099-00907
90099-04562
90099-05129
90099-12009
90179-08146
91611-61055
94110-40800
94511-00800

(8808- )B,11B,13BT,14B#,3B

Click highlighted areas on diagram

24V 4.5KW

diagram 28011 28100 28110 28118A 28119A 28120 28130 28139 28140 28150B 28159B 28160 28160A 28160A 28165 28175A 28199A 28222 28226 28226A 28228A 28229A 28235 28252 9009221001 9009221001 9009221001 9009900158 9009901436 9009902205 9009902325 9009904207 9009904297 9009904473 9009912009 9009956081 9111241465 9331915008 9411541400 9451100600 9451101000 9451101000 9451101400 9451101400
Part # Description Qty Price
Common parts
90092-21001
90099-00158
90099-01436
90099-02205
90099-02325
90099-04207
90099-04297
90099-04473
90099-12009
90099-56081
91112-41465
93319-15008
94115-41400
94511-00600
94511-01000
94511-01400

(1107- )N04C..XZC710,XZU700,710,720,730,775..MTM..DCRTJ,DCRTK,DCRTL ; (1705-

Click highlighted areas on diagram

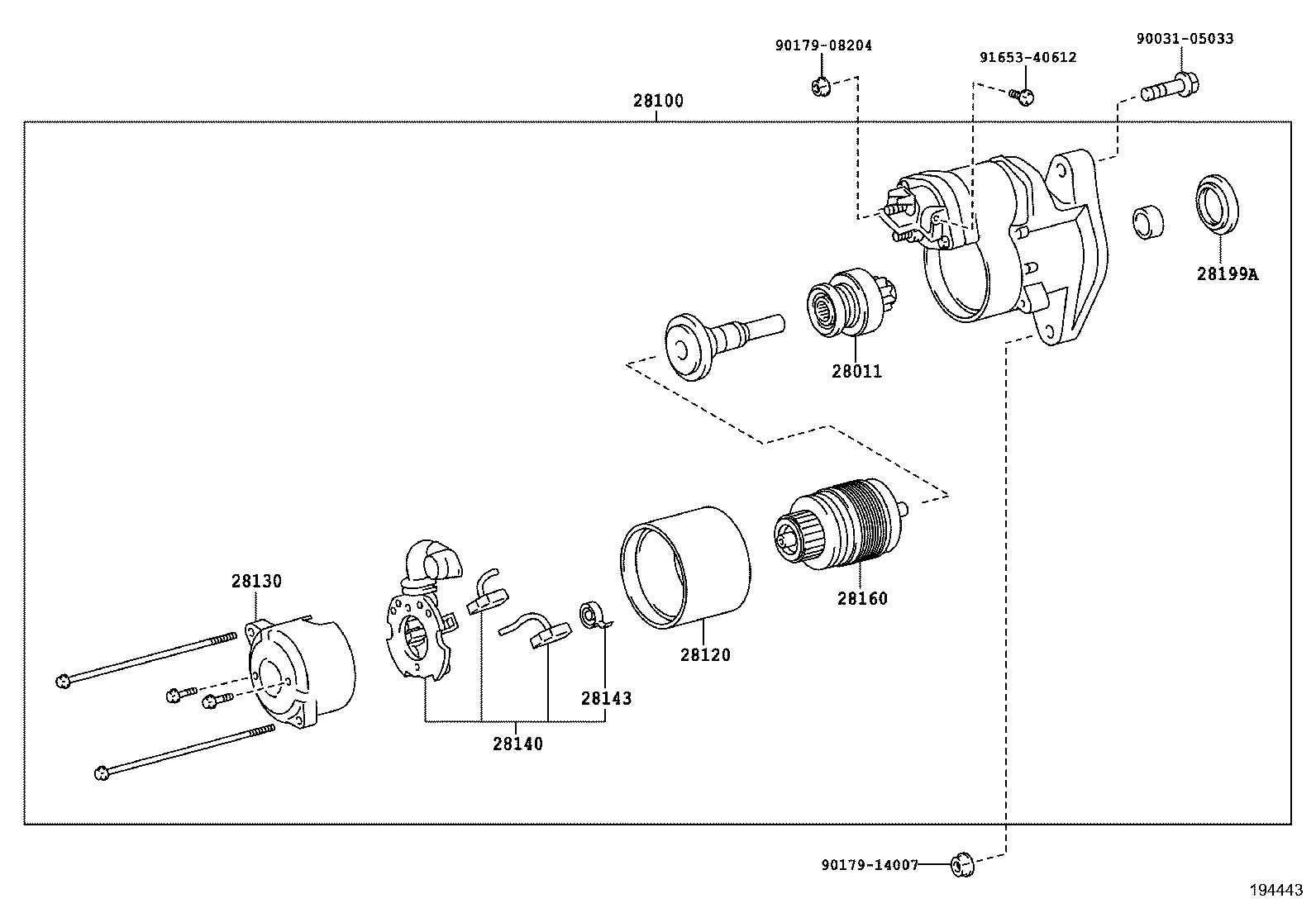

24V 5.0KW

diagram 28011 28100 28120 28130 28140 28143 28160 28199A 9003105033 9017908204 9017914007 9165340612
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-78111

N04C..XZU710..(T3,T4)..MTM;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775..MTM

 1
28100 - STARTER ASSY
28100-78113

N04C..XZU710..(T3,T4)..MTM;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775..MTM

24V 5.0KW

 1
28100-78114

N04C..XZC710,XZU700,710,720,730,775..MTM

24V 5.0KW

 1
28100-78115

N04C..XZC710,XZU700,710,720,730,775..MTM

24V 5.0KW

 1
28120 - YOKE ASSY, STARTER
28120-78111

N04C..XZU710..(T3,T4)..MTM;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775..MTM

 1
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-78110

N04C..XZU710..(T3,T4)..MTM;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775..MTM

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-78110

N04C..XZU710..(T3,T4)..MTM;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775..MTM

 1
28143 - SPRING, STARTER BRUSH
S2814-31200

N04C..XZU710..(T3,T4)..MTM;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775..MTM

 4
28160 - ARMATURE ASSY, STARTER
28160-78111

N04C..XZC710,XZU700,710,720,730,775

 1
28160-78110

N04C..XZU710..T3,T4;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775

 1
28199A - PROTECTOR, DUST STARTER
S2819-91100

N04C..XZC710,XZU700,710,720,730,775..MTM

 1
S2819-91100

N04C..XZU710..(T3,T4)..MTM;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU710..T5..(DCRTJ,DCRTK);N04C..XZC710,XZU700,720,730,775..MTM

 2
Common parts
90031-05033
90179-08204
90179-14007
91653-40612
