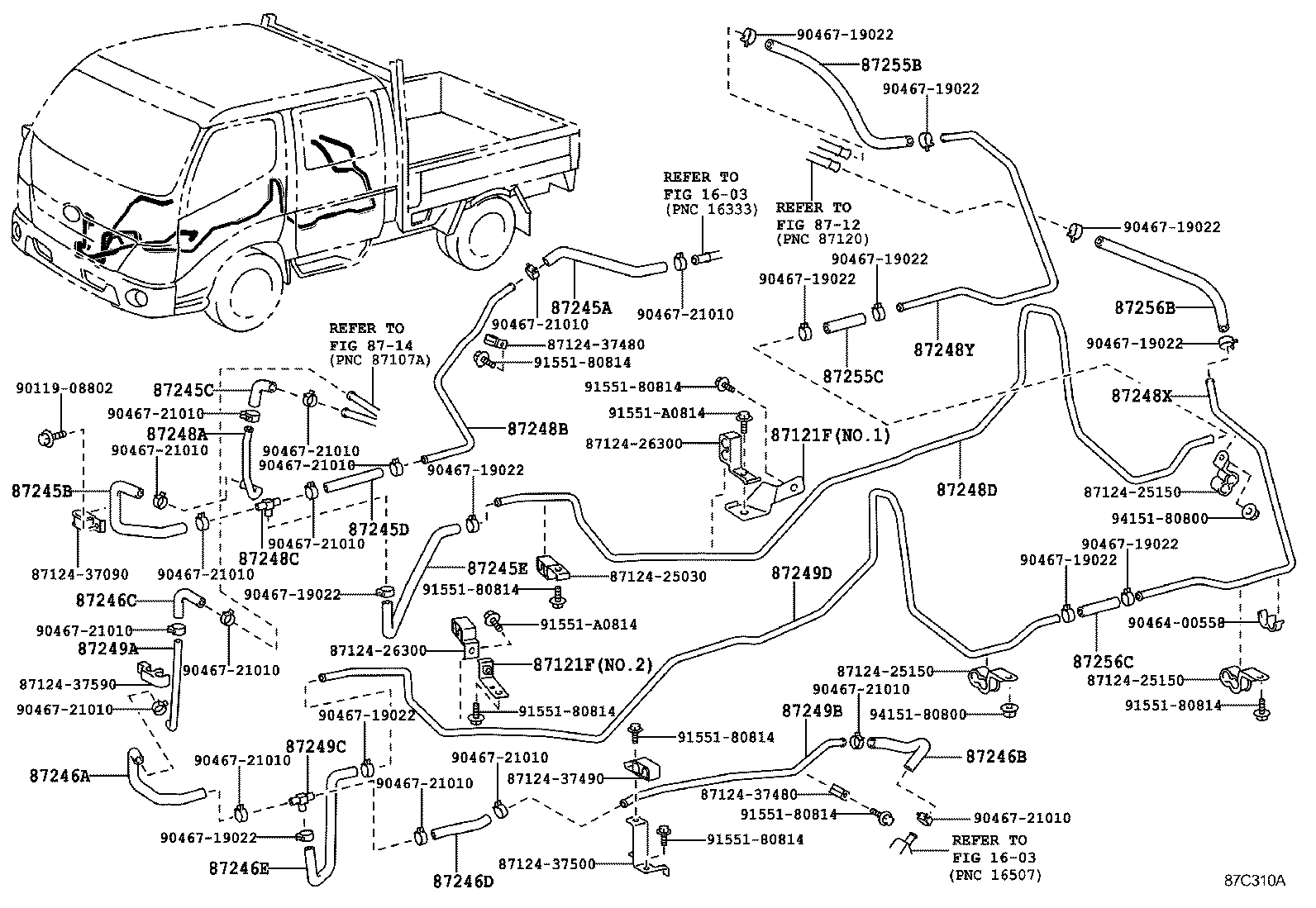

XZU710-PQTMB (2011)
Toyota Dyna/Toyoace
(1108- )DCB..DCRTJ
ｱﾘ(ﾘﾔﾋｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87121F - BRACKET, HEATER | ||||
| 87121-37200 |
XZU710..DCB ﾘﾔﾋｰﾀ−有り,NO.1 |
1 | ||
| 87121-37210 |
XZU710..DCB ﾘﾔﾋｰﾀ−有り,NO.2 |
1 | ||
| 87121F - BRACKET, HEATER | ||||
| 87121-37200 |
XZU710..DCB ﾘﾔﾋｰﾀ−有り,NO.1 |
1 | ||
| 87121-37210 |
XZU710..DCB ﾘﾔﾋｰﾀ−有り,NO.2 |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-37A10 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 87245-37A10 |
XZU710..DCB ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-37F40 |
XZU710..DCB ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87245-37F30 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-37F10 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 87245-37F10 |
XZU710..DCB ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87245D - HOSE, HEATER WATER, INLET D | ||||
| 99556-30200 |
XZU710..DCB *H,L=150,ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 87245-37F00 |
XZU710..DCB ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87246-37840 |
XZU710..DCB ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87246-37820 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87246-37790 |
XZU710..DCB ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87246-37791 |
XZU710..DCB ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87246-37790 |
XZU710..DCB |
1 | ||
| 87246-37791 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 87246-37810 |
XZU710..DCB ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87246-37810 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 87246D - HOSE, HEATER WATER, OUTLET D | ||||
| 99556-30175 |
XZU710..DCB 長さ=175,ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87246-37800 |
XZU710..DCB ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-37D70 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-37D90 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 87248C - PIPE, HEATER WATER INLET, C | ||||
| 87248-52010 |
XZU710..DCB ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87248-60460 |
XZU710..DCB ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87248D - PIPE, HEATER WATER INLET, D | ||||
| 87248-37E20 |
XZU710..DCB ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87248X - PIPE, HEATER WATER | ||||
| 87248-37E40 |
XZU710..DCB ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87248Y - PIPE, HEATER WATER, NO.2 | ||||
| 87248-37E50 |
XZU710..DCB ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-37D40 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-37D50 |
XZU710..DCB |
1 | ||
| 87248-37D51 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 87249C - PIPE, HEATER WATER OUTLET, C | ||||
| 87248-52010 |
XZU710..DCB ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87248-60460 |
XZU710..DCB ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87249D - PIPE, HEATER WATER OUTLET, D | ||||
| 87248-37E10 |
XZU710..DCB ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87248-37E11 |
XZU710..DCB ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87255B - HOSE, REAR HEATER WATER INLET, B | ||||
| 99556-20300 |
XZU710..DCB 長さ=300,ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87255C - HOSE, REAR HEATER WATER INLET, C | ||||
| 99556-20200 |
XZU710..DCB *H,L=110,ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87256B - HOSE, REAR HEATER WATER OUTLET, B | ||||
| 99556-20300 |
XZU710..DCB 長さ=300,ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87256C - HOSE, REAR HEATER WATER OUTLET, C | ||||
| 99556-20200 |
XZU710..DCB *H,L=110,ﾘﾔﾋｰﾀ−有り |
1 | ||
| Common parts | ||||
| 87124-25030 | ||||
| 87124-25150 | ||||
| 87124-26300 | ||||
| 87124-37090 | ||||
| 87124-37480 | ||||
| 87124-37490 | ||||
| 87124-37500 | ||||
| 87124-37590 | ||||
| 90119-08802 | ||||
| 90464-00558 | ||||
| 90467-19022 | ||||
| 90467-21010 | ||||
| 91551-80814 | ||||
| 91551-A0814 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8712 | ||||
| 8714 | ||||
