XZU710-PQMMB3 (2017)

Toyota Dyna/Toyoace

Production May 2017 - May 2019
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 4 OF 4(1705- )DCB

Click highlighted areas on diagram

ｱﾘ(ﾌﾛﾝﾄﾊﾞｲｻﾞ)

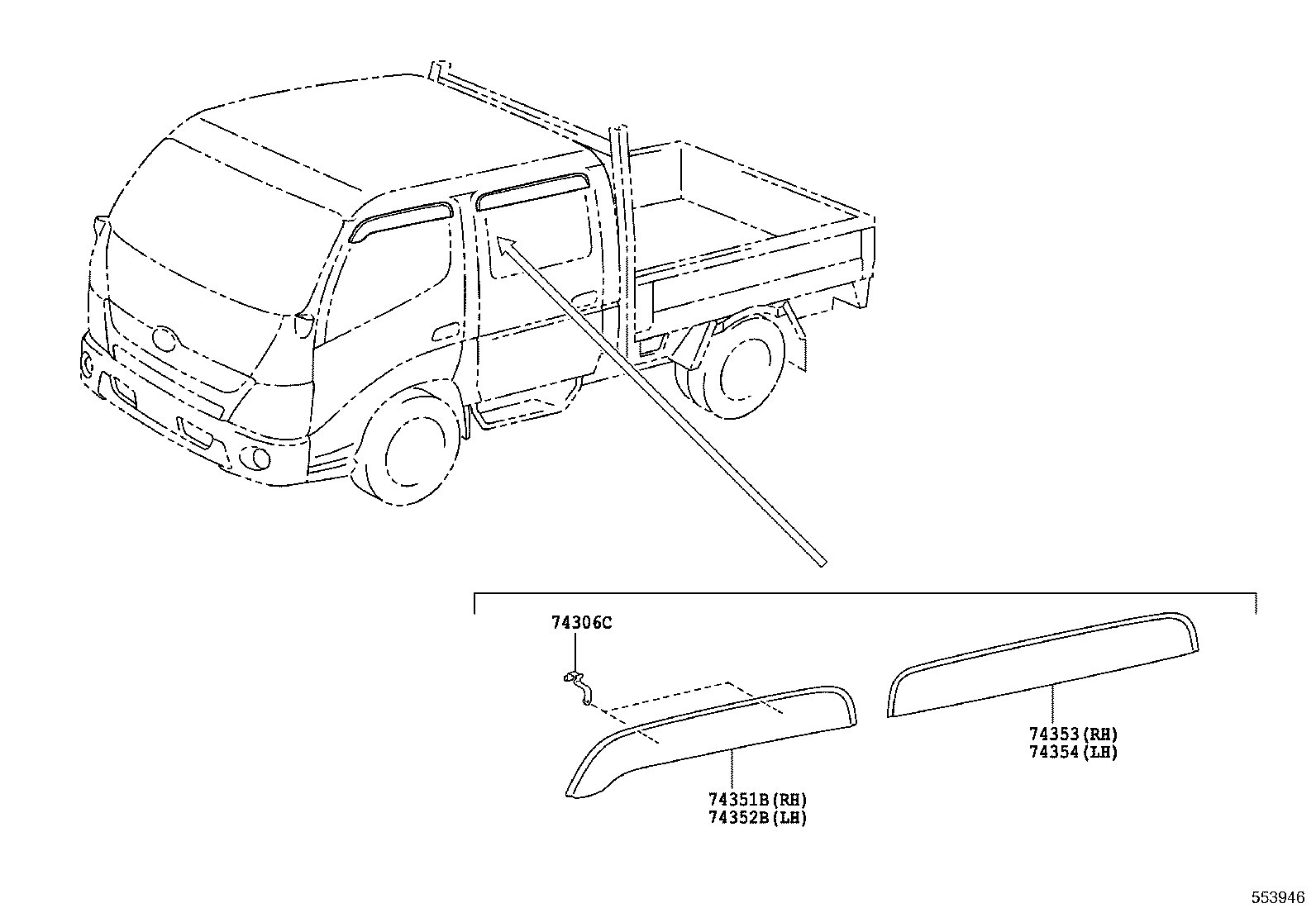

diagram 74306C 74351B 74352B 74353 74354
Part # Description Qty Price
74306C - SUPPORT SUB-ASSY, SIDE VISOR
74306-37100

XZU710..DCB

ｻﾝｼｪｰﾄﾞ−有り(ｻｲﾄﾞﾊﾞｲｻﾞ)

 4
74351B - COVER, VISOR
74351-37090

XZU710..DCB

ｻﾝｼｪｰﾄﾞ−有り(ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ TOYOTA

 1
74351-37080

XZU710..DCB

ｻﾝｼｪｰﾄﾞ−有り(ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ HINO

 1
74352B - COVER, VISOR
74352-37080

XZU710..DCB

ｻﾝｼｪｰﾄﾞ−有り(ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ HINO

 1
74352-37090

XZU710..DCB

ｻﾝｼｪｰﾄﾞ−有り(ｻｲﾄﾞﾊﾞｲｻﾞ),ﾏｰｸ TOYOTA

 1
74353 - COVER, VISOR, C
74353-37060

XZU710..DCB

ｻﾝｼｪｰﾄﾞ−有り(ｻｲﾄﾞﾊﾞｲｻﾞ)

 1
74354 - COVER, VISOR, D
74354-37020

XZU710..DCB

ｻﾝｼｪｰﾄﾞ−有り(ｻｲﾄﾞﾊﾞｲｻﾞ)

 1
