XZU710-PQMMB3 (2011)

Toyota Dyna/Toyoace

Production Aug 2011 - May 2017
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )DCB

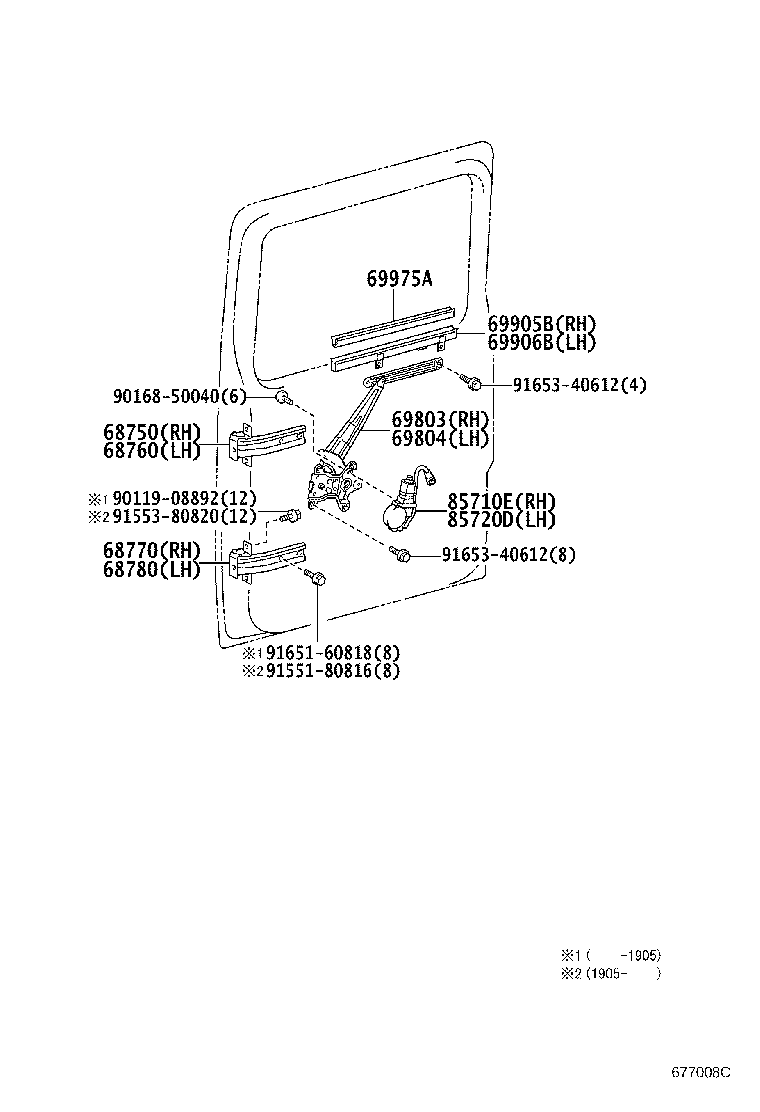

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69803 69804 69905B 69906B 69975A 85710E 85720D 9011908892 9016850040 9155180816 9155380820 9165160818 9165340612 9165340612
Part # Description Qty Price
68750 - HINGE ASSY, REAR DOOR, UPPER RH
S6933-01010

XZU710..DCB

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
S6933-01010

XZU710..DCB

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
S6933-01010

XZU710..DCB

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
S6933-01010

XZU710..DCB

 1
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-37030

XZU710..DCB

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-37030

XZU710..DCB

 1
69905B - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69905-37020

XZU710..DCB

 1
69906B - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69906-37020

XZU710..DCB

 1
69975A - FILLER, REAR DOOR GLASS CHANNEL
69975-37020

XZU710..DCB

 2
85710E - MOTOR ASSY, POWER WINDOW REGULATOR, RH
85720-37060

XZU710..DCB

 1
85720D - MOTOR ASSY, POWER WINDOW REGULATOR, LH
85710-37050

XZU710..DCB

 1
Common parts
90119-08892
90168-50040
91551-80816
91553-80820
91651-60818
91653-40612
