XZU710-PQMMB3 (2011)
Toyota Dyna/Toyoace

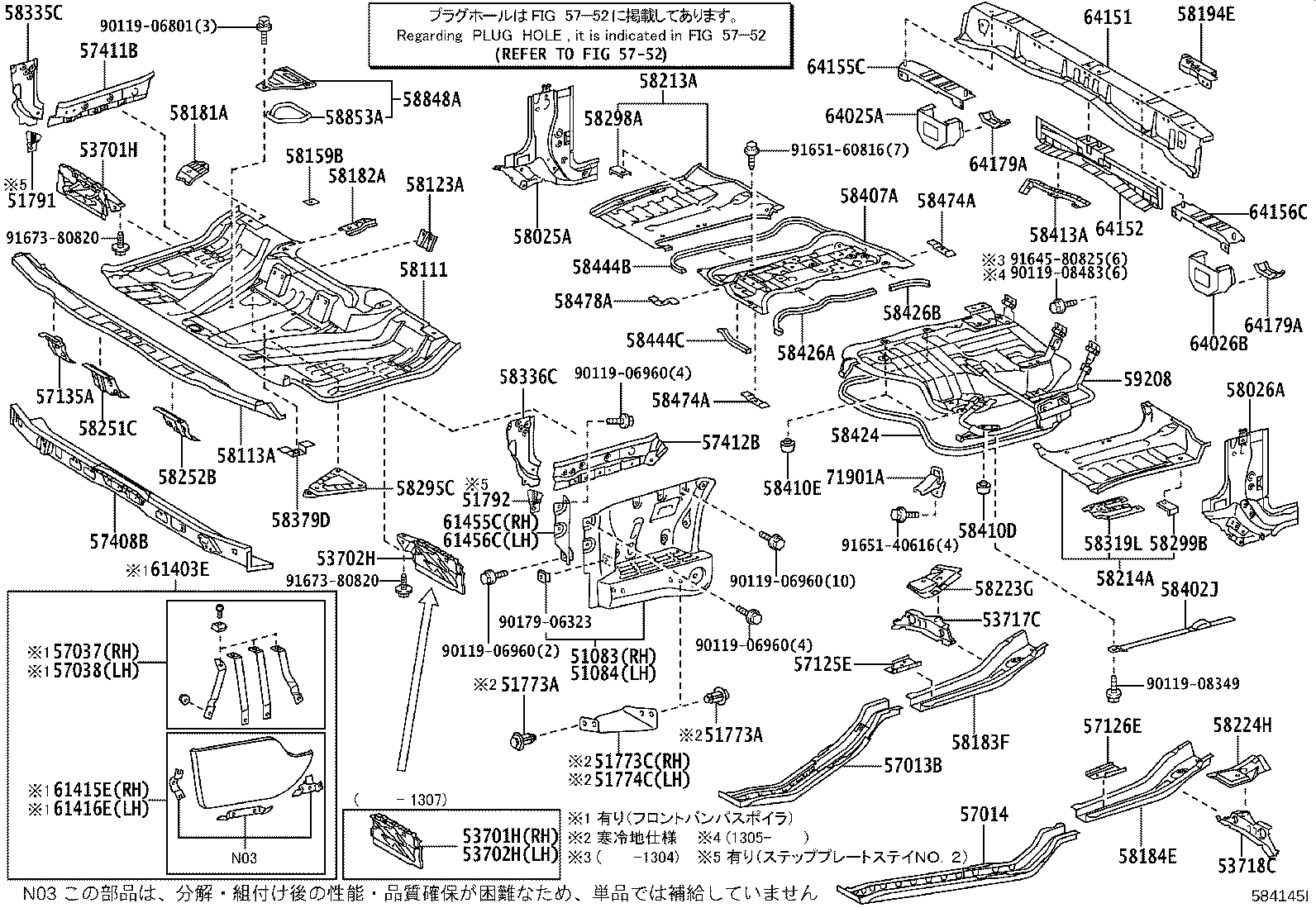

ILLUST NO. 1 OF 2(1108-1705)DCB ; (1705- )DCB..DCRTJ ; (1905-)DCB..DCRWD ; (2103- )DCB..DC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51083 - STEP SUB-ASSY, RH | ||||
| 51083-37050 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 51083-37051 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 51083-37052 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 51084 - STEP SUB-ASSY, LH | ||||
| 51084-37042 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 51084-37040 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 51084-37041 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 51773A - CLIP, STEP PLATE COVER | ||||
| 90467-06133C0 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 寒冷地仕様,BLACK |
8 | ||
| 51773A - CLIP, STEP PLATE COVER | ||||
| 90467-06133C0 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 寒冷地仕様,BLACK |
8 | ||
| 51773C - COVER, STEP PLATE, RH | ||||
| 51773-37030 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 塗装不要,寒冷地仕様 |
1 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51773-37030 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 塗装不要,寒冷地仕様 |
1 | ||
| 51791 - STAY, STEP | ||||
| 51787-37030 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 51792 - STAY, STEP PLATE, NO.2 | ||||
| 51788-37030 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53701H - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-37060 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53701-37050 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 53701H - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-37060 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53701-37050 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 53702H - APRON SUB-ASSY, FENDER, LH | ||||
| 53702-37040 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 53702-37070 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53702H - APRON SUB-ASSY, FENDER, LH | ||||
| 53702-37040 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 53702-37070 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53717C - APRON, FRPNT FENDER, NO.2 RH | ||||
| 53717-37190 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53718C - APRON, FRONT FENDER, NO.2 LH | ||||
| 53718-37150 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 57013B - MEMBER SUB-ASSY, FLOOR, FRONT RH | ||||
| 57013-37291 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 57013-37290 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 57014 - MEMBER SUB-ASSY, FLOOR, FRONT LH | ||||
| 57014-37200 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 57014-37201 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 57037 - STAY SUB-ASSY, FRONT STEP, RH | ||||
| 57037-37030 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730..T3,T4,T5 ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP) |
1 | ||
| 57038 - STAY SUB-ASSY, FRONT STEP, LH | ||||
| 57038-37050 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730..T3,T4,T5 ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP) |
1 | ||
| 57125E - REINFORCEMENT, FRONT SIDE MEMBER, RH | ||||
| 57125-37040 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 57126E - REINFORCEMENT, FRONT SIDE MEMBER, LH | ||||
| 57126-37030 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 57135A - BRACKET, FRONT FLOOR SIDE, RH | ||||
| 57135-37020 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 57408B - MEMBER SUB-ASSY, FRONT FLOOR CROSS | ||||
| 57408-37500 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 57411B - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57411-37050 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 57412B - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57412-37060 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 58025A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR RH | ||||
| 58043-37110 |
XZU710..DCB |
1 | ||
| 58043-37111 |
XZU710..DCB |
1 | ||
| 58026A - PANEL SUB-ASSY, FLOOR SIDE RAIL, FR LH | ||||
| 58044-37121 |
XZU710..DCB |
1 | ||
| 58044-37120 |
XZU710..DCB |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-37850 |
XZU710..DCB |
1 | ||
| 58113A - PANEL, FRONT FLOOR, CENTER | ||||
| 58113-37070 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58123-37060 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 58181A - RETAINER, SEAT RAIL, FRONT | ||||
| 58181-37090 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 58182A - RETAINER, SEAT RAIL, NO.2 | ||||
| 58182-37030 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 58183F - REINFORCEMENT, REAR MOUNTING, RH | ||||
| 58183-37100 |
XZU710..DCB |
1 | ||
| 58184E - REINFORCEMENT, REAR MOUNTING, LH | ||||
| 58183-37100 |
XZU710..DCB |
1 | ||
| 58194E - RETAINER, ENGINE COVER HINGE | ||||
| 58194-37040 |
XZU710..DCB |
1 | ||
| 58213A - PANEL, SEAT FLOOR, RH | ||||
| 58201-37181 |
XZU710..DCB |
1 | ||
| 58201-37180 |
XZU710..DCB |
1 | ||
| 58214A - PANEL, SEAT FLOOR, LH | ||||
| 58202-37120 |
XZU710..DCB |
1 | ||
| 58202-37121 |
XZU710..DCB |
1 | ||
| 58223G - REINFORCEMENT, SEAT SET, NO.1 | ||||
| 58223-37070 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 58224H - REINFORCEMENT, SEAT SET, NO.2 | ||||
| 58224-37041 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 58224-37040 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 58251C - BRACE, FLOOR PANEL, FRONT RH | ||||
| 58251-37130 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 58252B - BRACE, FLOOR PANEL, FRONT LH | ||||
| 58252-37090 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 58295C - BRACKET, FLOOR SHIFT LEVER, NO.1 | ||||
| 58295-37110 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 58298A - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, RH | ||||
| 58298-37030 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 58299B - REINFORCEMENT, SEAT BELT ANCHOR FLOOR, LH | ||||
| 58298-37030 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 58319L - BRACKET, FRONT FLOOR SIDE PANEL | ||||
| 58319-37110 |
XZU775;XZU710..DCB..5F;XZC710,XZU700,710,720..6FC |
1 | ||
| 58335C - PLATE, FLOOR SIDE, FRONT RH | ||||
| 58335-37060 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 58336C - PLATE, FLOOR SIDE, FRONT LH | ||||
| 58336-37080 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 58379D - BRACKET, HEATER HOSE CLAMP | ||||
| 58379-37010 |
XZU710..DCB |
1 | ||
| 58402J - BAND SUB-ASSY, ENGINE SERVICE COVER SUPPORT | ||||
| 58402-37010 |
XZU710..DCB |
1 | ||
| 58407A - COVER SUB-ASSY, ENGINE SERVICE HOLE SUB | ||||
| 58407-37161 |
XZU710..DCB |
1 | ||
| 58407-37160 |
XZU710..DCB |
1 | ||
| 58410D - CUSHION, NO.1 | ||||
| 90541-09028 |
XZU710..DCB |
3 | ||
| 58410E - CUSHION, NO.3 | ||||
| 90541-09046 |
XZU710..DCB |
3 | ||
| 58413A - REINFORCEMENT, ENGINE SUB COVER, NO.2 | ||||
| 58413-37060 |
XZU710..DCB |
1 | ||
| 58424 - PACKING, ENGINE SERVICE HOLE COVER, NO.1 | ||||
| 58424-37070 |
XZU710..DCB |
1 | ||
| 58426A - PROTECTOR, ENGINE SERVICE HOLE | ||||
| 58426-37011 |
XZU710..DCB |
1 | ||
| 58426B - PROTECTOR, ENGINE SUB COVER | ||||
| 58426-95405 |
XZU710..DCB |
1 | ||
| 58444B - PACKING, ENGINE SUB COVER | ||||
| 58444-37050 |
XZU710..DCB |
1 | ||
| 58444C - PACKING, ENGINE SUB COVER, NO.1 | ||||
| 58444-37060 |
XZU710..DCB |
1 | ||
| 58474A - PACKING, ENGINE SUB COVER, NO.2 | ||||
| 58474-37010 |
XZU710..DCB |
2 | ||
| 58474A - PACKING, ENGINE SUB COVER, NO.2 | ||||
| 58474-37010 |
XZU710..DCB |
2 | ||
| 58478A - PACKING, ENGINE SUB COVER, NO.2 | ||||
| 58474-37030 |
XZU710..DCB |
1 | ||
| 58848A - COVER, SHIFT LEVER HOLE | ||||
| 58840-37030 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 58853A - PACKING, SHIFT LEVER HOLE | ||||
| 58853-37030 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 59208 - COVER SUB-ASSY, ENGINE SERVIS HOLE MAIN | ||||
| 59208-37282 |
XZU710..DCB |
1 | ||
| 59208-37281 |
XZU710..DCB |
1 | ||
| 59208-37280 |
XZU710..DCB |
1 | ||
| 61403E - PANEL SUB-ASSY, FRONT STEP | ||||
| 61403-37110J0 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730..T3,T4,T5 ***,ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),BLUE,8P0 |
1 | ||
| 61403-37110A0 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730..T3,T4,T5 ***,ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),WHITE,058 |
1 | ||
| 61403-37110H0 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730..T3,T4,T5 ***,ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),TURQUOISE,766 |
1 | ||
| 61415E - PANEL, FRONT STEP UNDER, RH | ||||
| 61415-37110A0 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730..T3,T4,T5 ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),WHITE,058 |
1 | ||
| 61415-37110H0 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730..T3,T4,T5 ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),TURQUOISE,766 |
1 | ||
| 61415-37110J0 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730..T3,T4,T5 ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),BLUE,8P0 |
1 | ||
| 61416E - PANEL, FRONT STEP UNDER, LH | ||||
| 61416-37010H0 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730..T3,T4,T5 ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),TURQUOISE,766 |
1 | ||
| 61416-37010A0 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730..T3,T4,T5 ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),WHITE,058 |
1 | ||
| 61416-37010J0 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730..T3,T4,T5 ﾌﾛﾝﾄﾊﾞﾝﾊﾟｽﾎﾟｲﾗ−有り(DOP),BLUE,8P0 |
1 | ||
| 61455C - RETAINER, FRONT STEP, RH | ||||
| 61455-37020 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 61456C - RETAINER, FRONT STEP, LH | ||||
| 61456-37020 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 64025A - BRACKET SUB-ASSY, REAR MOUNTING, RH | ||||
| 64171-37130 |
XZU710..DCB |
1 | ||
| 64026B - BRACKET SUB-ASSY, REAR MOUNTING, LH | ||||
| 64172-37090 |
XZU710..DCB |
1 | ||
| 64151 - FRAME, BACK | ||||
| 64151-37530 |
XZU710..DCB |
1 | ||
| 64152 - FRAME, BACK, LOWER | ||||
| 64106-37050 |
XZU710..DCB |
1 | ||
| 64155C - PLATE, BACK FRAME, RH | ||||
| 64155-37070 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 64156C - PLATE, BACK FRAME, LH | ||||
| 64156-37110 |
XZU710..DCB |
1 | ||
| 64179A - PATCH, REAR MOUNTING BRACKET | ||||
| 64179-37090 |
XZU710..DCB |
2 | ||
| 64179A - PATCH, REAR MOUNTING BRACKET | ||||
| 64179-37090 |
XZU710..DCB |
2 | ||
| 71901A - CATCH SUB-ASSY, CENTER SEAT CUSHION, FRONT | ||||
| 71902-37010 |
XZU710..DCB |
2 | ||
| Common parts | ||||
| 90119-06801 | ||||
| 90119-06960 | ||||
| 90119-08349 | ||||
| 90119-08483 | ||||
| 90179-06323 | ||||
| 91645-80825 | ||||
| 91651-40616 | ||||
| 91651-60816 | ||||
| 91673-80820 | ||||
| Linked diagrams | ||||
| 5752 | ||||
ILLUST NO. 2 OF 2(1108-1705)DCB ; (1705- )DCB..DCRTJ ; (1905-)DCB..DCRWD ; (2103- )DCB..DC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51436D - BRACKET, ENGINE SIDE COVER | ||||
| 51436-37080 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
2 | ||
| 51436D - BRACKET, ENGINE SIDE COVER | ||||
| 51436-37080 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
2 | ||
| 53705D - BRACE SUB-ASSY, FENDER APRON, RH | ||||
| 53705-37010 |
XZU710..DCB |
1 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53715-37280 |
XZU710..DCB |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53716-37290 |
XZU710..DCB |
1 | ||
| 53713H - PLATE, FENDER APRON SPLASH, RH | ||||
| 53713-37070 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53719A - BRACE, FENDER APRON | ||||
| 53719-37240 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53736E - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-37090 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53737D - SEAL, FRONT FENDER APRON, LH | ||||
| 53736-37090 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53881D - MUDGUARD, FRONT RH | ||||
| 53881-37170 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53882D - MUDGUARD, FRONT LH | ||||
| 53881-37170 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53887E - PLATE, FRONT MUDGUARD | ||||
| 53887-37060 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
2 | ||
| 53891A - CLIP(FOR FRONT FENDER MUDGUARD) | ||||
| 90467-0908722 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) BLACK |
10 | ||
| 53891A - CLIP(FOR FRONT FENDER MUDGUARD) | ||||
| 90467-0908722 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) BLACK |
10 | ||
| 53891C - SEAL, FRONT FENDER SPLASH SHEILD, FRONT | ||||
| 53891-37050 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53892C - SEAL, FRONT FENDER SPLASH SHIELD, FRONT LH | ||||
| 53892-37090 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 67868Q - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 67868-95401 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
12 | ||
| 67868Q - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 67868-95401 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
12 | ||
| 76621E - CLIP(FOR FRONT FENDER MUDGUARD) | ||||
| 90467-06046C0 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 BLACK |
8 | ||
| 76623D - MUDGUARD, FRONT FENDER, FRONT RH | ||||
| 76623-37140 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 76624D - MUDGUARD, FRONT FENDER, FRONT LH | ||||
| 76623-37140 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| Common parts | ||||
| 90179-08233 | ||||
| 91631-B0820 | ||||
| 91651-B0616 | ||||
| 94151-81000 | ||||

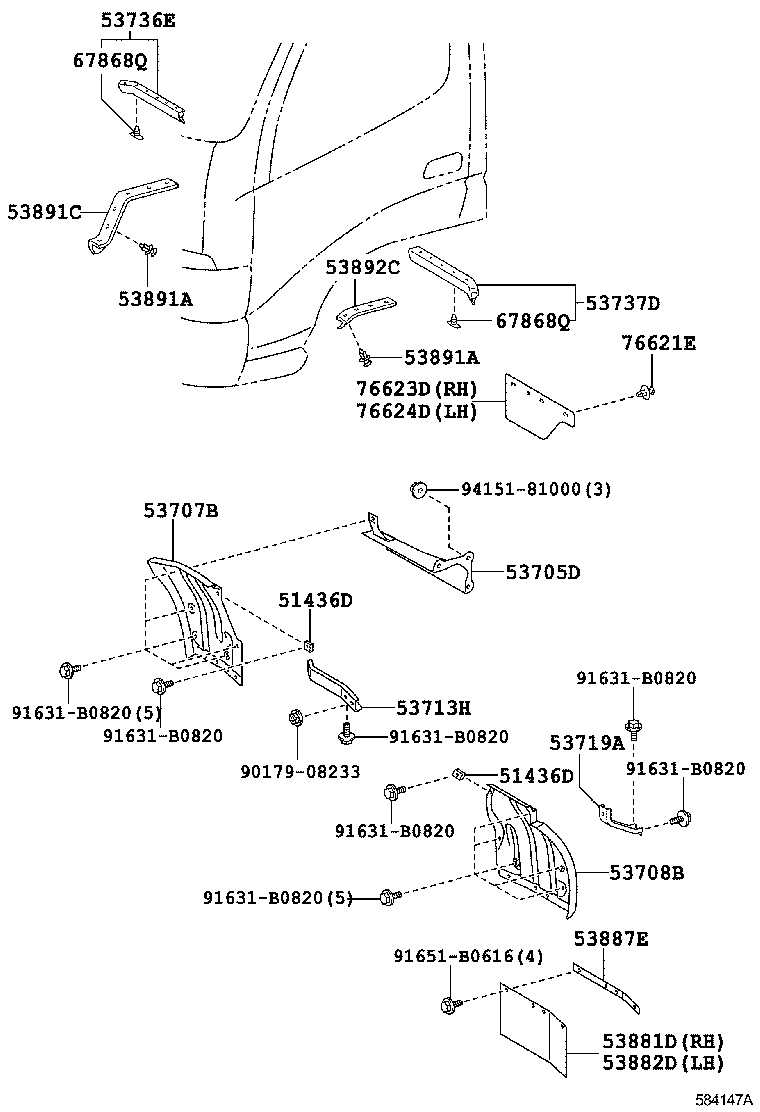

ILLUST NO. 2 OF 2(1108-1705)XZU775 ; (1705- )XZU775..DCRTK ; (1905- )XZU775..DCRWD ; (2103-
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51436D - BRACKET, ENGINE SIDE COVER | ||||
| 51436-37080 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
2 | ||
| 51436D - BRACKET, ENGINE SIDE COVER | ||||
| 51436-37080 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
2 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53715-37280 |
XZU710..DCB |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53716-37290 |
XZU710..DCB |
1 | ||
| 53713H - PLATE, FENDER APRON SPLASH, RH | ||||
| 53713-37070 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53719A - BRACE, FENDER APRON | ||||
| 53719-37240 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53736E - SEAL, FRONT FENDER APRON, RH | ||||
| 53736-37090 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53737D - SEAL, FRONT FENDER APRON, LH | ||||
| 53736-37090 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53881D - MUDGUARD, FRONT RH | ||||
| 53881-37170 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53882D - MUDGUARD, FRONT LH | ||||
| 53881-37170 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53887E - PLATE, FRONT MUDGUARD | ||||
| 53887-37060 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
2 | ||
| 53891A - CLIP(FOR FRONT FENDER MUDGUARD) | ||||
| 90467-0908722 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) BLACK |
10 | ||
| 53891A - CLIP(FOR FRONT FENDER MUDGUARD) | ||||
| 90467-0908722 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) BLACK |
10 | ||
| 53891C - SEAL, FRONT FENDER SPLASH SHEILD, FRONT | ||||
| 53891-37050 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 67868Q - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 67868-95401 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
12 | ||
| 67868Q - CLIP(FOR FRONT FENDER APRON SEAL) | ||||
| 67868-95401 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
12 | ||
| 76621E - CLIP(FOR FRONT FENDER MUDGUARD) | ||||
| 90467-06046C0 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 BLACK |
8 | ||
| 76623D - MUDGUARD, FRONT FENDER, FRONT RH | ||||
| 76623-37140 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 76624D - MUDGUARD, FRONT FENDER, FRONT LH | ||||
| 76623-37140 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| Common parts | ||||
| 90179-08233 | ||||
| 91551-80820 | ||||
| 91631-B0820 | ||||
| 91651-B0616 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
