XZU710-PQMMB3 (2011)

Toyota Dyna/Toyoace

Production Aug 2011 - May 2017
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1108- )DCB..DCRTJ ; (1905- )DCB..DCRWD ;(2103- )DCB..DCWDO

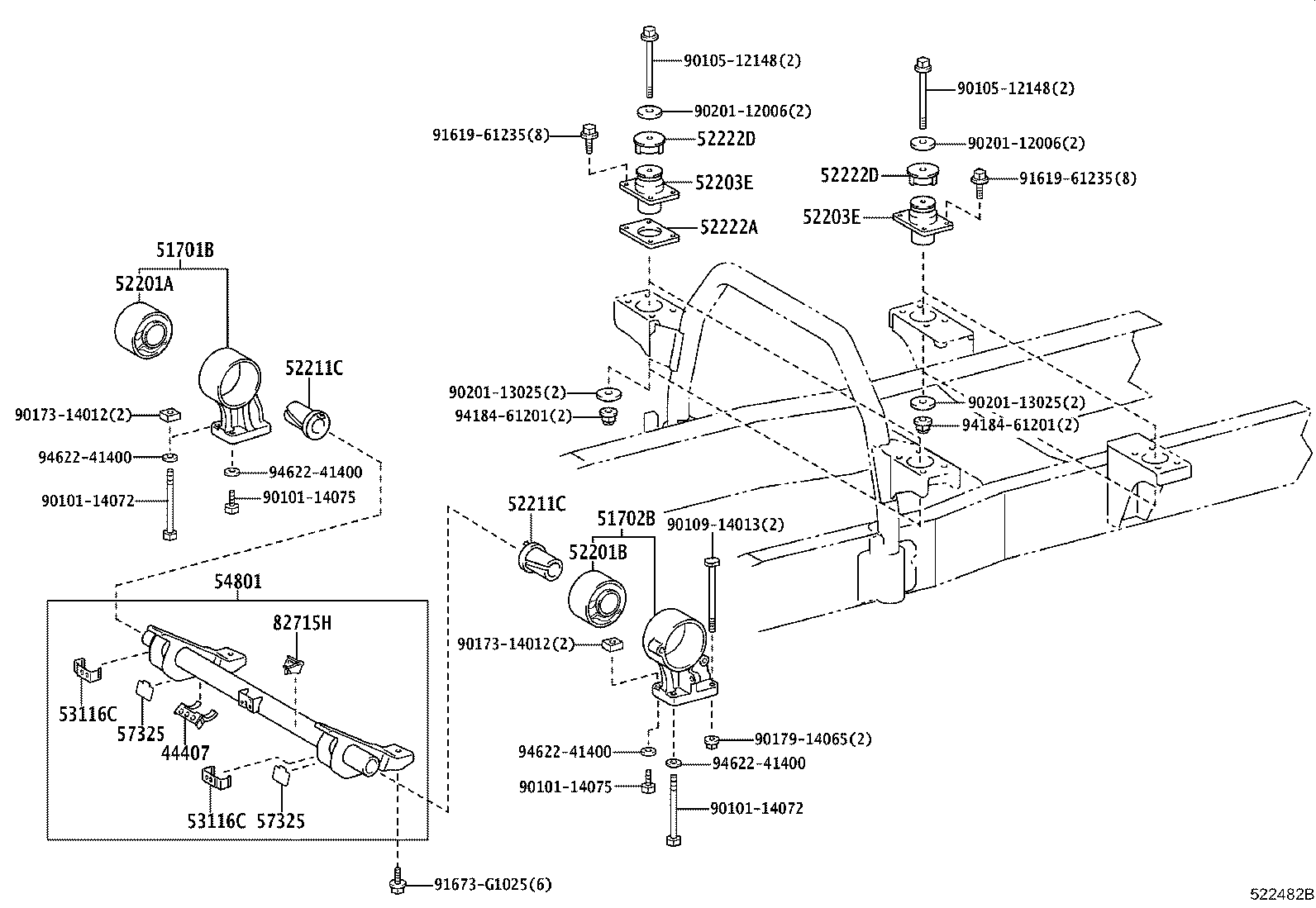

Click highlighted areas on diagram

diagram 44407 51701B 51702B 52201A 52201B 52203E 52203E 52211C 52211C 52222A 52222D 52222D 53116C 53116C 54801 57325 57325 82715H 9010114072 9010114072 9010114075 9010114075 9010512148 9010512148 9010914013 9017314012 9017314012 9017914065 9020112006 9020112006 9020113025 9020113025 9161961235 9161961235 91673G1025 9418461201 9418461201 9462241400 9462241400 9462241400 9462241400
Part # Description Qty Price
44407 - BRACKET SUB-ASSY, PRESSURE TUBE SUPPORT
44407-37010

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
51701B - BRACKET SUB-ASSY, CAB FRONT MOUNTING, RH
51701-37380

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
51702B - BRACKET SUB-ASSY, CAB FRONT MOUNTING, LH
51702-37080

XZU710..DCB

 1
51702-37380

XZU710..DCB

 1
52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2
52203-37050

XZU710..DCB

 4
52203E - CUSHION SUB-ASSY, CAB MOUNTING, NO.2
52203-37050

XZU710..DCB

 4
52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION)
52211-37030

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 2
52211C - SPACER(FOR BODY MOUNTING NO.1 CUSHION)
52211-37030

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 2
52222A - SPACER, CAB REAR MOUNTING, UPPER
52222-37030

XZU710..DCB

 2
52222D - SPACER, CAB REAR MOUNTING, UPPER
52222-37060

XZU710..DCB

 4
52222D - SPACER, CAB REAR MOUNTING, UPPER
52222-37060

XZU710..DCB

 4
53116C - BRACKET, RADIATOR GRILLE, NO.2
53116-37030

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 2
53116C - BRACKET, RADIATOR GRILLE, NO.2
53116-37030

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 2
54801 - TUBE SUB-ASSY, TILT CAB, NO.1
54801-37230

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
57325 - REINFORCEMENT, FRONT MOUNTING
57325-37010

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 2
57325 - REINFORCEMENT, FRONT MOUNTING
57325-37010

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 2
82715H - BRACKET, WIRING HARNESS CLAMP
82715-3VD00

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 1
Common parts
90101-14072
90101-14075
90105-12148
90109-14013
90173-14012
90179-14065
90201-12006
90201-13025
91619-61235
91673-G1025
94184-61201
94622-41400
