XZU710-PQMMB (2011)

Toyota Dyna/Toyoace

Production Aug 2011 - May 2017
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

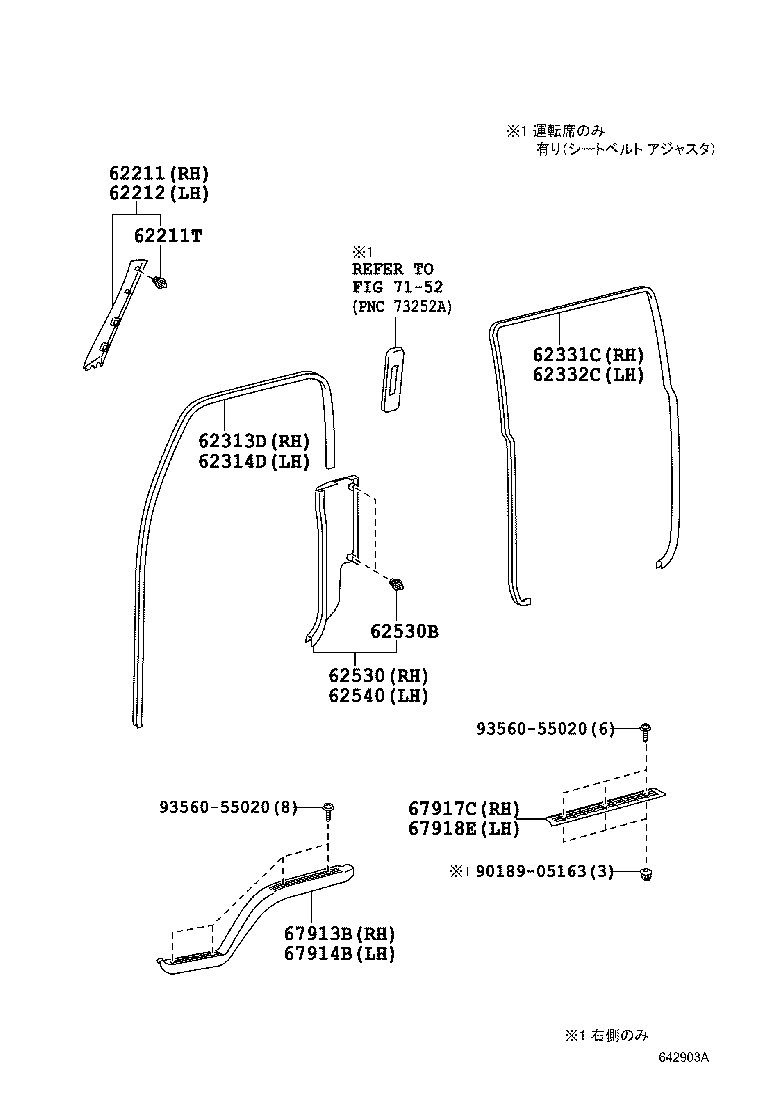

ILLUST NO. 1 OF 2(1108- )DCB

Click highlighted areas on diagram

diagram 62211 62211T 62212 62313D 62314D 62331C 62332C 62530 62530B 62540 67913B 67914B 67917C 67918E 7152 9018905163 9356055020 9356055020
Part # Description Qty Price
62211 - GARNISH, FRONT PILLAR, RH
62210-37030B0

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

GRAY,TRIM1#

 1
62211T - CLIP(FOR FRONT PILLAR GARNISH)
62217-13010

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 4
62212 - GARNISH, FRONT PILLAR, LH
62220-37030B0

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

GRAY,TRIM1#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62313-37070B0

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

GRAY,TRIM1#

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62314-37030B0

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

GRAY,TRIM1#

 1
62331C - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-37010

XZU710..DCB

 1
62332C - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62331-37010

XZU710..DCB

 1
62530 - PANEL ASSY, QUARTER TRIM, LOWER RH
62530-37010B0

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

GRAY,TRIM1#

 1
62530B - CLIP, QUARTER TRIM NO.1
90467-10161

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

 4
62540 - PANEL ASSY, QUARTER TRIM, LOWER LH
62540-37010B0

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

GRAY,TRIM1#

 1
67913B - PLATE, FRONT DOOR SCUFF, RH
67913-37030B0

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

GRAY,TRIM1#

 1
67914B - PLATE, FRONT DOOR SCUFF, LH
67914-37040B0

XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775

GRAY,TRIM1#

 1
67917C - PLATE, REAR DOOR SCUFF, RH
67917-37030B0

XZU710..DCB

GRAY,TRIM1#

 1
67918E - PLATE, REAR DOOR SCUFF, LH
67917-37030B0

XZU710..DCB

GRAY,TRIM1#

 1
Common parts
90189-05163
93560-55020
Linked diagrams
7152
