XZU710-PPMMB (2011)
Toyota Dyna/Toyoace

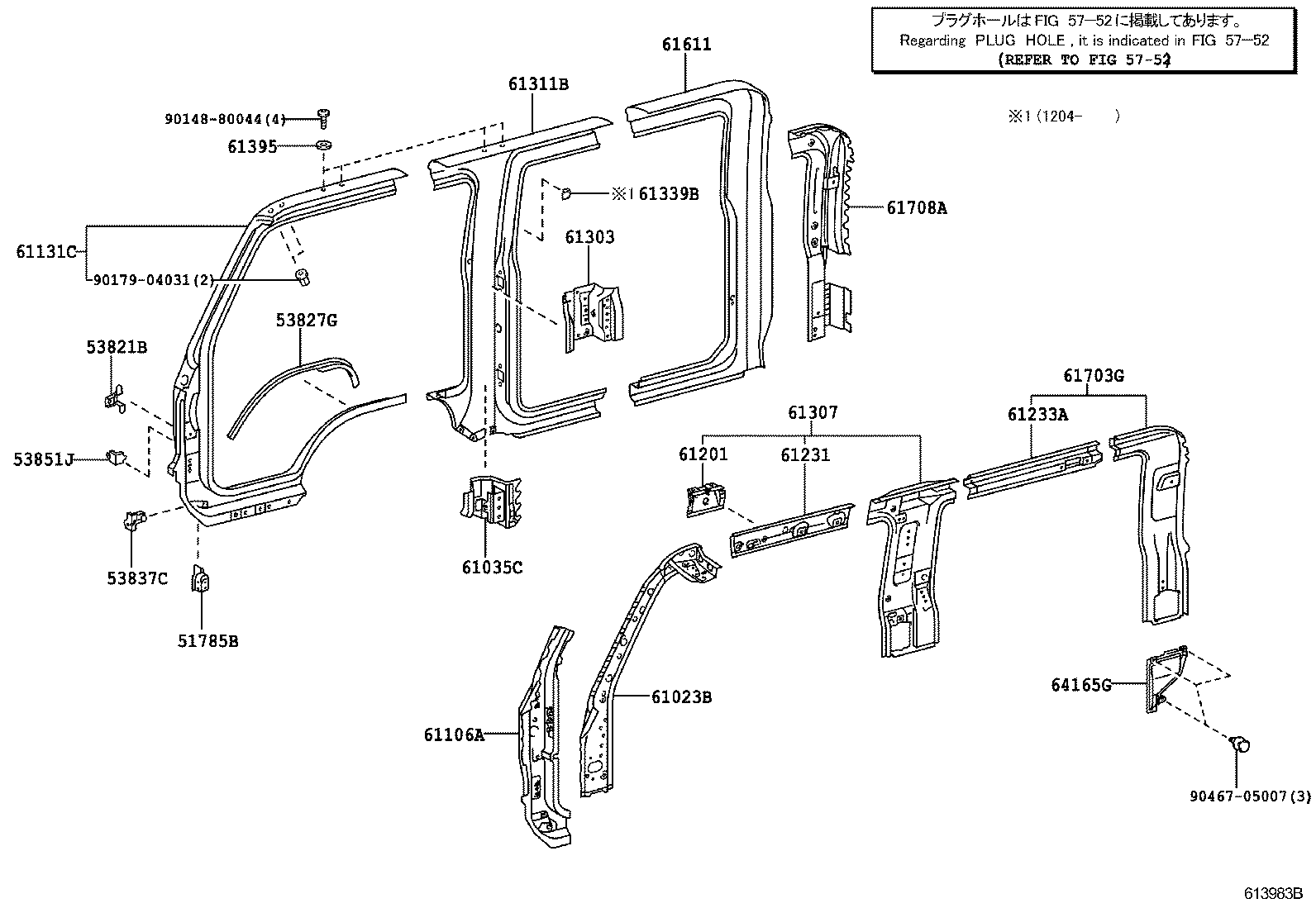

(1108- )DCB
RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51785B - BRACKET, FRONT STEP PANEL, RH | ||||
| 51785-37040 |
XZU710..DCB |
1 | ||
| 51785-37050 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53821B - BRACKET, FRONT FENDER, REAR RH | ||||
| 53821-37110 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53827G - PROTECTOR, FRONT FENDER SIDE PANEL, RH | ||||
| 53827-37030 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53837C - BRACKET, FRONT SIDE PANEL, NO.2 RH | ||||
| 53837-37040 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53851J - STAY, FENDER, RH | ||||
| 53851-37060 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 61023B - PILLAR SUB-ASSY, FRONT BODY, INNER RH | ||||
| 61023-37130 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 61035C - RETAINER SUB-ASSY, PILLAR LOWER HINGE, RH | ||||
| 61035-37081 |
XZU710..DCB |
1 | ||
| 61035-37080 |
XZU710..DCB |
1 | ||
| 61106A - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER RH | ||||
| 61106-37011 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 61106-37010 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 61131C - PILLAR, FRONT BODY, OUTER RH | ||||
| 61131-37150 |
XZU710..DCB |
1 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61201-37030 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-37150 |
XZU710..DCB |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-37121 |
XZU710..DCB |
1 | ||
| 61233-37120 |
XZU710..DCB |
1 | ||
| 61303 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER RH | ||||
| 61303-37030 |
XZU710..DCB |
1 | ||
| 61303-37031 |
XZU710..DCB |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-37570 |
XZU710..DCB ﾘﾔﾋｰﾀ−有り |
1 | ||
| 61307-37562 |
XZU710..DCB |
1 | ||
| 61307-37571 |
XZU710..DCB ﾘﾔﾋｰﾀ−有り |
1 | ||
| 61307-37560 |
XZU710..DCB |
1 | ||
| 61307-37572 |
XZU710..DCB ﾘﾔﾋｰﾀ−有り |
1 | ||
| 61307-37561 |
XZU710..DCB |
1 | ||
| 61311B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61311-37131 |
XZU710..DCB |
1 | ||
| 61311-37130 |
XZU710..DCB |
1 | ||
| 61339B - SEAL, CENTER BODY PILLAR, INNER NO.1 | ||||
| 61339-37010 |
XZU710..DCB |
2 | ||
| 61395 - SEAL, CENTER BODY PILLAR, RH | ||||
| 61395-37010 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
4 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-37430 |
XZU710..DCB |
1 | ||
| 61703G - PANEL SUB-ASSY, QUARTER, INNER RH | ||||
| 61703-37150 |
XZU710..DCB |
1 | ||
| 61703-37151 |
XZU710..DCB |
1 | ||
| 61708A - REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, RH | ||||
| 61708-37010 |
XZU710..DCB |
1 | ||
| 61708-37011 |
XZU710..DCB |
1 | ||
| 64165G - COVER, BACK CORNER, INNER REAR RH | ||||
| 64165-37030 |
XZU710..DCB |
1 | ||
| Common parts | ||||
| 90148-80044 | ||||
| 90179-04031 | ||||
| 90467-05007 | ||||
| Linked diagrams | ||||
| 5752 | ||||

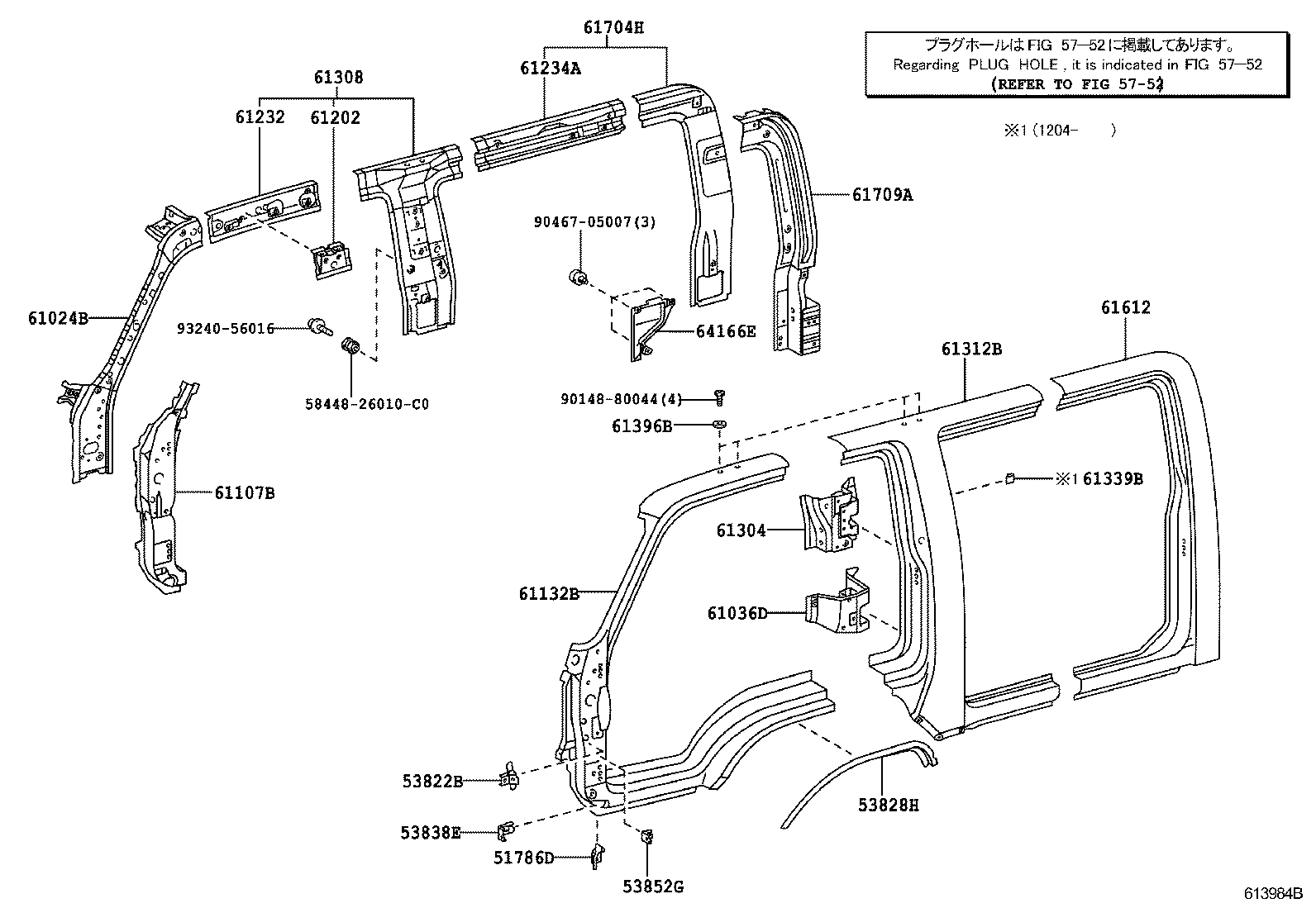

(1108- )DCB
LH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51786D - BRACKET, FRONT STEP PANEL, LH | ||||
| 51786-37030 |
XZU710..DCB |
1 | ||
| 51786-37040 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53822B - BRACKET, FRONT FENDER, REAR LH | ||||
| 53822-37070 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53828H - PROTECTOR, FRONT FENDER SIDE PANEL, LH | ||||
| 53828-37020 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53838E - BRACKET, FRONT SIDE PANEL, NO.2 LH | ||||
| 53838-37050 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 53852G - STAY, FENDER, LH | ||||
| 53851-37060 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 61024B - PILLAR SUB-ASSY, FRONT BODY, INNER LH | ||||
| 61024-37190 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 61036D - RETAINER SUB-ASSY, PILLAR LOWER HINGE, LH | ||||
| 61036-37051 |
XZU710..DCB |
1 | ||
| 61036-37050 |
XZU710..DCB |
1 | ||
| 61107B - REINFORCE SUB-ASSY, FRONT BODY PILLAR, UPPER LH | ||||
| 61107-37031 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 61107-37030 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 61132B - PILLAR, FRONT BODY, OUTER LH | ||||
| 61132-37140 |
XZU710..DCB |
1 | ||
| 61202 - RAIL SUB-ASSY, ROOF SIDE, LH | ||||
| 61202-37030 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-37150 |
XZU710..DCB |
1 | ||
| 61234A - RAIL, ROOF SIDE, INNER NO.2 LH | ||||
| 61234-37110 |
XZU710..DCB |
1 | ||
| 61234-37111 |
XZU710..DCB |
1 | ||
| 61304 - REINFORCE SUB-ASSY, CENTER BODY PILLAR, UPPER LH | ||||
| 61304-37041 |
XZU710..DCB |
1 | ||
| 61304-37040 |
XZU710..DCB |
1 | ||
| 61308 - PILLAR SUB-ASSY, CENTER BODY, INNER LH | ||||
| 61308-37231 |
XZU710..DCB |
1 | ||
| 61308-37232 |
XZU710..DCB |
1 | ||
| 61308-37230 |
XZU710..DCB |
1 | ||
| 61312B - PILLAR, CENTER BODY, OUTER LH | ||||
| 61312-37110 |
XZU710..DCB |
1 | ||
| 61312-37111 |
XZU710..DCB |
1 | ||
| 61339B - SEAL, CENTER BODY PILLAR, INNER NO.1 | ||||
| 61339-37010 |
XZU710..DCB |
2 | ||
| 61396B - SEAL, CENTER BODY PILLAR, LH | ||||
| 61395-37010 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
4 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-37240 |
XZU710..DCB |
1 | ||
| 61704H - PANEL SUB-ASSY, QUARTER, INNER LH | ||||
| 61704-37110 |
XZU710..DCB |
1 | ||
| 61704-37111 |
XZU710..DCB |
1 | ||
| 61709A - REINFORCEMENT SUB-ASSY, SEAT BELT ANCHOR, LH | ||||
| 61709-37020 |
XZU710..DCB |
1 | ||
| 61709-37021 |
XZU710..DCB |
1 | ||
| 64166E - COVER, BACK CORNER, INNER REAR LH | ||||
| 64166-37010 |
XZU710..DCB |
1 | ||
| Common parts | ||||
| 58448-26010C0 | ||||
| 90148-80044 | ||||
| 90467-05007 | ||||
| 93240-56016 | ||||
| Linked diagrams | ||||
| 5752 | ||||
