XZU702A-TMTRX3 (2019)
Toyota Dyna/Toyoace

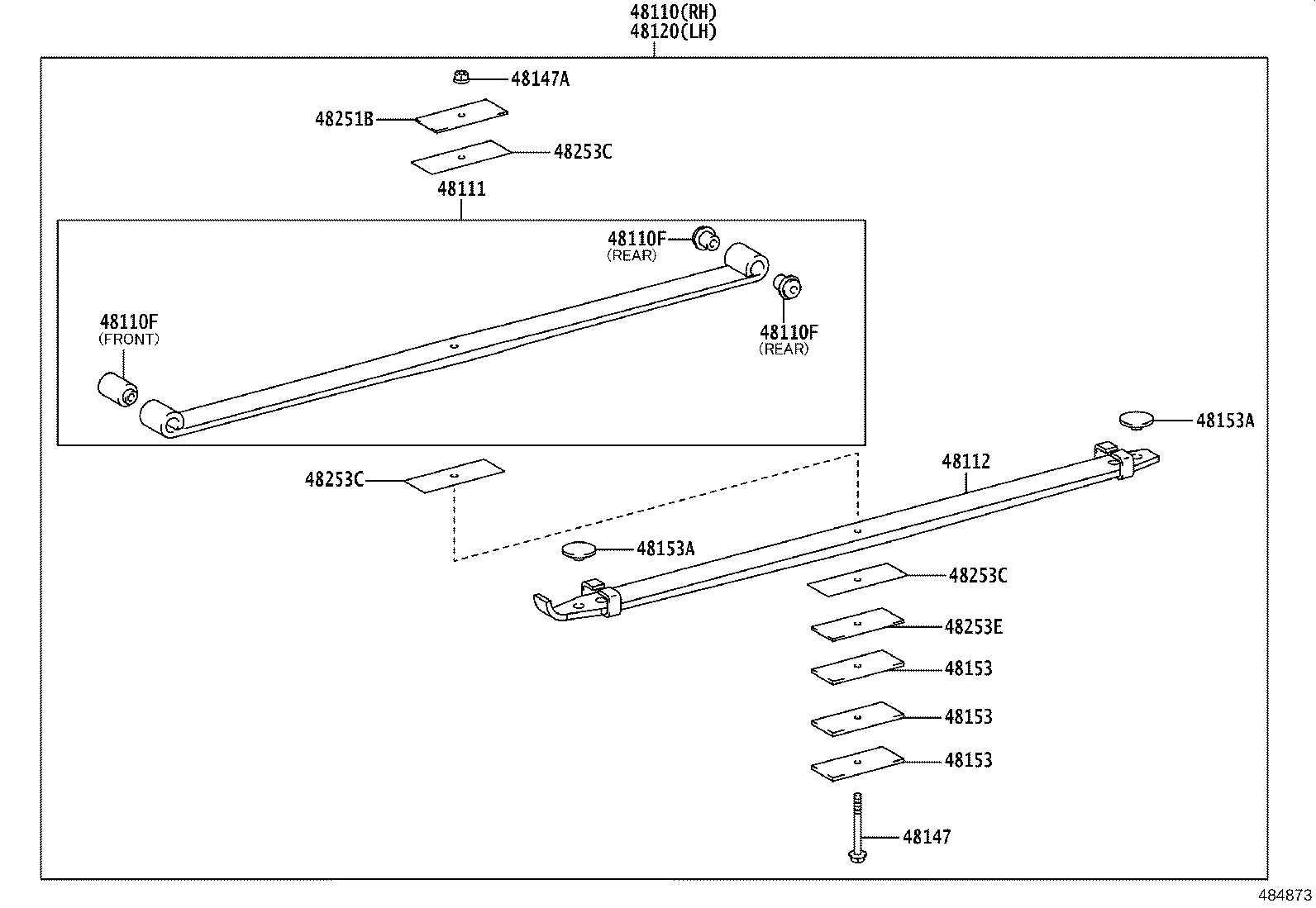

ILLUST NO. 2 OF 2(1905- )XZU702..6FC..35T
2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3VC20 |
XZU702..6FC..35T..DCRWD 2枚ﾘｰﾌ |
1 | ||
| 48110-3VE40 |
XZU702..6FC..35T..DCRWD 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3VC30 |
XZU702..6FC..35T..DCRWD 左側 |
1 | ||
| 48101-3VC20 |
XZU702..6FC..35T..DCRWD 右側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-3VC30 |
XZU702..6FC..35T..DCRWD 左側 |
1 | ||
| 48102-3VE50 |
XZU702..6FC..35T..DCRWD ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,左側 |
1 | ||
| 48102-3VC20 |
XZU702..6FC..35T..DCRWD 右側 |
1 | ||
| 48102-3VE40 |
XZU702..6FC..35T..DCRWD ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,右側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3VC30 |
XZU702..6FC..35T..DCRWD 2枚ﾘｰﾌ |
1 | ||
| 48110-3VE50 |
XZU702..6FC..35T..DCRWD 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37730 |
XZU702..6FC..35T..DCRWD |
2 | ||
| 48147-3VE40 |
XZU702..6FC..35T..DCRWD ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48114-37W71 |
XZU702..6FC..35T..DCRWD |
8 | ||
| 48114-37W71 |
XZU702..6FC..35T..DCRWD ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
6 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48114-37W71 |
XZU702..6FC..35T..DCRWD |
8 | ||
| 48114-37W71 |
XZU702..6FC..35T..DCRWD ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
6 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48114-37W71 |
XZU702..6FC..35T..DCRWD |
8 | ||
| 48114-37W71 |
XZU702..6FC..35T..DCRWD ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
6 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48253-37631 |
XZU702..6FC..35T..DCRWD |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU702..6FC..35T..DCRWD |
6 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU702..6FC..35T..DCRWD |
6 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU702..6FC..35T..DCRWD |
6 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48113-3VB80 |
XZU70#,720..(DM7,T3)..6FC;XZU71#..40T..(DCRWD,DCVTO) |
2 | ||
ILLUST NO. 2 OF 2(1905- )XZU720..40T..DCVUO..IV3 ; (1905- )XZU710..T3..35T..DCVTO..IV3 ; (1905
2-LEAF,ﾁｮｳｷｮｳｶﾘｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3VC20 |
XZU702..6FC..35T..DCRWD 2枚ﾘｰﾌ |
1 | ||
| 48110-3VC20 |
XZU702..6FC..35T..DCRWD 2枚ﾘｰﾌ |
1 | ||
| 48110-3VE40 |
XZU702..6FC..35T..DCRWD 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VE40 |
XZU702..6FC..35T..DCRWD 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3VC30 |
XZU702..6FC..35T..DCRWD 左側 |
1 | ||
| 48101-3VC30 |
XZU702..6FC..35T..DCRWD 左側 |
1 | ||
| 48101-3VC20 |
XZU702..6FC..35T..DCRWD 右側 |
1 | ||
| 48101-3VC20 |
XZU702..6FC..35T..DCRWD 右側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-3VC30 |
XZU702..6FC..35T..DCRWD 左側 |
1 | ||
| 48102-3VC30 |
XZU702..6FC..35T..DCRWD 左側 |
1 | ||
| 48102-3VE50 |
XZU702..6FC..35T..DCRWD ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,左側 |
1 | ||
| 48102-3VE50 |
XZU702..6FC..35T..DCRWD ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,左側 |
1 | ||
| 48102-3VC20 |
XZU702..6FC..35T..DCRWD 右側 |
1 | ||
| 48102-3VC20 |
XZU702..6FC..35T..DCRWD 右側 |
1 | ||
| 48102-3VE40 |
XZU702..6FC..35T..DCRWD ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,右側 |
1 | ||
| 48102-3VE40 |
XZU702..6FC..35T..DCRWD ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,右側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3VC30 |
XZU702..6FC..35T..DCRWD 2枚ﾘｰﾌ |
1 | ||
| 48110-3VC30 |
XZU702..6FC..35T..DCRWD 2枚ﾘｰﾌ |
1 | ||
| 48110-3VE50 |
XZU702..6FC..35T..DCRWD 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VE50 |
XZU702..6FC..35T..DCRWD 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37730 |
XZU702..6FC..35T..DCRWD |
2 | ||
| 48147-37730 |
XZU702..6FC..35T..DCRWD |
2 | ||
| 48147-3VE40 |
XZU702..6FC..35T..DCRWD ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48147-3VE40 |
XZU702..6FC..35T..DCRWD ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
| 48284-0W060 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48253-37631 |
XZU702..6FC..35T..DCRWD |
2 | ||
| 48253-37631 |
XZU702..6FC..35T..DCRWD |
2 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48253-37631 |
XZU702..6FC..35T..DCRWD |
2 | ||
| 48253-37631 |
XZU702..6FC..35T..DCRWD |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU702..6FC..35T..DCRWD |
6 | ||
| 48152-37C61 |
XZU702..6FC..35T..DCRWD |
6 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU702..6FC..35T..DCRWD |
6 | ||
| 48152-37C61 |
XZU702..6FC..35T..DCRWD |
6 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU702..6FC..35T..DCRWD |
6 | ||
| 48152-37C61 |
XZU702..6FC..35T..DCRWD |
6 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU702..6FC..35T..DCRWD |
6 | ||
| 48152-37C61 |
XZU702..6FC..35T..DCRWD |
6 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48113-3VB80 |
XZU70#,720..(DM7,T3)..6FC;XZU71#..40T..(DCRWD,DCVTO) |
2 | ||
| 48113-3VB80 |
XZU70#,720..(DM7,T3)..6FC;XZU71#..40T..(DCRWD,DCVTO) |
2 | ||
| 48825 - BRACKET, STABILIZER, NO.2 | ||||
| 48825-37020 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48825-37020 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||

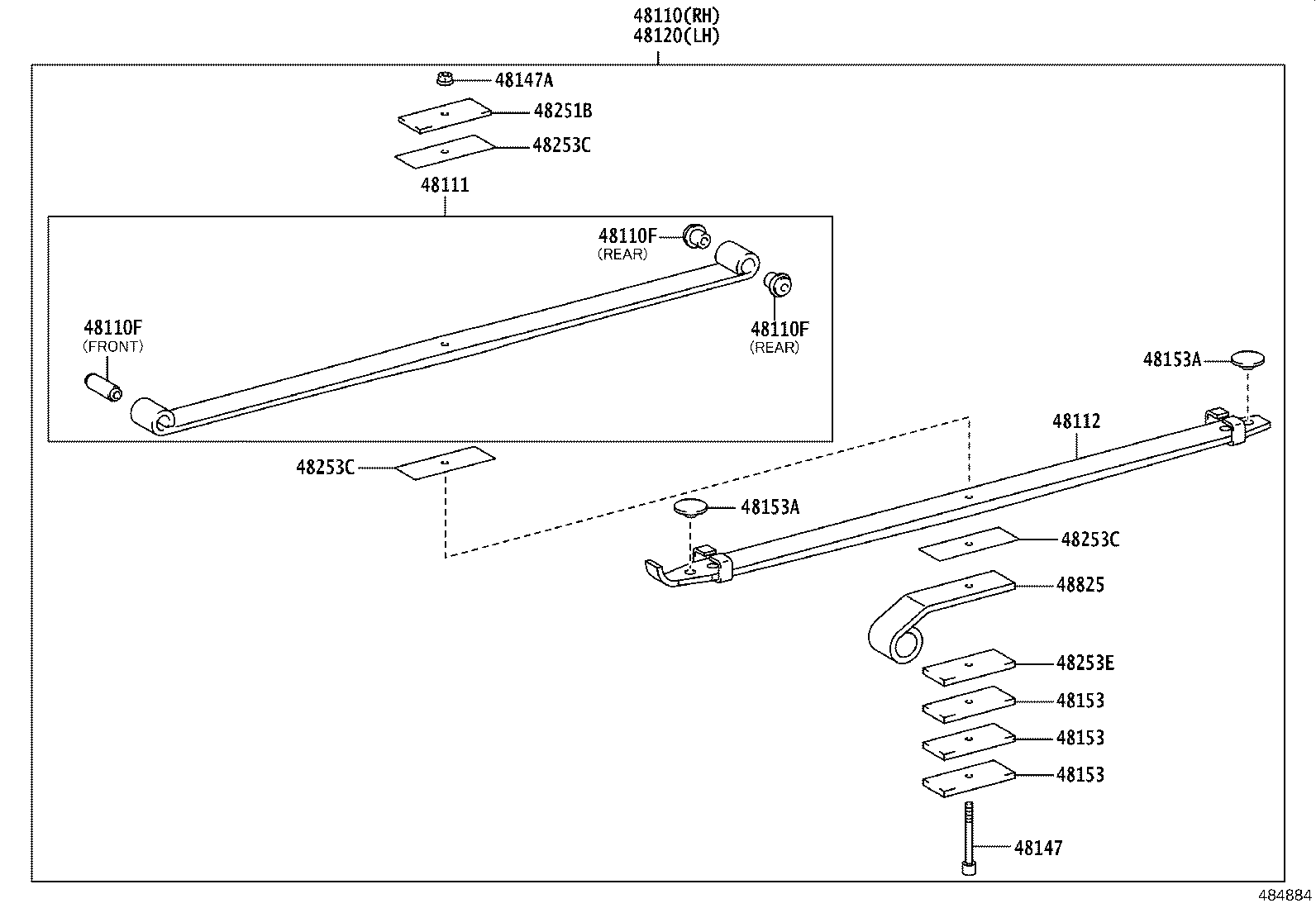

ILLUST NO. 2 OF 2(1905- )XZU730..IV3 ; (1905- )XZU722..35T; (1905- )XZU712..30T,35T..CBU ;
2-LEAF,ｷｮｳｶﾘｰﾌ,ｱﾘ(ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3VC20 |
XZU702..6FC..35T..DCRWD 2枚ﾘｰﾌ |
1 | ||
| 48110-3VC20 |
XZU702..6FC..35T..DCRWD 2枚ﾘｰﾌ |
1 | ||
| 48110-3VE40 |
XZU702..6FC..35T..DCRWD 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VE40 |
XZU702..6FC..35T..DCRWD 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3VC30 |
XZU702..6FC..35T..DCRWD 左側 |
1 | ||
| 48101-3VC30 |
XZU702..6FC..35T..DCRWD 左側 |
1 | ||
| 48101-3VC20 |
XZU702..6FC..35T..DCRWD 右側 |
1 | ||
| 48101-3VC20 |
XZU702..6FC..35T..DCRWD 右側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-3VC30 |
XZU702..6FC..35T..DCRWD 左側 |
1 | ||
| 48102-3VC30 |
XZU702..6FC..35T..DCRWD 左側 |
1 | ||
| 48102-3VE50 |
XZU702..6FC..35T..DCRWD ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,左側 |
1 | ||
| 48102-3VE50 |
XZU702..6FC..35T..DCRWD ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,左側 |
1 | ||
| 48102-3VC20 |
XZU702..6FC..35T..DCRWD 右側 |
1 | ||
| 48102-3VC20 |
XZU702..6FC..35T..DCRWD 右側 |
1 | ||
| 48102-3VE40 |
XZU702..6FC..35T..DCRWD ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,右側 |
1 | ||
| 48102-3VE40 |
XZU702..6FC..35T..DCRWD ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,右側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3VC30 |
XZU702..6FC..35T..DCRWD 2枚ﾘｰﾌ |
1 | ||
| 48110-3VC30 |
XZU702..6FC..35T..DCRWD 2枚ﾘｰﾌ |
1 | ||
| 48110-3VE50 |
XZU702..6FC..35T..DCRWD 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VE50 |
XZU702..6FC..35T..DCRWD 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37730 |
XZU702..6FC..35T..DCRWD |
2 | ||
| 48147-37730 |
XZU702..6FC..35T..DCRWD |
2 | ||
| 48147-3VE40 |
XZU702..6FC..35T..DCRWD ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48147-3VE40 |
XZU702..6FC..35T..DCRWD ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
| 48284-0W060 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48253-37631 |
XZU702..6FC..35T..DCRWD |
2 | ||
| 48253-37631 |
XZU702..6FC..35T..DCRWD |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU702..6FC..35T..DCRWD |
6 | ||
| 48152-37C61 |
XZU702..6FC..35T..DCRWD |
6 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU702..6FC..35T..DCRWD |
6 | ||
| 48152-37C61 |
XZU702..6FC..35T..DCRWD |
6 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU702..6FC..35T..DCRWD |
6 | ||
| 48152-37C61 |
XZU702..6FC..35T..DCRWD |
6 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU702..6FC..35T..DCRWD |
6 | ||
| 48152-37C61 |
XZU702..6FC..35T..DCRWD |
6 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48113-3VB80 |
XZU70#,720..(DM7,T3)..6FC;XZU71#..40T..(DCRWD,DCVTO) |
2 | ||
| 48113-3VB80 |
XZU70#,720..(DM7,T3)..6FC;XZU71#..40T..(DCRWD,DCVTO) |
2 | ||
| 48825 - BRACKET, STABILIZER, NO.2 | ||||
| 48825-37020 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48825-37020 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
ILLUST NO. 2 OF 2(1905- )XZU702..6FC..35T
2-LEAF,ｱﾘ(ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3VC20 |
XZU702..6FC..35T..DCRWD 2枚ﾘｰﾌ |
1 | ||
| 48110-3VE40 |
XZU702..6FC..35T..DCRWD 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3VC30 |
XZU702..6FC..35T..DCRWD 左側 |
1 | ||
| 48101-3VC20 |
XZU702..6FC..35T..DCRWD 右側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-3VC30 |
XZU702..6FC..35T..DCRWD 左側 |
1 | ||
| 48102-3VE50 |
XZU702..6FC..35T..DCRWD ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,左側 |
1 | ||
| 48102-3VC20 |
XZU702..6FC..35T..DCRWD 右側 |
1 | ||
| 48102-3VE40 |
XZU702..6FC..35T..DCRWD ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,右側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3VC30 |
XZU702..6FC..35T..DCRWD 2枚ﾘｰﾌ |
1 | ||
| 48110-3VE50 |
XZU702..6FC..35T..DCRWD 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37730 |
XZU702..6FC..35T..DCRWD |
2 | ||
| 48147-3VE40 |
XZU702..6FC..35T..DCRWD ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48114-37W71 |
XZU702..6FC..35T..DCRWD |
8 | ||
| 48114-37W71 |
XZU702..6FC..35T..DCRWD ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
6 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48114-37W71 |
XZU702..6FC..35T..DCRWD |
8 | ||
| 48114-37W71 |
XZU702..6FC..35T..DCRWD ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
6 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48114-37W71 |
XZU702..6FC..35T..DCRWD |
8 | ||
| 48114-37W71 |
XZU702..6FC..35T..DCRWD ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
6 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48253-37631 |
XZU702..6FC..35T..DCRWD |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU702..6FC..35T..DCRWD |
6 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU702..6FC..35T..DCRWD |
6 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU702..6FC..35T..DCRWD |
6 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48113-3VB80 |
XZU70#,720..(DM7,T3)..6FC;XZU71#..40T..(DCRWD,DCVTO) |
2 | ||
| 48825 - BRACKET, STABILIZER, NO.2 | ||||
| 48825-37020 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
