XZU702-TQTQX3 (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999
Engine N04C
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1905- )XZU70#..T3,T4

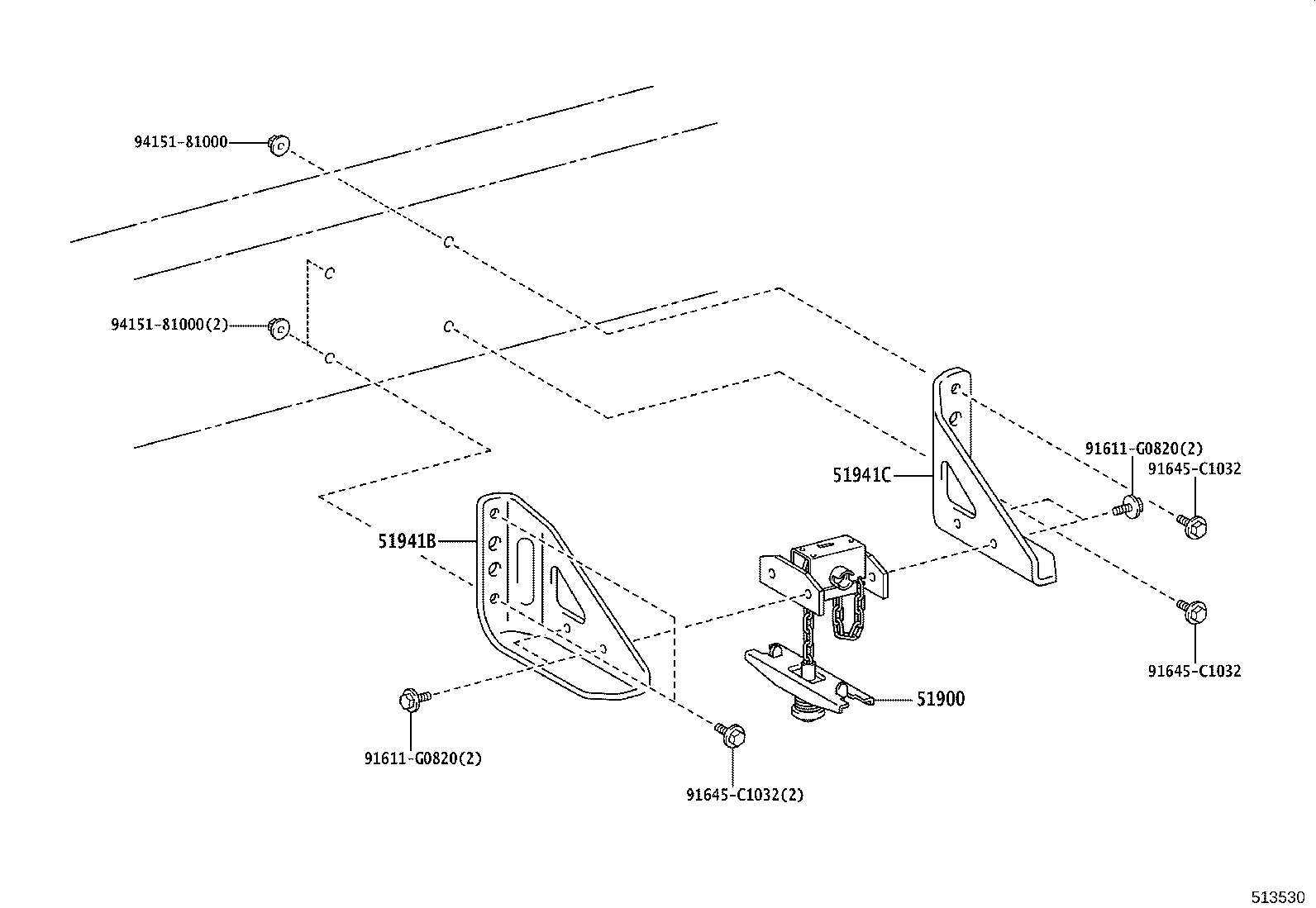

Click highlighted areas on diagram

diagram 51900 51941B 51941C 91611G0820 91611G0820 91645C1032 91645C1032 91645C1032 9415181000 9415181000
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-37190

XZU70#..(T3,T4)..(30T,35T,40T)

 1
51900-37191

XZU70#..(T3,T4)..(30T,35T,40T)..(DCRWD,DCVTO)

 1
51941B - BRACKET, SPARE WHEEL CARRIER, NO.1
51941-37281

XZU70#..(T3,T4)..(DCRWD,DCVTO,DCVUO)

 1
51941-37280

XZU70#..T3,T4

 1
51941C - BRACKET, SPARE WHEEL CARRIER, NO.2
51941-37290

XZU70#..T3,T4

 1
51941-37292

XZU70#..(T3,T4)..(DCRWD,DCVTO,DCVUO)

 1
51941-37291

XZU70#..T3,T4

 1
Common parts
91611-G0820
91645-C1032
94151-81000

(1905- )XZU700..DM6,DM7,T3..6F ; (1905- )XZU712..T3..6F..35T..IV3 ; (1905-

Click highlighted areas on diagram

ﾘｸｿｳｶﾘﾂﾞｹﾖｳ

diagram 51912 9020112037 9155281245 9415181200
Part # Description Qty Price
Common parts
90201-12037
91552-81245
94151-81200
