XZU702-TQTQX3 (2019)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(1905- )XZU70#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48042 - SHACKLE SUB-ASSY, REAR SPRING, NO.2 | ||||
| 48042-37052 |
XZU70#..DCRWD,DCVTO |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48473-37111 |
XZC710,XZU702,712,722..(T3,T4)..DCRWD;XZU700,710,720..(20T,30T,35T)..(DCRWD,DCVTO) |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-18014 |
XZU70#..T4..(30T,35T)..(DCRWD,DCVTO)..IV3 長さ=320,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
4 | ||
| 90117-18013 |
XZU70#..T4..(DCRWD,DCVTO) 長さ=310 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-18014 |
XZU70#..T4..(30T,35T)..(DCRWD,DCVTO)..IV3 長さ=320,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
4 | ||
| 90117-18013 |
XZU70#..T4..(DCRWD,DCVTO) 長さ=310 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48473-37111 |
XZC710,XZU702,712,722..(T3,T4)..DCRWD;XZU700,710,720..(20T,30T,35T)..(DCRWD,DCVTO) |
1 | ||
| 48210Q - BUSH(FOR REAR SPRING SHACKLE) | ||||
| 90033-84013 |
XZU70#..DCRWD,DCVTO |
2 | ||
| 48323D - PIN, REAR SPRING BRACKET | ||||
| 48323-37040 |
XZU70#..DCRWD,DCVTO |
6 | ||
| 48323D - PIN, REAR SPRING BRACKET | ||||
| 48323-37040 |
XZU70#..DCRWD,DCVTO |
6 | ||
| 48323E - NIPPLE, GREASE(FOR REAR SPRING BRACKET PIN) | ||||
| 96451-01000 |
XZU70#..DCRWD,DCVTO |
6 | ||
| 48323E - NIPPLE, GREASE(FOR REAR SPRING BRACKET PIN) | ||||
| 96451-01000 |
XZU70#..DCRWD,DCVTO |
6 | ||
| 48344 - STOPPER, BUMPER, REAR | ||||
| 48344-37090 |
XZU775..DCRWD;XZU70#,71#,72#..T4..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48306-E0280 |
XZU70#..DCRWD,DCVTO |
4 | ||
| 48435 - ATTACHMENT, HELPER SPRING BRACKET, NO.1 | ||||
| 48306-E0280 |
XZU70#..DCRWD,DCVTO |
4 | ||
| 48475R - PLATE, DISTANCE(FOR REAR) | ||||
| 48475-37090 |
XZU70#..(T3,T4)..(DCRWD,DCVTO)..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−左側 強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
1 | ||
| 48481 - SEAT, REAR SPRING, UPPER | ||||
| 48481-37120 |
XZC710,XZU70#,712..DCRWD,DCVTO,DCVUO;XZU72#..T3..(30T,35T)..(DCRWD,DCVTO);XZU72#,73#..(T4,T5)..(DCRWD,DCVTO,DCVUO);XZU710..(20T,30T,35T)..(DCRWD,DCVTO,DCVUO) |
2 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-37052 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48505-37052 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-37291 |
XZU700..(20T,35T)..(DCRWD,DCVTO);XZC710,XZU702,710,720..(T3,T4,T5)..DCRWD ﾏｰｸ 48531−37291 |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03011 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-37291 |
XZU700..(20T,35T)..(DCRWD,DCVTO);XZC710,XZU702,710,720..(T3,T4,T5)..DCRWD ﾏｰｸ 48531−37291 |
1 | ||
| Common parts | ||||
| 90032-04031 | ||||
| 90119-12088 | ||||
| 90178-18002 | ||||
| 91112-81070 | ||||
| 91552-81030 | ||||
| 94130-01002 | ||||
| 94151-81000 | ||||
| 94184-01001 | ||||

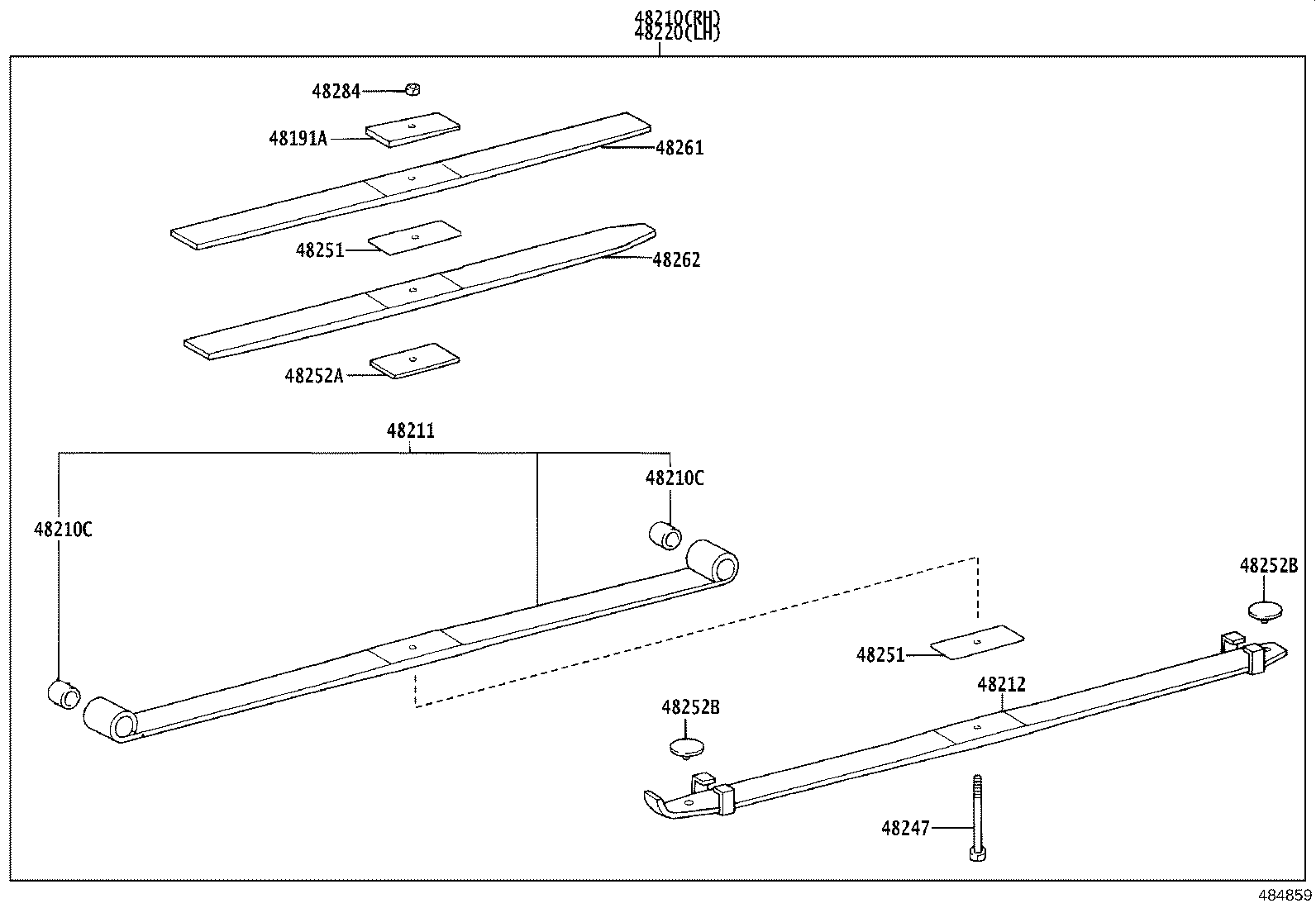

ILLUST NO. 2 OF 2(1905- )XZU70#..T4..30T,35T
MAIN 2 + HELPER 2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37W00 |
XZU702..6FC..30T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37V90 |
XZU702..6F..30T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-3V121 |
XZU702..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU70#..DCRWD,DCVTO |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU70#..DCRWD,DCVTO |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37V90 |
XZU702..6F..30T..DCRWD |
2 | ||
| 48201-37W00 |
XZU702..6FC..30T..DCRWD |
2 | ||
| 48201-3V121 |
XZU702..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37W00 |
XZU702..6FC..30T..DCRWD |
2 | ||
| 48202-37V90 |
XZU702..6F..30T..DCRWD |
2 | ||
| 48202-3V121 |
XZU702..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37W00 |
XZU702..6FC..30T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37V90 |
XZU702..6F..30T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-3V121 |
XZU702..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37V50 |
XZU72#..T3..(30T,35T)..(DCRWD,DCVTO);XZU71#..(30T,35T)..(DCRWD,DCVTO,DCVUO);XZU70#,72#,73#..T4..(30T,35T)..(DCRWD,DCVTO,DCVUO) |
2 | ||
| 48247-37J81 |
XZU702..T3..DCRWD..CBU;XZU70#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO)..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48247-37V90 |
XZU702..6F..30T..DCRWD |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48264-37N60 |
XZU702..T3..DCRWD..CBU;XZU70#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO)..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
4 | ||
| 48282-37V50 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48264-37N60 |
XZU702..T3..DCRWD..CBU;XZU70#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO)..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
4 | ||
| 48282-37V50 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48282-37V60 |
XZU70#,71#,72#..(30T,35T,40T)..(DCRWD,DCVTO) |
2 | ||
| S4814-E0010 |
XZU702..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48213-3V121 |
XZU702..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48261-37W00 |
XZU702..6FC..30T..DCRWD |
2 | ||
| 48261-37V90 |
XZU702..6F..30T..DCRWD |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-37V90 |
XZU702..6F..30T..DCRWD |
2 | ||
| 48214-3V121 |
XZU702..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48262-37W00 |
XZU702..6FC..30T..DCRWD |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
ILLUST NO. 2 OF 2(1905- )XZU702..T3..CBU ; (1905- )XZU70#..T3,T4..30T,35T..IV3
MAIN 2 + HELPER 2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48191A - WEDGE, CASTER(FOR REAR LEAF SPRING) | ||||
| 48192-37100 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-37W00 |
XZU702..6FC..30T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37V90 |
XZU702..6F..30T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-3V121 |
XZU702..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU70#..DCRWD,DCVTO |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90033-84013 |
XZU70#..DCRWD,DCVTO |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48201-37V90 |
XZU702..6F..30T..DCRWD |
2 | ||
| 48201-37W00 |
XZU702..6FC..30T..DCRWD |
2 | ||
| 48201-3V121 |
XZU702..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48202-37W00 |
XZU702..6FC..30T..DCRWD |
2 | ||
| 48202-37V90 |
XZU702..6F..30T..DCRWD |
2 | ||
| 48202-3V121 |
XZU702..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-37W00 |
XZU702..6FC..30T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-37V90 |
XZU702..6F..30T..DCRWD ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ |
1 | ||
| 48210-3V121 |
XZU702..30T ﾒｲﾝ2枚ﾘｰﾌ+ｻﾌﾞ2枚ﾘｰﾌ,ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-37V50 |
XZU72#..T3..(30T,35T)..(DCRWD,DCVTO);XZU71#..(30T,35T)..(DCRWD,DCVTO,DCVUO);XZU70#,72#,73#..T4..(30T,35T)..(DCRWD,DCVTO,DCVUO) |
2 | ||
| 48247-37J81 |
XZU702..T3..DCRWD..CBU;XZU70#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO)..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48247-37V90 |
XZU702..6F..30T..DCRWD |
2 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48264-37N60 |
XZU702..T3..DCRWD..CBU;XZU70#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO)..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
4 | ||
| 48282-37V50 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
4 | ||
| 48251 - SPACER, REAR SPRING LEAF | ||||
| 48264-37N60 |
XZU702..T3..DCRWD..CBU;XZU70#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO)..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
4 | ||
| 48282-37V50 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
4 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48282-37V60 |
XZU70#,71#,72#..(30T,35T,40T)..(DCRWD,DCVTO) |
2 | ||
| S4814-E0010 |
XZU702..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
8 | ||
| 48252A - SPACER, REAR SPRING, NO.2 | ||||
| 48282-37V60 |
XZU70#,71#,72#..(30T,35T,40T)..(DCRWD,DCVTO) |
2 | ||
| S4814-E0010 |
XZU702..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
8 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 48252B - SILENCER, REAR SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#,775..DCRWD,DCVTO |
4 | ||
| 48253D - SPACER, REAR SPRING, NO.3 | ||||
| 48214-37N60 |
XZU702..T3..DCRWD..CBU;XZU70#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO)..IV3 ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48261 - LEAF, REAR HELPER SPRING, NO.1 | ||||
| 48213-3V121 |
XZU702..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48261-37W00 |
XZU702..6FC..30T..DCRWD |
2 | ||
| 48261-37V90 |
XZU702..6F..30T..DCRWD |
2 | ||
| 48262 - LEAF, REAR HELPER SPRING, NO.2 | ||||
| 48262-37V90 |
XZU702..6F..30T..DCRWD |
2 | ||
| 48214-3V121 |
XZU702..30T ﾘﾔｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ ｺﾝﾌﾟﾚｯｼｮﾝ |
2 | ||
| 48262-37W00 |
XZU702..6FC..30T..DCRWD |
2 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0W070 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
