XZU702-TQFRX3 (2019)
Toyota Dyna/Toyoace

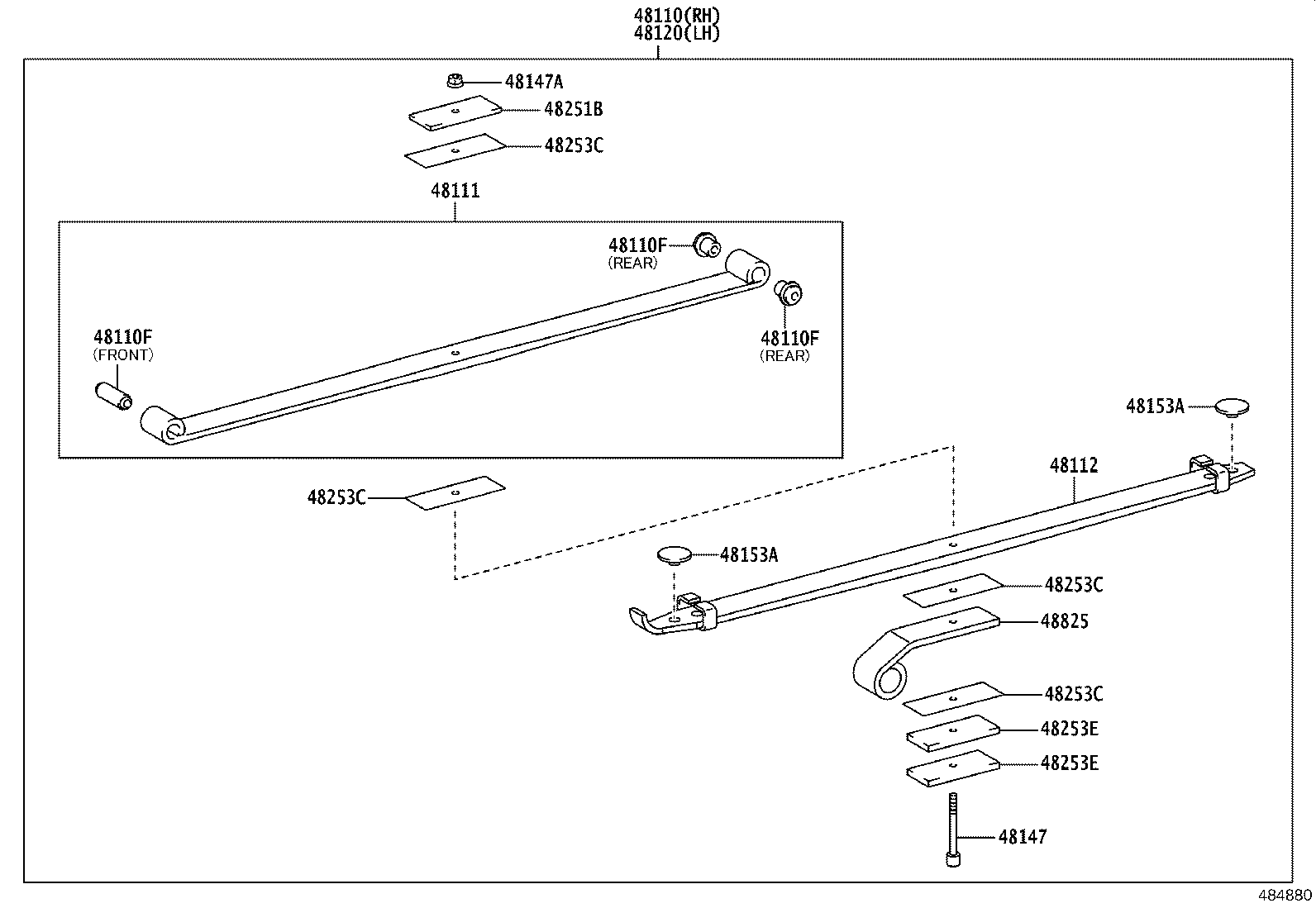

ILLUST NO. 2 OF 2(1905- )XZU70#,71#,72#,73#..T3,T4..30T,35T
2-LEAF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3VB40 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ |
1 | ||
| 48110-3VD60 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VG10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3VB40 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 右側 |
1 | ||
| 48101-3VB50 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 左側 |
1 | ||
| 48101-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,右側 |
1 | ||
| 48101-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,左側 |
1 | ||
| 48101-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,左側 |
1 | ||
| 48101-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-3VB40 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 右側 |
1 | ||
| 48102-3VB50 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 左側 |
1 | ||
| 48102-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,右側 |
1 | ||
| 48102-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側 |
1 | ||
| 48102-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,左側 |
1 | ||
| 48102-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,左側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3VB50 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ |
1 | ||
| 48110-3VD70 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VG20 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37J81 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48147-3VD60 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48147-3VD60 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48147-3VD60 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48114-37W71 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48115-37J81 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48113-3VB80 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48113-3VB80 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48113-3VB80 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
4 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48113-37M11 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
4 | ||
| 48115-37J81 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
4 | ||
| 48114-37W71 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48253-37631 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48113-37M11 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
4 | ||
| 48115-37J81 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
4 | ||
| 48114-37W71 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48253-37631 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||

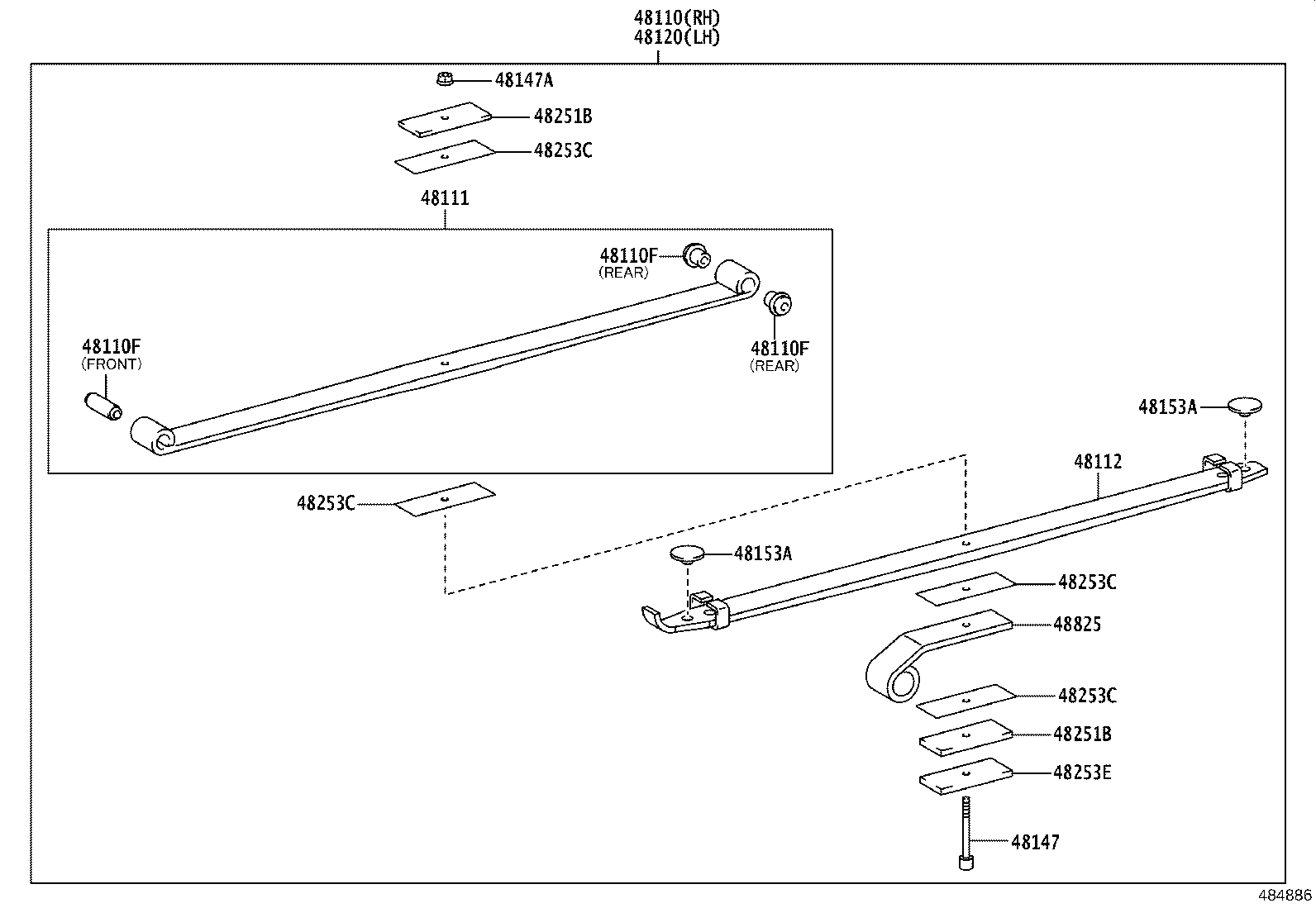

ILLUST NO. 2 OF 2(1905- )XZU70#,71#,72#,73#..T3,T4..30T,35T
2-LEAF,ｷｮｳｶﾘｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3VB40 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ |
1 | ||
| 48110-3VD60 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VG10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3VB40 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 右側 |
1 | ||
| 48101-3VB50 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 左側 |
1 | ||
| 48101-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,右側 |
1 | ||
| 48101-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,左側 |
1 | ||
| 48101-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,左側 |
1 | ||
| 48101-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-3VB40 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 右側 |
1 | ||
| 48102-3VB50 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 左側 |
1 | ||
| 48102-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,右側 |
1 | ||
| 48102-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側 |
1 | ||
| 48102-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,左側 |
1 | ||
| 48102-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,左側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3VB50 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ |
1 | ||
| 48110-3VD70 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VG20 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37J81 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48147-3VD60 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48147-3VD60 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48147-3VD60 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48114-37W71 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48115-37J81 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48153 - SPACER, FRONT LEAF SPRING, NO.1 | ||||
| 48114-37W71 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48115-37J81 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48113-3VB80 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48113-3VB80 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48113-3VB80 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
4 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48113-3VB80 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48113-3VB80 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48113-3VB80 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
4 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48113-37M11 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
4 | ||
| 48115-37J81 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
4 | ||
| 48114-37W71 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48253-37631 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||

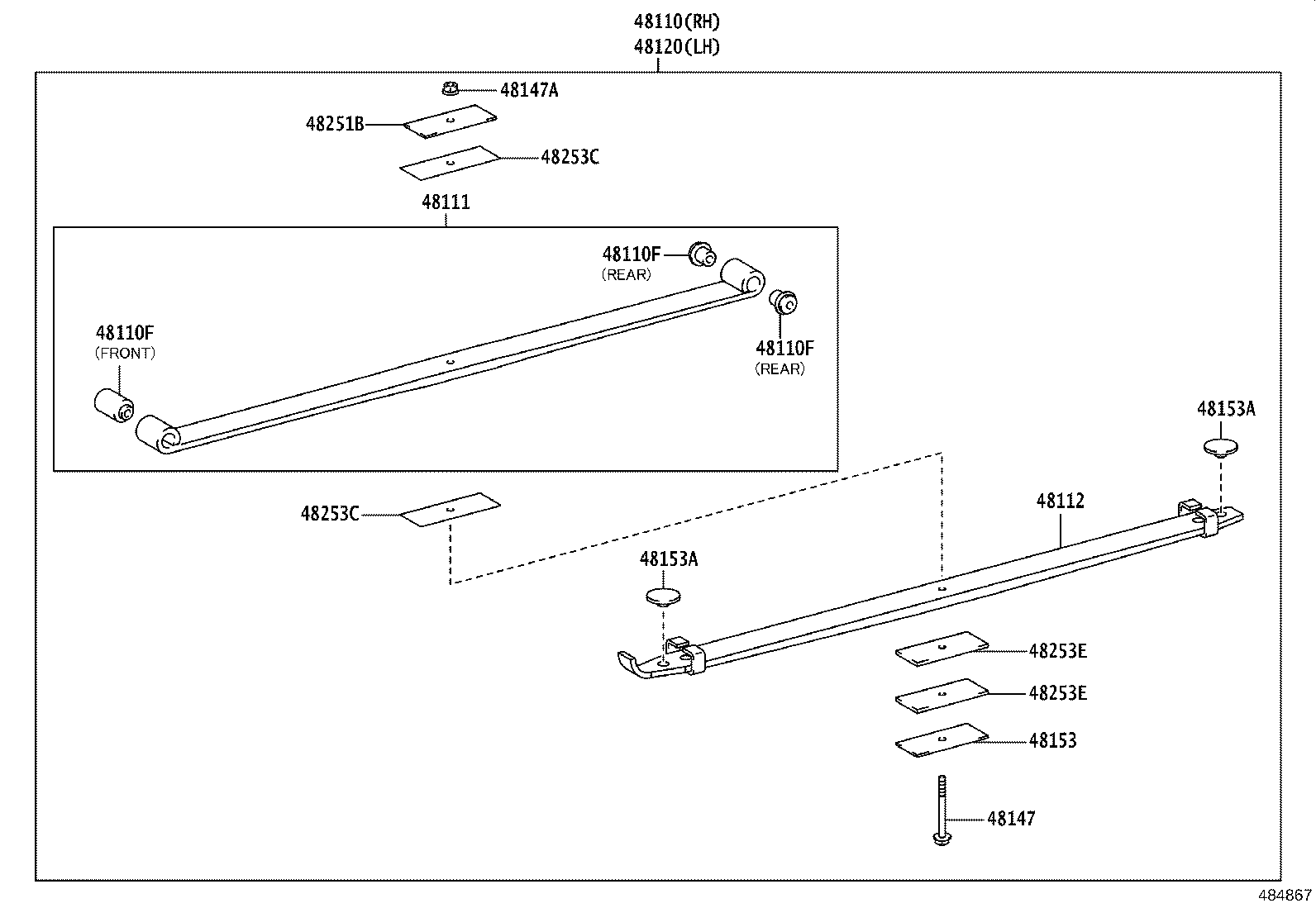

ILLUST NO. 2 OF 2(1905- )XZU720..40T..DCVUO..IV3 ; (1905- )XZU710..T3..35T..DCVTO..IV3 ; (1905
2-LEAF,ﾁｮｳｷｮｳｶﾘｰﾌ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3VB40 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ |
1 | ||
| 48110-3VB40 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ |
1 | ||
| 48110-3VD60 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VD60 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VG10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110-3VG10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3VB40 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 右側 |
1 | ||
| 48101-3VB40 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 右側 |
1 | ||
| 48101-3VB50 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 左側 |
1 | ||
| 48101-3VB50 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 左側 |
1 | ||
| 48101-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,右側 |
1 | ||
| 48101-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,右側 |
1 | ||
| 48101-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,左側 |
1 | ||
| 48101-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,左側 |
1 | ||
| 48101-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,左側 |
1 | ||
| 48101-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,左側 |
1 | ||
| 48101-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側 |
1 | ||
| 48101-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-3VB40 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 右側 |
1 | ||
| 48102-3VB40 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 右側 |
1 | ||
| 48102-3VB50 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 左側 |
1 | ||
| 48102-3VB50 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 左側 |
1 | ||
| 48102-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,右側 |
1 | ||
| 48102-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,右側 |
1 | ||
| 48102-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側 |
1 | ||
| 48102-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側 |
1 | ||
| 48102-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,左側 |
1 | ||
| 48102-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,左側 |
1 | ||
| 48102-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,左側 |
1 | ||
| 48102-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,左側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3VB50 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ |
1 | ||
| 48110-3VB50 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ |
1 | ||
| 48110-3VD70 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VD70 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VG20 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110-3VG20 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37J81 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48147-37J81 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48147-3VD60 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48147-3VD60 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48147-3VD60 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48147-3VD60 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48147-3VD60 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48147-3VD60 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
| 48284-0W060 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48113-3VB80 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48113-3VB80 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48113-3VB80 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48113-3VB80 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48113-3VB80 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
4 | ||
| 48113-3VB80 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
4 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48113-3VB80 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48113-3VB80 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48113-3VB80 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48113-3VB80 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48113-3VB80 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
4 | ||
| 48113-3VB80 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
4 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48113-37M11 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
4 | ||
| 48113-37M11 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
4 | ||
| 48115-37J81 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
4 | ||
| 48115-37J81 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
4 | ||
| 48114-37W71 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48114-37W71 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48253-37631 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48253-37631 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48825 - BRACKET, STABILIZER, NO.2 | ||||
| 48825-37020 |
XZC710,XZU70#,71#,72#..(T3,T4,T5)..(20T,30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48825-37020 |
XZC710,XZU70#,71#,72#..(T3,T4,T5)..(20T,30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48825-37020 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48825-37020 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||

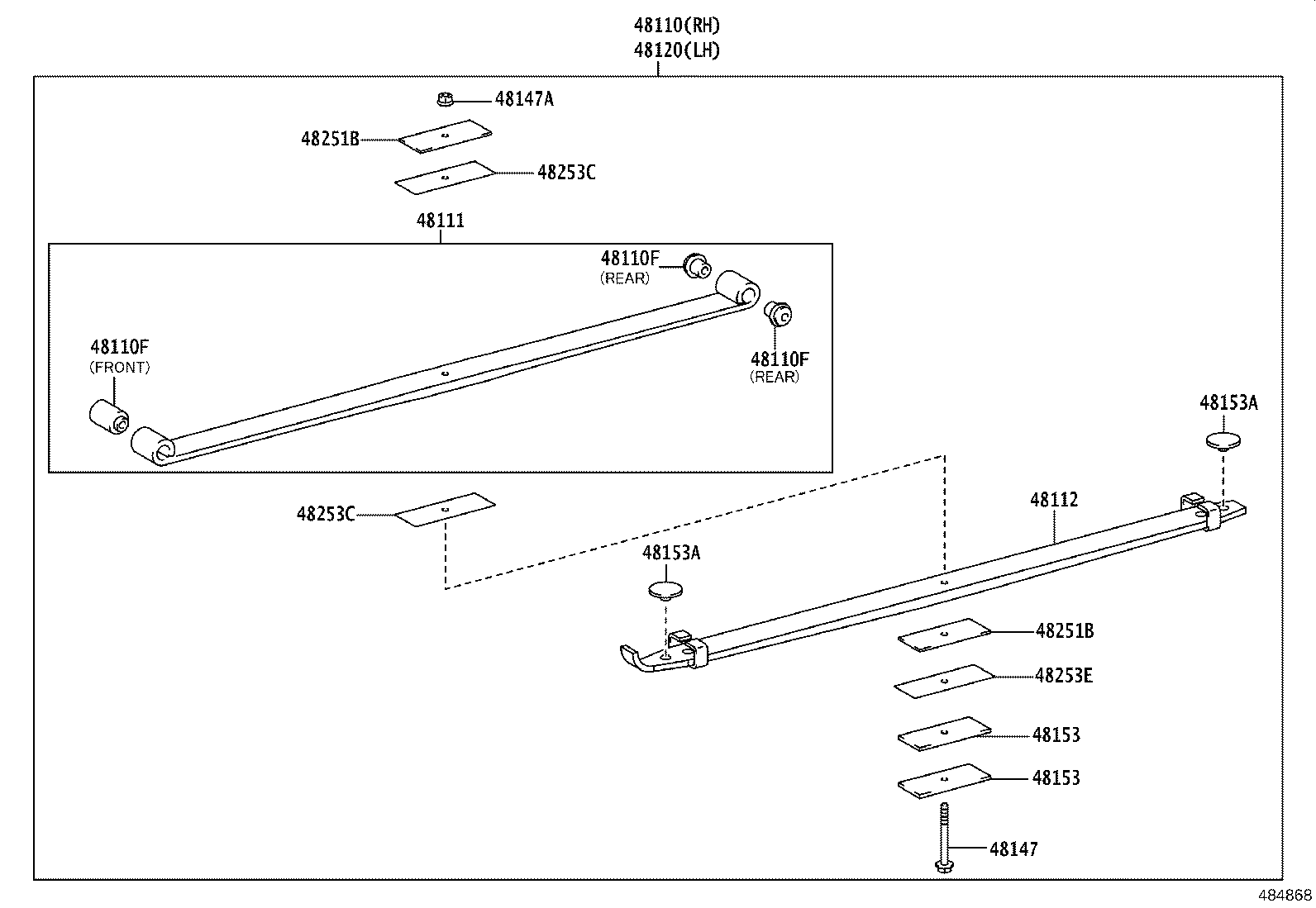

ILLUST NO. 2 OF 2(1905- )XZU70#,71#,72#,73#..T3,T4..30T,35T
2-LEAF,ｱﾘ(ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3VB40 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ |
1 | ||
| 48110-3VD60 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VG10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3VB40 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 右側 |
1 | ||
| 48101-3VB50 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 左側 |
1 | ||
| 48101-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,右側 |
1 | ||
| 48101-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,左側 |
1 | ||
| 48101-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,左側 |
1 | ||
| 48101-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-3VB40 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 右側 |
1 | ||
| 48102-3VB50 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 左側 |
1 | ||
| 48102-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,右側 |
1 | ||
| 48102-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側 |
1 | ||
| 48102-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,左側 |
1 | ||
| 48102-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,左側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3VB50 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ |
1 | ||
| 48110-3VD70 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VG20 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37J81 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48147-3VD60 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48147-3VD60 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48147-3VD60 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48113-3VB80 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48113-3VB80 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48113-3VB80 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
4 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48113-37M11 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
4 | ||
| 48115-37J81 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
4 | ||
| 48114-37W71 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48253-37631 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48113-37M11 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
4 | ||
| 48115-37J81 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
4 | ||
| 48114-37W71 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48253-37631 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48825 - BRACKET, STABILIZER, NO.2 | ||||
| 48825-37020 |
XZC710,XZU70#,71#,72#..(T3,T4,T5)..(20T,30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48825-37020 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
ILLUST NO. 2 OF 2(1905- )XZU730..IV3 ; (1905- )XZU722..35T; (1905- )XZU712..30T,35T..CBU ;
2-LEAF,ｷｮｳｶﾘｰﾌ,ｱﾘ(ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3VB40 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ |
1 | ||
| 48110-3VB40 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ |
1 | ||
| 48110-3VD60 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VD60 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VG10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110-3VG10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3VB40 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 右側 |
1 | ||
| 48101-3VB40 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 右側 |
1 | ||
| 48101-3VB50 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 左側 |
1 | ||
| 48101-3VB50 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 左側 |
1 | ||
| 48101-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,右側 |
1 | ||
| 48101-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,右側 |
1 | ||
| 48101-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,左側 |
1 | ||
| 48101-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,左側 |
1 | ||
| 48101-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,左側 |
1 | ||
| 48101-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,左側 |
1 | ||
| 48101-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側 |
1 | ||
| 48101-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-3VB40 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 右側 |
1 | ||
| 48102-3VB40 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 右側 |
1 | ||
| 48102-3VB50 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 左側 |
1 | ||
| 48102-3VB50 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 左側 |
1 | ||
| 48102-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,右側 |
1 | ||
| 48102-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,右側 |
1 | ||
| 48102-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側 |
1 | ||
| 48102-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側 |
1 | ||
| 48102-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,左側 |
1 | ||
| 48102-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,左側 |
1 | ||
| 48102-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,左側 |
1 | ||
| 48102-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,左側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3VB50 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ |
1 | ||
| 48110-3VB50 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ |
1 | ||
| 48110-3VD70 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VD70 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VG20 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110-3VG20 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37J81 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48147-37J81 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48147-3VD60 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48147-3VD60 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48147-3VD60 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48147-3VD60 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48147-3VD60 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48147-3VD60 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
| 48284-0W060 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48113-3VB80 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48113-3VB80 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48113-3VB80 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48113-3VB80 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48113-3VB80 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
4 | ||
| 48113-3VB80 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
4 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48113-37M11 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
4 | ||
| 48113-37M11 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
4 | ||
| 48115-37J81 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
4 | ||
| 48115-37J81 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
4 | ||
| 48114-37W71 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48114-37W71 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48253-37631 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48253-37631 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48825 - BRACKET, STABILIZER, NO.2 | ||||
| 48825-37020 |
XZC710,XZU70#,71#,72#..(T3,T4,T5)..(20T,30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48825-37020 |
XZC710,XZU70#,71#,72#..(T3,T4,T5)..(20T,30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48825-37020 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48825-37020 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
ILLUST NO. 2 OF 2(1905- )XZU710,720..30T,35T..IV3,IV6 ; (1905-)XZU70#,712,722,73#..SCB..T3,T4
2-LEAF,ｷｮｳｶﾘｰﾌ,ｱﾘ(ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48110 - SPRING ASSY, FRONT, RH | ||||
| 48110-3VB40 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ |
1 | ||
| 48110-3VD60 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VG10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48110F - BIMETAL FORMED BUSH(FOR FRONT SPRING) | ||||
| 90389-16028 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾘﾔ |
4 | ||
| 90389-16029 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄ |
2 | ||
| 48111 - LEAF, FRONT SPRING, NO.1 | ||||
| 48101-3VB40 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 右側 |
1 | ||
| 48101-3VB50 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 左側 |
1 | ||
| 48101-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,右側 |
1 | ||
| 48101-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,左側 |
1 | ||
| 48101-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,左側 |
1 | ||
| 48101-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側 |
1 | ||
| 48112 - LEAF, FRONT SPRING, NO.2 | ||||
| 48102-3VB40 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 右側 |
1 | ||
| 48102-3VB50 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 左側 |
1 | ||
| 48102-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,右側 |
1 | ||
| 48102-3VF00 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,右側 |
1 | ||
| 48102-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り,左側 |
1 | ||
| 48102-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ,左側 |
1 | ||
| 48120 - SPRING ASSY, FRONT, LH | ||||
| 48110-3VB50 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ |
1 | ||
| 48110-3VD70 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48110-3VG20 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
1 | ||
| 48110-3VF10 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) 2枚ﾘｰﾌ,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
1 | ||
| 48147 - BOLT, FRONT SPRING, CENTER | ||||
| 48147-37J81 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48147-3VD60 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48147-3VD60 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48147-3VD60 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48147A - NUT, FRONT SPRING CENTER BOLT | ||||
| 48284-0W060 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
2 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48153A - SILENCER, FRONT SPRING, NO.1 | ||||
| 48252-37521 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO |
4 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48113-3VB80 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48113-3VB80 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48113-3VB80 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
4 | ||
| 48251B - SPACER(FOR FRONT SPRING) | ||||
| 48113-3VB80 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48113-3VB80 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48113-3VB80 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
4 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48253C - SPACER, FRONT LEAF SPRING, NO.2 | ||||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU710..40T..DCVTO..CBU;XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
8 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
4 | ||
| 48152-37C61 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
2 | ||
| 48253E - SPACER, FRONT SPRING, NO.3 | ||||
| 48113-37M11 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
4 | ||
| 48115-37J81 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) |
4 | ||
| 48114-37W71 |
XZU70#,71#,72#..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48253-37631 |
XZU710,720..(30T,35T)..DCVTO..IV3;XZU70#,712,722..SCB..(T3,T4)..(30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ |
2 | ||
| 48825 - BRACKET, STABILIZER, NO.2 | ||||
| 48825-37020 |
XZC710,XZU70#,71#,72#..(T3,T4,T5)..(20T,30T,35T)..(DCRWD,DCVTO) ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−強化ﾘｰﾌ&ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
| 48825-37020 |
XZC710,XZU70#,71#,72#..DCRWD,DCVTO ﾌﾛﾝﾄｽﾀﾋﾞﾗｲｻﾞ−有り |
2 | ||
Part Price Details
Loading price information...
Part Number:
Price:
