XZU702-TQFRC (2017)

Toyota Dyna/Toyoace

Production May 2017 - May 2019
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8409- )DM2,T1,T2,T4

Click highlighted areas on diagram

diagram 77018 77022A 77022A 77022A 77100 77100A 77100B 77121 77197 77206 77275 77611 77611A 77612 77651 9046713007 9161141045 9161160820 9161160820 9165140616 9331914010 9411040800 9411040800 9411041000 9613230600
Part # Description Qty Price
Common parts
90467-13007
91611-41045
91611-60820
91651-40616
93319-14010
94110-40800
94110-41000
96132-30600

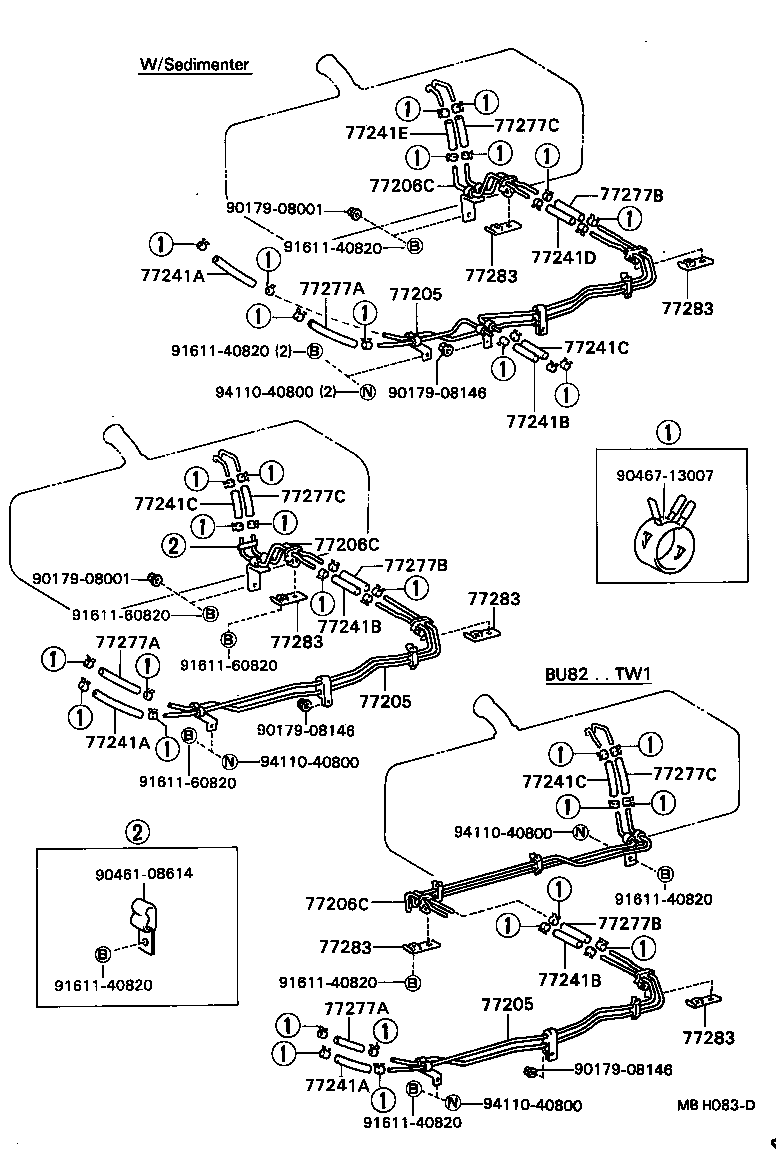

ILLUST NO. 2 OF 2(8409- )BU60,61,62,70,80,81,82

Click highlighted areas on diagram

diagram 77205 77205 77205 77206C 77206C 77206C 77241A 77241A 77241A 77241B 77241B 77241B 77241C 77241C 77241C 77241D 77241E 77277A 77277A 77277A 77277B 77277B 77277B 77277C 77277C 77277C 77283 77283 77283 77283 77283 77283 9017908001 9017908001 9017908146 9017908146 9017908146 9046108614 9046713007 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161160820 9161160820 9161160820 9411040800 9411040800 9411040800 9411040800
Part # Description Qty Price
Common parts
90179-08001
90179-08146
90461-08614
90467-13007
91611-40820
91611-60820
94110-40800

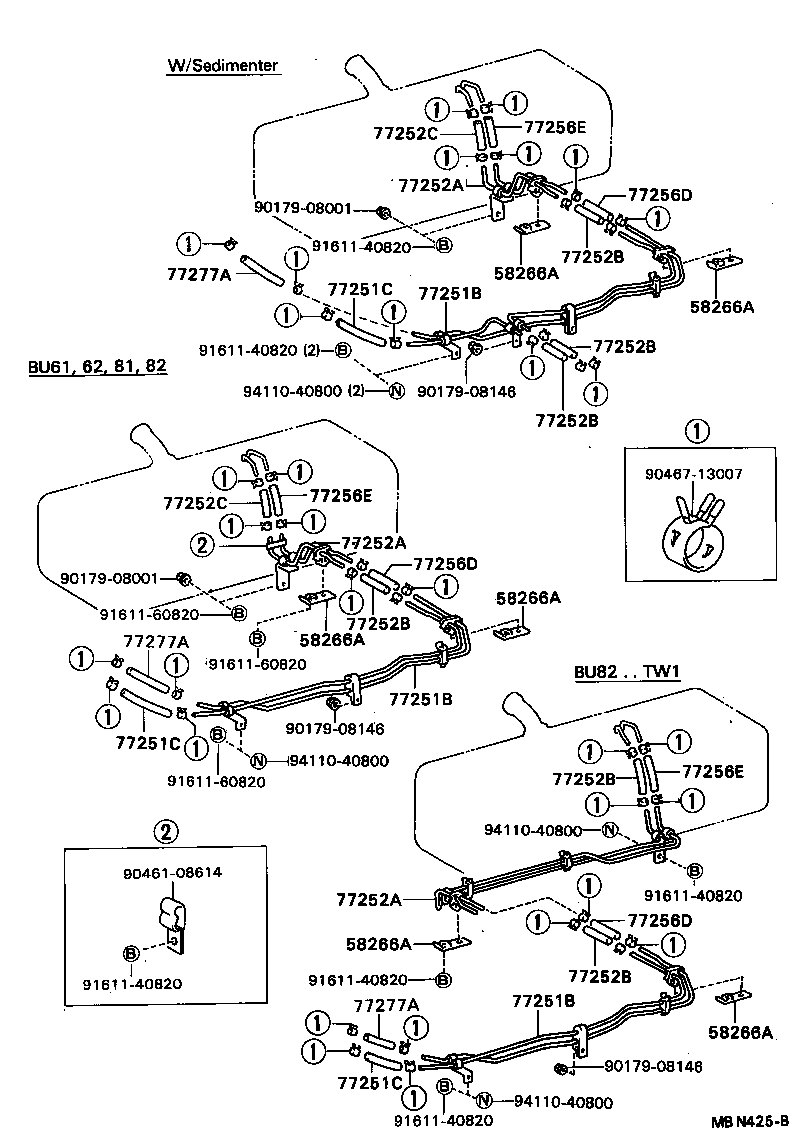

ILLUST NO. 2 OF 2(8708- )BU60,61,62,70,80,81,82

Click highlighted areas on diagram

diagram 58266A 58266A 58266A 58266A 58266A 58266A 77251B 77251B 77251B 77251C 77251C 77251C 77252A 77252A 77252A 77252B 77252B 77252B 77252B 77252B 77252B 77252C 77252C 77256D 77256D 77256D 77256E 77256E 77256E 77277A 77277A 77277A 9017908001 9017908001 9017908146 9017908146 9017908146 9046108614 9046713007 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161160820 9161160820 9161160820 9411040800 9411040800 9411040800 9411040800
Part # Description Qty Price
Common parts
90179-08001
90179-08146
90461-08614
90467-13007
91611-40820
91611-60820
94110-40800

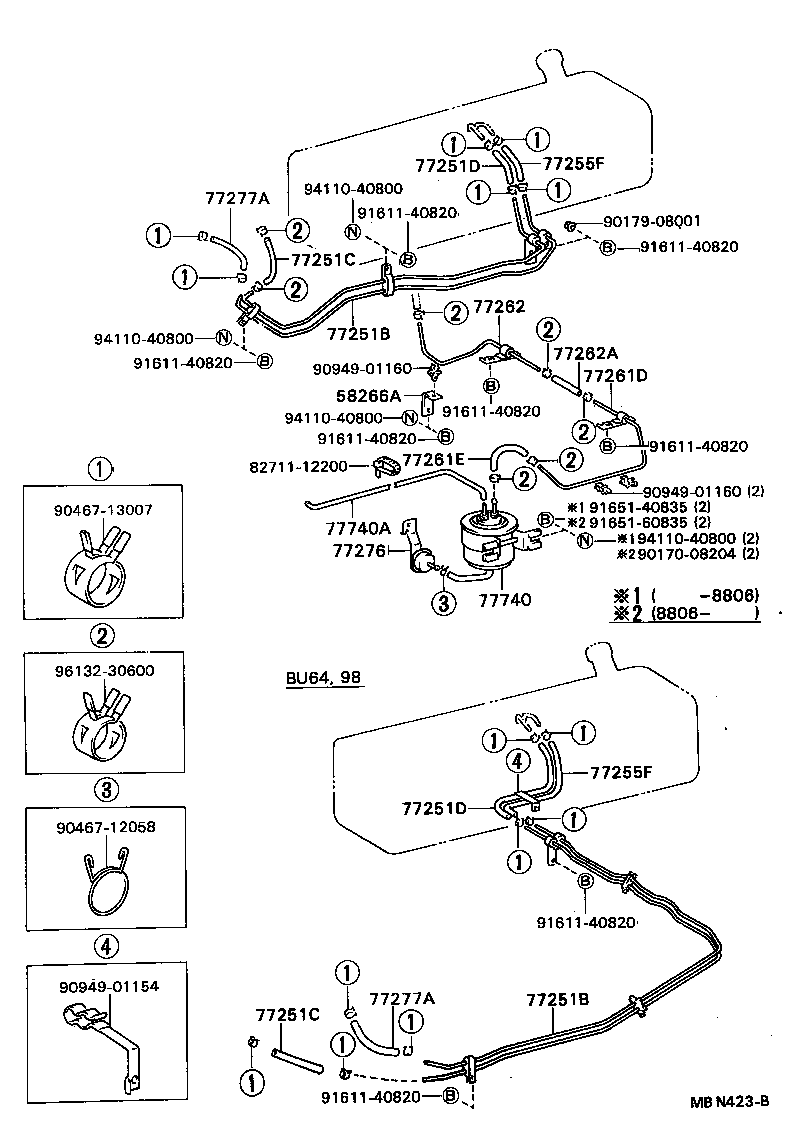

ILLUST NO. 2 OF 2(8708- )YU6#,70

Click highlighted areas on diagram

diagram 58266A 77251B 77251B 77251C 77251C 77251D 77251D 77255F 77255F 77261D 77261E 77262 77262A 77276 77277A 77277A 77740 77740A 8271112200 9017008204 9017908001 9046712058 9046713007 9094901154 9094901160 9094901160 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9161140820 9165140835 9165160835 9411040800 9411040800 9411040800 9411040800 9613230600
Part # Description Qty Price
Common parts
82711-12200
90170-08204
90179-08001
90467-12058
90467-13007
90949-01154
90949-01160
91611-40820
91651-40835
91651-60835
94110-40800
96132-30600

ILLUST NO. 2 OF 3(1107- )DCRTJ,DCRTK,DCRTL,DCRVT,DCRVU

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾀﾝｸ ｽﾃｰ(ﾌｭｰｴﾙﾀﾝｸ:LHｶﾞﾜ ﾉｿﾞｸ)

diagram 77601A 77601A 77601A 77601A 77601A 77601A 77611A 77611A 77611A 77611A 77611A 77611A 77616C 77616C 77633 77633 77633 77633B 77633B 77633B 91672C1035 91672C1035 91672C1035 91672C1035 91672C1035 91672C1035 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9413000802 9415181000 9415181000 9415181000 9415181000 9415181000 9415181000
Part # Description Qty Price
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-37041

XZU710..DCB..T5;XZU710,720..20T..IV3;XZU702,712,722,732..T4;XZU702,712,722,732..T3..IV3;XZU710,720,730..(T3,T4)..CBU;XZC710,XZU700,775..DCRTJ,DCRTK

 2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-37041

XZU710..DCB..T5;XZU710,720..20T..IV3;XZU702,712,722,732..T4;XZU702,712,722,732..T3..IV3;XZU710,720,730..(T3,T4)..CBU;XZC710,XZU700,775..DCRTJ,DCRTK

 2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-37041

XZU710..DCB..T5;XZU710,720..20T..IV3;XZU702,712,722,732..T4;XZU702,712,722,732..T3..IV3;XZU710,720,730..(T3,T4)..CBU;XZC710,XZU700,775..DCRTJ,DCRTK

 2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-37041

XZU710..DCB..T5;XZU710,720..20T..IV3;XZU702,712,722,732..T4;XZU702,712,722,732..T3..IV3;XZU710,720,730..(T3,T4)..CBU;XZC710,XZU700,775..DCRTJ,DCRTK

 2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-37041

XZU710..DCB..T5;XZU710,720..20T..IV3;XZU702,712,722,732..T4;XZU702,712,722,732..T3..IV3;XZU710,720,730..(T3,T4)..CBU;XZC710,XZU700,775..DCRTJ,DCRTK

 2
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-37041

XZU710..DCB..T5;XZU710,720..20T..IV3;XZU702,712,722,732..T4;XZU702,712,722,732..T3..IV3;XZU710,720,730..(T3,T4)..CBU;XZC710,XZU700,775..DCRTJ,DCRTK

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

XZC710,XZU70#,71#,72#,73#,775

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

XZC710,XZU70#,71#,72#,73#,775

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

XZC710,XZU70#,71#,72#,73#,775

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

XZC710,XZU70#,71#,72#,73#,775

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

XZC710,XZU70#,71#,72#,73#,775

 2
77611A - PIN (FOR FUEL TANK BAND)
77629-36010

XZC710,XZU70#,71#,72#,73#,775

 2
77616C - SEAT, FUEL TANK BAND
77616-36030

XZU710..IV3;XZU710..DCB..T5;XZU710..(T3,T4)..CBU;XZU702,712,722,732..T4;XZC710,XZU700,720,730,775..DM6,DM7,T3,T4;XZU702,712,72#,732..(T3,T5)..(DCRTJ,DCRTK,DCRTL)..IV3

 2
77616C - SEAT, FUEL TANK BAND
77616-36030

XZU710..IV3;XZU710..DCB..T5;XZU710..(T3,T4)..CBU;XZU702,712,722,732..T4;XZC710,XZU700,720,730,775..DM6,DM7,T3,T4;XZU702,712,72#,732..(T3,T5)..(DCRTJ,DCRTK,DCRTL)..IV3

 2
77633 - STAY, FUEL TANK
77501-37080

XZU710..DCB..T5;XZU710,720..20T..IV3;XZU702,712,722,732..T4;XZU702,712,722,732..T3..IV3;XZU710,720,730..(T3,T4)..CBU;XZC710,XZU700,775..DCRTJ,DCRTK

 1
77633 - STAY, FUEL TANK
77501-37080

XZU710..DCB..T5;XZU710,720..20T..IV3;XZU702,712,722,732..T4;XZU702,712,722,732..T3..IV3;XZU710,720,730..(T3,T4)..CBU;XZC710,XZU700,775..DCRTJ,DCRTK

 1
77633 - STAY, FUEL TANK
77501-37080

XZU710..DCB..T5;XZU710,720..20T..IV3;XZU702,712,722,732..T4;XZU702,712,722,732..T3..IV3;XZU710,720,730..(T3,T4)..CBU;XZC710,XZU700,775..DCRTJ,DCRTK

 1
77633B - STAY, FUEL TANK
77501-37080

XZU710..DCB..T5;XZU710,720..20T..IV3;XZU702,712,722,732..T4;XZU702,712,722,732..T3..IV3;XZU710,720,730..(T3,T4)..CBU;XZC710,XZU700,775..DCRTJ,DCRTK

 1
77633B - STAY, FUEL TANK
77501-37080

XZU710..DCB..T5;XZU710,720..20T..IV3;XZU702,712,722,732..T4;XZU702,712,722,732..T3..IV3;XZU710,720,730..(T3,T4)..CBU;XZC710,XZU700,775..DCRTJ,DCRTK

 1
77633B - STAY, FUEL TANK
77501-37080

XZU710..DCB..T5;XZU710,720..20T..IV3;XZU702,712,722,732..T4;XZU702,712,722,732..T3..IV3;XZU710,720,730..(T3,T4)..CBU;XZC710,XZU700,775..DCRTJ,DCRTK

 1
Common parts
91672-C1035
94130-00802
94151-81000

ILLUST NO. 3 OF 3(1107- )XZC710,XZU70#,71#,72#,73#..SCB..DCRTJ,DCRTK,DCRTL

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾁｭｰﾌﾞ

diagram 2202 2202 2202 2202 2302 2302 2302 77205 77206C 77242A 77242B 77243A 77243B 77278A 77278B 9046718008 9046718008 9046718008 9046718008 9155180825 9155180825 9155180825 9415180800 9613251300 9613251300
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-37E51

XZC710,XZU70#,71#,72#,732..SCB..(DCRTJ,DCRTK,DCRTL)

 1
77206C - TUBE SUB-ASSY, FUEL MAIN, NO.2
77206-37J71

XZC710,XZU70#,71#,72#,732..SCB..(DCRTJ,DCRTK,DCRTL)

 1
77242A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.2)
77259-37861

XZU710..SCB..20T..IV3;XZU710..SCB..T4..20T..CBU;XZC710,XZU70#,712,72#,732..T4..(DCRTJ,DCRTK,DCRTL);XZU702,712,72#,732..(T3,T5)..(DCRTJ,DCRTK,DCRTL)..IV3

 1
77242B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.2)
95337-12030

XZU720,730..IV3;XZU720..20T..CBU;XZU710..DCRVT..IV3;XZU710..40T..DCRVU..IV3;XZC710,XZU70#,712,722,732;XZU710..(20T,35T)..(DCRTJ,DCRTK,DCRTL,DCRVU)

長さ=300

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95337-12016

XZU720,730..IV3;XZU720..20T..CBU;XZU710..DCRVT..IV3;XZU710..40T..DCRVU..IV3;XZC710,XZU70#,712,722,732,775;XZU710..(20T,35T)..(DCRTJ,DCRTK,DCRTL,DCRVU)

長さ=160

 1
77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3)
95337-12019

XZU720,730..IV3;XZU720..20T..CBU;XZU710..DCRVT..IV3;XZU710..40T..DCRVU..IV3;XZC710,XZU70#,712,722,732;XZU710..SCB..(20T,35T)..(DCRTJ,DCRTK,DCRTL,DCRVU)

長さ=190

 1
77278A - HOSE, FUEL, NO.1 (FOR RETURN TUBE, NO.2)
95337-08028

XZU710..SCB..20T..IV3;XZU710..SCB..T4..20T..CBU;XZC710,XZU70#,712,72#,732..T4..(DCRTJ,DCRTK,DCRTL);XZU702,712,72#,732..(T3,T5)..(DCRTJ,DCRTK,DCRTL)..IV3

長さ=280

 1
77278B - HOSE, FUEL, NO.2 (FOR RETURN TUBE, NO.2)
95337-08020

XZU720,730..IV3;XZU720..20T..CBU;XZU710..DCRVT..IV3;XZU710..40T..DCRVU..IV3;XZC710,XZU70#,712,722,732,775;XZU710..(20T,35T)..(DCRTJ,DCRTK,DCRTL,DCRVU)

長さ=160

 1
Common parts
90467-18008
91551-80825
94151-80800
96132-51300
Linked diagrams
2202
2302

ILLUST NO. 1 OF 3(1107- )DCRTJ,DCRTK,DCRTL,DCRVT,DCRVU ; (2103- )

Click highlighted areas on diagram

ﾌｭｰｴﾙ ﾀﾝｸ

diagram 77017B 77023 77026B 77100A 77100B 77100U 77154 77169A 77169A 77178 77244D 77249 77380 77701U 8401 8401 8401 93319A4010 93319A4010 9613251100
Part # Description Qty Price
77017B - TUBE SUB-ASSY, FUEL TANK VENT
77017-37090

XZC710,XZU70#,71#,72#,73#,775

 1
77023 - FILTER SUB-ASSY, FUEL SUCTION TUBE
77023-60010

XZC710,XZU70#,71#,72#,73#,775

 1
77026B - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-37010

XZC710,XZU70#,71#,72#,73#,775

 1
77100A - PLUG(FOR FUEL TANK)
90105-12116

XZC710,XZU70#,71#,72#,73#,775

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

XZC710,XZU70#,71#,72#,73#,775

 1
77100U - TANK SUB-ASSY, FUEL
77001-37650

XZC710,XZU70#,71#,72#,73#,775

992X310X385

 1
77154 - PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT
77154-25010

XZC710,XZU70#,71#,72#,73#,775

 1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14020

XZC710,XZU70#,71#,72#,73#,775

 2
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14020

XZC710,XZU70#,71#,72#,73#,775

 2
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-44010

XZC710,XZU70#,71#,72#,73#,775

 1
77244D - TUBE, FUEL EVAPORATION BREATHER, NO.1
77244-37010

XZC710,XZU70#,71#,72#,73#,775

 1
77249 - HOSE, FUEL EMISSION
77249-37190

XZC710,XZU70#,71#,72#,73#,775

 1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010

XZC710,XZU70#,71#,72#,73#,775

 1
77701U - HOSE, FUEL (FOR CHECK VALVE)
95333-06040

XZC710,XZU70#,71#,72#,73#,775

*H,L=340

 1
Common parts
93319-A4010
96132-51100
Linked diagrams
8401
