XZU702-TQFRC (2017)
Toyota Dyna/Toyoace
(1107-1905)XZC710,XZU70#,71#,72#,775..SCB..T3,T4,T5..CBU ; (1905- )XZU70#..CBU

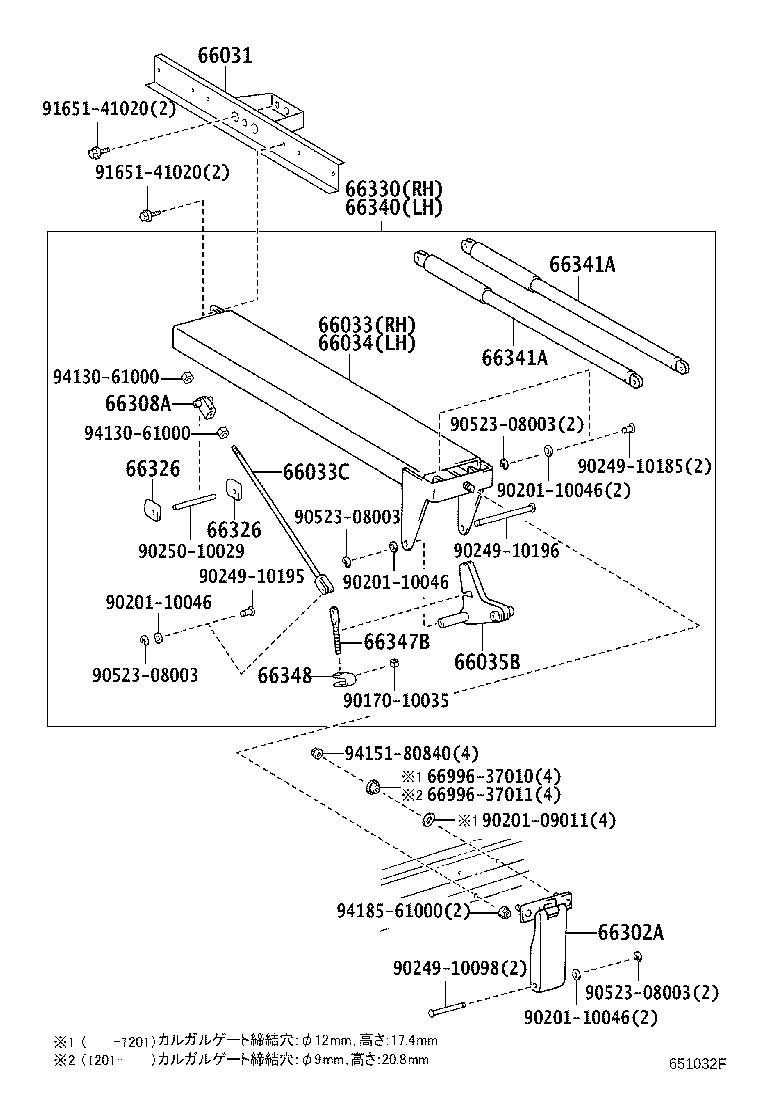

ｻｲﾄﾞ ｹﾞｰﾄ ﾍﾙﾊﾟ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66031 - BRACKET SUB-ASSY, GATE HELPER, NO.1 | ||||
| 66031-37020 |
XZC710,XZU70#,71#,72#,775..SCB..CBU |
1 | ||
| 66033 - BRACKET SUB-ASSY, GATE HELPER, NO.3 | ||||
| 66034-37020 |
XZC710,XZU70#,71#,72#,775..SCB..CBU |
1 | ||
| 66033C - ROD SUB-ASSY, GATE HELPER TENSION | ||||
| 66033-37100 |
XZC710,XZU70#,71#,72#,775..SCB..CBU |
2 | ||
| 66034 - BRACKET SUB-ASSY, GATE HELPER, NO.3 LH | ||||
| 66033-37090 |
XZC710,XZU70#,71#,72#,775..SCB..CBU |
1 | ||
| 66035B - BELLCRANK SUB-ASSY, GATE HELPER | ||||
| 66035-37020 |
XZC710,XZU70#,71#,72#,775..SCB..CBU |
2 | ||
| 66302A - LINK SUB-ASSY, GATE HELPER | ||||
| 66302-37061 |
XZC710,XZU70#,71#,72#,775..SCB..CBU |
2 | ||
| 66308A - END SUB-ASSY, GATE HELPER ROD, NO.2 | ||||
| 66308-37010 |
XZC710,XZU70#,71#,72#,775..SCB..CBU |
2 | ||
| 66326 - SLIDER, ROD CONTROL | ||||
| 66326-37010 |
XZC710,XZU70#,71#,72#,775..SCB..CBU |
4 | ||
| 66326 - SLIDER, ROD CONTROL | ||||
| 66326-37010 |
XZC710,XZU70#,71#,72#,775..SCB..CBU |
4 | ||
| 66330 - HELPER ASSY, GATE, RH | ||||
| 66340-37050 |
XZC710,XZU70#,71#,72#,775..SCB..CBU *** |
1 | ||
| 66340 - HELPER ASSY, GATE, LH | ||||
| 66330-37040 |
XZC710,XZU70#,71#,72#,775..SCB..CBU *** |
1 | ||
| 66341A - STAY, GATE HELPER | ||||
| 66341-37060 |
XZC710,XZU70#,71#,72#,775..SCB..CBU |
4 | ||
| 66341A - STAY, GATE HELPER | ||||
| 66341-37060 |
XZC710,XZU70#,71#,72#,775..SCB..CBU |
4 | ||
| 66347B - BOLT, GATE HELPER BELLCRANK ADJUST | ||||
| 66347-37020 |
XZC710,XZU70#,71#,72#,775..SCB..CBU |
2 | ||
| 66348 - RETAINER, GATE HELPER BELLCRANK ADJUST BOLT | ||||
| 66348-37010 |
XZC710,XZU70#,71#,72#,775..SCB..CBU |
2 | ||
| Common parts | ||||
| 66996-37010 | ||||
| 66996-37011 | ||||
| 90170-10035 | ||||
| 90201-09011 | ||||
| 90201-10046 | ||||
| 90249-10098 | ||||
| 90249-10185 | ||||
| 90249-10195 | ||||
| 90249-10196 | ||||
| 90250-10029 | ||||
| 90523-08003 | ||||
| 91651-41020 | ||||
| 94130-61000 | ||||
| 94151-80840 | ||||
| 94185-61000 | ||||

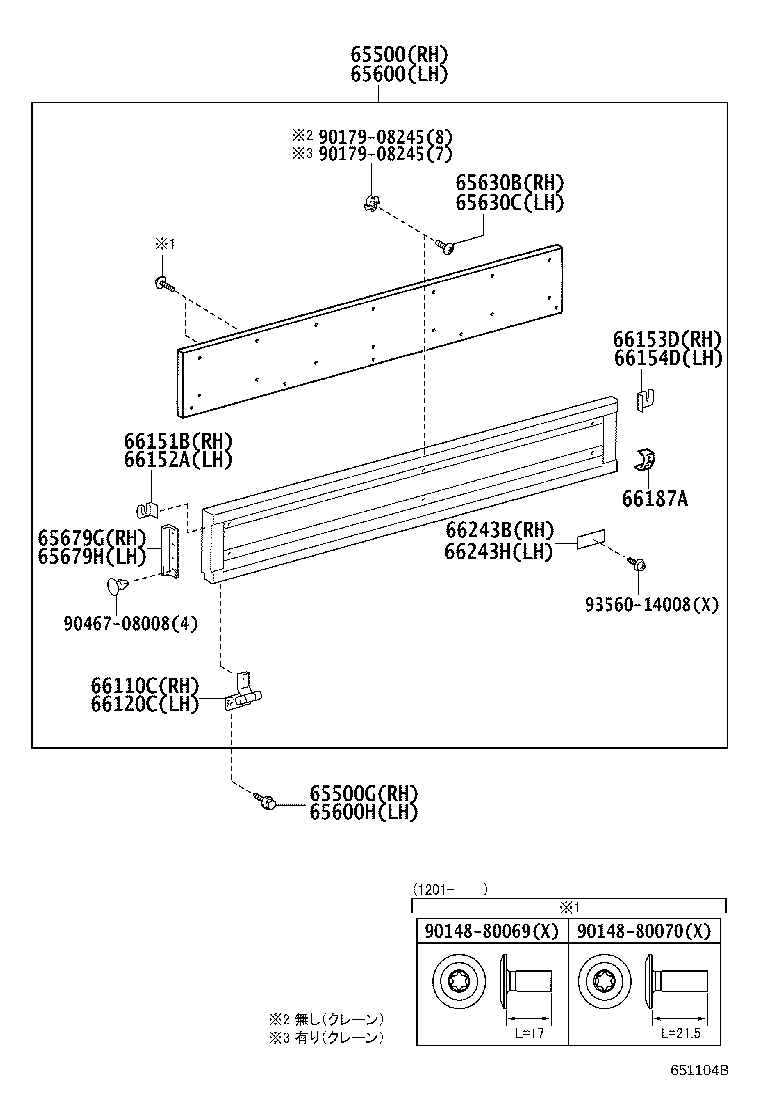

(1107- )XZC710,XZU70#,71#,72#,775..T3,T4,T5..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65500 - PANEL ASSY, REAR BODY SIDE, RH | ||||
| 65500-37E02 |
XZU70#..CBU |
1 | ||
| 65500G - BOLT, W/WASHER(FOR SIDE GATE, RH) | ||||
| 90119-08464 |
XZU70#..CBU |
10 | ||
| 65600 - PANEL ASSY, REAR BODY SIDE, LH | ||||
| 65600-37J02 |
XZU70#..CBU |
1 | ||
| 65600H - BOLT, W/WASHER(FOR SIDE GATE, LH) | ||||
| 90119-08464 |
XZU70#..CBU |
10 | ||
| 65679G - SEAL, SIDE GATE | ||||
| 65679-37011 |
XZC710,XZU70#,71#,72#,73#,775..CBU |
1 | ||
| 65679H - SEAL, SIDE GATE | ||||
| 65679-37011 |
XZC710,XZU70#,71#,72#,73#,775..CBU |
1 | ||
| 66110C - HINGE ASSY, SIDE GATE, NO.1 RH | ||||
| 65010-37071 |
XZU70#..CBU |
5 | ||
| 66120C - HINGE ASSY, SIDE GATE, NO.1 LH | ||||
| 65010-37071 |
XZU70#..CBU |
5 | ||
| 66151B - LATCH, SIDE GATE, FRONT RH | ||||
| 66151-37030 |
XZC710,XZU70#,71#,72#,775..CBU |
1 | ||
| 66152A - LATCH, SIDE GATE, FRONT LH | ||||
| 66152-37030 |
XZC710,XZU70#,71#,72#,775..CBU |
1 | ||
| 66153D - LATCH, SIDE GATE, REAR RH | ||||
| 66153-37010 |
XZC710,XZU70#,71#,72#,73#,775..CBU |
1 | ||
| 66154D - LATCH, SIDE GATE, REAR LH | ||||
| 66154-37010 |
XZC710,XZU70#,71#,72#,73#,775..CBU |
1 | ||
| 66187A - LATCH, SIDE GATE SUPPORT | ||||
| 66187-37040 |
XZC710,XZU70#,71#,72#,775..CBU 右側 |
1 | ||
| 66187-37050 |
XZC710,XZU70#,71#,72#,775..CBU 左側 |
1 | ||
| 66243B - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-37060 |
XZC710,XZU70#,71#,72#,775..SCB..CBU |
6 | ||
| 66243H - PROTECTOR, REAR BODY, NO.1 | ||||
| 66243-37060 |
XZC710,XZU70#,71#,72#,775..SCB..CBU |
6 | ||
| Common parts | ||||
| 90148-80069 | ||||
| 90148-80070 | ||||
| 90179-08245 | ||||
| 90467-08008 | ||||
| 93560-14008 | ||||
