XZU702-TQFRC (2017)

Toyota Dyna/Toyoace

Production May 2017 - May 2019
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )T4..30T,35T..CBU ; (1107- )XZU775..20T..CBU ; (1905- )XZC710,XZU70

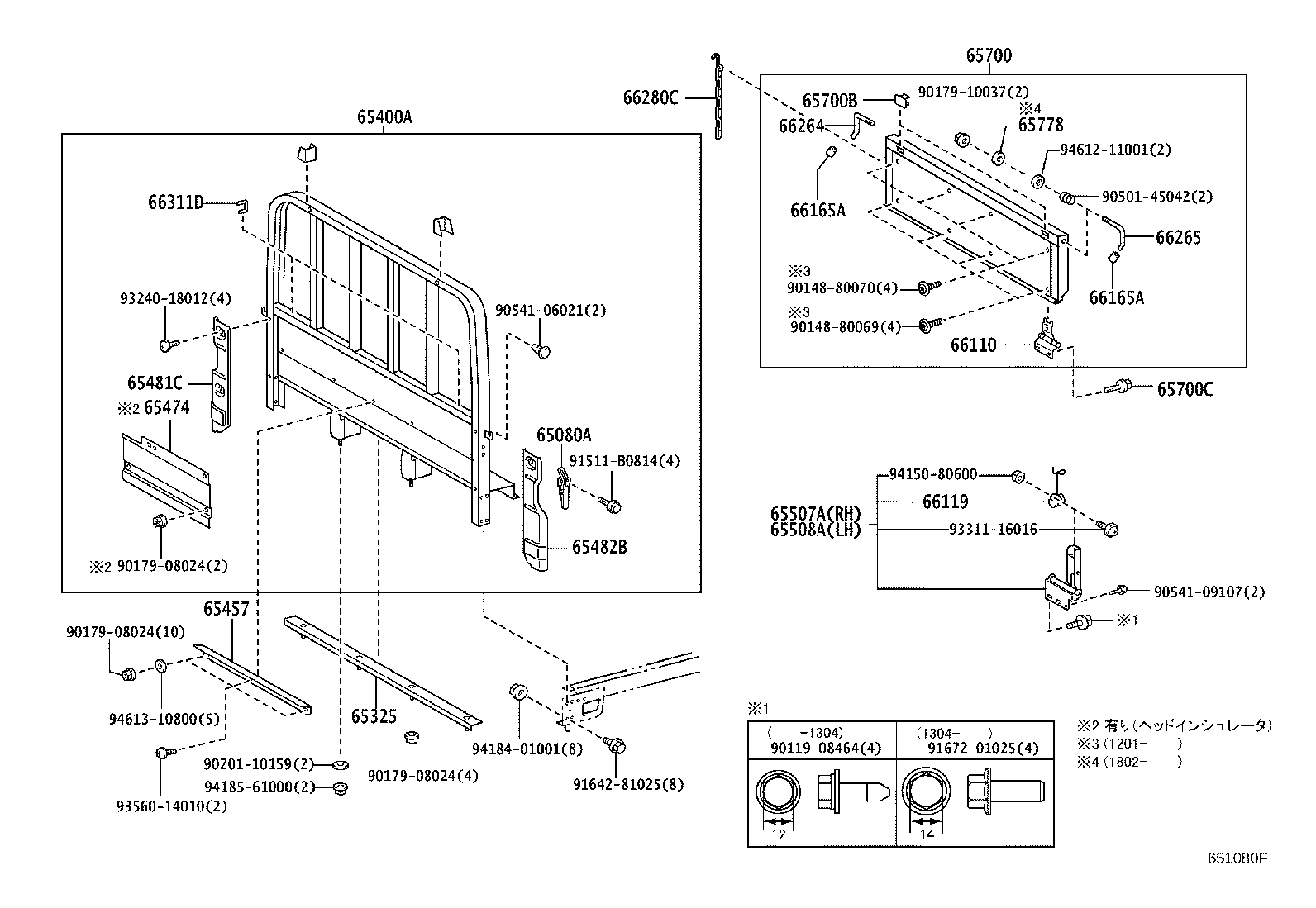

Click highlighted areas on diagram

diagram 65080A 65325 65400A 65457 65474 65481C 65482B 65507A 65508A 65700 65700B 65700C 65778 66110 66119 66165A 66165A 66264 66265 66280C 66311D 9011908464 9014880069 9014880070 9017908024 9017908024 9017908024 9017910037 9020110159 9050145042 9054106021 9054109107 91511B0814 9164281025 9167201025 9324018012 9331116016 9356014010 9415080600 9418401001 9418561000 9461211001 9461310800
Part # Description Qty Price
65080A - HANDLE ASSY, SIDE GATE LATCH
65080-92701

XZC710,XZU70#,71#,72#,73#,775..CBU

 2
65325 - PLATE, FLOOR BOARD, FRONT
65325-37050

XZU702,71#,72#,775..(30T,35T,40T)..CBU

 1
65400A - GUARD ASSY, REAR BODY
65400-37P50

XZU702,71#..T4..(30T,35T)..CBU

 1
65457 - PLATE, BAFFLE DUST REAR BODY
65457-37340

XZU720..T4..CBU;XZU775..30T..CBU;XZU702,71#,722..T4..(30T,35T)..CBU

 1
65474 - INSULATOR, HEADER
65474-37150

XZC710,XZU70#,71#,72#,775..SCB..CBU

 1
65481C - PROTECTOR, FRONT CORNER, RH
65481-37020

XZU702,71#,72#,775..(30T,35T,40T)..CBU

 1
65482B - PROTECTOR, FRONT CORNER, LH
65482-37020

XZU702,71#,72#,775..(30T,35T,40T)..CBU

 1
65507A - SUPPORT SUB-ASSY, CORNER, RH
65507-37051

XZC710,XZU70#,71#,72#,775..CBU

 1
65508A - SUPPORT SUB-ASSY, CORNER, LH
65508-37051

XZC710,XZU70#,71#,72#,775..CBU

 1
65700 - GATE ASSY, REAR BODY TAIL
65700-37221

XZU702,71#,72#,775..(30T,35T,40T)..CBU

 1
65700B - PLUG, HOLE(FOR TAIL GATE)
90950-01430

XZC710,XZU70#,71#,72#,73#,775..CBU

 2
65700C - BOLT, W/WASHER(FOR TAIL GATE)
90119-08464

XZC710,XZU70#,71#,72#,775..CBU

 8
65778 - STOPPER, TAIL GATE STAY
65772-37010

XZC710,XZU70#,71#,72#,73#,775..CBU

 2
66110 - HINGE ASSY, TAIL GATE
66110-37021

XZC710,XZU70#,71#,72#,775..CBU

 4
66119 - SPRING, TAIL GATE CHECK BALL
90035-08023

XZC710,XZU70#,71#,72#,73#,775..CBU

左側

 1
90035-08024

XZC710,XZU70#,71#,72#,73#,775..CBU

右側

 1
66165A - CAP, GATE LATCH HANDLE
66165-87402

XZC710,XZU70#,71#,72#,73#,775..CBU

 2
66165A - CAP, GATE LATCH HANDLE
66165-87402

XZC710,XZU70#,71#,72#,73#,775..CBU

 2
66264 - HANDLE, TAIL GATE LATCH, RH
66264-37010

XZC710,XZU70#,71#,72#,73#,775..CBU

 1
66265 - HANDLE, TAIL GATE LATCH, LH
66265-37010

XZC710,XZU70#,71#,72#,73#,775..CBU

 1
66280C - CHAIN ASSY, TAIL GATE
66280-37030

XZC710,XZU70#,71#,72#,73#,775..CBU

 2
66311D - HOOK, ROPE
66312-37030

XZC710,XZU70#,71#,72#,775..CBU

 2
Common parts
90119-08464
90148-80069
90148-80070
90179-08024
90179-10037
90201-10159
90501-45042
90541-06021
90541-09107
91511-B0814
91642-81025
91672-01025
93240-18012
93311-16016
93560-14010
94150-80600
94184-01001
94185-61000
94612-11001
94613-10800
