XZU702-TQFRC (2017)
Toyota Dyna/Toyoace

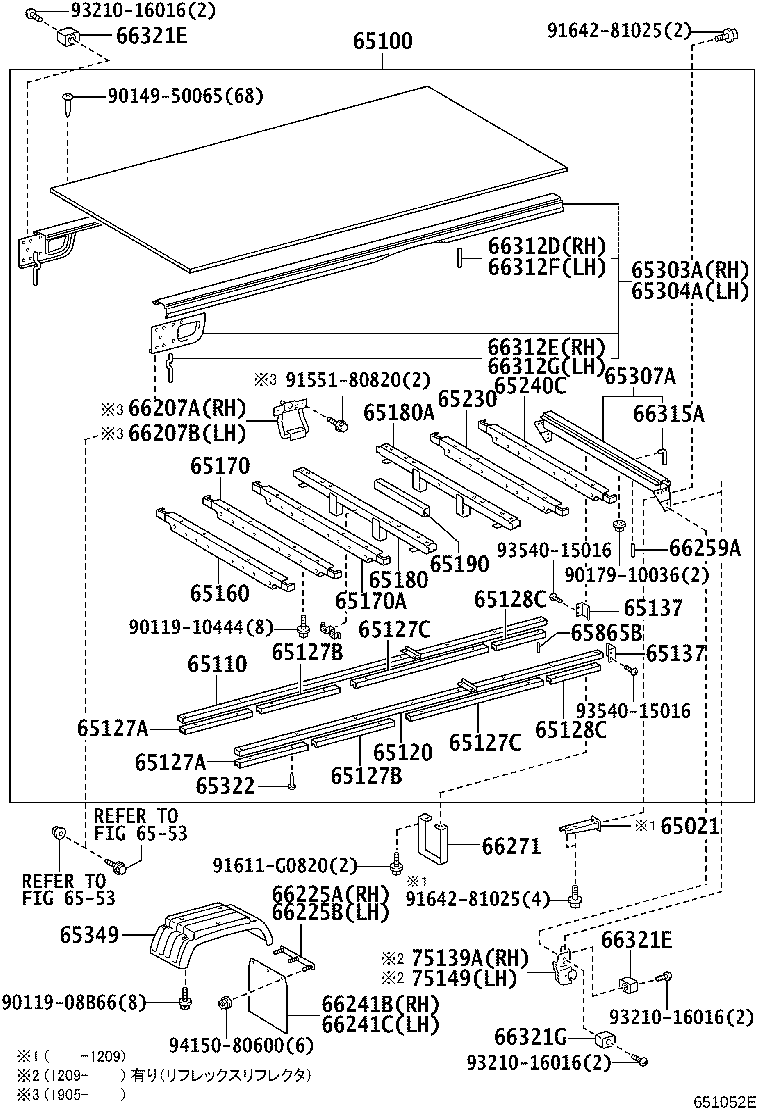

ILLUST NO. 2 OF 2(8409- )
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(8409- )
| Part # | Description | Qty | Price |
|---|
(1107- )XZU70#..T4..CBU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 65100 - FLOOR ASSY, REAR BODY | ||||
| 65100-3VD71 |
XZU702..T4..CBU |
1 | ||
| 65110 - SILL ASSY, MAIN, RH | ||||
| 65110-37J10 |
XZU70#..T4..CBU |
1 | ||
| 65120 - SILL ASSY, MAIN, LH | ||||
| 65120-37J00 |
XZU70#..T4..CBU |
1 | ||
| 65127A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37A00 |
XZU702..T4..CBU |
2 | ||
| 65127A - SHIM, MAIN SILL, LOWER NO.1 | ||||
| 65127-37A00 |
XZU702..T4..CBU |
2 | ||
| 65127B - SHIM, MAIN SILL, LOWER NO.2 | ||||
| 65127-37810 |
XZU702..T4..CBU |
2 | ||
| 65127B - SHIM, MAIN SILL, LOWER NO.2 | ||||
| 65127-37810 |
XZU702..T4..CBU |
2 | ||
| 65127C - SHIM, MAIN SILL, LOWER NO.3 | ||||
| 65127-37870 |
XZU702..T4..CBU |
2 | ||
| 65127C - SHIM, MAIN SILL, LOWER NO.3 | ||||
| 65127-37870 |
XZU702..T4..CBU |
2 | ||
| 65128C - SHIM, MAIN SILL, LOWER NO.4 | ||||
| 65128-37720 |
XZU702..T4..CBU |
2 | ||
| 65128C - SHIM, MAIN SILL, LOWER NO.4 | ||||
| 65128-37720 |
XZU702..T4..CBU |
2 | ||
| 65137 - COVER, MAIN SILL END | ||||
| 65137-37020 |
XZU70#,712..T4..CBU;XZU710..DCB..T4..CBU;XZU710..T4..DCRVT..CBU |
2 | ||
| 65137 - COVER, MAIN SILL END | ||||
| 65137-37020 |
XZU70#,712..T4..CBU;XZU710..DCB..T4..CBU;XZU710..T4..DCRVT..CBU |
2 | ||
| 65160 - SILL ASSY, CROSS, NO.2 | ||||
| 65170-37430 |
XZU702,71#,72#..T4..(30T,35T)..CBU |
1 | ||
| 65170 - SILL ASSY, CROSS, NO.2 | ||||
| 65160-37610 |
XZU702..T4..CBU |
1 | ||
| 65170A - SILL ASSY, CROSS, NO.3 | ||||
| 65170-37430 |
XZU702..T4..CBU |
1 | ||
| 65180 - SILL ASSY, CROSS, NO.4 | ||||
| 65180-37B51 |
XZU702,71#,72#..T4..(30T,35T)..CBU |
1 | ||
| 65180A - SILL ASSY, CROSS, NO.6 | ||||
| 65180-37841 |
XZU702,71#,72#..T4..(30T,35T)..CBU |
1 | ||
| 65190 - SILL ASSY, CROSS, NO.5 | ||||
| 65191-37130 |
XZU710..DCB..T4..CBU;XZU710..T4..DCRVT..CBU;XZU70#,712,72#..T4..CBU |
1 | ||
| 65230 - SILL ASSY, CROSS, NO.8 | ||||
| 65170-37430 |
XZU702,71#,72#..T4..(30T,35T)..CBU |
1 | ||
| 65240C - SILL ASSY, CROSS, NO.9 | ||||
| 65160-37610 |
XZU702,71#,72#..T4..(30T,35T)..CBU |
1 | ||
| 65303A - FRAME SUB-ASSY, FLOOR SIDE, RH | ||||
| 65303-37F72 |
XZU70#..CBU |
1 | ||
| 65304A - FRAME SUB-ASSY, FLOOR SIDE, LH | ||||
| 65304-37F42 |
XZU70#..CBU |
1 | ||
| 65307A - FRAME SUB-ASSY, FLOOR, REAR | ||||
| 65307-37A61 |
XZU702,71#,72#..T4..(30T,35T)..CBU |
1 | ||
| 65322 - NAIL | ||||
| 90290-05001 |
XZU702..T4..CBU |
16 | ||
| 65349 - FENDER, FLOOR SIDE | ||||
| 65349-37041 |
XZC710,XZU70#,71#,72#,775..CBU |
2 | ||
| 65865B - PIN, COVER TOP GUIDE | ||||
| 65865-37020 |
XZU710..(T3,T5)..CBU;XZU710..DCB..T4..CBU;XZU710..T4..DCRVT..CBU;XZU70#,712,72#,775..CBU |
1 | ||
| 66225A - SUPPORT, BAFFLE RUBBER | ||||
| 66242-37281 |
XZU702,712,722,775..CBU;XZU710,720..(DCRVT,DCRVU)..CBU |
1 | ||
| 66225B - SUPPORT, BUFFLE RUBBER | ||||
| 66242-37281 |
XZU702,712,722,775..CBU;XZU710,720..(DCRVT,DCRVU)..CBU |
1 | ||
| 66241B - BAFFLE, RUBBER | ||||
| 66241-37C22 |
XZU702,71#,72#..T4..(30T,35T)..CBU |
1 | ||
| 66241C - BUFFLE, RUBBER | ||||
| 66241-37C22 |
XZU702,71#,72#..T4..(30T,35T)..CBU |
1 | ||
| 66259A - COVER, REAR BODY FLOOR, REAR | ||||
| 66259-37010 |
XZC710,XZU70#,71#,72#,775..CBU |
2 | ||
| 66271 - STEP, REAR BODY | ||||
| 66271-37010 |
XZC710,XZU70#,71#,72#,775..CBU |
1 | ||
| 66312D - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZU70#..CBU;XZU710..DCB..CBU |
6 | ||
| 66312E - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZC710,XZU70#,71#,72#,775..CBU |
1 | ||
| 66312F - HOOK, ROPE, NO.2 | ||||
| 66311-37020 |
XZU70#..CBU;XZU710..DCB..CBU |
6 | ||
| 66312G - HOOK, ROPE, NO.2 | ||||
| 66312-37020 |
XZC710,XZU70#,71#,72#,775..CBU |
1 | ||
| 66315A - HOOK, ROPE | ||||
| 66315-37010 |
XZC710,XZU70#,71#,72#,775..CBU |
4 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-37030 |
XZC710,XZU70#,71#,72#,775..CBU |
4 | ||
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-37030 |
XZC710,XZU70#,71#,72#,775..CBU |
4 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-37030 |
XZC710,XZU70#,71#,72#,775..CBU |
2 | ||
| 75139A - BRACKET, REFLEX REFLECTOR, RH | ||||
| 75139-37080 |
XZC710,XZU70#,71#,72#,775..CBU |
1 | ||
| 75149 - BRACKET, REFLEX REFLECTOR, LH | ||||
| 75149-37080 |
XZC710,XZU70#,71#,72#,775..CBU |
1 | ||
| Common parts | ||||
| 90119-08B66 | ||||
| 90119-10444 | ||||
| 90149-50065 | ||||
| 90179-10036 | ||||
| 91551-80820 | ||||
| 91611-G0820 | ||||
| 91642-81025 | ||||
| 93210-16016 | ||||
| 93540-15016 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 6553 | ||||
ILLUST NO. 2 OF 2(1107- )CBU
ｱﾘ(ﾘﾌﾚｯｸｽ ﾘﾌﾚｸﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 66321E - BUMPER, GATE RUBBER | ||||
| 66321-37030 |
XZC710,XZU70#,71#,72#,775..CBU |
4 | ||
| 66321G - BUMPER, GATE RUBBER | ||||
| 66321-37030 |
XZC710,XZU70#,71#,72#,775..CBU |
2 | ||
| 75139A - BRACKET, REFLEX REFLECTOR, RH | ||||
| 75139-37080 |
XZC710,XZU70#,71#,72#,775..CBU |
1 | ||
| 75139A - BRACKET, REFLEX REFLECTOR, RH | ||||
| 75139-37080 |
XZC710,XZU70#,71#,72#,775..CBU |
1 | ||
| 75149 - BRACKET, REFLEX REFLECTOR, LH | ||||
| 75149-37080 |
XZC710,XZU70#,71#,72#,775..CBU |
1 | ||
| 75149 - BRACKET, REFLEX REFLECTOR, LH | ||||
| 75149-37080 |
XZC710,XZU70#,71#,72#,775..CBU |
1 | ||
| Common parts | ||||
| 93210-16016 | ||||
| Linked diagrams | ||||
| 8115 | ||||
