XZU702-TQFRC (2017)

Toyota Dyna/Toyoace

Production May 2017 - May 2019
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )DCRTJ,DCRTK,DCRTL,DCRVT,DCRVU

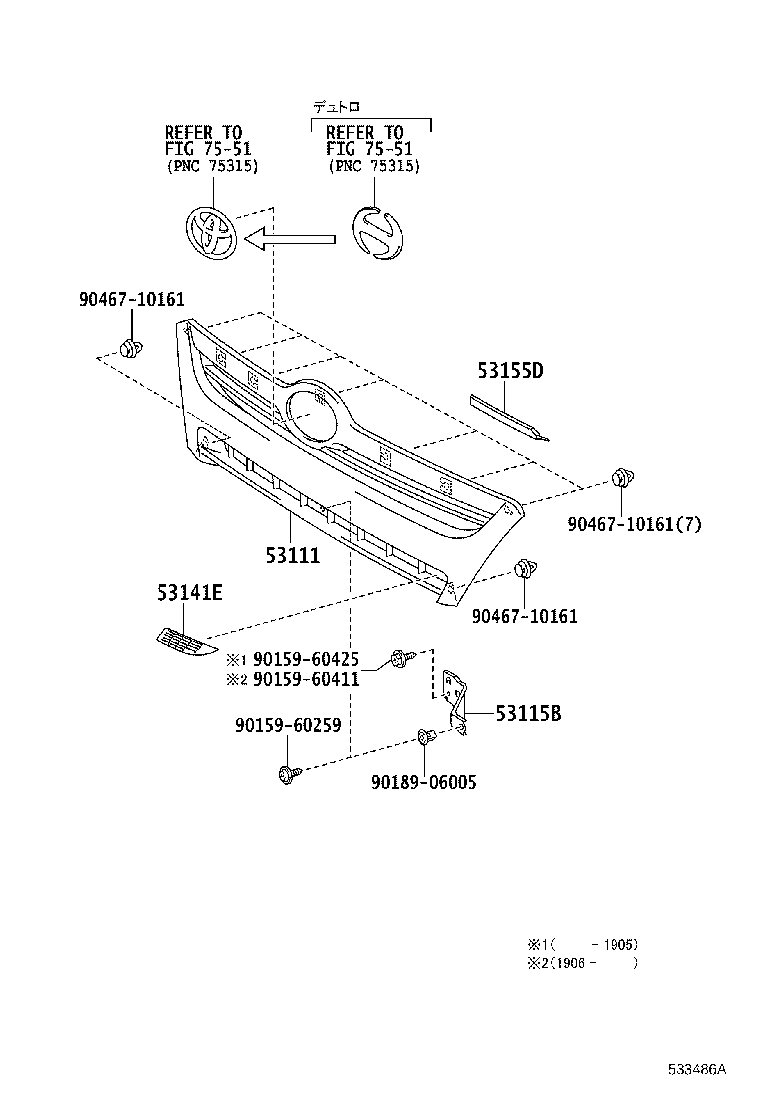

Click highlighted areas on diagram

diagram 53111 53115B 53141E 53155D 7551 7551 9015960259 9015960411 9015960425 9018906005 9046710161 9046710161 9046710161
Part # Description Qty Price
53111 - GRILLE, RADIATOR
53111-37A30A0

XZC710,XZU70#,71#,72#,73#,775

ﾃﾞｭﾄﾛ専用,WHITE,058

 1
53111-37A20

XZC710,XZU70#,71#,72#,73#,775

塗装不要

 1
53111-37A30A0

XZC710,XZU70#,71#,72#,73#,775

WHITE,058

 1
53111-37A30H0

XZC710,XZU70#,71#,72#,73#,775

TURQUOISE,766

 1
53111-37A30B1

XZC710,XZU70#,71#,72#,73#,775..SCB..(T3,T4,T5)

SILVER ME.,199

 1
53111-37A30H0

XZC710,XZU70#,71#,72#,73#,775

ﾃﾞｭﾄﾛ専用,TURQUOISE,766

 1
53111-37A30J1

XZC710,XZU70#,71#,72#,73#,775

BLUE,8P0

 1
53111-37A30B1

XZC710,XZU70#,71#,72#,73#,775..SCB..(T3,T4,T5)

ﾃﾞｭﾄﾛ専用,SILVER ME.,199

 1
53111-37A50

XZC710,XZU70#,71#,72#,73#,775

ﾒｯｷ

 1
53111-37A50

XZC710,XZU70#,71#,72#,73#,775

ﾒｯｷ,ﾃﾞｭﾄﾛ専用

 1
53111-37A30J1

XZC710,XZU70#,71#,72#,73#,775

ﾃﾞｭﾄﾛ専用,BLUE,8P0

 1
53115B - BRACKET, RADIATOR GRILLE
53115-37090

XZC710,XZU70#,71#,72#,73#,775

 1
53141E - COVER, RADIATOR, NO.1
53141-37090

XZC710,XZU70#,71#,72#,73#,775

ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ

 1
53141-37080

XZC710,XZU70#,71#,72#,73#,775

 1
53141-37090

XZC710,XZU70#,71#,72#,73#,775

ﾃﾞｭﾄﾛ専用&ﾗｼﾞｴｰﾀｸﾞﾘﾙ−ﾒｯｷ

 1
53155D - SEAL, RADIATOR GRILLE, NO.1
53155-37030

XZC710,XZU70#,71#,72#,73#,775

 1
Common parts
90159-60259
90159-60411
90159-60425
90189-06005
90467-10161
Linked diagrams
7551
