XZU702-TQFRC (2017)

Toyota Dyna/Toyoace

Production May 2017 - May 2019
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(8409- )

Click highlighted areas on diagram

diagram 44704 44729 44730 44743 44754B 44761 44764 44764 44764A 44764F 44768 44768 44771 44772 44774 44774 44776 44778 44778 9011908453 9011910429 9017908146 9046110408 9046110573 9046110573 9046110573 9046110573 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9165140816 9165140816 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411041000
Part # Description Qty Price
Common parts
90119-08453
90119-10429
90179-08146
90461-10408
90461-10573
90467-16002
91611-60820
91651-40816
94110-40800
94110-41000

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 04443 44606E 44610 44621V 44629 44635B 44642 44696 44730 44758 9017908038
Part # Description Qty Price
Common parts
90179-08038

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44647A 44673A 9017908038 9017908146
Part # Description Qty Price
Common parts
90179-08038
90179-08146

ILLUST NO. 2 OF 2(8708- )

Click highlighted areas on diagram

diagram 44704 44729 44730 44743 44754B 44764 44764 44764A 44764F 44768 44768 44771 44772 44772H 44774 44774 44776 44778 44778 9011908453 9011910523 9017908146 9046110408 9046110573 9046110573 9046110573 9046110573 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9161160820 9165140816 9165140816 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411041000
Part # Description Qty Price
Common parts
90119-08453
90119-10523
90179-08146
90461-10408
90461-10573
90467-16002
91611-60820
91651-40816
94110-40800
94110-41000

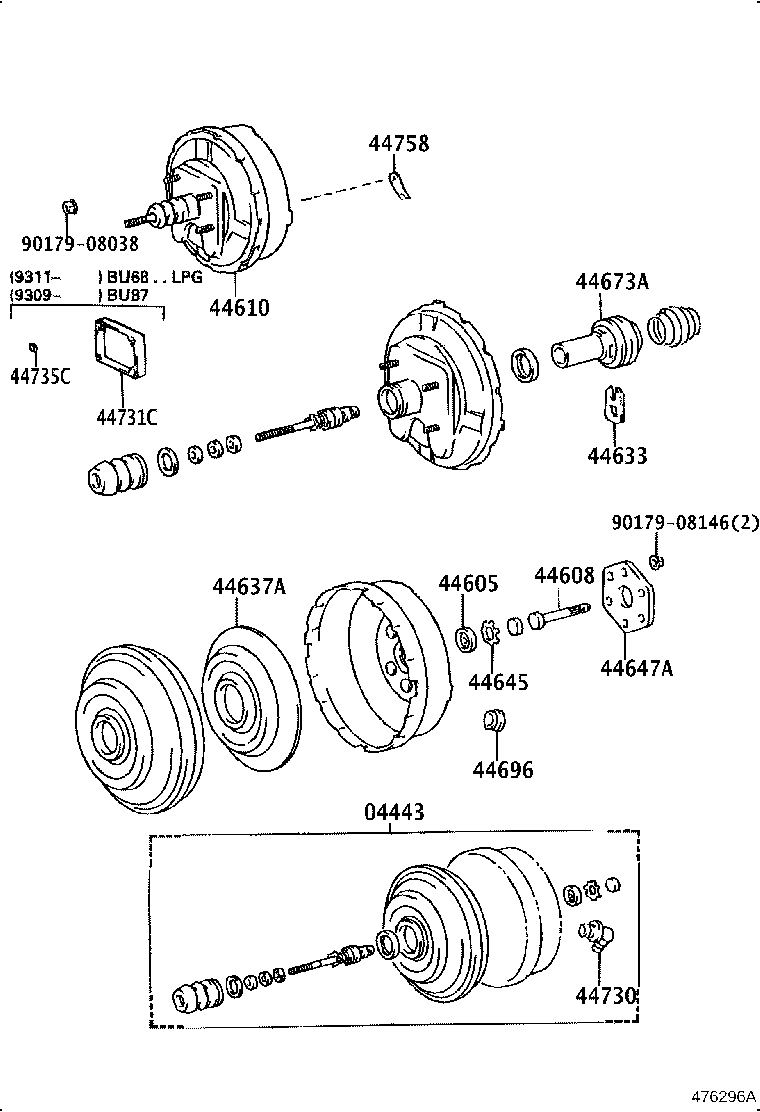

ILLUST NO. 1 OF 2(8808- )

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44647A 44673A 44730 44731C 44735C 9017908038 9017908146
Part # Description Qty Price
Common parts
90179-08038
90179-08146

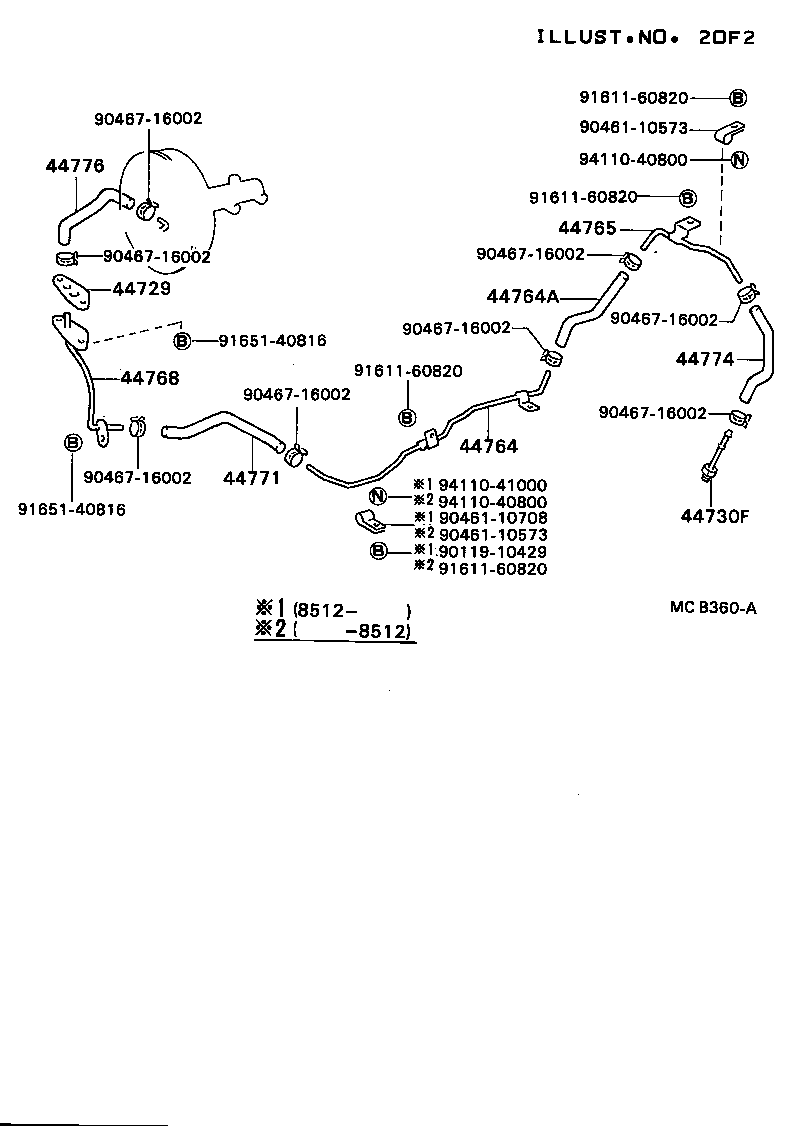

ILLUST NO. 2 OF 2(8409- )YU6#,70,80

Click highlighted areas on diagram

diagram 44729 44730F 44764 44764A 44765 44768 44771 44774 44776 9011910429 9046110573 9046110573 9046110708 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9161160820 9161160820 9161160820 9161160820 9165140816 9165140816 9411040800 9411040800 9411041000
Part # Description Qty Price
Common parts
90119-10429
90461-10573
90461-10708
90467-16002
91611-60820
91651-40816
94110-40800
94110-41000

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 04443 44606E 44610 44621V 44629 44635B 44642 44696 44730 44758 9017908038
Part # Description Qty Price
Common parts
90179-08038

ILLUST NO. 1 OF 2(8708- )

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44647A 44673A 9017908038 9017908146
Part # Description Qty Price
Common parts
90179-08038
90179-08146

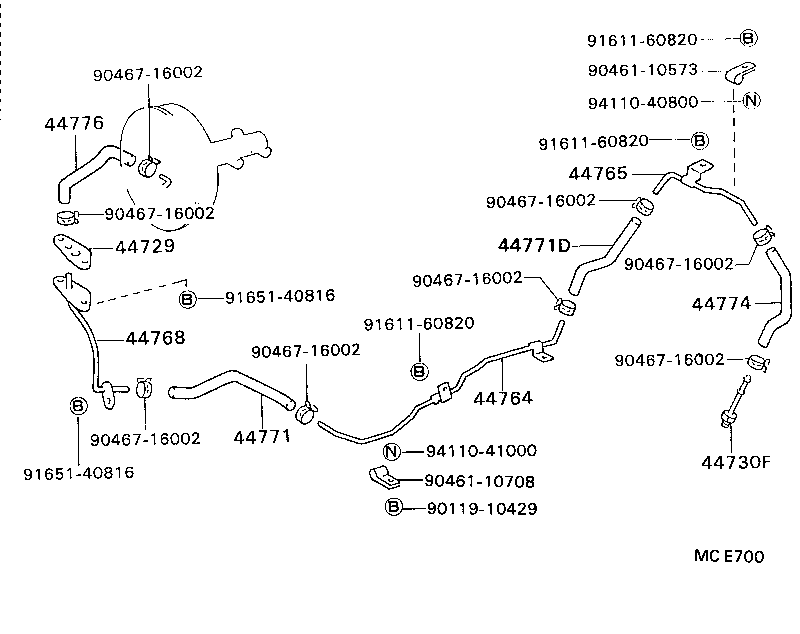

ILLUST NO. 2 OF 2(8708- )YU6#,70

Click highlighted areas on diagram

diagram 44729 44730F 44764 44765 44768 44771 44771D 44774 44776 9011910429 9046110573 9046110708 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9161160820 9161160820 9161160820 9165140816 9165140816 9411040800 9411041000
Part # Description Qty Price
Common parts
90119-10429
90461-10573
90461-10708
90467-16002
91611-60820
91651-40816
94110-40800
94110-41000

(8808- )

Click highlighted areas on diagram

diagram 04443 44605 44608 44610 44633 44637A 44645 44647A 44673A 44696 44730 44758 9017908038 9017908146
Part # Description Qty Price
Common parts
90179-08038
90179-08146

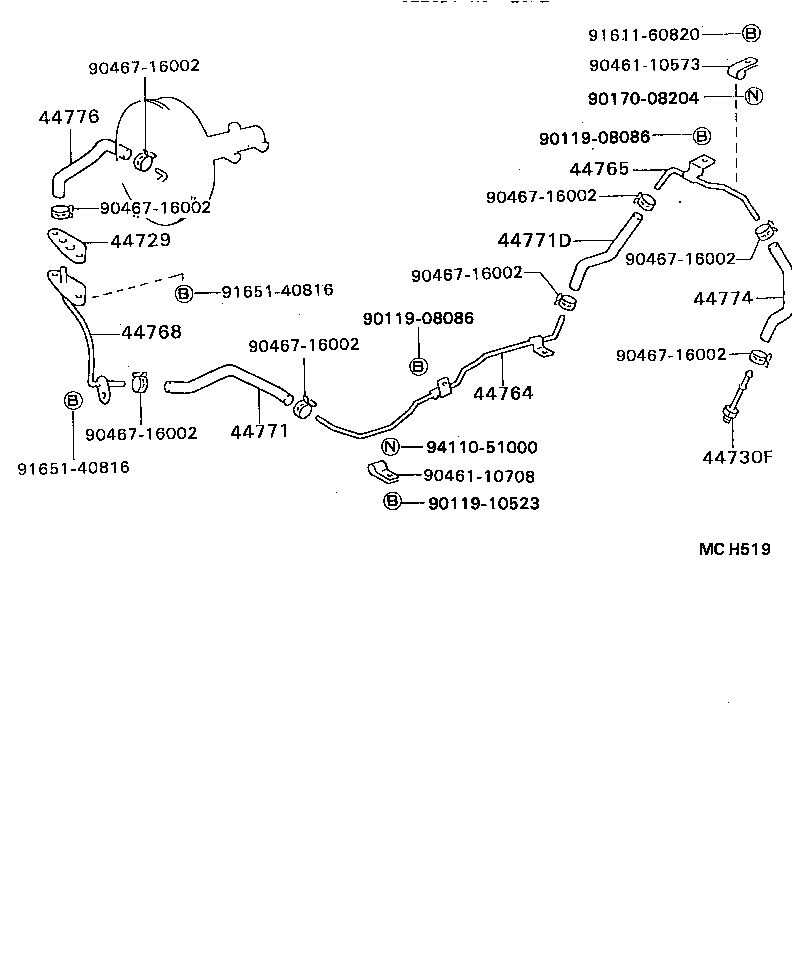

(8808- )YU6#,70

Click highlighted areas on diagram

diagram 44729 44730F 44764 44765 44768 44771 44771D 44774 44776 9011908086 9011908086 9011910523 9017008204 9046110573 9046110708 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9046716002 9161160820 9165140816 9165140816 9411051000
Part # Description Qty Price
Common parts
90119-08086
90119-10523
90170-08204
90461-10573
90461-10708
90467-16002
91611-60820
91651-40816
94110-51000

ILLUST NO. 1 OF 2(1107- )DCRTJ,DCRTK,DCRTL,DCRVT,DCRVU

Click highlighted areas on diagram

diagram 44610 44704 44730B 44730J 44730P 44734B 44764A 44768 44775C 44775E 44776 44776A 44778 44778D 44778D 44799 4702 47264D 8401 8414 8414 9017908038 9017910065 9046615003 9046615003 9046615003 9046615003 9046615003 9046615003 9048022022 9155180814 9155180814 9155180814 9167380820 9167380820 9613240700 9613240700 9613240700 9613240700 9613341500 9613341500 9613341500 9613341500
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-37300

XZU70#,71#,72#,73#..30T,35T,40T

 1
44704 - RESERVOIR SUB-ASSY, VACUUM
44704-37210

XZC710,XZU70#,71#,72#,73#,775

 1
44730B - CLAMP, VACUUM HOSE
44597-37021

XZC710,XZU70#,71#,72#,73#,775

 1
44730J - WAY(FOR BOOSTER VACUUM)
90414-10043

XZC710,XZU70#,71#,72#,73#,775

 1
44730P - VALVE ASSY, VACUUM CHECK, NO.1
44730-60050

XZC710,XZU70#,71#,72#,73#,775

 1
44734B - BRACKET, BOOSTER SUPPORT
44734-37020

XZC710,XZU70#,71#,72#,73#,775

 1
44764A - HOSE, BOOSTER VACUUM
44776-37340

XZC710,XZU70#,71#,72#,73#,775

 1
44768 - TUBE, BOOSTER VACUUM
44768-37220

XZC710,XZU70#,71#,72#,73#,775

 1
44775C - HOSE, CONNECTOR TO WAY
44775-37030

XZC710,XZU70#,71#,72#,73#,775..MTM

 1
44775E - HOSE, WAY TO CONNECTOR
44776-37350

XZC710,XZU70#,71#,72#,73#,775

 1
44776 - HOSE, BRAKE BOOSTER
44776-37330

XZC710,XZU70#,71#,72#,73#,775

 1
44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER
44776-37450

XZC710,XZU70#,71#,72#,73#,775

 1
44778 - HOSE, CONNECTOR TO CHECK VALVE
44778-37370

XZC710,XZU70#,71#,72#,73#

 1
44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE
44778-37310

XZC710,XZU70#,71#,72#,73#,775..MTM

 1
44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE
44778-37310

XZC710,XZU70#,71#,72#,73#,775..MTM

 1
44799 - WAY, BRAKE VACUUM HOSE
44799-37040

XZC710,XZU70#,71#,72#,73#,775..MTM

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-50010

XZC710,XZU70#,71#,72#,73#,775

 1
Common parts
90179-08038
90179-10065
90466-15003
90480-22022
91551-80814
91673-80820
96132-40700
96133-41500
Linked diagrams
4702
8401
8414

ILLUST NO. 2 OF 2(1107- )XZC710,XZU70#,71#,72#,73#..DCRTJ,DCRTK,DCRTL,DCRVT,DCRVU

Click highlighted areas on diagram

diagram 1905 19971F 27690K 44761 44761 44763A 44764Q 44771 44771A 44771A 44771D 44771K 44773L 44778E 44912G 4737137040 4737137040 4737137040 4737137040 4737137040 9046616004 9046616004 9155180816 9155180816 9155180816 9155180816 9155180820 9155180825 9613341500 9613341500
Part # Description Qty Price
19971F - PIPE, VACUUM
19971-78271

N04C..XZC710,XZU70#,71#,72#,73#

 1
27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE)
27690-78160

N04C..XZC710,XZU70#,71#,72#,73#,775

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-37580

XZC710,XZU70#,71#,72#,73#,775

 1
44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR
44761-37580

XZC710,XZU70#,71#,72#,73#,775

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-37C70

XZC710,XZU70#,71#,72#,73#..SCB

 1
44764Q - HOSE(FOR CONNECTOR TO VACUUM RESERVOIR TUBE)
95446-09120

XZC710,XZU70#,71#,72#,73#,775

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-37B40

XZC710,XZU70#,71#,72#,73#

 1
44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE)
44783-37020

XZC710,XZU70#,71#,72#,73#,775

 2
96138-51701

XZC710,XZU70#,71#,72#,73#,775

 2
44771A - CLIP(FOR VACUUM TUBE CONNECTOR HOSE)
44783-37020

XZC710,XZU70#,71#,72#,73#,775

 2
96138-51701

XZC710,XZU70#,71#,72#,73#,775

 2
44771D - HOSE, VACUUM TUBE CONNECTOR
44771-37B60

XZC710,XZU70#,71#,72#,73#

 1
44771K - HOSE, VACUUM TUBE TO VACUUM PUMP
44771-37A61

XZC710,XZU70#,71#,72#,73#,775

 1
44773L - HOSE, SOLENOID TO EXHAUST RETARDER
44773-37410

XZC710,XZU70#,71#,72#,73#

 1
44778E - HOSE, CONNECTOR TUBE TO SOLENOID
44778-37270

XZC710,XZU70#,71#,72#,73#..SCB

 1
44912G - TUBE, 3 WAY TO MAGNETIC VALVE
44912-37C91

XZC710,XZU70#,71#,72#,73#

 1
Common parts
47371-37040
90466-16004
91551-80816
91551-80820
91551-80825
96133-41500
Linked diagrams
1905
