XZU702-TQFRC (2017)

Toyota Dyna/Toyoace

Production May 2017 - May 2019
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )

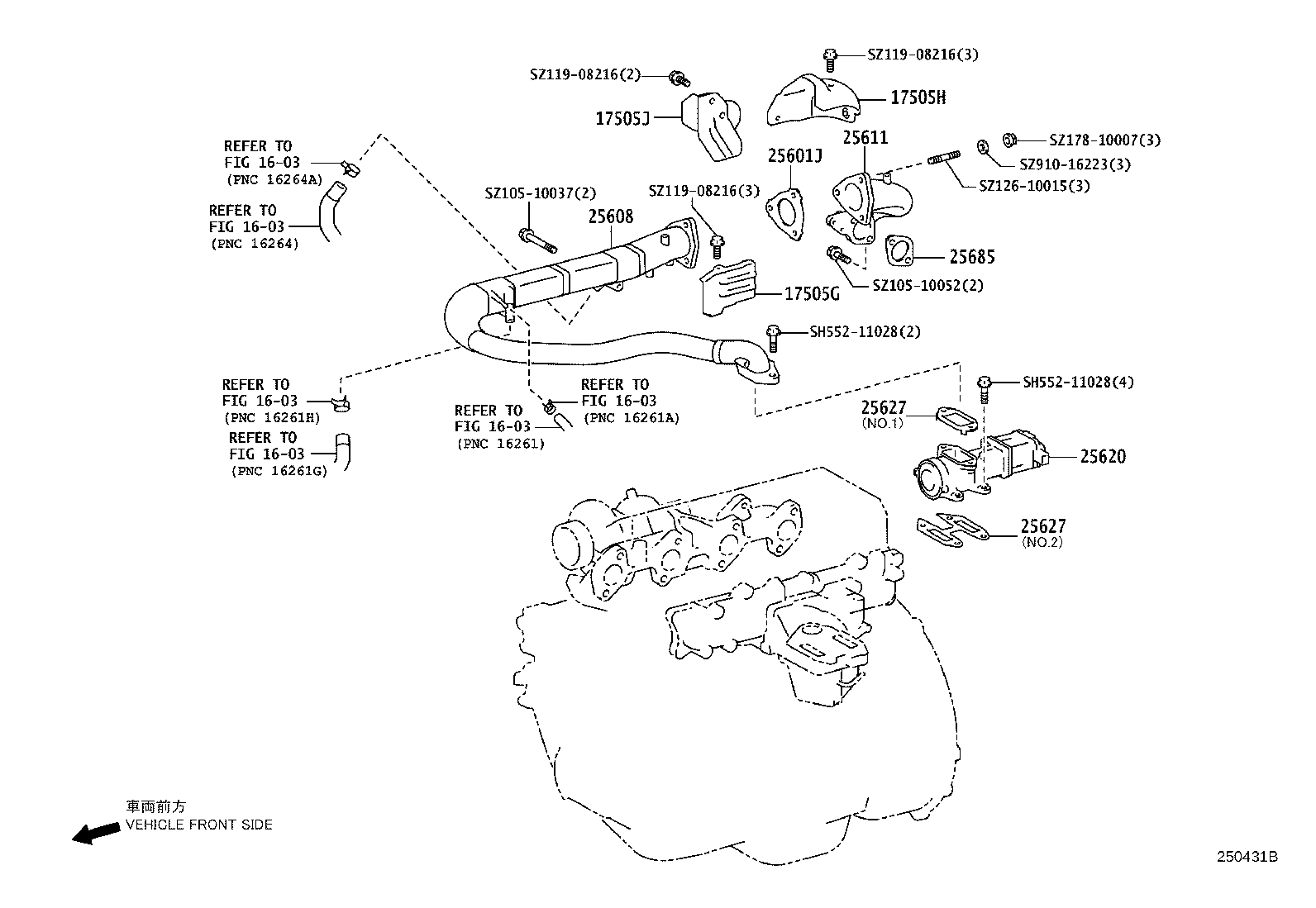

Click highlighted areas on diagram

diagram 1603 1603 1603 1603 1603 1603 17505G 17505H 17505J 25601J 25608 25611 25620 25627 25627 25685 SH55211028 SH55211028 SZ10510037 SZ10510052 SZ11908216 SZ11908216 SZ11908216 SZ12610015 SZ17810007 SZ91016223
Part # Description Qty Price
17505G - INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1
17505-E0710

N04C..XZC710,XZU70#,71#,72#,73#,775

 1
17505H - INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.2
17505-E0A70

N04C..XZC710,XZU70#,71#,72#,73#,775

 1
17505J - INSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.3
17505-E0730

N04C..XZC710,XZU70#,71#,72#,73#,775

 1
25601J - GASKET(FOR EGR PIPE, NO.1)
17451-E0110

N04C..XZC710,XZU70#,71#,72#,73#,775

 1
25608 - COOLER SUB-ASSY, EGR
25608-E0201

N04C..XZC710,XZU70#,71#,72#,73#,775

 1
25611 - CONNECTOR, EGR PIPE
25611-E0370

N04C..XZC710,XZU70#,71#,72#,73#,775

 1
25620 - VALVE ASSY, EGR
25620-E0252

N04C..XZC710,XZU70#,71#,72#,732,775..DCRTJ,DCRTK,DCRTL

 1
25620-E0253

N04C..XZC710,XZU70#,71#,72#,732,775..DCRTJ,DCRTK,DCRTL

 1
25620-E0254

N04C..XZC710,XZU70#,71#,72#,732,775..DCRTJ,DCRTK,DCRTL

 1
25627 - GASKET, EGR VALVE
25627-E0140

N04C..XZC710,XZU70#,71#,72#,73#,775

NO.2

 1
25627-E0130

N04C..XZC710,XZU70#,71#,72#,73#,775

NO.1

 1
25627 - GASKET, EGR VALVE
25627-E0140

N04C..XZC710,XZU70#,71#,72#,73#,775

NO.2

 1
25627-E0130

N04C..XZC710,XZU70#,71#,72#,73#,775

NO.1

 1
25685 - GASKET, EGR COOLER, NO.1
S1710-42020

N04C..XZC710,XZU70#,71#,72#,73#,775

 1
Common parts
SH552-11028
SZ105-10037
SZ105-10052
SZ119-08216
SZ126-10015
SZ178-10007
SZ910-16223
Linked diagrams
1603
