XZU702-TQFRC (2017)

Toyota Dyna/Toyoace

Production May 2017 - May 2019
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

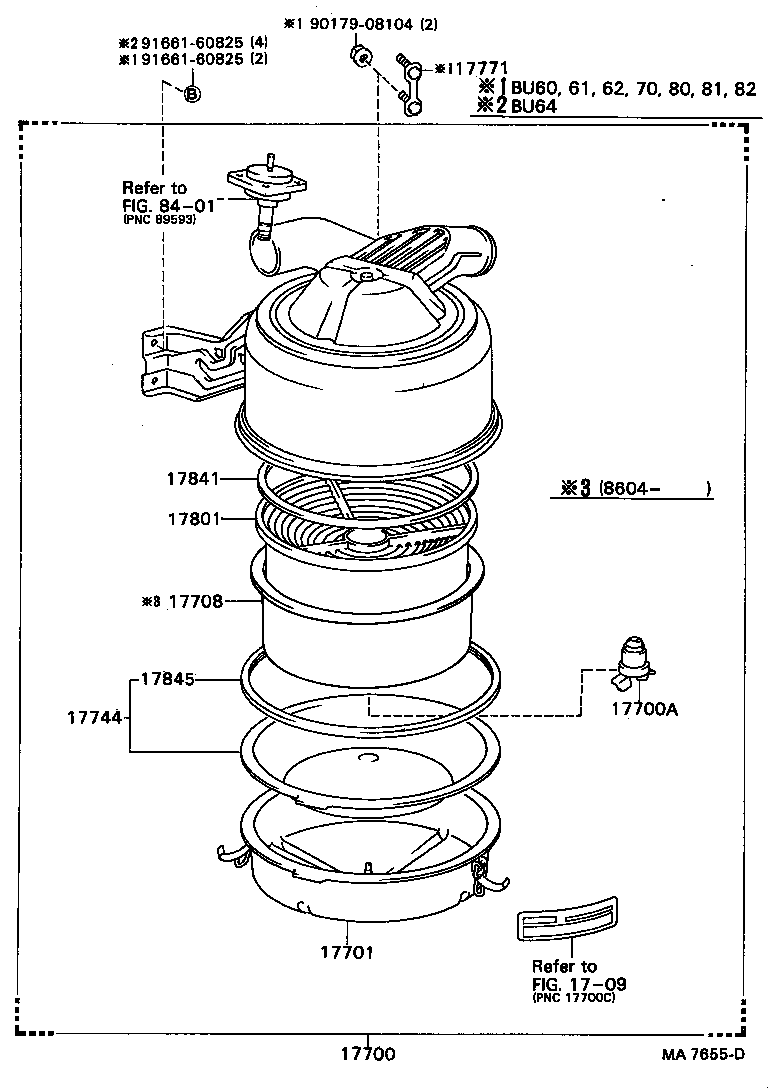

ILLUST NO. 1 OF 2(8409- )B,11B,13B..BU6#,70,80,81,82

Click highlighted areas on diagram

diagram 1709 17700 17700A 17701 17708 17744 17771 17801 17841 17845 8401 9017908104 9166160825 9166160825
Part # Description Qty Price
Common parts
90179-08104
91661-60825
Linked diagrams
1709
8401

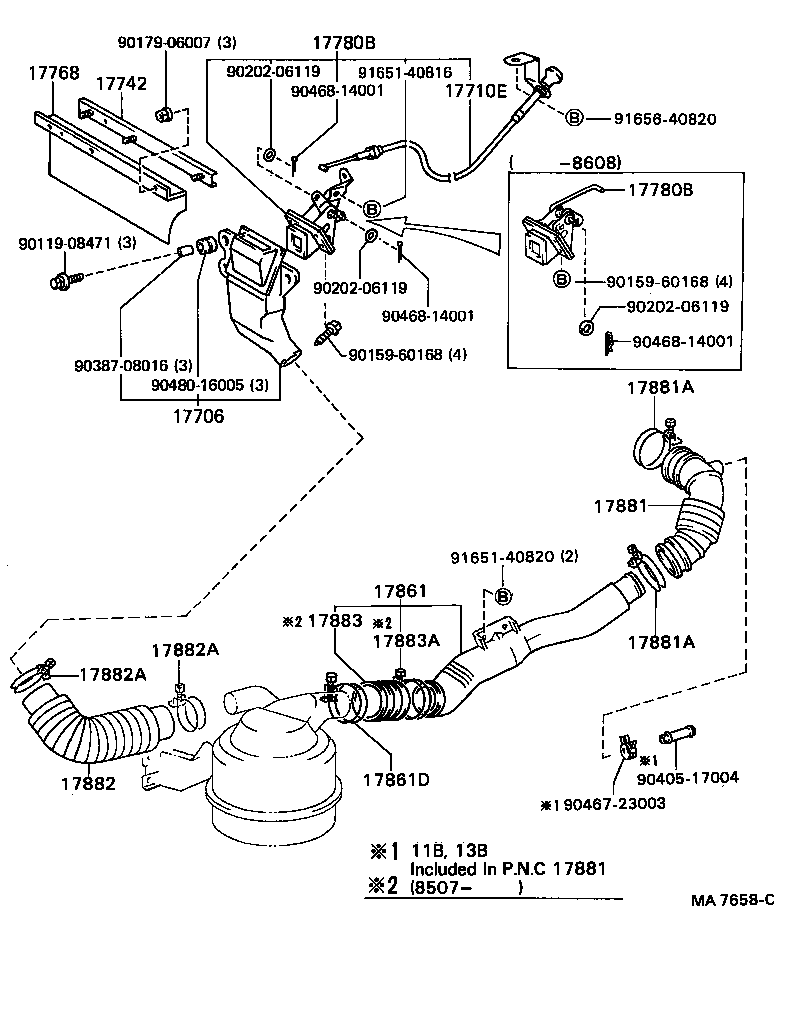

ILLUST NO. 2 OF 2(8409- )B,11B,13B..BU6#,70,80,81,82

Click highlighted areas on diagram

diagram 17706 17710E 17742 17768 17780B 17780B 17861 17861D 17881 17881A 17881A 17882 17882A 17882A 17883 17883A 9011908471 9015960168 9015960168 9017906007 9020206119 9020206119 9020206119 9038708016 9040517004 9046723003 9046814001 9046814001 9046814001 9048016005 9165140816 9165140820 9165640820
Part # Description Qty Price
Common parts
90119-08471
90159-60168
90179-06007
90202-06119
90387-08016
90405-17004
90467-23003
90468-14001
90480-16005
91651-40816
91651-40820
91656-40820

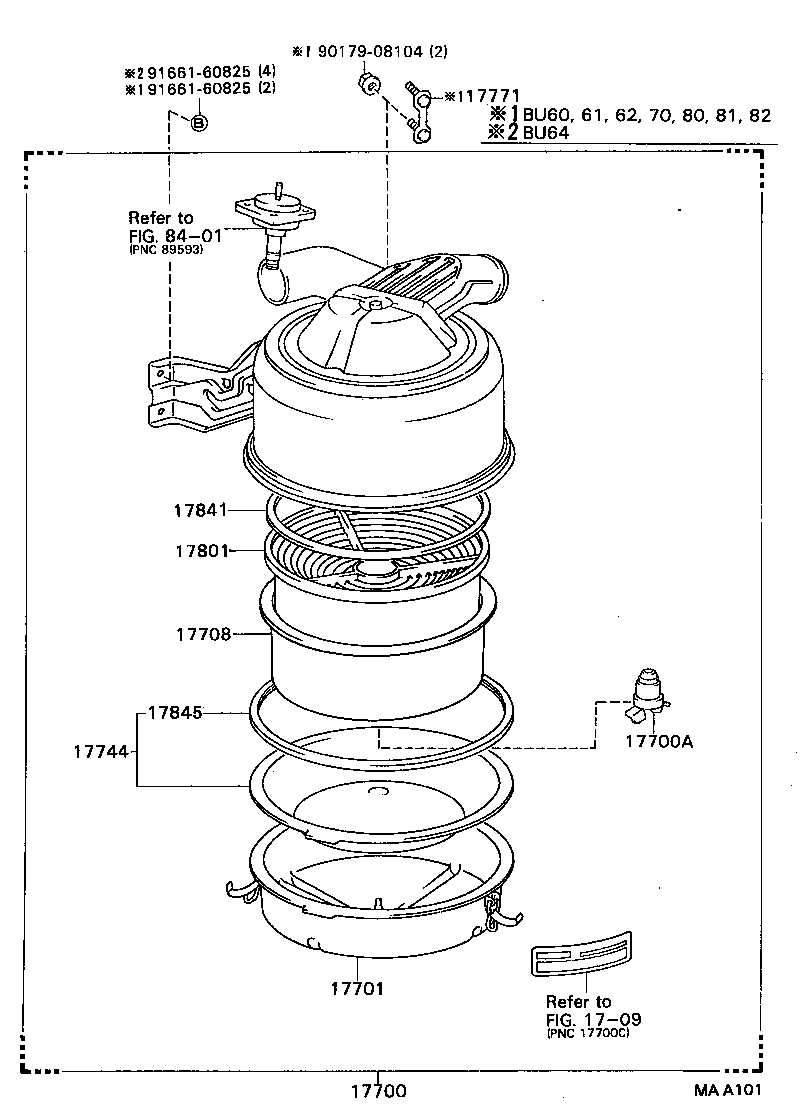

ILLUST NO. 1 OF 2(8708- )B,11B,13B..BU6#,70,80,81,82

Click highlighted areas on diagram

diagram 1709 17700 17700A 17701 17708 17744 17771 17801 17841 17845 8401 9017908104 9166160825 9166160825
Part # Description Qty Price
Common parts
90179-08104
91661-60825
Linked diagrams
1709
8401

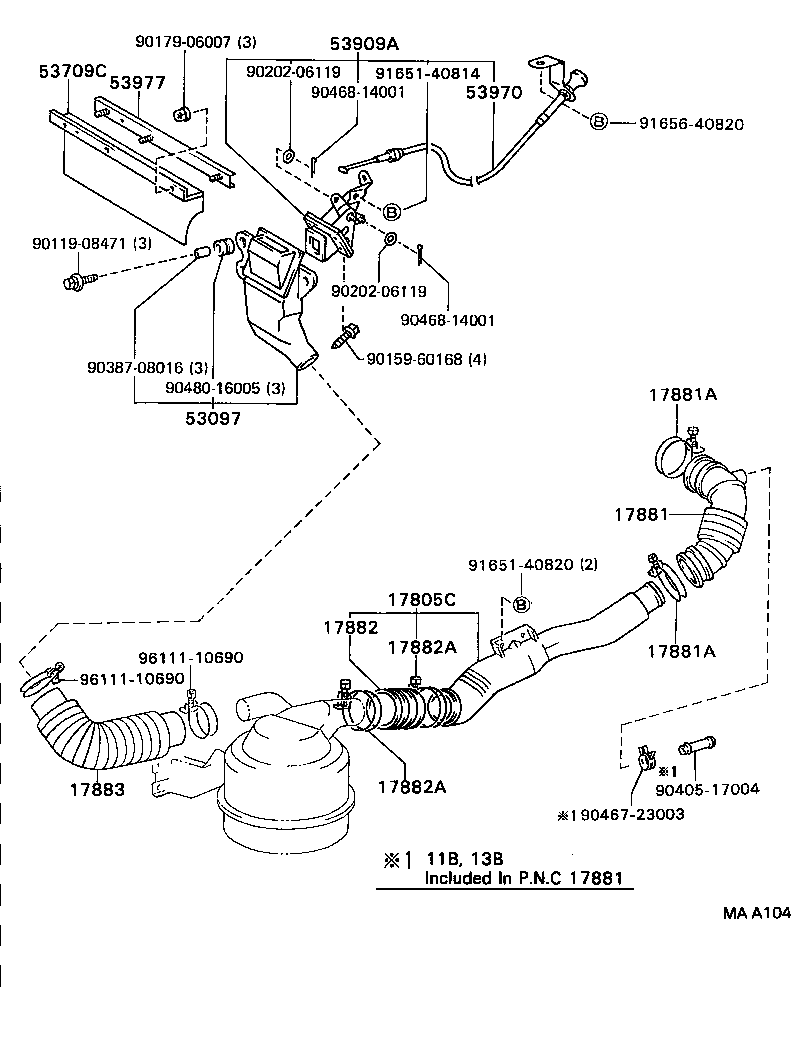

ILLUST NO. 2 OF 2(8708- )B,11B,13B..BU6#,70,80,81,82

Click highlighted areas on diagram

diagram 17805C 17881 17881A 17881A 17882 17882A 17882A 17883 53097 53709C 53909A 53970 53977 9011908471 9015960168 9017906007 9020206119 9020206119 9038708016 9040517004 9046723003 9046814001 9046814001 9048016005 9165140814 9165140820 9165640820 9611110690 9611110690
Part # Description Qty Price
Common parts
90119-08471
90159-60168
90179-06007
90202-06119
90387-08016
90405-17004
90467-23003
90468-14001
90480-16005
91651-40814
91651-40820
91656-40820
96111-10690

(1107- )N04C..XZC710,XZU70#,71#,72#,73#..SCB..DCRTJ,DCRTK,DCRTL

Click highlighted areas on diagram

diagram 1701 1701 17030 17030A 17113E 17113H 17342F 17342G 17342G 17344E 17344F 17344F 17700 17705 17706D 1777878010 17783A 17786 17801 17845 17855 17855A 17881A 17940D 22204 2606 53097 53773A 53955A 5399237020 9009900289 9017608044 9151160612 9155180814 9155180814 9155180825 9415180800 9415181000
Part # Description Qty Price
17030 - HOSE ASSY, AIR
17030-78530

N04C..XZC710,XZU70#,71#,72#,732..SCB..(DCRTJ,DCRTK,DCRTL)

 1
17030A - CLAMP, HOSE
17781-78060

N04C..XZC710,XZU70#,71#,72#,732,775..SCB..(DCRTJ,DCRTK,DCRTL)

 1
17113E - PIPE, INTAKE, NO.1
17103-78240

N04C..XZC710,XZU70#,71#,72#..DCRTJ,DCRTK,DCRVT

 1
17113H - CLAMP, INTAKE PIPE
17781-78100

N04C..XZC710,XZU70#,71#,72#,775..DCRTJ,DCRTK,DCRVT

 1
17342F - HOSE, AIR, NO.2(FOR INTERCOOLER)
17342-78190

N04C..XZC710,XZU70#,71#,72#..DCRTJ,DCRTK,DCRVT

 1
17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER)
90034-60047

N04C..XZC710,XZU70#,71#,72#,775..DCRTJ,DCRTK,DCRVT

NO.2

 1
90034-60046

N04C..XZC710,XZU70#,71#,72#,775..DCRTJ,DCRTK,DCRVT

NO.1

 1
17342G - CLAMP, HOSE, NO.2(FOR INTERCOOLER)
90034-60047

N04C..XZC710,XZU70#,71#,72#,775..DCRTJ,DCRTK,DCRVT

NO.2

 1
90034-60046

N04C..XZC710,XZU70#,71#,72#,775..DCRTJ,DCRTK,DCRVT

NO.1

 1
17344E - HOSE, AIR, NO.4
17344-78340

N04C..XZC710,XZU70#,71#,72#,73#

 1
17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4)
90034-60048

N04C..XZC710,XZU70#,71#,72#,73#,775

 2
17344F - CLAMP, HOSE(FOR AIR HOSE, NO.4)
90034-60048

N04C..XZC710,XZU70#,71#,72#,73#,775

 2
17700 - CLEANER ASSY, AIR
17700-78560

N04C..XZC710,XZU70#,71#,72#,732,775..SCB..(DCRTJ,DCRTK,DCRTL)

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-78070

N04C..XZC710,XZU70#,71#,72#,73#,775..SCB

 1
17706D - STAY SUB-ASSY, AIR CLEANER
17706-78230

N04C..XZC710,XZU70#,71#,72#,73#,775..SCB

 1
17783A - RETAINER, AIR CLEANER INLET
17783-78010

N04C..XZC710,XZU70#,71#,72#,73#,775

 3
17786 - CLAMP, AIR CLEANER
17786-78020

N04C..XZC710,XZU70#,71#,72#,73#,775

 3
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-78090

N04C..XZC710,XZU70#,71#,72#,73#,775

 1
17845 - GASKET, AIR CLEANER CAP
17845-78021

N04C..XZC710,XZU70#,71#,72#,73#,775

 1
17855 - GASKET, AIR INLET DUCT, NO.1
17855-78010

N04C..XZC710,XZU70#,71#,72#,732,775..DCRTJ,DCRTK,DCRTL

 1
17855A - GASKET, AIR INLET DUCT, NO.2
17855-78030

N04C..XZC710,XZU70#,71#,72#,775..DCRTJ,DCRTK,DCRVT

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-99005

N04C..XZC710,XZU70#,71#,72#,73#,775

 1
17940D - INTERCOOLER ASSY
17940-78170

N04C..XZC710,XZU70#,71#,72#..DCRTJ,DCRTK,DCRVT

 1
17940-78171

N04C..XZC710,XZU70#,71#,72#..DCRTJ,DCRTK,DCRVT

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-E0010

N04C..XZC710,XZU70#,71#,72#,732,775..DCRTJ,DCRTK,DCRTL

 1
53097 - INLET SUB-ASSY
53097-37351

XZC710,XZU70#,71#,72#,73#,775..SCB

 1
53773A - BRACKET, AIR CLEANER MOUNTING
53773-37150

XZC710,XZU70#,71#,72#,73#,775..SCB

 1
53955A - CUSHION, AIR CLEANER INLET NO.1
53955-37030

XZC710,XZU70#,71#,72#,73#,775..SCB

 3
Common parts
17778-78010
53992-37020
90099-00289
90176-08044
91511-60612
91551-80814
91551-80825
94151-80800
94151-81000
Linked diagrams
1701
2606
