XZU702-TQFRC (2017)
Toyota Dyna/Toyoace

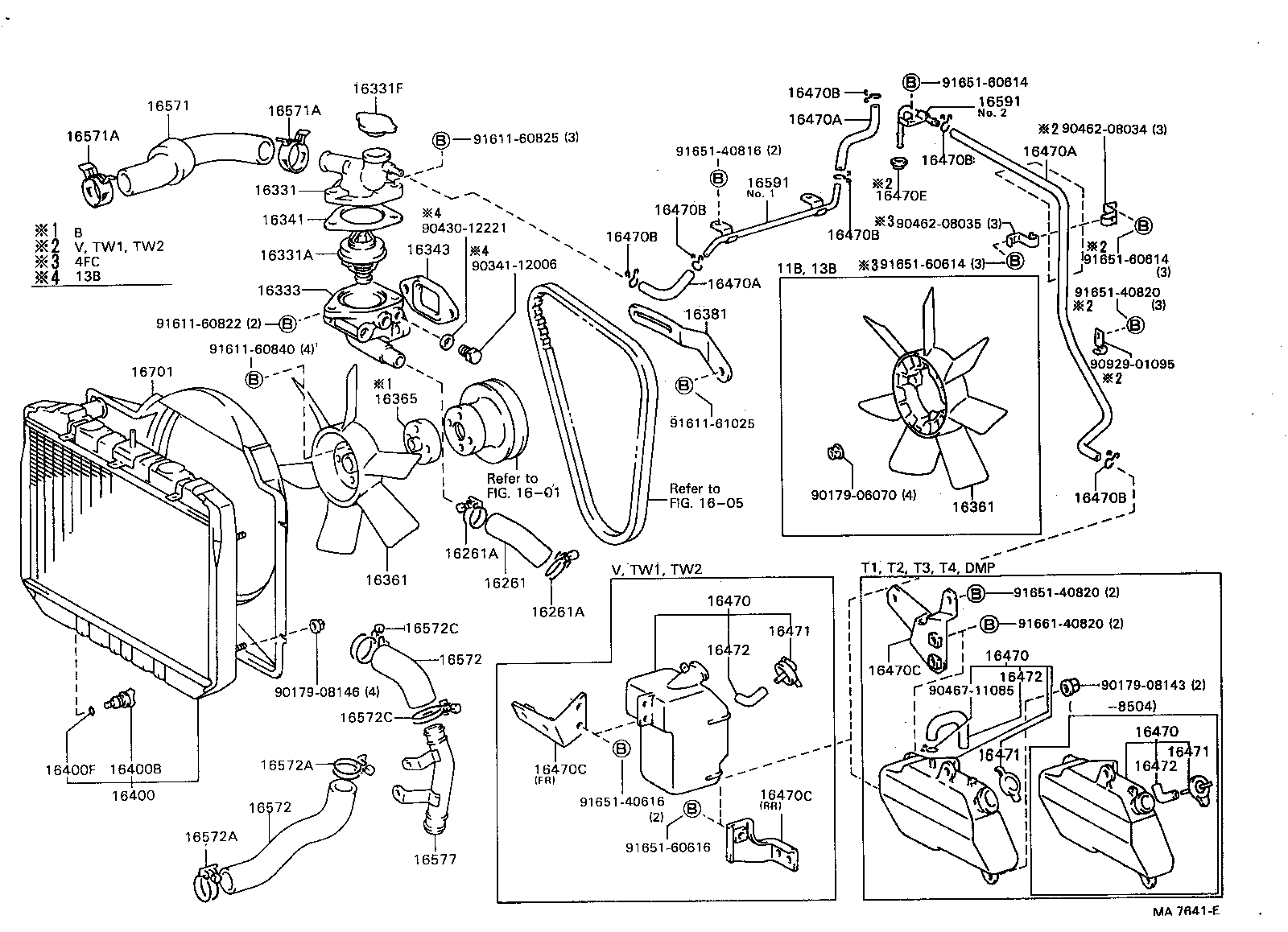

(8409- )B,11B,13B..BU6#,70,80,81,82
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-06070 | ||||
| 90179-08143 | ||||
| 90179-08146 | ||||
| 90341-12006 | ||||
| 90430-12221 | ||||
| 90462-08034 | ||||
| 90462-08035 | ||||
| 90467-11085 | ||||
| 90929-01095 | ||||
| 91611-60822 | ||||
| 91611-60825 | ||||
| 91611-60840 | ||||
| 91611-61025 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91651-60614 | ||||
| 91651-60616 | ||||
| 91661-40820 | ||||
| Linked diagrams | ||||
| 1601 | ||||
| 1605 | ||||

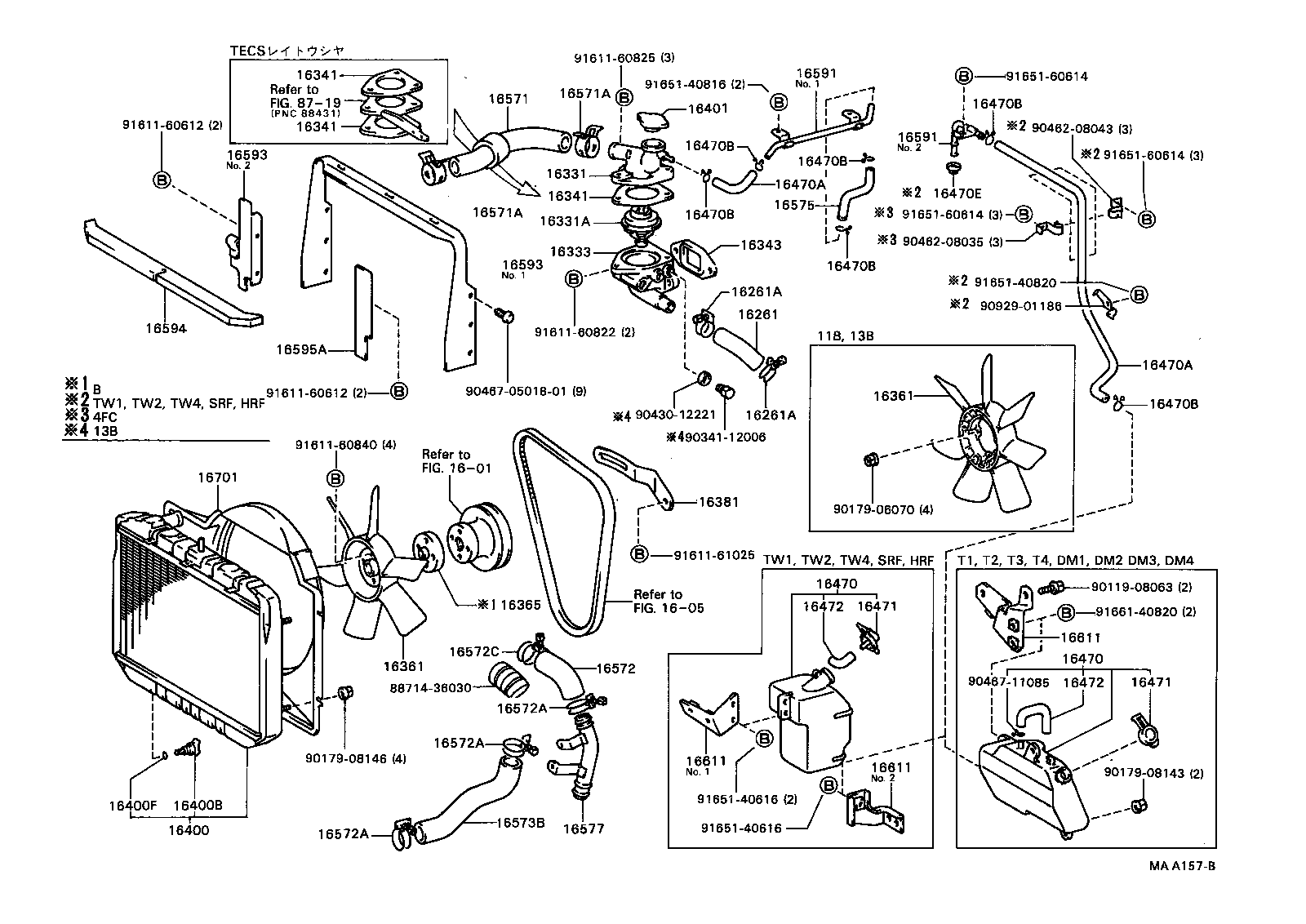

ILLUST NO. 1 OF 2(8708- )B,11B,13B..BU6#,70,80,81,82
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 88714-36030 | ||||
| 90119-08063 | ||||
| 90179-06070 | ||||
| 90179-08143 | ||||
| 90179-08146 | ||||
| 90341-12006 | ||||
| 90430-12221 | ||||
| 90462-08035 | ||||
| 90462-08043 | ||||
| 90467-0501801 | ||||
| 90467-11085 | ||||
| 90929-01186 | ||||
| 91611-60612 | ||||
| 91611-60822 | ||||
| 91611-60825 | ||||
| 91611-60840 | ||||
| 91611-61025 | ||||
| 91651-40616 | ||||
| 91651-40816 | ||||
| 91651-40820 | ||||
| 91651-60614 | ||||
| 91661-40820 | ||||
| Linked diagrams | ||||
| 1601 | ||||
| 1605 | ||||
| 8719 | ||||

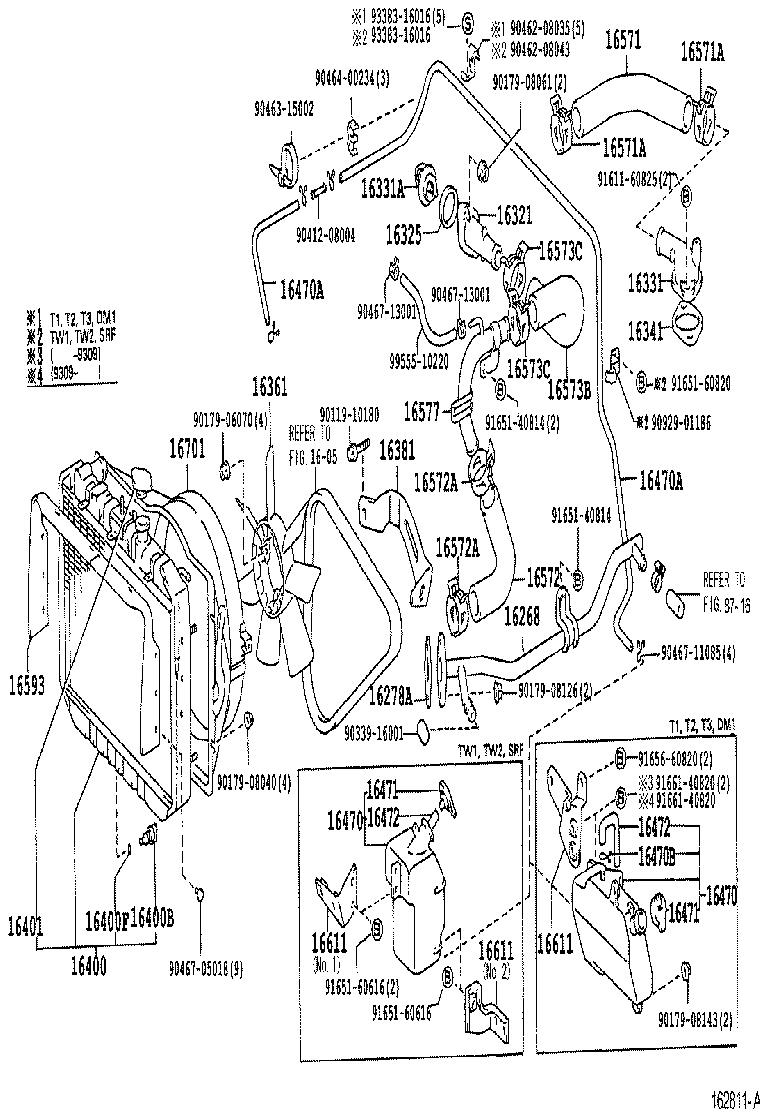

(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-10180 | ||||
| 90179-06070 | ||||
| 90179-08040 | ||||
| 90179-08061 | ||||
| 90179-08126 | ||||
| 90179-08143 | ||||
| 90339-16001 | ||||
| 90412-08004 | ||||
| 90462-08035 | ||||
| 90462-08043 | ||||
| 90463-15002 | ||||
| 90464-00234 | ||||
| 90467-05018 | ||||
| 90467-11085 | ||||
| 90467-13001 | ||||
| 90929-01186 | ||||
| 91611-60825 | ||||
| 91651-40814 | ||||
| 91651-60616 | ||||
| 91651-60820 | ||||
| 91656-60820 | ||||
| 91661-40820 | ||||
| 93383-16016 | ||||
| 99555-10220 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 8716 | ||||
ILLUST NO. 1 OF 3(1107- )N04C..XZC710,XZU70#,71#,72#,73#..DCRTJ,DCRTK,DCRTL,DCRVT,DCRVU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361 - FAN | ||||
| 16361-78100 |
N04C..XZC710,XZU70#,71#,72#,732,775..DCRTJ,DCRTK,DCRTL |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-78A50 |
N04C..XZU70#,71#,72#,73#..6F..(DCRTK,DCRTL,DCRVT,DCRVU) |
1 | ||
| 16400-78A52 |
N04C..XZU70#,71#,72#,73#..6F..(DCRTK,DCRTL,DCRVT,DCRVU) |
1 | ||
| 16400-78A51 |
N04C..XZU70#,71#,72#,73#..6F..(DCRTK,DCRTL,DCRVT,DCRVU) |
1 | ||
| 16400A - COCK SUB-ASSY, RADIATOR DRAIN | ||||
| S1605-11350 |
N04C..XZU70#,71#,72#,73#..DCRTK,DCRTL,DCRVT,DCRVU |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 23322-54010 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 16400R - BUSHING(FOR RADIATOR) | ||||
| 16444-78100 |
N04C..XZC710,XZU70#,71#,72#,73# |
2 | ||
| 16400S - COLLAR(FOR RADIATOR) | ||||
| 16445-78100 |
N04C..XZC710,XZU70#,71#,72#,73# |
2 | ||
| 16441 - TANK, RADIATOR, UPPER | ||||
| 16441-78272 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 16442 - RING, O(FOR RADIATOR UPPER TANK) | ||||
| 16442-78100 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 16453 - PLATE, RADIATOR SIDE | ||||
| 16453-78A31 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 16453-78A30 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 16454 - PLATE, RADIATOR SIDE | ||||
| 16454-78A30 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 16461 - TANK, RADIATOR, LOWER | ||||
| 16461-78101 |
N04C..XZC710,XZU70#,71#,72#,73#..MTM |
1 | ||
| 16462 - RING, O(FOR RADIATOR LOWER TANK) | ||||
| 16442-78100 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-78070 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-78070 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 16533B - SUPPORT, RADIATOR, NO.1 | ||||
| 16533-78041 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 16534 - SUPPORT, RADIATOR, NO.2 | ||||
| 16534-78041 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-78120 |
N04C..XZC710,XZU70#,71#,72#,73#,775 NO.2 |
1 | ||
| 16581-78110 |
N04C..XZC710,XZU70#,71#,72#,73#,775 NO.1 |
3 | ||
| 16553C - CLAMP, HOSE | ||||
| 16581-78120 |
N04C..XZC710,XZU70#,71#,72#,73#,775 NO.2 |
1 | ||
| 16581-78110 |
N04C..XZC710,XZU70#,71#,72#,73#,775 NO.1 |
3 | ||
| 16561 - SEAL, RADIATOR TO SUPPORT, NO.1 | ||||
| 16561-78120 |
N04C..XZC710,XZU70#,71#,72#,73#..SCB |
1 | ||
| 16565A - CLIP | ||||
| 90467-07206C0 |
N04C..XZC710,XZU70#,71#,72#,73#,775..SCB BLACK |
4 | ||
| 16567 - HOSE(FOR RADIATOR RESERVE TANK) | ||||
| 16567-78570 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-12058 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 16567A - CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-12058 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 16571C - HOSE, RADIATOR, NO.1 | ||||
| 16571-78311 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 16581-78151 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 16571D - CLIP, RADIATOR HOSE, NO.1 | ||||
| 16581-78151 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 16572D - HOSE, RADIATOR, NO.2 | ||||
| 16572-78172 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 16581-78151 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 16572E - CLIP, RADIATOR HOSE, NO.2 | ||||
| 16581-78151 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 16575 - HOSE, RADIATOR, NO.5 | ||||
| 16575-78160 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 16575A - CLIP, RADIATOR HOSE, NO.5 | ||||
| 96136-41501 |
N04C..XZC710,XZU70#,71#,72#,73#,775 NO.2 |
1 | ||
| 90467-15022 |
N04C..XZC710,XZU70#,71#,72#,73#,775 NO.1 |
1 | ||
| 16575A - CLIP, RADIATOR HOSE, NO.5 | ||||
| 96136-41501 |
N04C..XZC710,XZU70#,71#,72#,73#,775 NO.2 |
1 | ||
| 90467-15022 |
N04C..XZC710,XZU70#,71#,72#,73#,775 NO.1 |
1 | ||
| 16582 - BRACKET, RADIATOR, NO.1 | ||||
| 16582-78040 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 16583 - BRACKET, RADIATOR, NO.2 | ||||
| 16583-78040 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 16585 - BRACKET, RADIATOR, NO.3 | ||||
| 16585-78040 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 16586 - BRACKET, RADIATOR, NO.4 | ||||
| 16586-78080 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 16592 - GUIDE, RADIATOR AIR, NO.3 | ||||
| 16592-78090 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 16711 - SHROUD, FAN | ||||
| 16711-78250 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| Common parts | ||||
| 90119-06182 | ||||
| 90119-06960 | ||||
| 90179-06293 | ||||
| 90464-00840 | ||||
| 90467-13020 | ||||
| 91511-60612 | ||||
| 91551-80614 | ||||
| 91551-80820 | ||||
| 91651-40830 | ||||
| 91651-B0820 | ||||
| 94151-80800 | ||||
| SZ950-31027 | ||||

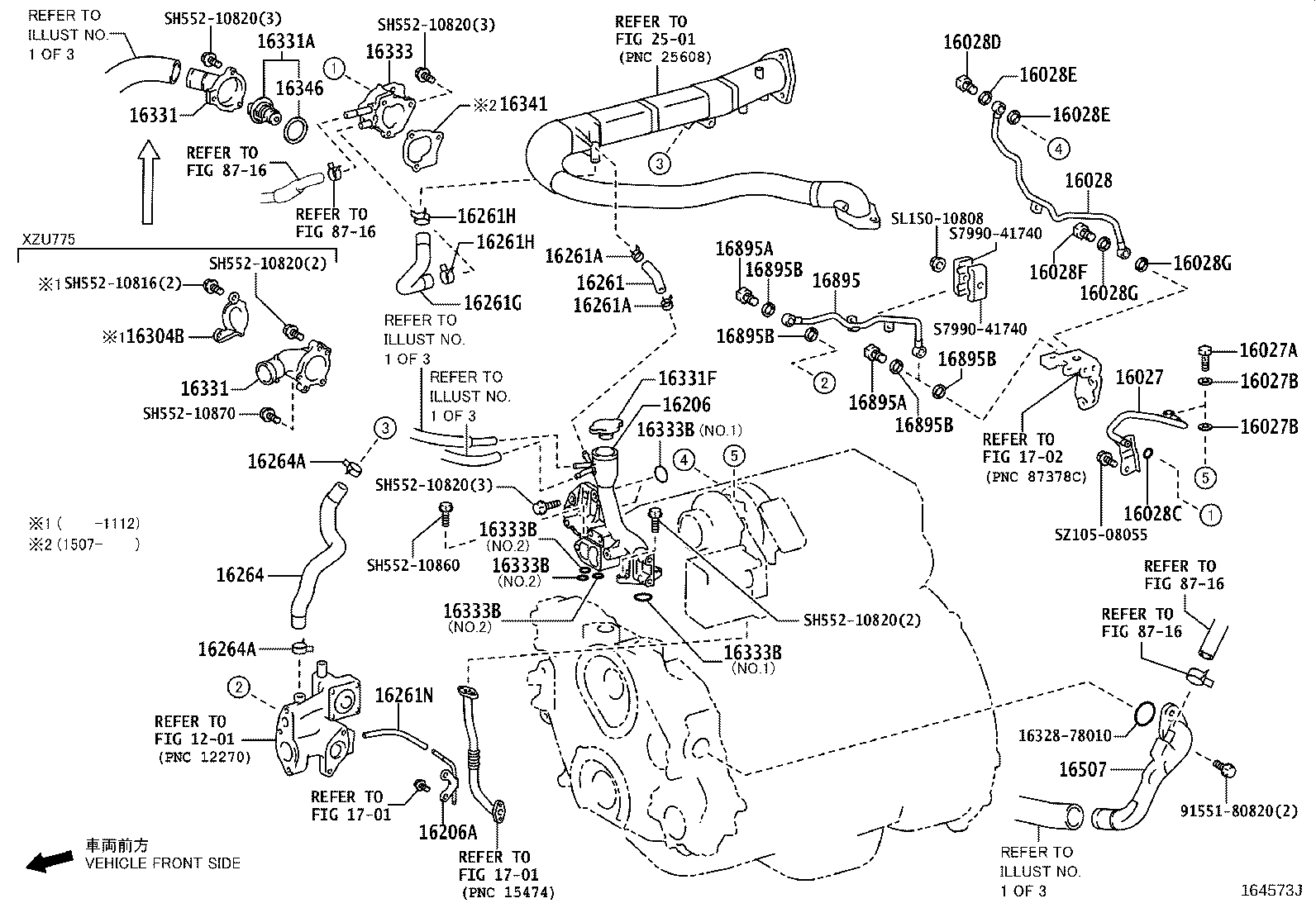

ILLUST NO. 2 OF 3(1107- )N04C..DCRTJ,DCRTK,DCRTL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16027 - PIPE SUB-ASSY, TURBO WATER, NO.1 | ||||
| 16895-E0181 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 16027A - BOLT, UNION(FOR TURBO WATER PIPE) | ||||
| SZ401-12001 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| SZ430-12005 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 16027B - GASKET(FOR TURBO WATER PIPE) | ||||
| SZ430-12005 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 16028 - PIPE SUB-ASSY, TURBO WATER, NO.2 | ||||
| 16895-E0141 |
N04C..XZC710,XZU70#,71#,72#,732..DCRTJ,DCRTK,DCRTL |
1 | ||
| 16028C - RING, O(FOR TURBO WATER PIPE) | ||||
| SN732-00092 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 16028D - BOLT, UNION, NO.1(FOR TURBO WATER PIPE) | ||||
| SZ401-12001 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 16028E - GASKET, NO.1(FOR TURBO WATER PIPE) | ||||
| SZ430-12005 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 16028E - GASKET, NO.1(FOR TURBO WATER PIPE) | ||||
| SZ430-12005 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 16028F - BOLT, UNION, NO.2(FOR TURBO WATER PIPE) | ||||
| SZ401-14004 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 16028G - GASKET, NO.2(FOR TURBO WATER PIPE) | ||||
| SZ430-14003 |
N04C..XZC710,XZU70#,71#,72#,732,775..DCRTJ,DCRTK,DCRTL |
2 | ||
| 16028G - GASKET, NO.2(FOR TURBO WATER PIPE) | ||||
| SZ430-14003 |
N04C..XZC710,XZU70#,71#,72#,732,775..DCRTJ,DCRTK,DCRTL |
2 | ||
| 16206 - PIPE SUB-ASSY, WATER BY-PASS | ||||
| 16206-78462 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 16206A - PIPE SUB-ASSY, WATER BY-PASS, NO.2 | ||||
| S1608-75320 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 16261 - HOSE, WATER BY-PASS | ||||
| SZ920-34333 |
N04C..XZC710,XZU70#,71#,72#,73#,775 長さ=59 |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| SZ466-13007 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| SZ466-13007 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 16261G - HOSE, WATER BY-PASS, NO.1 | ||||
| 87245-E0C20 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| SZ466-26001 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 16261H - CLIP(FOR WATER BY-PASS HOSE NO.1) | ||||
| SZ466-26001 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 16261N - HOSE, WATER BY-PASS, NO.2 | ||||
| SZ920-34294 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 16264 - HOSE, WATER BY-PASS, NO.2 | ||||
| 87245-E0C12 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| SZ466-26001 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2) | ||||
| SZ466-26001 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-E0112 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 16331-E0111 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-E0112 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 16331-E0111 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 16331A - THERMOSTAT | ||||
| S1632-E9280 |
N04C..XZC710,XZU70#,71#,72#,73#,775 *WAX 82−95 |
1 | ||
| 16331F - CAP SUB-ASSY(FOR WATER OUTLET) | ||||
| 16401-E0051 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-78151 |
N04C..XZC710,XZU70#,71#,72#,73#,775 有り(PNC 16341) |
1 | ||
| 16303-78150 |
N04C..XZC710,XZU70#,71#,72#,73#,775 有り(PNC 16341) |
1 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 15119-E0210 |
N04C..XZC710,XZU70#,71#,72#,73#,775 NO.2 |
3 | ||
| SZ301-31011 |
N04C..XZC710,XZU70#,71#,72#,73#,775 NO.1 |
3 | ||
| SZ301-19015 |
N04C..XZC710,XZU70#,71#,72#,73#,775 NO.2 |
3 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 15119-E0210 |
N04C..XZC710,XZU70#,71#,72#,73#,775 NO.2 |
3 | ||
| SZ301-31011 |
N04C..XZC710,XZU70#,71#,72#,73#,775 NO.1 |
3 | ||
| SZ301-19015 |
N04C..XZC710,XZU70#,71#,72#,73#,775 NO.2 |
3 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 15119-E0210 |
N04C..XZC710,XZU70#,71#,72#,73#,775 NO.2 |
3 | ||
| SZ301-31011 |
N04C..XZC710,XZU70#,71#,72#,73#,775 NO.1 |
3 | ||
| SZ301-19015 |
N04C..XZC710,XZU70#,71#,72#,73#,775 NO.2 |
3 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 15119-E0210 |
N04C..XZC710,XZU70#,71#,72#,73#,775 NO.2 |
3 | ||
| SZ301-31011 |
N04C..XZC710,XZU70#,71#,72#,73#,775 NO.1 |
3 | ||
| SZ301-19015 |
N04C..XZC710,XZU70#,71#,72#,73#,775 NO.2 |
3 | ||
| 16333B - RING, O(FOR WATER OUTLET HOUSING) | ||||
| 15119-E0210 |
N04C..XZC710,XZU70#,71#,72#,73#,775 NO.2 |
3 | ||
| SZ301-31011 |
N04C..XZC710,XZU70#,71#,72#,73#,775 NO.1 |
3 | ||
| SZ301-19015 |
N04C..XZC710,XZU70#,71#,72#,73#,775 NO.2 |
3 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16346-E0040 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 16346 - GASKET, THERMOSTAT | ||||
| S1632-51420 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 16507 - PIPE SUB-ASSY, RADIATOR | ||||
| 16507-78010 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 16895 - PIPE, TURBO WATER, NO.1 | ||||
| 16895-E0131 |
N04C..XZC710,XZU70#,71#,72#,732..DCRTJ,DCRTK,DCRTL |
1 | ||
| 16895A - BOLT, UNION(FOR TURBO WATER PIPE NO.1) | ||||
| SZ401-14004 |
N04C..XZC710,XZU70#,71#,72#,732,775..DCRTJ,DCRTK,DCRTL |
2 | ||
| 16895A - BOLT, UNION(FOR TURBO WATER PIPE NO.1) | ||||
| SZ401-14004 |
N04C..XZC710,XZU70#,71#,72#,732,775..DCRTJ,DCRTK,DCRTL |
2 | ||
| 16895B - GASKET(FOR TURBO WATER PIPE NO.1) | ||||
| SZ430-14003 |
N04C..XZC710,XZU70#,71#,72#,732,775..DCRTJ,DCRTK,DCRTL |
4 | ||
| 16895B - GASKET(FOR TURBO WATER PIPE NO.1) | ||||
| SZ430-14003 |
N04C..XZC710,XZU70#,71#,72#,732,775..DCRTJ,DCRTK,DCRTL |
4 | ||
| 16895B - GASKET(FOR TURBO WATER PIPE NO.1) | ||||
| SZ430-14003 |
N04C..XZC710,XZU70#,71#,72#,732,775..DCRTJ,DCRTK,DCRTL |
4 | ||
| 16895B - GASKET(FOR TURBO WATER PIPE NO.1) | ||||
| SZ430-14003 |
N04C..XZC710,XZU70#,71#,72#,732,775..DCRTJ,DCRTK,DCRTL |
4 | ||
| Common parts | ||||
| 16328-78010 | ||||
| 91551-80820 | ||||
| S7990-41740 | ||||
| SH552-10816 | ||||
| SH552-10820 | ||||
| SH552-10860 | ||||
| SH552-10870 | ||||
| SL150-10808 | ||||
| SZ105-08055 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 1701 | ||||
| 1702 | ||||
| 2501 | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
