XZU700A-TYFSH5 (2017)
Toyota Dyna/Toyoace

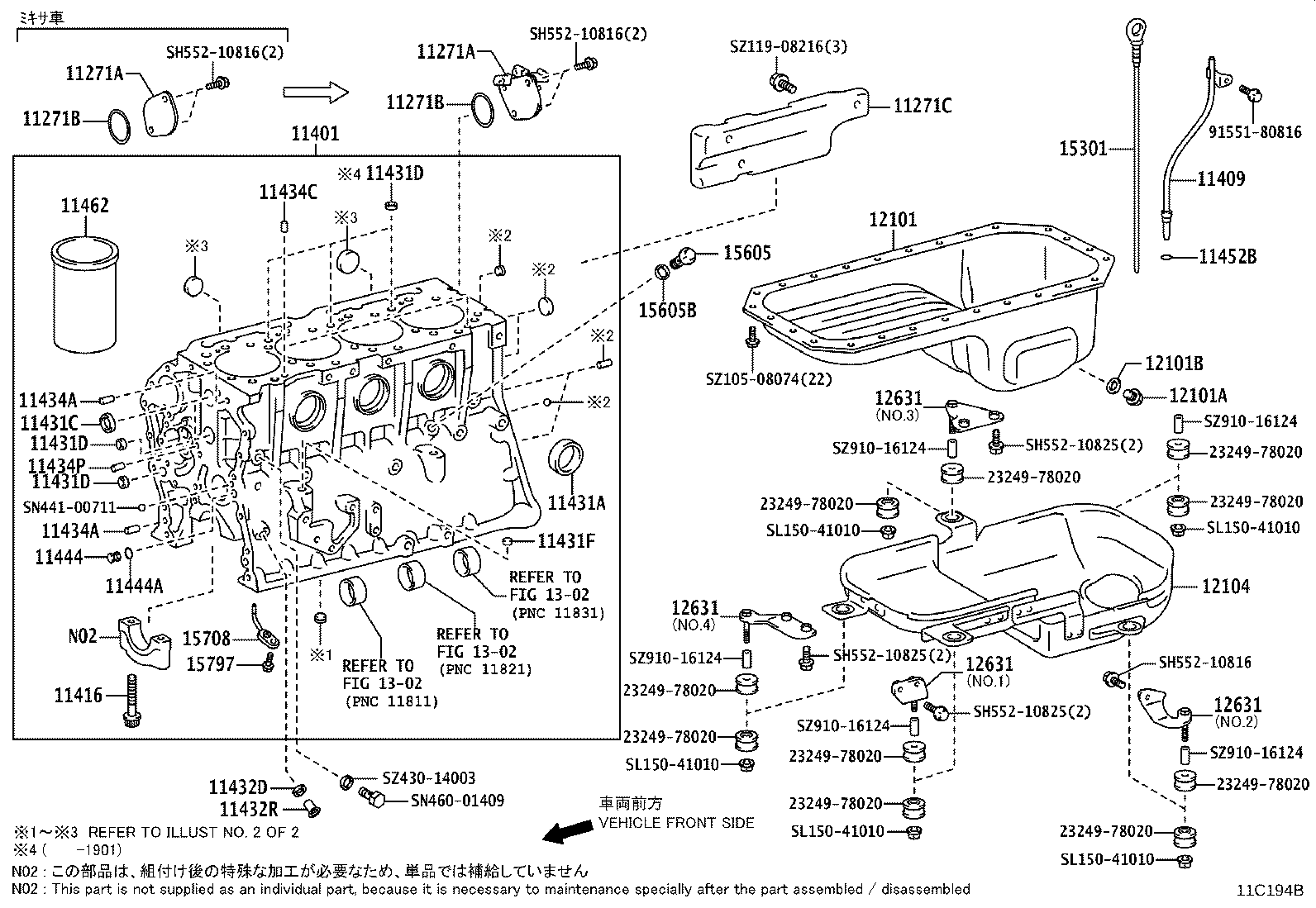

ILLUST NO. 1 OF 2(1705- )N04C..XZU700,71#,72#,73#..DCRVU,DCVUO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11271A - COVER, CYLINDER BLOCK, REAR | ||||
| 16269-78041 |
N04C..XZU700,710,720,730..DCRVT,DCRVU |
1 | ||
| 16269-78042 |
N04C..XZU700,710,720,730..DCRVU |
1 | ||
| 11271A - COVER, CYLINDER BLOCK, REAR | ||||
| 16269-78041 |
N04C..XZU700,710,720,730..DCRVT,DCRVU |
1 | ||
| 16269-78042 |
N04C..XZU700,710,720,730..DCRVU |
1 | ||
| 11271B - RING, O(FOR CYLINDER BLOCK REAR PLATE) | ||||
| SN741-10693 |
N04C..XZU700,710,720,730..DCRVT,DCRVU |
1 | ||
| 11271B - RING, O(FOR CYLINDER BLOCK REAR PLATE) | ||||
| SN741-10693 |
N04C..XZU700,710,720,730..DCRVT,DCRVU |
1 | ||
| 11271C - COVER, CYLIVDER BLOCK SIDE | ||||
| 51043-E0160 |
N04C..XZU700,710,720,730..DCRVU |
1 | ||
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11410-78420 |
N04C..XZU700,710,720,730..DCRVT,DCRVU |
1 | ||
| 11410-78422 |
N04C..XZU700,710,720,730..DCRVT,DCRVU |
1 | ||
| 11410-78421 |
N04C..XZU700,710,720,730..DCRVT,DCRVU |
1 | ||
| 11409 - GUIDE SUB-ASSY, OIL LEVEL GAGE | ||||
| 11409-78230 |
N04C..XZC710,XZU70#,71#,72#,73#..SCB |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| S1152-11410 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
10 | ||
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| SN411-05016 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
3 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| SN411-03616 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
5 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| SN411-01712 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
5 | ||
| SN411-01712 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| SN411-01712 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
5 | ||
| SN411-01712 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| SN411-01712 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
5 | ||
| SN411-01712 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK) | ||||
| SZ331-14001 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 11432D - GASKET, W/HEAD TAPER SCREW PLUG | ||||
| SZ430-10004 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 11432R - PLUG, W/HEAD STRAIGHT SCREW, NO.1(FOR CYLINDER BLOCK) | ||||
| SN461-01011 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| SZ250-08008 |
N04C..XZC710,XZU70#,71#,72#,73#,775 長さ=24,外径=8 |
2 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| SZ250-08008 |
N04C..XZC710,XZU70#,71#,72#,73#,775 長さ=24,外径=8 |
2 | ||
| 11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET) | ||||
| SZ250-08007 |
N04C..XZC710,XZU70#,71#,72#,73#,775 長さ=16,外径=8 |
2 | ||
| 11434P - PIN, STRAIGHT(FOR OIL PUMP SET) | ||||
| SM212-00510 |
N04C..XZC710,XZU70#,71#,72#,73#,775 長さ=10,外径=5 |
1 | ||
| 11444 - PLUG, HOLE | ||||
| S1145-31130 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 11444A - RING, O | ||||
| SN732-00051 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 11452B - RING, O(FOR OIL LEVEL GAGE GUIDE) | ||||
| SZ301-10025 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 11462 - LINER, CYLINDER | ||||
| 11463-78010 |
N04C..XZU700,710,720,730..DCRVT,DCRVU ﾏｰｸ B |
4 | ||
| 11463-78020 |
N04C..XZU700,710,720,730..DCRVT,DCRVU ﾏｰｸ B |
4 | ||
| 11462-78020 |
N04C..XZU700,710,720,730..DCRVT,DCRVU ﾏｰｸ A |
4 | ||
| 11464-78020 |
N04C..XZU700,710,720,730..DCRVT,DCRVU ﾏｰｸ C |
4 | ||
| 11464-78010 |
N04C..XZU700,710,720,730..DCRVT,DCRVU ﾏｰｸ C |
4 | ||
| 11462-78010 |
N04C..XZU700,710,720,730..DCRVT,DCRVU ﾏｰｸ A |
4 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-E0450 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| SZ341-18014 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| SZ430-18009 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 12104 - COVER SUB-ASSY, OIL PAN, NO.1 | ||||
| 12104-78082 |
N04C..XZU700,710,720,730..DCRVU |
1 | ||
| 12631 - BRACKET, ENGINE COVER | ||||
| 12631-78080 |
N04C..XZU700,710,720,730..DCRVU NO.3 |
1 | ||
| 12631-78090 |
N04C..XZU700,710,720,730..DCRVU NO.4 |
1 | ||
| 12631-78060 |
N04C..XZU700,710,720,730..DCRVU NO.1 |
1 | ||
| 12631-78071 |
N04C..XZU700,710,720,730..DCRVU NO.2 |
1 | ||
| 12631 - BRACKET, ENGINE COVER | ||||
| 12631-78080 |
N04C..XZU700,710,720,730..DCRVU NO.3 |
1 | ||
| 12631-78090 |
N04C..XZU700,710,720,730..DCRVU NO.4 |
1 | ||
| 12631-78060 |
N04C..XZU700,710,720,730..DCRVU NO.1 |
1 | ||
| 12631-78071 |
N04C..XZU700,710,720,730..DCRVU NO.2 |
1 | ||
| 12631 - BRACKET, ENGINE COVER | ||||
| 12631-78080 |
N04C..XZU700,710,720,730..DCRVU NO.3 |
1 | ||
| 12631-78090 |
N04C..XZU700,710,720,730..DCRVU NO.4 |
1 | ||
| 12631-78060 |
N04C..XZU700,710,720,730..DCRVU NO.1 |
1 | ||
| 12631-78071 |
N04C..XZU700,710,720,730..DCRVU NO.2 |
1 | ||
| 12631 - BRACKET, ENGINE COVER | ||||
| 12631-78080 |
N04C..XZU700,710,720,730..DCRVU NO.3 |
1 | ||
| 12631-78090 |
N04C..XZU700,710,720,730..DCRVU NO.4 |
1 | ||
| 12631-78060 |
N04C..XZU700,710,720,730..DCRVU NO.1 |
1 | ||
| 12631-78071 |
N04C..XZU700,710,720,730..DCRVU NO.2 |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-78320 |
N04C..XZC710,XZU70#,71#,72#,73#..SCB |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15602-E0010 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 15605B - GASKET(FOR OIL CHECK VALVE) | ||||
| SZ430-24001 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| S110B-E0010 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
4 | ||
| 15797 - BOLT, OIL NOZZLE UNION | ||||
| SH552-10816 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
4 | ||
| Common parts | ||||
| 23249-78020 | ||||
| 91551-80816 | ||||
| SH552-10816 | ||||
| SH552-10825 | ||||
| SL150-41010 | ||||
| SN441-00711 | ||||
| SN460-01409 | ||||
| SZ105-08074 | ||||
| SZ119-08216 | ||||
| SZ430-14003 | ||||
| SZ910-16124 | ||||
| Linked diagrams | ||||
| 1302 | ||||
