XZU700A-TYFSF5 (2019)
Toyota Dyna/Toyoace
(1905- )

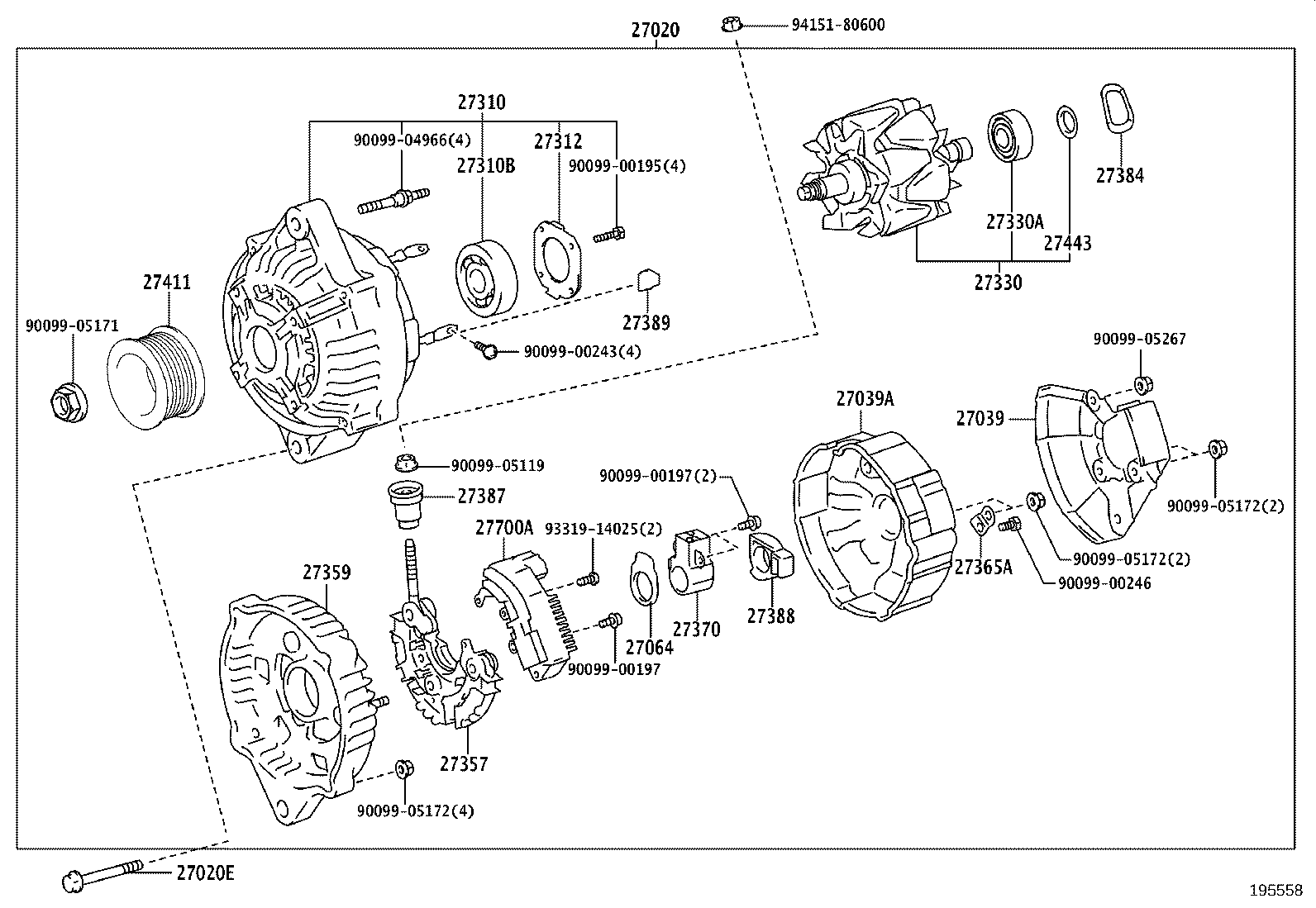

24V 60A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-78300 |
N04C..XZU700,71#,72#,73#..DCVUO 24V 60A |
1 | ||
| 27060-78310 |
N04C..XZU700,71#,72#,73#..DCVUO 24V 80A,ｵﾙﾀﾈｰﾀ−24V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| SZ105-10067 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-20160 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| 27039-78240 |
N04C..XZU700,71#,72#,73#..DCVUO ｵﾙﾀﾈｰﾀ−24V 80A |
1 | ||
| 27039A - COVER, ALTERNATOR REAR END, NO.2 | ||||
| 27039-58330 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| 27064 - SEAL, ALTERNATOR PLATE | ||||
| 27064-42010 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-EV010 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10226 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| 27312 - PLATE, RETAINER | ||||
| 27312-42010 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-17240 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-17080 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-58050 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| 27365A - PLATE, RECTIFIER | ||||
| 27365-55080 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58460 |
N04C..XZU700,71#,72#,73#..DCVUO ｵﾙﾀﾈｰﾀ−24V 80A |
1 | ||
| 27370-75060 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| 27384 - WASHER | ||||
| 27384-50030 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
N04C..XZU700,71#,72#,73#..DCVUO ｵﾙﾀﾈｰﾀ−24V 80A |
1 | ||
| 27387-42021 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| 27388 - COVER, ALTERNATOR BRUSH | ||||
| 27388-46220 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| 27389 - INSULATOR, TERMINAL | ||||
| 27389-42010 |
N04C..XZU700,71#,72#,73#..DCVUO |
4 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-32020 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| 27411-78310 |
N04C..XZU700,71#,72#,73#..DCVUO ｵﾙﾀﾈｰﾀ−24V 80A |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27702-78300 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| Common parts | ||||
| 90099-00195 | ||||
| 90099-00197 | ||||
| 90099-00243 | ||||
| 90099-00246 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90099-05267 | ||||
| 93319-14025 | ||||
| 94151-80600 | ||||
(1905- )

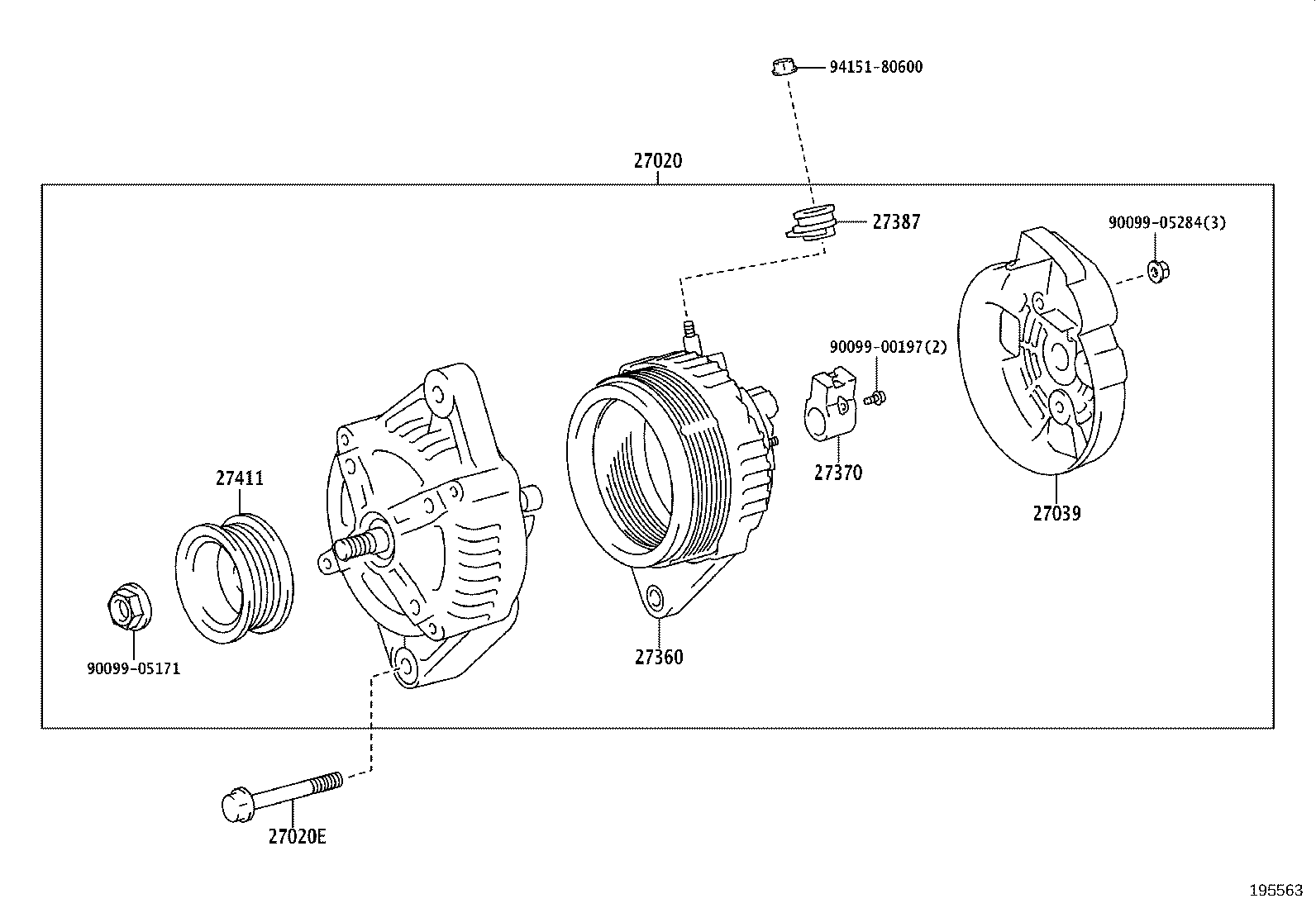

24V 80A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-78300 |
N04C..XZU700,71#,72#,73#..DCVUO 24V 60A |
1 | ||
| 27060-78310 |
N04C..XZU700,71#,72#,73#..DCVUO 24V 80A,ｵﾙﾀﾈｰﾀ−24V 80A |
1 | ||
| 27020E - BOLT(FOR ALTERNATOR) | ||||
| SZ105-10067 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-20160 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| 27039-78240 |
N04C..XZU700,71#,72#,73#..DCVUO ｵﾙﾀﾈｰﾀ−24V 80A |
1 | ||
| 27360 - COIL ASSY, ALTERNATOR | ||||
| 27360-78310 |
N04C..XZU700,71#,72#,73#..DCVUO ｵﾙﾀﾈｰﾀ−24V 80A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-58460 |
N04C..XZU700,71#,72#,73#..DCVUO ｵﾙﾀﾈｰﾀ−24V 80A |
1 | ||
| 27370-75060 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-20130 |
N04C..XZU700,71#,72#,73#..DCVUO ｵﾙﾀﾈｰﾀ−24V 80A |
1 | ||
| 27387-42021 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-32020 |
N04C..XZU700,71#,72#,73#..DCVUO |
1 | ||
| 27411-78310 |
N04C..XZU700,71#,72#,73#..DCVUO ｵﾙﾀﾈｰﾀ−24V 80A |
1 | ||
| Common parts | ||||
| 90099-00197 | ||||
| 90099-05171 | ||||
| 90099-05284 | ||||
| 94151-80600 | ||||
