XZU700A-TMFSH3 (2017)

Toyota Dyna/Toyoace

Production May 2017 - May 2019
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

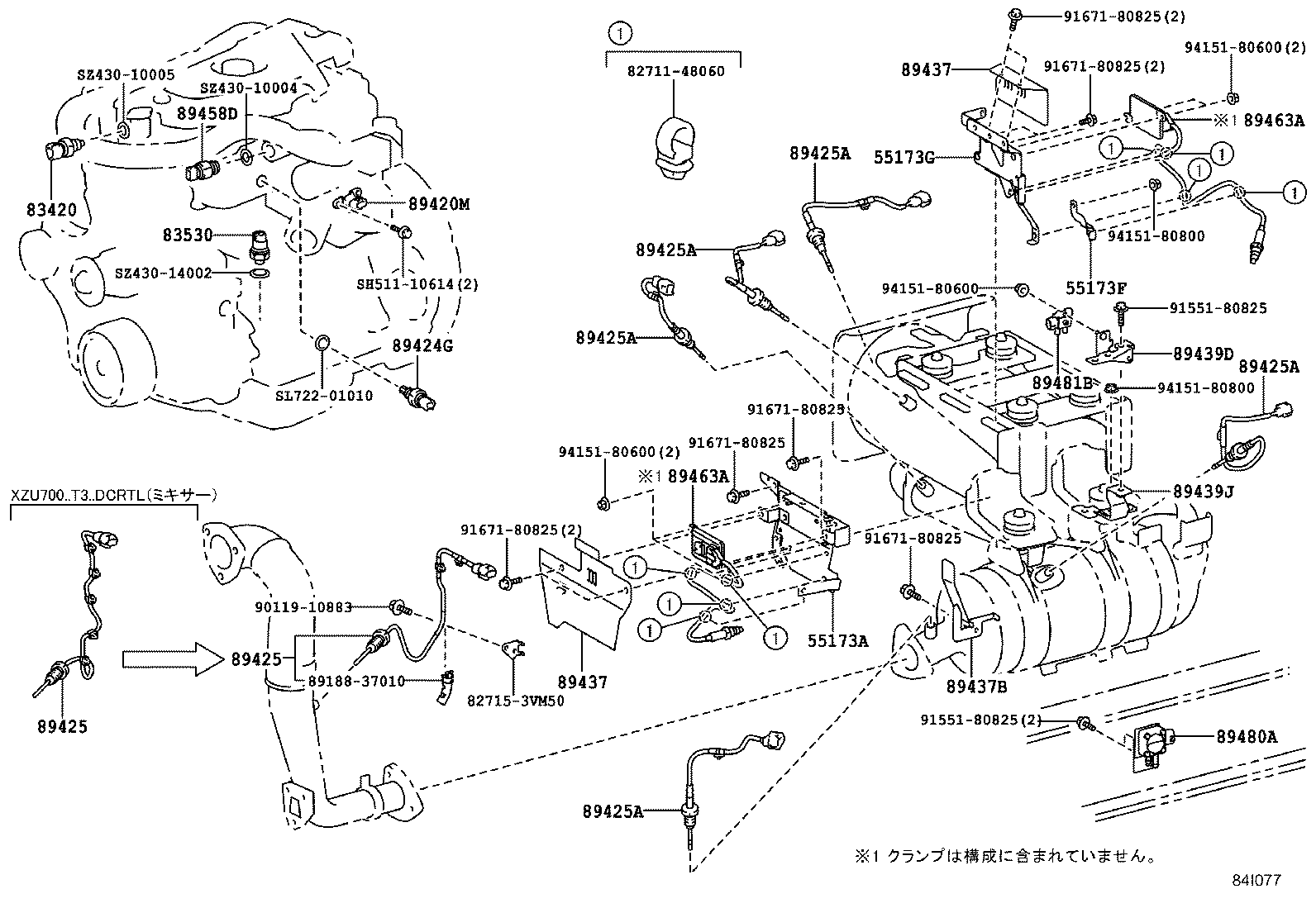

ILLUST NO. 1 OF10(1705- )DCRVT,DCRVU

Click highlighted areas on diagram

ｴﾝｼﾞﾝ

diagram 55173A 55173F 55173G 8271148060 827153VM50 83420 83530 8918837010 89420M 89424G 89425 89425 89425A 89425A 89425A 89425A 89425A 89437 89437 89437B 89439D 89439J 89458D 89463A 89463A 89480A 89481B 9011910883 9155180825 9155180825 9167180825 9167180825 9167180825 9167180825 9167180825 9167180825 9415180600 9415180600 9415180600 9415180800 9415180800 SH51110614 SL72201010 SZ43010004 SZ43010005 SZ43014002
Part # Description Qty Price
55173A - BRACKET
55173-37770

XZU700,710,720,730..DCRVT,DCRVU

 1
55173F - BRACKET, ELECTRICAL PART
55173-37760

XZU700,710,720,730..DCRVT,DCRVU

 1
55173G - BRACKET, ELECTRICAL PART, NO.2
55173-37750

XZU700,710,720,730..DCRVT,DCRVU

 1
83420 - GAGE ASSY, WATER TEMPERATURE SENDER
S8342-01250

XZC710,XZU70#,71#,72#,73#,775

 1
83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
83530-E0220

XZC710,XZU70#,71#,72#,73#,775

 1
89420M - SENSOR ASSY, AIR PRESSURE
89421-E0050

XZC710,XZU70#,71#,72#,73#,775

 1
89424G - SENSOR, INLET AIR TEMPERATURE
89424-37020

XZC710,XZU70#,71#,72#,73#,775

 1
89425 - SENSOR, EXHAUST GAS TEMPERATURE
89425-37310

XZC710,XZU70#,71#,72#,73#,775

 1
89425 - SENSOR, EXHAUST GAS TEMPERATURE
89425-37310

XZC710,XZU70#,71#,72#,73#,775

 1
89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2
89425-37350

XZU700,710,720,730..DCRVT,DCRVU

 5
89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2
89425-37350

XZU700,710,720,730..DCRVT,DCRVU

 5
89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2
89425-37350

XZU700,710,720,730..DCRVT,DCRVU

 5
89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2
89425-37350

XZU700,710,720,730..DCRVT,DCRVU

 5
89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2
89425-37350

XZU700,710,720,730..DCRVT,DCRVU

 5
89437 - COVER, SENSOR
58475-37070

XZU700,710,720,730..DCRVT,DCRVU

ﾘﾔ

 1
58475-37060

XZU700,710,720,730..DCRVT,DCRVU

ﾌﾛﾝﾄ

 1
89437 - COVER, SENSOR
58475-37070

XZU700,710,720,730..DCRVT,DCRVU

ﾘﾔ

 1
58475-37060

XZU700,710,720,730..DCRVT,DCRVU

ﾌﾛﾝﾄ

 1
89437B - COVER, SENSOR
58475-37080

XZU700,710,720,730..DCRVT,DCRVU

 1
89439D - BRACKET, SENSOR, NO.1
89439-37330

XZU700,710,720,730..DCRVT,DCRVU

 1
89439-37391

XZU700,710,720,730..DCRVT,DCRVU

 1
89439J - BRACKET, SENSOR, NO.2
89439-37350

XZU700,710,720,730..DCRVT,DCRVU

 1
89458D - SENSOR, FUEL PRESSURE
89458-E0050

XZU700,710,720,730..DCRVT,DCRVU

 1
89463A - SENSOR, NITROGEN OXIDES
89463-E0013

XZU700,710,720,730..DCRVT,DCRVU

 1
89463A - SENSOR, NITROGEN OXIDES
89463-E0013

XZU700,710,720,730..DCRVT,DCRVU

 1
89481B - SENSOR, DIFFERENTIAL PRESSURE
89481-E0020

XZU700,710,720,730..DCRVT,DCRVU

 1
89481-E0021

XZU700,710,720,730..DCRVT,DCRVU

 1
Common parts
82711-48060
82715-3VM50
89188-37010
90119-10883
91551-80825
91671-80825
94151-80600
94151-80800
SH511-10614
SL722-01010
SZ430-10004
SZ430-10005
SZ430-14002
