XZU700A-TMFSH3 (2017)

Toyota Dyna/Toyoace

Production May 2017 - May 2019
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1705- )XZU70#..DM6,DM7,T3..DCRTK,DCRVT,DCRVU..IV3,IV5

Click highlighted areas on diagram

ﾘｸｿｳｶﾘﾂﾞｹﾖｳ

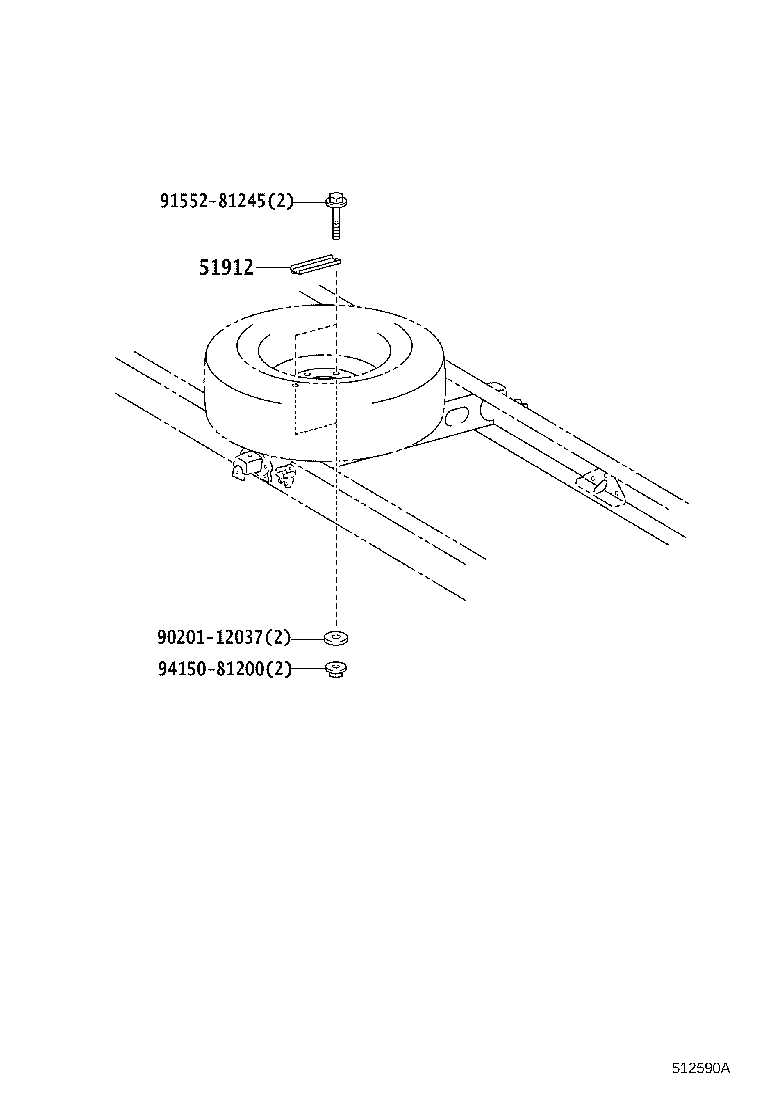

diagram 51912 9020112037 9155281245 9415081200
Part # Description Qty Price
51912 - BRACKET, SPARE WHEEL
51912-37030

XZU700..DM6,DM7

 1
51912-37030

XZU700..DM6,DM7

 1
Common parts
90201-12037
91552-81245
94150-81200
