XZU700A-TMFSH3 (2017)

Toyota Dyna/Toyoace

Production May 2017 - May 2019
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1705- )DCRVU

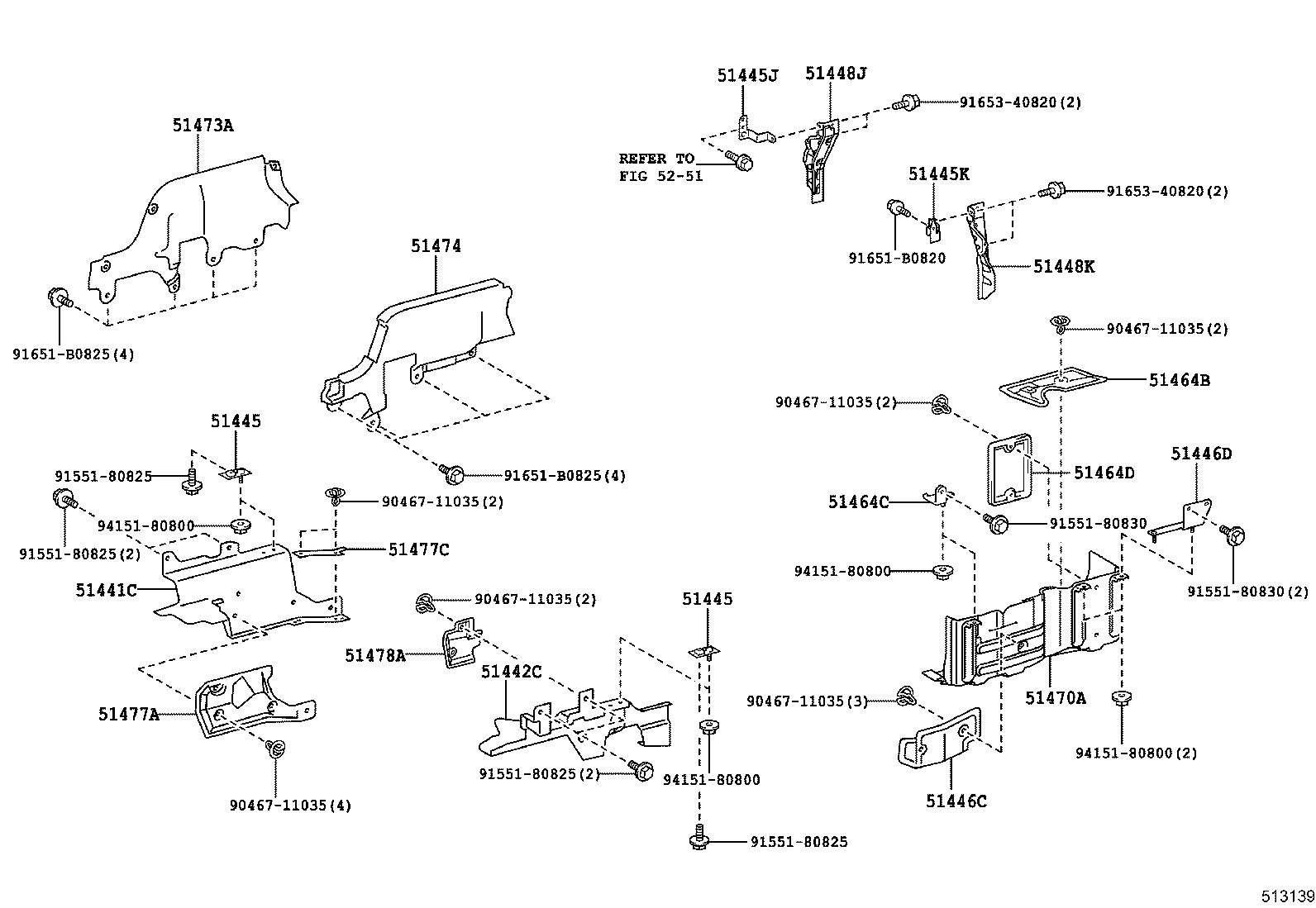

Click highlighted areas on diagram

diagram 51441C 51442C 51445 51445 51445J 51445K 51446C 51446D 51448J 51448K 51464B 51464C 51464D 51470A 51473A 51474 51477A 51477C 51478A 5251 9046711035 9046711035 9046711035 9046711035 9046711035 9046711035 9155180825 9155180825 9155180825 9155180825 9155180830 9155180830 91651B0820 91651B0825 91651B0825 9165340820 9165340820 9415180800 9415180800 9415180800 9415180800
Part # Description Qty Price
51441C - COVER, ENGINE UNDER, RH
51441-37790

XZC710,XZU70#,71#,72#,73#..SCB

 1
51442C - COVER, ENGINE UNDER, LH
51442-37080

XZC710,XZU70#,71#,72#,73#..SCB

 1
51445 - BRACKET, ENGINE UNDER COVER
51445-37130

XZC710,XZU70#,71#,72#,73#..SCB

 2
51445 - BRACKET, ENGINE UNDER COVER
51445-37130

XZC710,XZU70#,71#,72#,73#..SCB

 2
51445J - BRACKET, ENGINE REAR COVER, RH
51445-37C40

XZC710,XZU70#,71#,72#,73#..SCB

 1
51445K - BRACKET, ENGINE REAR COVER, LH
51445-37C50

XZC710,XZU70#,71#,72#,73#..SCB

 1
51446C - BRACKET, ENGINE UNDER COVER, LH
51446-37160

XZU700,71#,72#,73#..DCRTL,DCRVU

 1
51446D - BRACKET, ENGINE UNDER COVER, LH NO.2
51446-37260

XZU700,710,720,730..DCRVU

 1
51448J - SHUTTER, ENGINE REAR SIDE, RH
51448-37170

XZC710,XZU70#,71#,72#,73#..SCB

 1
51448K - SHUTTER, ENGINE REAR SIDE, LH
51448-37180

XZC710,XZU70#,71#,72#,73#..SCB

 1
51464B - SILENCER, TRANSMISSION UNDER
51464-37180

XZU700,71#,72#,73#..DCRTL,DCRVU

 1
51464C - SILENCER, TRANSMISSION UNDER
51464-37190

XZU700,71#,72#,73#..DCRTL,DCRVU

 1
51464D - SILENCER, TRANSMISSION UNDER
51464-37200

XZU700,71#,72#,73#..DCRTL,DCRVU

 1
51470A - COVER ASSY, TRANSMISSION UNDER, LH
51470-37320

XZU700,710,720,730..DCRVU

 1
51473A - COVER SUB-ASSY, ENGINE SIDE, RH
51473-37290

XZC710,XZU70#,71#,72#,73#

 1
51474 - COVER SUB-ASSY, ENGINE SIDE, LH
51474-37251

XZC710,XZU70#,71#,72#,73#

 1
51477A - SILENCER, ENGINE UNDER COVER, RH
51477-37040

XZC710,XZU70#,71#,72#,73#..SCB

 1
51477C - SILENCER, ENGINE UNDER COVER, LOWER RH
51477-37050

XZC710,XZU70#,71#,72#,73#..SCB

 1
51478A - SILENCER, ENGINE UNDER COVER, LH
51478-37210

XZC710,XZU70#,71#,72#,73#..SCB

 1
Common parts
90467-11035
91551-80825
91551-80830
91651-B0820
91651-B0825
91653-40820
94151-80800
Linked diagrams
5251
