XZU700A-TMFSH3 (2017)
Toyota Dyna/Toyoace

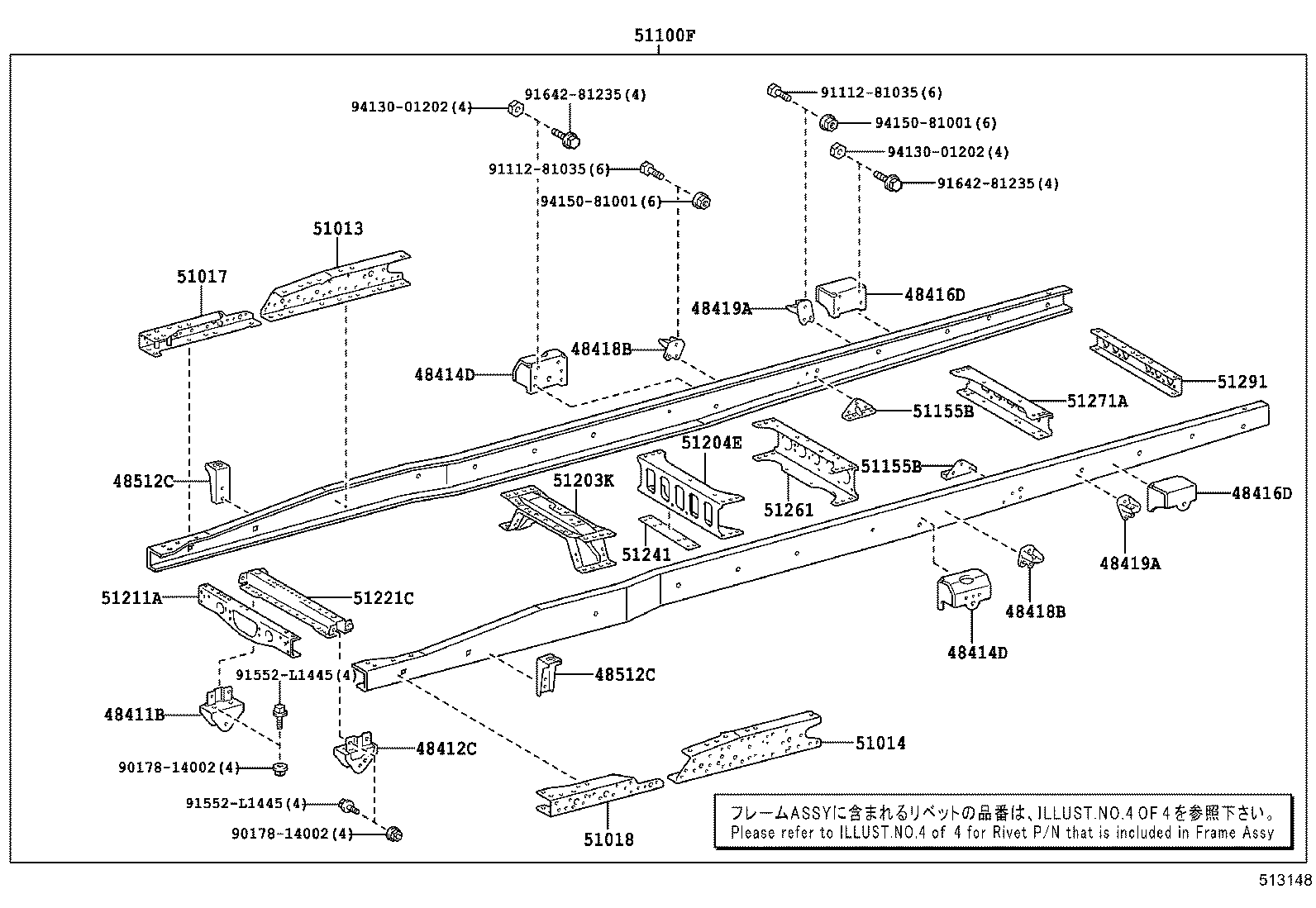

ILLUST NO. 1 OF 4(1705- )XZU70#..6F..DCRTJ,DCRTK,DCRVT,DCRVU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48411B - BRACKET, SPRING, NO.1 RH | ||||
| 48411-37090 |
XZU70#..30T,35T,40T |
1 | ||
| 48412C - BRACKET, SPRING, NO.1 LH | ||||
| 48412-37080 |
XZU70#..30T,35T,40T |
1 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48403-37080 |
XZU70#..30T,35T,40T |
2 | ||
| 48413D - BRACKET, SPRING, NO.2 | ||||
| 48403-37080 |
XZU70#..30T,35T,40T |
2 | ||
| 48414D - BRACKET, SPRING, NO.3 | ||||
| 48414-37140 |
XZU70#..30T,35T,40T |
2 | ||
| 48414D - BRACKET, SPRING, NO.3 | ||||
| 48414-37140 |
XZU70#..30T,35T,40T |
2 | ||
| 48416D - BRACKET, SPRING, NO.4 | ||||
| 48416-37120 |
XZU70#..30T,35T,40T |
2 | ||
| 48416D - BRACKET, SPRING, NO.4 | ||||
| 48416-37120 |
XZU70#..30T,35T,40T |
2 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-37030 |
XZC710,XZU70#;XZU710,720..20T |
2 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-37030 |
XZC710,XZU70#;XZU710,720..20T |
2 | ||
| 48419A - BRACKET, SPRING, NO.7 | ||||
| 48419-37030 |
XZC710,XZU70#;XZU710,720..20T |
2 | ||
| 48419A - BRACKET, SPRING, NO.7 | ||||
| 48419-37030 |
XZC710,XZU70#;XZU710,720..20T |
2 | ||
| 48512C - BRACKET, FRONT SHOCK ABSORBER, UPPER | ||||
| 48512-37080 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 48512C - BRACKET, FRONT SHOCK ABSORBER, UPPER | ||||
| 48512-37080 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH | ||||
| 51013-37470 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH | ||||
| 51014-37450 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37240 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37190 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51002-37U90 |
XZU700..6F |
1 | ||
| 51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2 | ||||
| 51155-37090 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2 | ||||
| 51155-37090 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 51155C - STIFFENER, FRAME SIDE RAIL, REAR NO.3 | ||||
| 51155-37050 |
XZU70#..30T,35T,40T |
2 | ||
| 51155C - STIFFENER, FRAME SIDE RAIL, REAR NO.3 | ||||
| 51155-37050 |
XZU70#..30T,35T,40T |
2 | ||
| 51155D - STIFFENER, FRAME SIDE RAIL, REAR NO.1 | ||||
| 51155-37040 |
XZU70#..30T,35T,40T |
2 | ||
| 51155D - STIFFENER, FRAME SIDE RAIL, REAR NO.1 | ||||
| 51155-37040 |
XZU70#..30T,35T,40T |
2 | ||
| 51203K - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37351 |
XZC710,XZU70#,71#,72#,730..MTM..(DCRTJ,DCRTK,DCRVT,DCRVU) |
1 | ||
| 51211A - CROSSMEMBER, FRAME, FRONT | ||||
| 51211-37310 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51221C - CROSSMEMBER, FRAME, NO.2 | ||||
| 51221-37200 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51261 - CROSSMEMBER, FRAME, NO.6 | ||||
| 51261-37170 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51271A - CROSSMEMBER, FRAME, NO.7 | ||||
| 51271-37010 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51291 - CROSSMEMBER, FRAME, REAR | ||||
| 51291-37050 |
XZU70# |
1 | ||
| Common parts | ||||
| 90031-01175 | ||||
| 90033-84013 | ||||
| 90178-14002 | ||||
| 90179-14039 | ||||
| 91112-81035 | ||||
| 91552-L1445 | ||||
| 94150-81001 | ||||
| 94622-41400 | ||||
ILLUST NO. 1 OF 4(1705- )XZC710..6FC..DCRTJ ; (1705- )XZU710..6FC..DCRTJ..CBU ; (1705- )XZU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48411B - BRACKET, SPRING, NO.1 RH | ||||
| 48411-37090 |
XZU70#..30T,35T,40T |
1 | ||
| 48412C - BRACKET, SPRING, NO.1 LH | ||||
| 48412-37080 |
XZU70#..30T,35T,40T |
1 | ||
| 48414D - BRACKET, SPRING, NO.3 | ||||
| 48414-37140 |
XZU70#..30T,35T,40T |
2 | ||
| 48414D - BRACKET, SPRING, NO.3 | ||||
| 48414-37140 |
XZU70#..30T,35T,40T |
2 | ||
| 48416D - BRACKET, SPRING, NO.4 | ||||
| 48416-37120 |
XZU70#..30T,35T,40T |
2 | ||
| 48416D - BRACKET, SPRING, NO.4 | ||||
| 48416-37120 |
XZU70#..30T,35T,40T |
2 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-37030 |
XZC710,XZU70#;XZU710,720..20T |
2 | ||
| 48418B - BRACKET, SPRING, NO.6 | ||||
| 48418-37030 |
XZC710,XZU70#;XZU710,720..20T |
2 | ||
| 48419A - BRACKET, SPRING, NO.7 | ||||
| 48419-37030 |
XZC710,XZU70#;XZU710,720..20T |
2 | ||
| 48419A - BRACKET, SPRING, NO.7 | ||||
| 48419-37030 |
XZC710,XZU70#;XZU710,720..20T |
2 | ||
| 48512C - BRACKET, FRONT SHOCK ABSORBER, UPPER | ||||
| 48512-37080 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 48512C - BRACKET, FRONT SHOCK ABSORBER, UPPER | ||||
| 48512-37080 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH | ||||
| 51013-37470 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH | ||||
| 51014-37450 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH | ||||
| 51017-37240 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH | ||||
| 51018-37190 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51002-37U90 |
XZU700..6F |
1 | ||
| 51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2 | ||||
| 51155-37090 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 51155B - STIFFENER, FRAME SIDE RAIL, REAR NO.2 | ||||
| 51155-37090 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 51203K - CROSSMEMBER SUB-ASSY, FRAME, NO.3 | ||||
| 51203-37351 |
XZC710,XZU70#,71#,72#,730..MTM..(DCRTJ,DCRTK,DCRVT,DCRVU) |
1 | ||
| 51211A - CROSSMEMBER, FRAME, FRONT | ||||
| 51211-37310 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51221C - CROSSMEMBER, FRAME, NO.2 | ||||
| 51221-37200 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51261 - CROSSMEMBER, FRAME, NO.6 | ||||
| 51261-37170 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51271A - CROSSMEMBER, FRAME, NO.7 | ||||
| 51271-37010 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51291 - CROSSMEMBER, FRAME, REAR | ||||
| 51291-37050 |
XZU70# |
1 | ||
| Common parts | ||||
| 90178-14002 | ||||
| 91112-81035 | ||||
| 91552-L1445 | ||||
| 91642-81235 | ||||
| 94130-01202 | ||||
| 94150-81001 | ||||

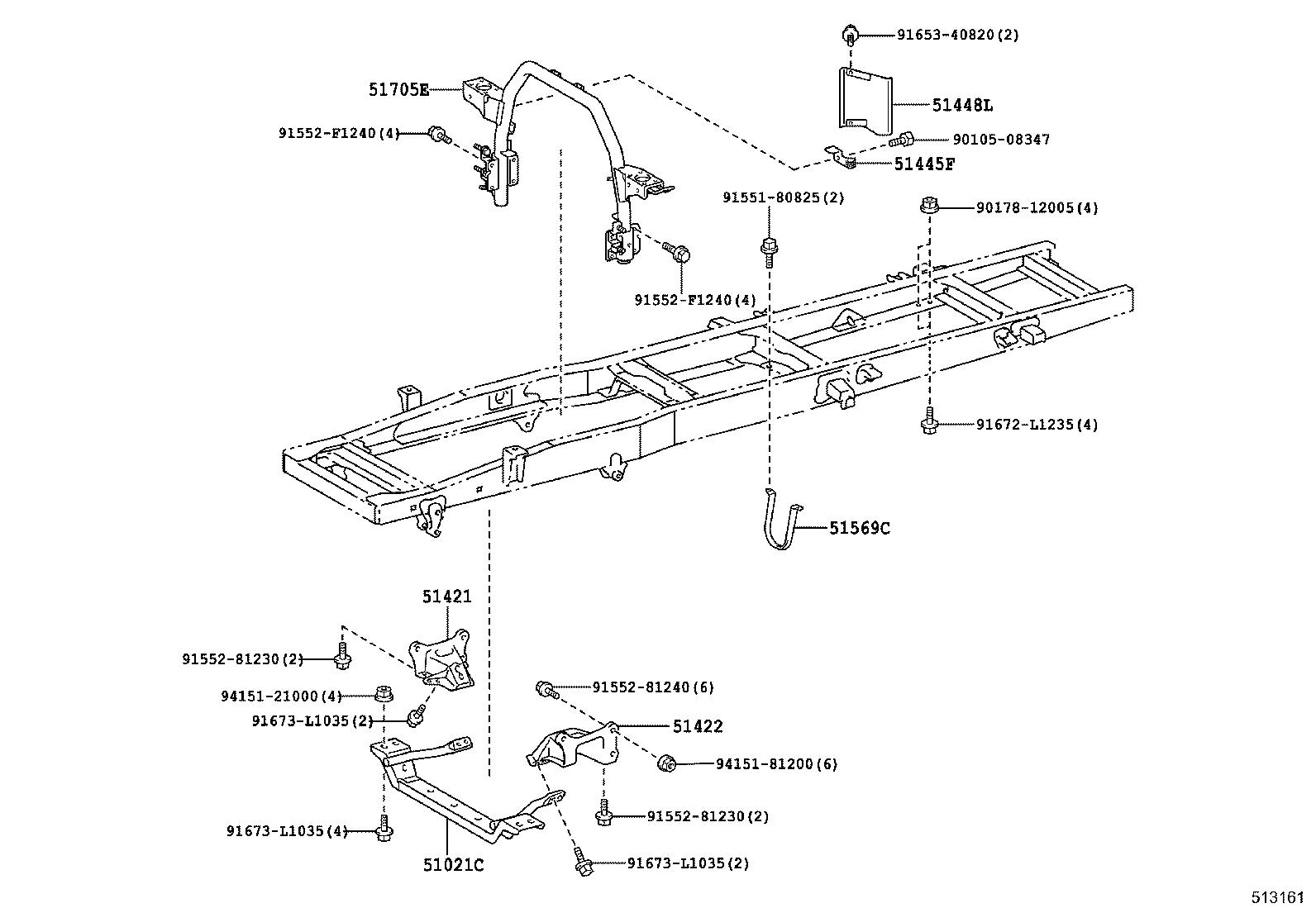

ILLUST NO. 2 OF 4(1705- )XZU700..DCRVT,DCRVU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51021C - MEMBER SUB-ASSY, ENGINE FRONT SUPPORT | ||||
| 51021-37030 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51421 - BRACKET, ENGINE FRONT MOUNTING, RH | ||||
| 51421-37230 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51422 - BRACKET, ENGINE FRONT MOUNTING, LH | ||||
| 51422-37230 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 51445F - BRACKET, ENGINE REAR COVER | ||||
| 51445-37D70 |
XZU700,710,720,730..DCRVT,DCRVU |
1 | ||
| 51448L - SHUTTER, ENGINE REAR SIDE | ||||
| 51448-37240 |
XZU700,710,720,730..DCRVT,DCRVU |
1 | ||
| 51569C - GUARD, PROPELLER SHAFT | ||||
| 51569-37420 |
XZU70#;XZU710..DCRVT,DCRVU |
1 | ||
| 51705E - BRACKET SUB-ASSY, CAB REAR MOUNTING | ||||
| 51705-37A90 |
XZU700,710,720,730..DCRVT,DCRVU |
1 | ||
| Common parts | ||||
| 90105-08347 | ||||
| 90178-12005 | ||||
| 91551-80825 | ||||
| 91552-81230 | ||||
| 91552-81240 | ||||
| 91552-F1240 | ||||
| 91653-40820 | ||||
| 91672-L1235 | ||||
| 91673-L1035 | ||||
| 94151-21000 | ||||
| 94151-81200 | ||||
