XZU700A-TMFSH3 (2017)
Toyota Dyna/Toyoace

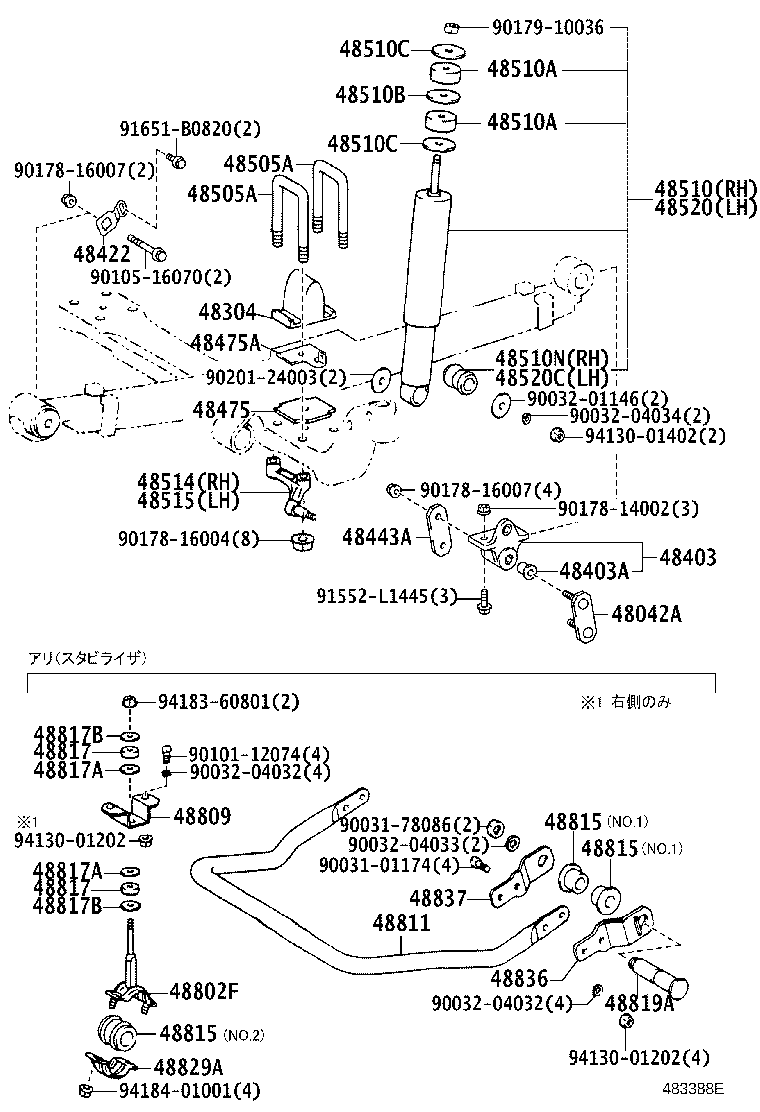

ILLUST NO. 1 OF 2(1705- )XZU710,720,730..DCRTJ,DCRTK,DCRTL,DCRVT,DCRVU ; (1905- )XZC710,XZU70#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48304 - BUMPER SUB-ASSY, FRONT SPRING, NO.1 | ||||
| 48304-37110 |
XZU70#,71#,72#,73#..30T,35T,40T |
2 | ||
| 48304-37110 |
XZU70#,71#,72#,73#..30T,35T,40T |
2 | ||
| 48475 - PLATE, DISTANCE(FOR FRONT) | ||||
| 48475-37060 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 48475-37060 |
XZU70#,71#,72#,73#..30T,35T,40T |
1 | ||
| 48475A - PLATE, DISTANCE NO.2(FOR FRONT) | ||||
| 48475-37080 |
XZU700..DM6,DM7 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48475-37080 |
XZU700..DM6,DM7 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48475-37080 |
XZC710,XZU70#,71#,72#,73#..SCB ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48475-37080 |
XZC710,XZU70#,71#,72#,73#..SCB ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48475-37080 |
XZU700..DM6,DM7 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48475-37080 |
XZU700..DM6,DM7 ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48475-37080 |
XZC710,XZU70#,71#,72#,73#..SCB ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48475-37080 |
XZC710,XZU70#,71#,72#,73#..SCB ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
1 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16065 |
XZU710,720..20T;XZU710,720,730..40T..IV3;XZC710,XZU700,712..20T,40T 長さ=150 |
2 | ||
| 90117-16065 |
XZU710,720..20T;XZU710,720,730..40T..IV3;XZC710,XZU700,712..20T,40T 長さ=150 |
2 | ||
| 90117-16065 |
XZU700..DM6,DM7 長さ=150,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛ塔gのみ) |
2 | ||
| 90117-16065 |
XZU700..DM6,DM7 長さ=150,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛ塔gのみ) |
2 | ||
| 90117-16065 |
XZU700..DM6,DM7 長さ=150,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬ[ｼﾞ |
2 | ||
| 90117-16065 |
XZU700..DM6,DM7 長さ=150,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬ[ｼﾞ |
2 | ||
| 90117-16065 |
XZU700..DM6,DM7 長さ=150,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛ塔gのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90117-16065 |
XZU700..DM6,DM7 長さ=150,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛ塔gのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90117-16065 |
XZU710,720..20T;XZU710,720,730..40T..IV3;XZC710,XZU700,712..20T,40T 長さ=150,ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
2 | ||
| 90117-16065 |
XZU710,720..20T;XZU710,720,730..40T..IV3;XZC710,XZU700,712..20T,40T 長さ=150,ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
2 | ||
| 90117-16065 |
XZU700..DM6,DM7 長さ=150,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ |
2 | ||
| 90117-16065 |
XZU700..DM6,DM7 長さ=150,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ |
2 | ||
| 90117-16065 |
XZU710,720..SCB..20T;XZU710,720,730..40T..IV3;XZC710,XZU700,712..20T,40T 長さ=150,ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90117-16065 |
XZU710,720..SCB..20T;XZU710,720,730..40T..IV3;XZC710,XZU700,712..20T,40T 長さ=150,ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90117-16065 |
XZU710,720..SCB..20T;XZU710,720,730..40T..IV3;XZC710,XZU700,712..20T,40T 長さ=150,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90117-16065 |
XZU710,720..SCB..20T;XZU710,720,730..40T..IV3;XZC710,XZU700,712..20T,40T 長さ=150,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90117-16075 |
XZU700..DM6,DM7 長さ=170,ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
2 | ||
| 90117-16075 |
XZU700..DM6,DM7 長さ=170,ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
2 | ||
| 90117-16075 |
XZU700..DM6,DM7 長さ=170,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90117-16075 |
XZU700..DM6,DM7 長さ=170,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90117-16075 |
XZU700..DM6,DM7 長さ=170,ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90117-16075 |
XZU700..DM6,DM7 長さ=170,ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90117-16075 |
XZU700..DM6,DM7 長さ=170 |
2 | ||
| 90117-16075 |
XZU700..DM6,DM7 長さ=170 |
2 | ||
| 90117-16080 |
XZU700..DM6,DM7 長さ=130,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ |
2 | ||
| 90117-16080 |
XZU700..DM6,DM7 長さ=130,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ |
2 | ||
| 90117-16080 |
XZU700..DM6,DM7 長さ=130,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛ塔gのみ) |
2 | ||
| 90117-16080 |
XZU700..DM6,DM7 長さ=130,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛ塔gのみ) |
2 | ||
| 90117-16080 |
XZU700..DM6,DM7 長さ=130,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛ塔gのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90117-16080 |
XZU700..DM6,DM7 長さ=130,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛ塔gのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90117-16080 |
XZU700..DM6,DM7 長さ=130,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬ[ｼﾞ |
2 | ||
| 90117-16080 |
XZU700..DM6,DM7 長さ=130,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬ[ｼﾞ |
2 | ||
| 48505A - BOLT, U(FOR FRONT SPRING) | ||||
| 90117-16065 |
XZU710,720..20T;XZU710,720,730..40T..IV3;XZC710,XZU700,712..20T,40T 長さ=150 |
2 | ||
| 90117-16065 |
XZU710,720..20T;XZU710,720,730..40T..IV3;XZC710,XZU700,712..20T,40T 長さ=150 |
2 | ||
| 90117-16065 |
XZU700..DM6,DM7 長さ=150,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛ塔gのみ) |
2 | ||
| 90117-16065 |
XZU700..DM6,DM7 長さ=150,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛ塔gのみ) |
2 | ||
| 90117-16065 |
XZU700..DM6,DM7 長さ=150,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬ[ｼﾞ |
2 | ||
| 90117-16065 |
XZU700..DM6,DM7 長さ=150,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬ[ｼﾞ |
2 | ||
| 90117-16065 |
XZU700..DM6,DM7 長さ=150,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛ塔gのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90117-16065 |
XZU700..DM6,DM7 長さ=150,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛ塔gのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90117-16065 |
XZU710,720..20T;XZU710,720,730..40T..IV3;XZC710,XZU700,712..20T,40T 長さ=150,ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
2 | ||
| 90117-16065 |
XZU710,720..20T;XZU710,720,730..40T..IV3;XZC710,XZU700,712..20T,40T 長さ=150,ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
2 | ||
| 90117-16065 |
XZU700..DM6,DM7 長さ=150,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ |
2 | ||
| 90117-16065 |
XZU700..DM6,DM7 長さ=150,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ |
2 | ||
| 90117-16065 |
XZU710,720..SCB..20T;XZU710,720,730..40T..IV3;XZC710,XZU700,712..20T,40T 長さ=150,ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90117-16065 |
XZU710,720..SCB..20T;XZU710,720,730..40T..IV3;XZC710,XZU700,712..20T,40T 長さ=150,ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90117-16065 |
XZU710,720..SCB..20T;XZU710,720,730..40T..IV3;XZC710,XZU700,712..20T,40T 長さ=150,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90117-16065 |
XZU710,720..SCB..20T;XZU710,720,730..40T..IV3;XZC710,XZU700,712..20T,40T 長さ=150,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90117-16075 |
XZU700..DM6,DM7 長さ=170,ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
2 | ||
| 90117-16075 |
XZU700..DM6,DM7 長さ=170,ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
2 | ||
| 90117-16075 |
XZU700..DM6,DM7 長さ=170,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90117-16075 |
XZU700..DM6,DM7 長さ=170,ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90117-16075 |
XZU700..DM6,DM7 長さ=170,ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90117-16075 |
XZU700..DM6,DM7 長さ=170,ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90117-16075 |
XZU700..DM6,DM7 長さ=170 |
2 | ||
| 90117-16075 |
XZU700..DM6,DM7 長さ=170 |
2 | ||
| 90117-16080 |
XZU700..DM6,DM7 長さ=130,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ |
2 | ||
| 90117-16080 |
XZU700..DM6,DM7 長さ=130,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ |
2 | ||
| 90117-16080 |
XZU700..DM6,DM7 長さ=130,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛ塔gのみ) |
2 | ||
| 90117-16080 |
XZU700..DM6,DM7 長さ=130,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛ塔gのみ) |
2 | ||
| 90117-16080 |
XZU700..DM6,DM7 長さ=130,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛ塔gのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90117-16080 |
XZU700..DM6,DM7 長さ=130,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛ塔gのみ)&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬｰｼﾞ |
2 | ||
| 90117-16080 |
XZU700..DM6,DM7 長さ=130,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬ[ｼﾞ |
2 | ||
| 90117-16080 |
XZU700..DM6,DM7 長さ=130,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ&ﾍｯﾄﾞﾗﾝﾌﾟ−ﾃﾞｨｽﾁｬ[ｼﾞ |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48511-80130 |
XZU700..DM6,DM7 ﾏｰｸ 48511−37290,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ |
1 | ||
| 48511-80130 |
XZU700..DM6,DM7 ﾏｰｸ 48511−37290,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ |
1 | ||
| 48511-89225 |
XZU700..DM6,DM7 ﾏｰｸ 48511−37270 |
1 | ||
| 48511-89225 |
XZU700..DM6,DM7 ﾏｰｸ 48511−37270 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01031 |
XZC710,XZU70#,71#,72#,73# |
4 | ||
| 90948-01031 |
XZC710,XZU70#,71#,72#,73# |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01031 |
XZC710,XZU70#,71#,72#,73# |
4 | ||
| 90948-01031 |
XZC710,XZU70#,71#,72#,73# |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02017 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 90948-02017 |
XZC710,XZU70#,71#,72#,73# |
2 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-03018 |
XZC710,XZU70#,71#,72#,73# |
4 | ||
| 90948-03018 |
XZC710,XZU70#,71#,72#,73# |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-03018 |
XZC710,XZU70#,71#,72#,73# |
4 | ||
| 90948-03018 |
XZC710,XZU70#,71#,72#,73# |
4 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90385-19011 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 90385-19011 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 48514 - BRACKET, FRONT SHOCK ABSORBER, LOWER RH | ||||
| 48514-37020 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 48514-37020 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 48515 - BRACKET, FRONT SHOCK ABSORBER, LOWER LH | ||||
| 48515-37030 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 48515-37030 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48511-89225 |
XZU700..DM6,DM7 ﾏｰｸ 48511−37270 |
1 | ||
| 48511-89225 |
XZU700..DM6,DM7 ﾏｰｸ 48511−37270 |
1 | ||
| 48511-80130 |
XZU700..DM6,DM7 ﾏｰｸ 48511−37290,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ |
1 | ||
| 48511-80130 |
XZU700..DM6,DM7 ﾏｰｸ 48511−37290,ﾌﾛﾝﾄｻｽﾍﾟﾝｼｮﾝ−低床ﾘｰﾌ 4ﾄﾝ |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90385-19011 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 90385-19011 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 48802F - LINK SUB-ASSY, FRONT STABILIZER | ||||
| 48802-37041 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
2 | ||
| 48802-37041 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
2 | ||
| 48809 - BRACKET SUB-ASSY, STABILIZER | ||||
| 48809-37021 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
2 | ||
| 48809-37021 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-37070 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
1 | ||
| 48811-37070 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-37030 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ),NO.1 |
4 | ||
| 48815-37030 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ),NO.1 |
4 | ||
| 48815-37080 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ),NO.2 |
2 | ||
| 48815-37080 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ),NO.2 |
2 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-37030 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ),NO.1 |
4 | ||
| 48815-37030 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ),NO.1 |
4 | ||
| 48815-37080 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ),NO.2 |
2 | ||
| 48815-37080 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ),NO.2 |
2 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-37030 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ),NO.1 |
4 | ||
| 48815-37030 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ),NO.1 |
4 | ||
| 48815-37080 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ),NO.2 |
2 | ||
| 48815-37080 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ),NO.2 |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-36011 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
4 | ||
| 48817-36011 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
4 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-36011 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
4 | ||
| 48817-36011 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
4 | ||
| 90948-02015 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
4 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
4 | ||
| 90948-02015 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
4 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02167 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
4 | ||
| 90948-02167 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
4 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02167 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
4 | ||
| 90948-02167 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
4 | ||
| 48819A - BOLT, FRONT STABILIZER | ||||
| 48819-37010 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
2 | ||
| 48819-37010 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
2 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-37061 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
2 | ||
| 48824-37061 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
2 | ||
| 48836 - BRACKET, FRONT STABILIZER END, RH | ||||
| 48836-37050 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
2 | ||
| 48836-37050 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
2 | ||
| 48837 - BRACKET, FRONT STABILIZER END, LH | ||||
| 48837-37030 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
2 | ||
| 48837-37030 |
XZC710,XZU70#,71#,72#,73# ｽﾀﾋﾞﾗｲｻﾞ−有り(ﾌﾛﾝﾄのみ) |
2 | ||
| Common parts | ||||
| 90031-01174 | ||||
| 90031-78086 | ||||
| 90032-01146 | ||||
| 90032-04032 | ||||
| 90032-04033 | ||||
| 90032-04034 | ||||
| 90101-12074 | ||||
| 90105-16070 | ||||
| 90178-14002 | ||||
| 90178-16004 | ||||
| 90178-16007 | ||||
| 90179-10036 | ||||
| 90201-24003 | ||||
| 91552-L1445 | ||||
| 91651-B0820 | ||||
| 94130-01202 | ||||
| 94130-01402 | ||||
| 94183-60801 | ||||
| 94184-01001 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
