XZU700A-TMFSH3 (2017)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 2(1705- )XZC710,XZU700,710,730..MTM..DCRTJ,DCRVT,DCRVU ; (1705- )XZU702,71#,72
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46211-37021C0 |
XZC710,XZU70#,71#,72#,73#,775 BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZC710,XZU70#,71#,72#,73#,775 BLACK,TRIM1# |
1 | ||
| 46211-37031C0 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,BLACK,TRIM1# |
1 | ||
| 46211-37031C0 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZU720..6FC..DCRTK;XZU710..6F..(DCRVT,DCRVU);XZU702,71#,722..SCB..(5F,6FC);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZU720..6FC..DCRTK;XZU710..6F..(DCRVT,DCRVU);XZU702,71#,722..SCB..(5F,6FC);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZU700..DM6,DM7,T3;XZU710..T3..6F..DCRVT..IV3;XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZU700..DM6,DM7,T3;XZU710..T3..6F..DCRVT..IV3;XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,BLACK,TRIM1# |
1 | ||
| 46211-37041C0 |
XZU700..DM6,DM7,T3;XZU710..T3..6F..DCRVT..IV3;XZU720..6F..35T..DCRVT..IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,BLACK,TRIM1# |
1 | ||
| 46211-37041C0 |
XZU700..DM6,DM7,T3;XZU710..T3..6F..DCRVT..IV3;XZU720..6F..35T..DCRVT..IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,BLACK,TRIM1# |
1 | ||
| 46210-37130C0 |
XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46210-37130C0 |
XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46210 - LEVER ASSY, PARKING BRAKE | ||||
| 46211-37021C0 |
XZC710,XZU70#,71#,72#,73#,775 BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZC710,XZU70#,71#,72#,73#,775 BLACK,TRIM1# |
1 | ||
| 46211-37031C0 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,BLACK,TRIM1# |
1 | ||
| 46211-37031C0 |
XZU722..6F..DCRTJ..IV3;XZU722..6F..35T..DCRTK..IV3;XZU71#..T3..6F..(DCRTJ,DCRTK,DCRVT)..IV3;XZU70#..(DM6,DM7,T3)..(35T,40T)..(IV3,IV5);XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZU720..6FC..DCRTK;XZU710..6F..(DCRVT,DCRVU);XZU702,71#,722..SCB..(5F,6FC);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZU720..6FC..DCRTK;XZU710..6F..(DCRVT,DCRVU);XZU702,71#,722..SCB..(5F,6FC);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZU700..DM6,DM7,T3;XZU710..T3..6F..DCRVT..IV3;XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,BLACK,TRIM1# |
1 | ||
| 46211-37021C0 |
XZU700..DM6,DM7,T3;XZU710..T3..6F..DCRVT..IV3;XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,BLACK,TRIM1# |
1 | ||
| 46211-37041C0 |
XZU700..DM6,DM7,T3;XZU710..T3..6F..DCRVT..IV3;XZU720..6F..35T..DCRVT..IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,BLACK,TRIM1# |
1 | ||
| 46211-37041C0 |
XZU700..DM6,DM7,T3;XZU710..T3..6F..DCRVT..IV3;XZU720..6F..35T..DCRVT..IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り,BLACK,TRIM1# |
1 | ||
| 46210-37130C0 |
XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46210-37130C0 |
XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37A40 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 46420-37A40 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 46420-37C30 |
XZU720..6FC..DCRTK;XZU710..6F..(DCRVT,DCRVU);XZU702,71#,722..SCB..(5F,6FC);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46420-37C30 |
XZU720..6FC..DCRTK;XZU710..6F..(DCRVT,DCRVU);XZU702,71#,722..SCB..(5F,6FC);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37G30 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46430-37G30 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46430-37G20 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 46430-37G20 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37200 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 46453-37200 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 46585 - PLATE, PARKING BRAKE CAUTION | ||||
| 46585-37020 |
XZU720..6FC..DCRTK;XZU710..6F..(DCRVT,DCRVU);XZU702,71#,722..SCB..(5F,6FC);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46585-37020 |
XZU720..6FC..DCRTK;XZU710..6F..(DCRVT,DCRVU);XZU702,71#,722..SCB..(5F,6FC);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46585-37020 |
XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 46585-37020 |
XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 46585-37020 |
XZU700..DM6,DM7,T3;XZU710..T3..6F..DCRVT..IV3;XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 46585-37020 |
XZU700..DM6,DM7,T3;XZU710..T3..6F..DCRVT..IV3;XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 46585-37030 |
XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46585-37030 |
XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46585 - PLATE, PARKING BRAKE CAUTION | ||||
| 46585-37020 |
XZU720..6FC..DCRTK;XZU710..6F..(DCRVT,DCRVU);XZU702,71#,722..SCB..(5F,6FC);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46585-37020 |
XZU720..6FC..DCRTK;XZU710..6F..(DCRVT,DCRVU);XZU702,71#,722..SCB..(5F,6FC);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46585-37020 |
XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 46585-37020 |
XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 46585-37020 |
XZU700..DM6,DM7,T3;XZU710..T3..6F..DCRVT..IV3;XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 46585-37020 |
XZU700..DM6,DM7,T3;XZU710..T3..6F..DCRVT..IV3;XZU720..MTM..(20T,35T)..(DCRTJ,DCRVT)..IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ)&ﾌﾞﾚｰｷﾛｯｸｼｽﾃﾑ−有り |
1 | ||
| 46585-37030 |
XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46585-37030 |
XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 91551-80818 | ||||
| 91551-A0818 | ||||
| 94151-80800 | ||||
| 96160-01200 | ||||
| Linked diagrams | ||||
| 8401 | ||||

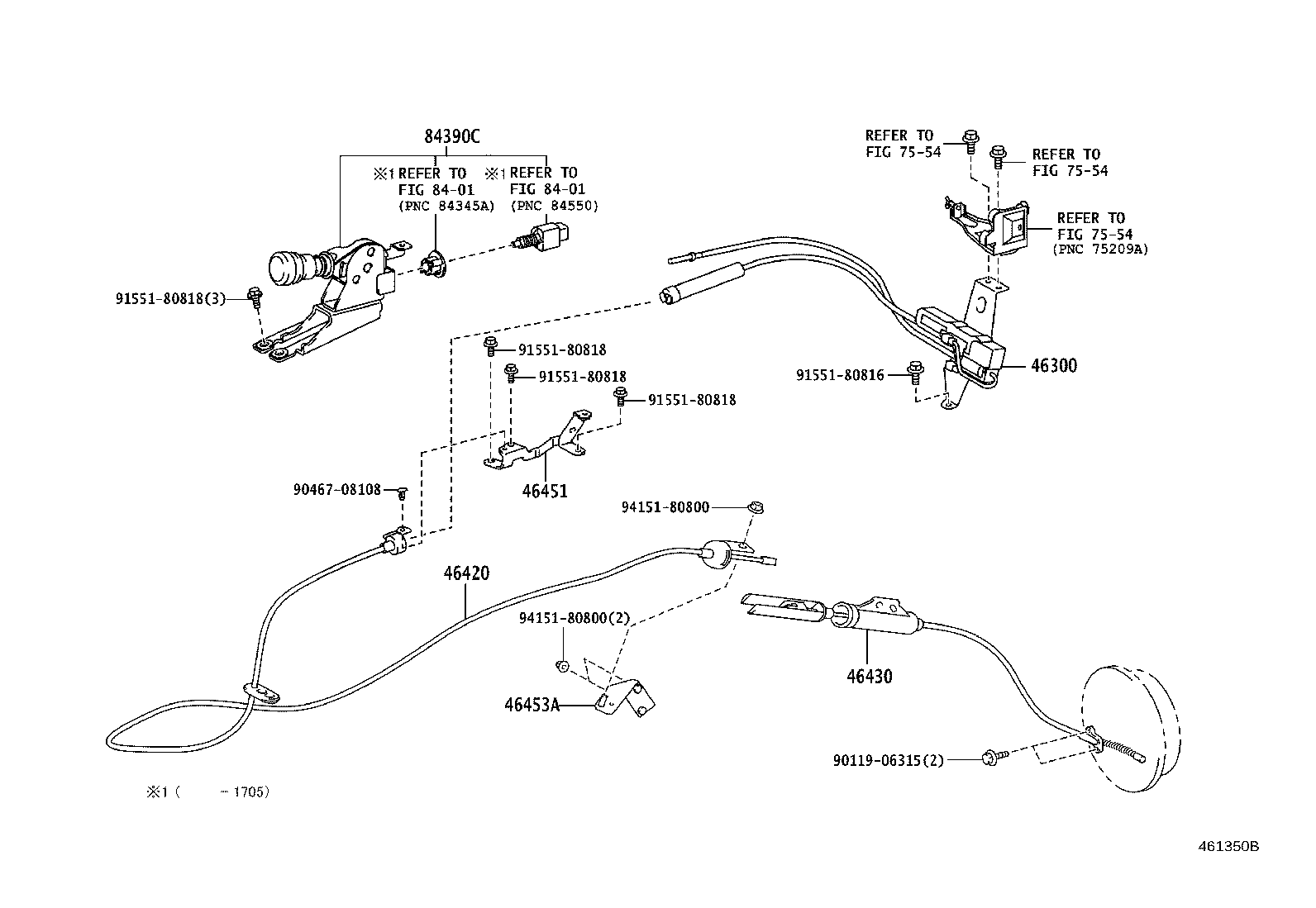

ILLUST NO. 1 OF 2(1705- )XZU710..6F..DCRVT,DCRVU ; (1705- )XZC710,XZU700,720,730..DCRTJ,DCRVT,
ｱﾘ(ﾃﾞﾝﾄﾞｳﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46300 - ACTUATOR ASSY, PARKING BRAKE W/BRACKET | ||||
| 46300-37071 |
XZU720..6FC..DCRTK;XZU710..6F..(DCRVT,DCRVU);XZU702,71#,722..SCB..(5F,6FC);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46300-37071 |
XZU720..6FC..DCRTK;XZU710..6F..(DCRVT,DCRVU);XZU702,71#,722..SCB..(5F,6FC);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46300-37072 |
XZU720..6FC..DCRTK;XZU710..6F..(DCRVT,DCRVU);XZU702,71#,722..SCB..(5F,6FC);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46300-37072 |
XZU720..6FC..DCRTK;XZU710..6F..(DCRVT,DCRVU);XZU702,71#,722..SCB..(5F,6FC);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46300-37073 |
XZU720..6FC..DCRTK;XZU710..6F..(DCRVT,DCRVU);XZU702,71#,722..SCB..(5F,6FC);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46300-37073 |
XZU720..6FC..DCRTK;XZU710..6F..(DCRVT,DCRVU);XZU702,71#,722..SCB..(5F,6FC);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-37A40 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 46420-37A40 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 46420-37C30 |
XZU720..6FC..DCRTK;XZU710..6F..(DCRVT,DCRVU);XZU702,71#,722..SCB..(5F,6FC);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46420-37C30 |
XZU720..6FC..DCRTK;XZU710..6F..(DCRVT,DCRVU);XZU702,71#,722..SCB..(5F,6FC);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-37G30 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46430-37G30 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46430-37G20 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 46430-37G20 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 46451 - BRACKET, CABLE SUPPORT | ||||
| 46451-37090 |
XZU720..6FC..DCRTK;XZU710..6F..(DCRVT,DCRVU);XZU702,71#,722..SCB..(5F,6FC);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46451-37090 |
XZU720..6FC..DCRTK;XZU710..6F..(DCRVT,DCRVU);XZU702,71#,722..SCB..(5F,6FC);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ) |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-37200 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 46453-37200 |
XZC710,XZU70#,71#,72#,73# |
1 | ||
| 84390C - SWITCH ASSY, ELECTRIC PARKING BRAKE | ||||
| 84390-37040C0 |
XZU720..6FC..DCRTK;XZU710..6F..(DCRVT,DCRVU);XZU702,71#,722..SCB..(5F,6FC);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ),BLACK,TRIM1# |
1 | ||
| 84390-37040C0 |
XZU720..6FC..DCRTK;XZU710..6F..(DCRVT,DCRVU);XZU702,71#,722..SCB..(5F,6FC);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−電動式 (ﾄﾞﾗﾑ内径200ﾐﾘ),BLACK,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90467-08108 | ||||
| 91551-80816 | ||||
| 91551-80818 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 7554 | ||||
| 8401 | ||||
ILLUST NO. 2 OF 2(1705- )6F..DCRVT,DCRVU,DCRWD,DCVTO,DCVUO,DCWDO
RE60,RE62
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201B - SPRING, TENSION | ||||
| 90507-20021 |
XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU 左側 |
1 | ||
| 90507-20020 |
XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU 右側 |
1 | ||
| 46201B - SPRING, TENSION | ||||
| 90507-20021 |
XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU 左側 |
1 | ||
| 90507-20020 |
XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU 右側 |
1 | ||
| 46405A - SCREW SET, SHOE ADJUSTING, RH | ||||
| 47405-36010 |
XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU |
1 | ||
| 46501 - DRUM SUB-ASSY, PARKING BRAKE | ||||
| 46501-37090 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 46503C - PLATE SUB-ASSY, PARKING BRAKE | ||||
| 46503-37E90 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 46515 - COVER, INSPECTION HOLE | ||||
| 46515-37040 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
2 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-37060 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-37050 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06020 |
XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU |
2 | ||
| 46550A - SPRING, TENSION, NO.1(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90905-06020 |
XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU |
2 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07002 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14054 |
XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU NO.2 |
1 | ||
| 90506-23055 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) NO.1 |
1 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-14054 |
XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU NO.2 |
1 | ||
| 90506-23055 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) NO.1 |
1 | ||
| 46555 - SPRING, BRAKE SHOE HOLD DOWN | ||||
| 90501-16108 |
XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU |
2 | ||
| 46556 - PIN, SHOE HOLD DOWN SPRING | ||||
| 47447-20030 |
XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU |
2 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XZU720..6FC..DCRTK;XZU702,71#,722..5F,6FC;XZU710..6F..(DCRVT,DCRVU);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU |
4 | ||
| 46557 - CUP, BRAKE SHOE HOLD DOWN | ||||
| 47449-20011 |
XZU720..6FC..DCRTK;XZU702,71#,722..5F,6FC;XZU710..6F..(DCRVT,DCRVU);XZC710,XZU700,720,730..DCRTJ,DCRVT,DCRVU |
4 | ||
| 46601 - LEVER SUB-ASSY, PARKING BRAKE SHOE | ||||
| 46601-37E80 |
XZU700,710,720,730..6F..(DCRVT,DCRVU) |
1 | ||
| 46612 - STRUT, PARKING BRAKE SHOE LEVER | ||||
| 46612-36050 |
XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU |
1 | ||
| 46612B - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-10010 |
XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU |
1 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-35010 |
XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU |
1 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
XZU702,712,722..6FC;XZU700,710,720,730..DCRVT,DCRVU |
1 | ||
| Common parts | ||||
| 90119-06315 | ||||
| 90119-12211 | ||||
| 90119-12459 | ||||
| 91551-80820 | ||||
| 91611-G0820 | ||||
