XZU700A-TMFSH3 (2017)
Toyota Dyna/Toyoace

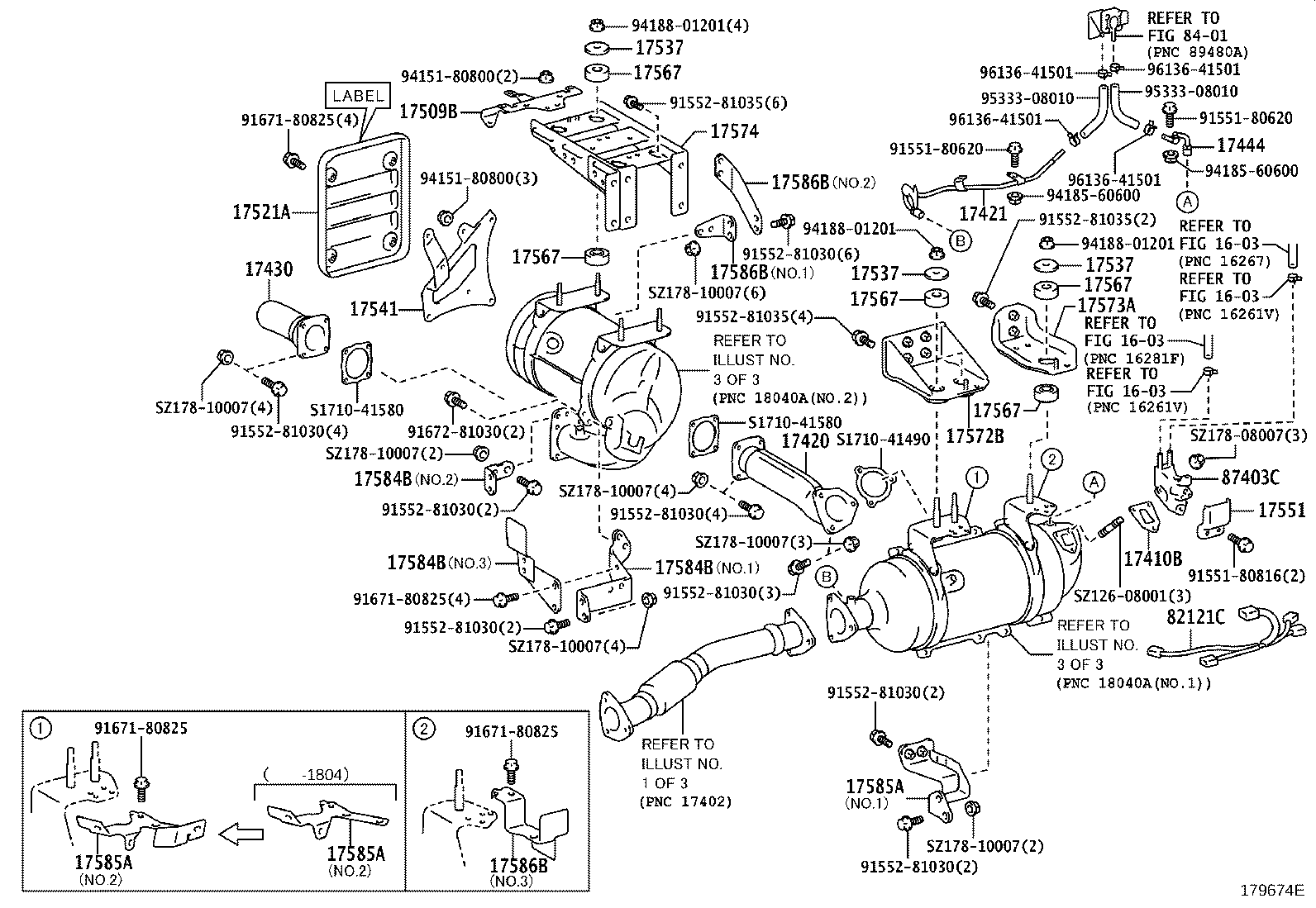

ILLUST NO. 2 OF 3(1705- )N04C..XZU700,710,720,730..DCRVU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-E0121 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 17420 - PIPE ASSY, EXHAUST, CENTER | ||||
| 17403-78B50 |
N04C..XZU700,710,720,730..DCRVT,DCRVU |
1 | ||
| 17421 - PIPE, EXHAUST, NO.2 | ||||
| 17421-78280 |
N04C..XZU700,710,720,730..DCRVU |
1 | ||
| 17430 - PIPE ASSY, EXHAUST, TAIL | ||||
| 17405-78J40 |
N04C..XZU700,710,720,730..DCRVT,DCRVU |
1 | ||
| 17444 - PIPE, EXHAUST, NO.4 | ||||
| 17444-78170 |
N04C..XZU700,710,720,730..DCRVT,DCRVU |
1 | ||
| 17509B - SUPPORT, EXHAUST PIPE NO.4 | ||||
| 17509-78030 |
N04C..XZU700,710,720,730..DCRVT,DCRVU |
1 | ||
| 17521A - PROTECTOR, EXHAUST PIPE, UPPER NO.1 | ||||
| 17551-78130 |
N04C..XZU700,710,720,730..DCRVT,DCRVU 無し(ﾗﾍﾞﾙ) |
1 | ||
| 17521-78110 |
N04C..XZU700,710,720,730..DCRVT,DCRVU 有り(ﾗﾍﾞﾙ) |
1 | ||
| 17537 - PLATE, EXHAUST PIPE | ||||
| 17537-78030 |
N04C..XZU700,710,720,730..DCRVU |
7 | ||
| 17537 - PLATE, EXHAUST PIPE | ||||
| 17537-78030 |
N04C..XZU700,710,720,730..DCRVU |
7 | ||
| 17537 - PLATE, EXHAUST PIPE | ||||
| 17537-78030 |
N04C..XZU700,710,720,730..DCRVU |
7 | ||
| 17541 - STAY, EXHUST PIPE PROTECTOR, NO.1 | ||||
| 17541-78020 |
N04C..XZU700,710,720,730..DCRVT,DCRVU |
1 | ||
| 17551 - INSULATOR, EXHAUST PIPE HEAT, NO.1 | ||||
| 17551-E0760 |
N04C..XZU700,710,720,730..DCRVT,DCRVU |
1 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78060 |
N04C..XZU700,710,720,730..DCRVU |
12 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78060 |
N04C..XZU700,710,720,730..DCRVU |
12 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78060 |
N04C..XZU700,710,720,730..DCRVU |
12 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78060 |
N04C..XZU700,710,720,730..DCRVU |
12 | ||
| 17567 - CUSHION, EXHAUST PIPE SUPPORT | ||||
| 17567-78060 |
N04C..XZU700,710,720,730..DCRVU |
12 | ||
| 17572B - BRACKET, EXHAUST PIPE SUPPORT, NO.2 | ||||
| 17572-78420 |
N04C..XZU700,710,720,730..DCRVU |
1 | ||
| 17573A - BRACKET, EXHAUST PIPE SUPPORT, NO.3 | ||||
| 17573-78450 |
N04C..XZU700,710,720,730..DCRVT,DCRVU |
1 | ||
| 17574 - BRACKET, EXHAUST PIPE SUPPORT, NO.4 | ||||
| 17574-78150 |
N04C..XZU700,710,720,730..DCRVT,DCRVU |
1 | ||
| 17584B - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17584-78040 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.2 |
1 | ||
| 17584-78060 |
N04C..XZU700,710,720,730..DCRVU NO.1 |
1 | ||
| 17584-78050 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.3 |
1 | ||
| 17584B - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17584-78040 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.2 |
1 | ||
| 17584-78060 |
N04C..XZU700,710,720,730..DCRVU NO.1 |
1 | ||
| 17584-78050 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.3 |
1 | ||
| 17584B - BRACKET, EXHAUST PIPE NO.1 SUPPORT | ||||
| 17584-78040 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.2 |
1 | ||
| 17584-78060 |
N04C..XZU700,710,720,730..DCRVU NO.1 |
1 | ||
| 17584-78050 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.3 |
1 | ||
| 17585A - BRACKET, EXHAUST PIPE NO.2 SUPPORT | ||||
| 17585-78090 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.2 |
1 | ||
| 17585-78060 |
N04C..XZU700,710,720,730..DCRVU NO.2 |
1 | ||
| 17585-78070 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.1 |
1 | ||
| 17585A - BRACKET, EXHAUST PIPE NO.2 SUPPORT | ||||
| 17585-78090 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.2 |
1 | ||
| 17585-78060 |
N04C..XZU700,710,720,730..DCRVU NO.2 |
1 | ||
| 17585-78070 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.1 |
1 | ||
| 17585A - BRACKET, EXHAUST PIPE NO.2 SUPPORT | ||||
| 17585-78090 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.2 |
1 | ||
| 17585-78060 |
N04C..XZU700,710,720,730..DCRVU NO.2 |
1 | ||
| 17585-78070 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.1 |
1 | ||
| 17586B - BRACKET, EXHAUST PIPE NO.3 SUPPORT | ||||
| 17586-78100 |
N04C..XZU700,710,720,730..DCRVU |
1 | ||
| 17586-78110 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.1 |
1 | ||
| 17586-78120 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.2 |
1 | ||
| 17586B - BRACKET, EXHAUST PIPE NO.3 SUPPORT | ||||
| 17586-78100 |
N04C..XZU700,710,720,730..DCRVU |
1 | ||
| 17586-78110 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.1 |
1 | ||
| 17586-78120 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.2 |
1 | ||
| 17586B - BRACKET, EXHAUST PIPE NO.3 SUPPORT | ||||
| 17586-78100 |
N04C..XZU700,710,720,730..DCRVU |
1 | ||
| 17586-78110 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.1 |
1 | ||
| 17586-78120 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.2 |
1 | ||
| 82121C - WIRE, ENGINE, NO.2 | ||||
| 82121-37G71 |
XZU700,710,720,730..DCRVU |
1 | ||
| 82121-37G70 |
XZU700,710,720,730..DCRVU |
1 | ||
| 87403C - PIPE SUB-ASSY, EXHAUST | ||||
| 87403-E0010 |
XZU700,710,720,730..DCRVT,DCRVU |
1 | ||
| Common parts | ||||
| 91551-80620 | ||||
| 91551-80816 | ||||
| 91552-81030 | ||||
| 91552-81035 | ||||
| 91671-80825 | ||||
| 91672-81030 | ||||
| 94151-80800 | ||||
| 94185-60600 | ||||
| 94188-01201 | ||||
| 95333-08010 | ||||
| 96136-41501 | ||||
| S1710-41490 | ||||
| S1710-41580 | ||||
| SZ126-08001 | ||||
| SZ178-08007 | ||||
| SZ178-10007 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8401 | ||||
ILLUST NO. 3 OF 3(1705- )N04C..XZU700,710,720,730..DCRVU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12118C - PLUG, DRAIN | ||||
| 12118-78010 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 17553 - INSULATOR, EXHAUST PIPE HEAT, NO.3 | ||||
| 17553-78070 |
N04C..XZU700,710,720,730..DCRVU NO.1 |
1 | ||
| 17553-78080 |
N04C..XZU700,710,720,730..DCRVU NO.2 |
1 | ||
| 17553-78100 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.4 |
1 | ||
| 17553-78090 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.3 |
1 | ||
| 17553 - INSULATOR, EXHAUST PIPE HEAT, NO.3 | ||||
| 17553-78070 |
N04C..XZU700,710,720,730..DCRVU NO.1 |
1 | ||
| 17553-78080 |
N04C..XZU700,710,720,730..DCRVU NO.2 |
1 | ||
| 17553-78100 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.4 |
1 | ||
| 17553-78090 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.3 |
1 | ||
| 17553 - INSULATOR, EXHAUST PIPE HEAT, NO.3 | ||||
| 17553-78070 |
N04C..XZU700,710,720,730..DCRVU NO.1 |
1 | ||
| 17553-78080 |
N04C..XZU700,710,720,730..DCRVU NO.2 |
1 | ||
| 17553-78100 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.4 |
1 | ||
| 17553-78090 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.3 |
1 | ||
| 17553 - INSULATOR, EXHAUST PIPE HEAT, NO.3 | ||||
| 17553-78070 |
N04C..XZU700,710,720,730..DCRVU NO.1 |
1 | ||
| 17553-78080 |
N04C..XZU700,710,720,730..DCRVU NO.2 |
1 | ||
| 17553-78100 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.4 |
1 | ||
| 17553-78090 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.3 |
1 | ||
| 17554A - INSULATOR, EXHAUST PIPE HEAT, NO.4 | ||||
| 17554-78120 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.2 |
1 | ||
| 17554-78110 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.1 |
1 | ||
| 17553-E0160 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.3 |
1 | ||
| 17553-E0170 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.4 |
1 | ||
| 17554A - INSULATOR, EXHAUST PIPE HEAT, NO.4 | ||||
| 17554-78120 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.2 |
1 | ||
| 17554-78110 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.1 |
1 | ||
| 17553-E0160 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.3 |
1 | ||
| 17553-E0170 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.4 |
1 | ||
| 17554A - INSULATOR, EXHAUST PIPE HEAT, NO.4 | ||||
| 17554-78120 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.2 |
1 | ||
| 17554-78110 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.1 |
1 | ||
| 17553-E0160 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.3 |
1 | ||
| 17553-E0170 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.4 |
1 | ||
| 17554A - INSULATOR, EXHAUST PIPE HEAT, NO.4 | ||||
| 17554-78120 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.2 |
1 | ||
| 17554-78110 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.1 |
1 | ||
| 17553-E0160 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.3 |
1 | ||
| 17553-E0170 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.4 |
1 | ||
| 17576A - BRACKET, EXHAUST PIPE SUPPORT, NO.6 | ||||
| 17576-78150 |
N04C..XZU700,710,720,730..DCRVU |
1 | ||
| 17577 - BRACKET, EXHAUST PIPE SUPPORT, NO.7 | ||||
| 17577-78320 |
N04C..XZU700,710,720,730..DCRVT,DCRVU |
1 | ||
| 17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8 | ||||
| 17578-78410 |
N04C..XZU700,710,720,730..DCRVT,DCRVU |
2 | ||
| 17578D - BRACKET, EXHAUST PIPE SUPPORT, NO.8 | ||||
| 17578-78410 |
N04C..XZU700,710,720,730..DCRVT,DCRVU |
2 | ||
| 18040A - CONVERTER ASSY, EXHAUST PIPE, NO.2 | ||||
| 18040-78130 |
N04C..XZU700,710,720,730..DCRVU NO.1 |
1 | ||
| 18040-78140 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.2 |
1 | ||
| 18040A - CONVERTER ASSY, EXHAUST PIPE, NO.2 | ||||
| 18040-78130 |
N04C..XZU700,710,720,730..DCRVU NO.1 |
1 | ||
| 18040-78140 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.2 |
1 | ||
| Common parts | ||||
| 91672-81030 | ||||
| SH562-10816 | ||||
| SL185-00809 | ||||
| SZ178-10007 | ||||
ILLUST NO. 1 OF 3(1705- )N04C..XZU700,710,720,730..DCRVT,DCRVU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17402 - PIPE SUB-ASSY, EXHAUST, FRONT NO.2 | ||||
| 17402-78210 |
N04C..XZU700,710,720,730..DCRVU |
1 | ||
| 17410 - PIPE ASSY, EXHAUST, FRONT | ||||
| 17401-E0Q50 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 17410B - GASKET, EXHAUST PIPE | ||||
| 17451-E0121 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 17420X - GASKET, EXHAUST PIPE, CENTER | ||||
| 17451-78061 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 17451 - GASKET, EXHAUST PIPE | ||||
| 17451-E0110 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 17451A - GASKET, EXHAUST PIPE, NO.2 | ||||
| 17451-78061 |
N04C..XZU700,710,720,730..DCRVT,DCRVU |
1 | ||
| 17554 - INSULATOR, EXHAUST PIPE HEAT, FRONT | ||||
| 17554-78101 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1 | ||||
| 17571-E0480 |
N04C..XZC710,XZU70#,71#,72#,73# |
1 | ||
| 17578E - CLAMP, PIPE(FOR FRONT EXHAUST PIPE) | ||||
| 17578-78010 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 87378C - PIPE, EXHAUST | ||||
| 87378-E0033 |
XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| Common parts | ||||
| 90119-10817 | ||||
| 91671-80820 | ||||
| 91672-81035 | ||||
| SH552-11025 | ||||
| SZ109-10072 | ||||
| SZ116-10171 | ||||
| SZ126-08006 | ||||
| SZ178-08007 | ||||
| SZ178-10007 | ||||
| SZ910-16017 | ||||
| SZ910-16223 | ||||
| Linked diagrams | ||||
| 2201 | ||||
