XZU700A-TMFSH3 (2017)
Toyota Dyna/Toyoace
(1705-1902)N04C..XZU700,710,720,730..DCRVT,DCRVU; (1902- )N04C..XZU700,710,720.
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

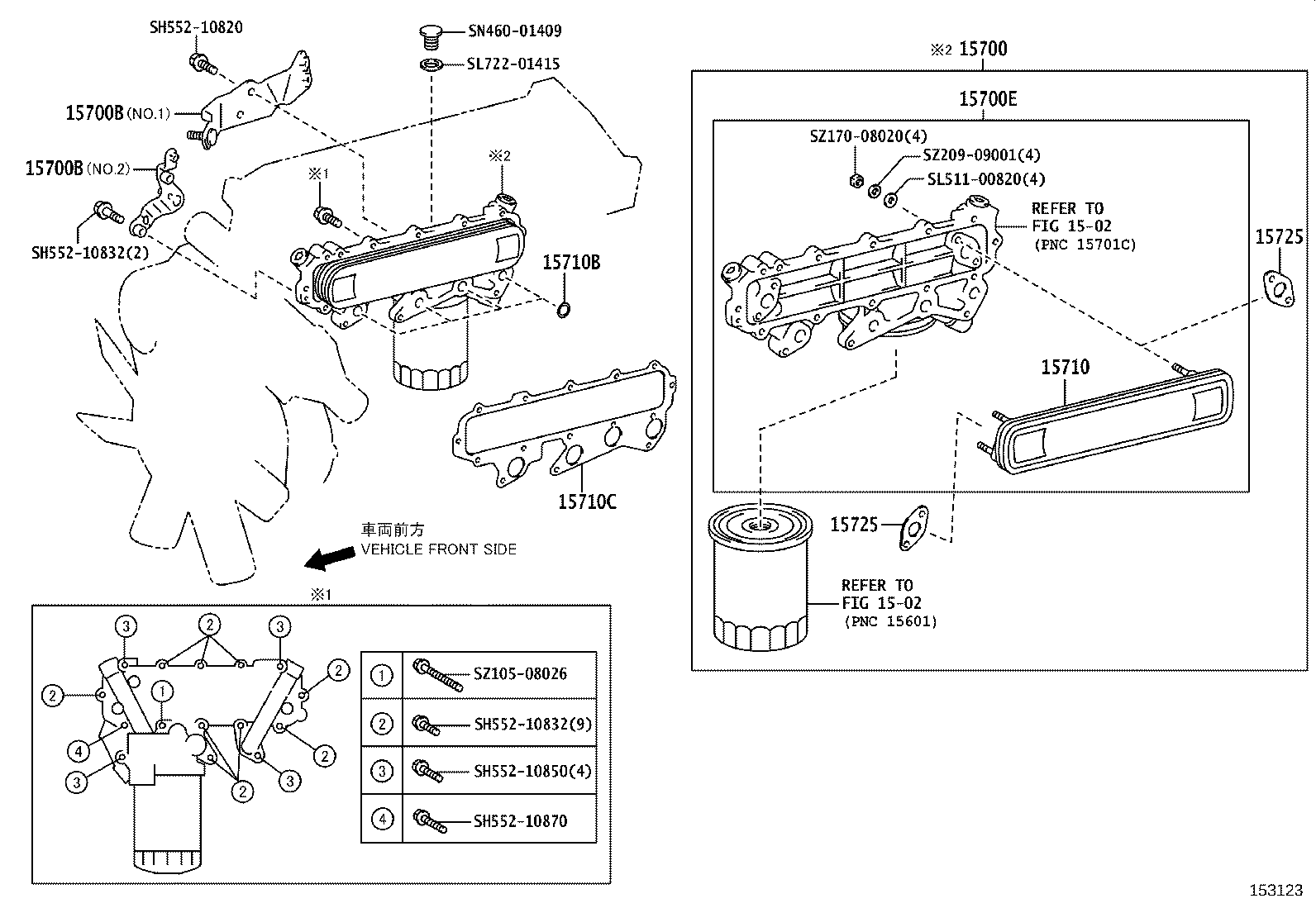

| 15700 - COOLER ASSY, OIL W/BRACKET | ||||
| 15700-E0653 |
N04C..XZU700,71#,72#,73#..DCRTL,DCRVU |
1 | ||
| 15700-E0654 |
N04C..XZU700,71#,72#,73#..DCRTL,DCRVU |
1 | ||
| 15700B - BRACKET(FOR OIL COOLER) | ||||
| 16269-78020 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16269-78050 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 15700B - BRACKET(FOR OIL COOLER) | ||||
| 16269-78020 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16269-78050 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 15700E - COOLER SUB-ASSY, OIL, W/O OIL FILTER | ||||
| S1570-EV071 |
N04C..XZU700,71#,72#,73#..DCRTL,DCRVU |
1 | ||
| S1570-EV070 |
N04C..XZU700,71#,72#,73#..DCRTL,DCRVU |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| S1571-22270 |
N04C..XZU700,71#,72#,73#..DCRTL,DCRVU |
1 | ||
| 16491-EV060 |
N04C..XZU700,71#,72#,73#..DCRTL,DCRVU |
1 | ||
| 15710B - RING, O(FOR OIL COOLER) | ||||
| SZ301-19018 |
N04C..XZC710,XZU70#,71#,72#,73#,775 有り(PNC 15710C) |
4 | ||
| 15710C - GASKET(FOR OIL COOLER) | ||||
| 15725-E0020 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 15725 - GASKET, OIL COOLER COVER | ||||
| 15785-EV010 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 15725 - GASKET, OIL COOLER COVER | ||||
| 15785-EV010 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| Common parts | ||||
| SH552-10820 | ||||
| SH552-10832 | ||||
| SH552-10850 | ||||
| SH552-10870 | ||||
| SL511-00820 | ||||
| SL722-01415 | ||||
| SN460-01409 | ||||
| SZ105-08026 | ||||
| SZ170-08020 | ||||
| SZ209-09001 | ||||
| Linked diagrams | ||||
| 1502 | ||||
(1902- )N04C..XZU700,710,720,730..DCRVU
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15700 - COOLER ASSY, OIL W/BRACKET | ||||
| 15700-E0653 |
N04C..XZU700,71#,72#,73#..DCRTL,DCRVU |
1 | ||
| 15700-E0654 |
N04C..XZU700,71#,72#,73#..DCRTL,DCRVU |
1 | ||
| 15700B - BRACKET(FOR OIL COOLER) | ||||
| 16269-78020 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16269-78050 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 15700B - BRACKET(FOR OIL COOLER) | ||||
| 16269-78020 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.1:ｲﾗｽﾄ参照 |
1 | ||
| 16269-78050 |
N04C..XZU700,710,720,730..DCRVT,DCRVU NO.2:ｲﾗｽﾄ参照 |
1 | ||
| 15700E - COOLER SUB-ASSY, OIL, W/O OIL FILTER | ||||
| S1570-EV071 |
N04C..XZU700,71#,72#,73#..DCRTL,DCRVU |
1 | ||
| S1570-EV070 |
N04C..XZU700,71#,72#,73#..DCRTL,DCRVU |
1 | ||
| 15710 - COOLER ASSY, OIL | ||||
| S1571-22270 |
N04C..XZU700,71#,72#,73#..DCRTL,DCRVU |
1 | ||
| 16491-EV060 |
N04C..XZU700,71#,72#,73#..DCRTL,DCRVU |
1 | ||
| 15710B - RING, O(FOR OIL COOLER) | ||||
| SZ301-19018 |
N04C..XZC710,XZU70#,71#,72#,73#,775 有り(PNC 15710C) |
4 | ||
| 15710C - GASKET(FOR OIL COOLER) | ||||
| 15725-E0020 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
1 | ||
| 15725 - GASKET, OIL COOLER COVER | ||||
| 15785-EV010 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| 15725 - GASKET, OIL COOLER COVER | ||||
| 15785-EV010 |
N04C..XZC710,XZU70#,71#,72#,73#,775 |
2 | ||
| Common parts | ||||
| SH552-10820 | ||||
| SH552-10832 | ||||
| SH552-10850 | ||||
| SH552-10870 | ||||
| SL511-00820 | ||||
| SL722-01415 | ||||
| SN460-01409 | ||||
| SZ105-08026 | ||||
| SZ170-08020 | ||||
| SZ209-09001 | ||||
| Linked diagrams | ||||
| 1502 | ||||
