XZU700-TQFRC3 (2011)

Toyota Dyna/Toyoace

Production Jul 2011 - May 2017
Engine N04C
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1107-1705)XZU700..T3,T4 ; (1705- )XZU70#..T3,T4..DCRTJ,DCRTK,DCRVT,DCRVU

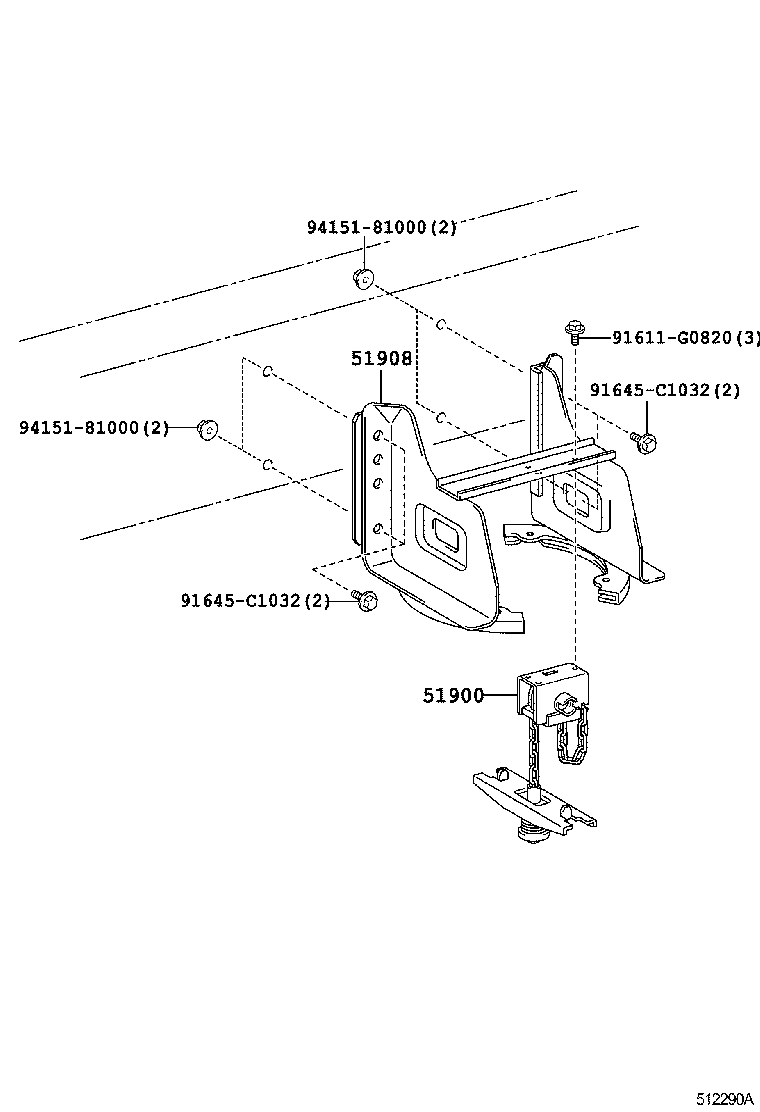

Click highlighted areas on diagram

diagram 51900 51908 91611G0820 91645C1032 91645C1032 9415181000 9415181000
Part # Description Qty Price
51900 - CARRIER ASSY, SPARE WHEEL
51900-37111

XZU700..(T3,T4)..(30T,35T,40T)

 1
51908 - BRACKET SUB-ASSY, SPARE WHEEL CARRIER
51908-37411

XZU700..T3,T4

 1
Common parts
91611-G0820
91645-C1032
94151-81000
