XZU700-TKFSD3 (2011)
Toyota Dyna/Toyoace

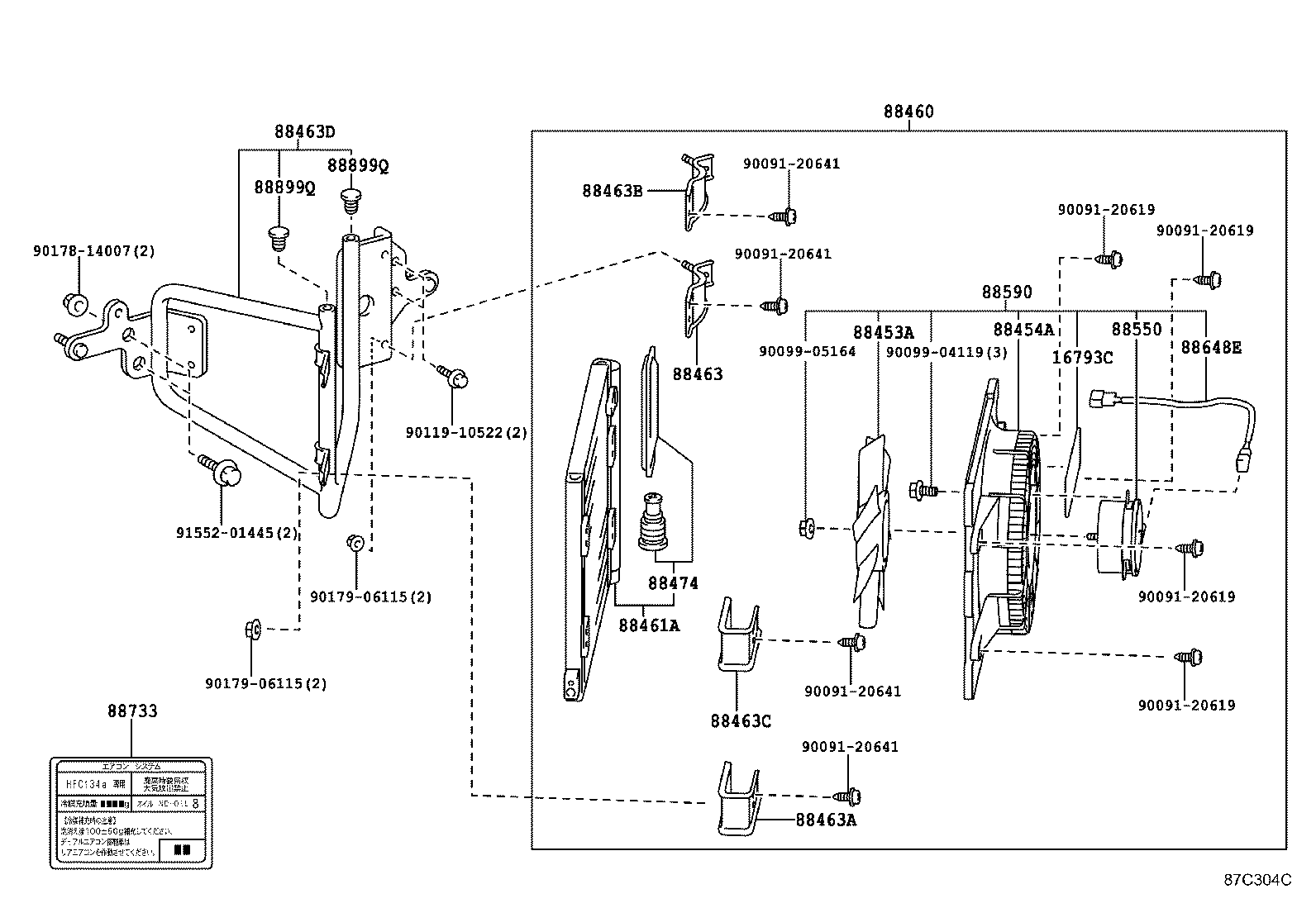

ILLUST NO. 1 OF 3(1107- )DCB..DCRTJ ; (1107- )DCRTL,DCRVU
ｺﾝﾃﾞﾝｻ & ﾚｼｰﾊﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16793C - LABEL, COOLING FAN CAUTION | ||||
| 16793-28020 |
N04C..XZU775;N04C..XZU710..DCB;N04C..XZU710..T5..DCRTL..IV3;N04C..XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 88453A - FAN, COOLING | ||||
| 88453-37030 |
XZU775;XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-37120 |
XZU775;XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 88454-37160 |
XZU775;XZU710..DCB;XZU700,710,720,730..DCRTL |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-37A00 |
XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 88461A - CORE, COOLER CONDENSER | ||||
| 88461-37150 |
XZU775;XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-37D80 |
XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88688-37D90 |
XZU775;XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88688-37E00 |
XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 88463C - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88688-37E10 |
XZU775;XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 88463D - BRACKET, COOLER CONDENSER, NO.5 | ||||
| 88688-37D40 |
XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
XZC710,XZU700,710,720,730,775 |
1 | ||
| 88474-12030 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-37140 |
XZU775;XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-37280 |
XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-37140 |
XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 88733 - LABEL, COOLER SERVICE INFORMATION | ||||
| 88733-37010 |
XZU775;XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-30840 |
XZU775;XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
2 | ||
| 88899Q - PLATE, COVER | ||||
| 88899-30840 |
XZU775;XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
2 | ||
| Common parts | ||||
| 90091-20619 | ||||
| 90091-20641 | ||||
| 90099-04119 | ||||
| 90099-05164 | ||||
| 90119-10522 | ||||
| 90178-14007 | ||||
| 90179-06115 | ||||
| 91552-01445 | ||||

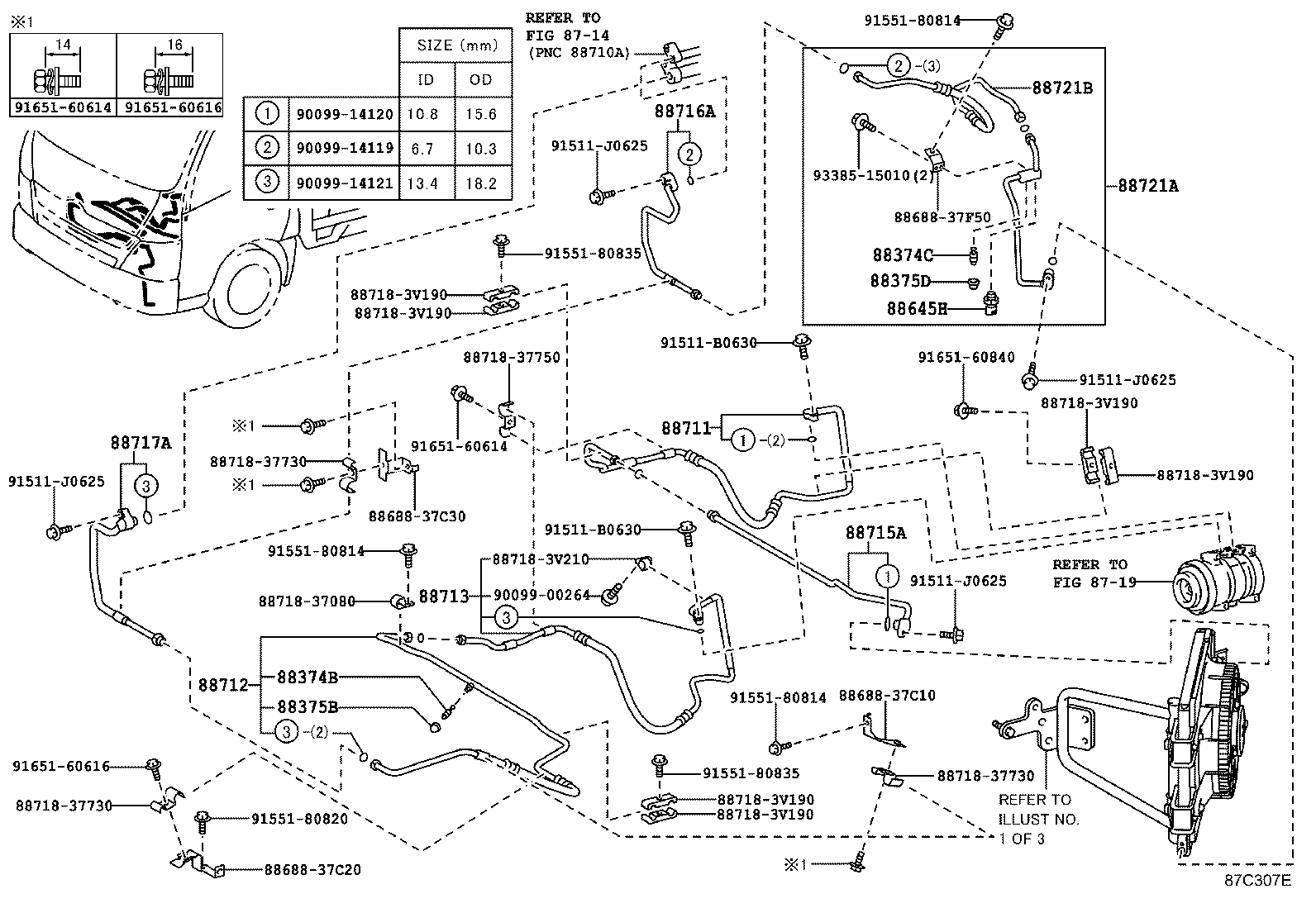

ILLUST NO. 2 OF 3(1107- )DCB..DCRTJ ; (1107- )DCRTL,DCRVU
ﾊﾟｲﾋﾟﾝｸﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30290 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-34010 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-3V070 |
XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-37B50 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 88713 - HOSE, COOLER REFRIGERANT SUCTION, NO.2 | ||||
| 88712-37B70 |
XZU710..T3,T4;XZC710,XZU700,720,730;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-37470 |
XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-37C40 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-37490 |
XZU710..T3,T4;XZU710..T5..DCRTL..IV3;XZU710..T5..(DCRTJ,DCRTK);XZC710,XZU700,720,730,775 |
1 | ||
| 88721A - HOSE, LIQUID, A | ||||
| 88721-37B60 |
XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| 88721B - HOSE, LIQUID, B | ||||
| 88721-37C70 |
XZU710..DCB;XZU710..T5..DCRTL..IV3;XZU700,710,720,730..(DM7,T3,T4)..DCRTL |
1 | ||
| Common parts | ||||
| 88688-37C10 | ||||
| 88688-37C20 | ||||
| 88688-37C30 | ||||
| 88688-37F50 | ||||
| 88718-37080 | ||||
| 88718-37730 | ||||
| 88718-37750 | ||||
| 88718-3V190 | ||||
| 88718-3V210 | ||||
| 90099-00264 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 91511-B0630 | ||||
| 91511-J0625 | ||||
| 91551-80814 | ||||
| 91551-80820 | ||||
| 91551-80835 | ||||
| 91651-60614 | ||||
| 91651-60616 | ||||
| 91651-60840 | ||||
| 93385-15010 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
