XZU695-TQMMX (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

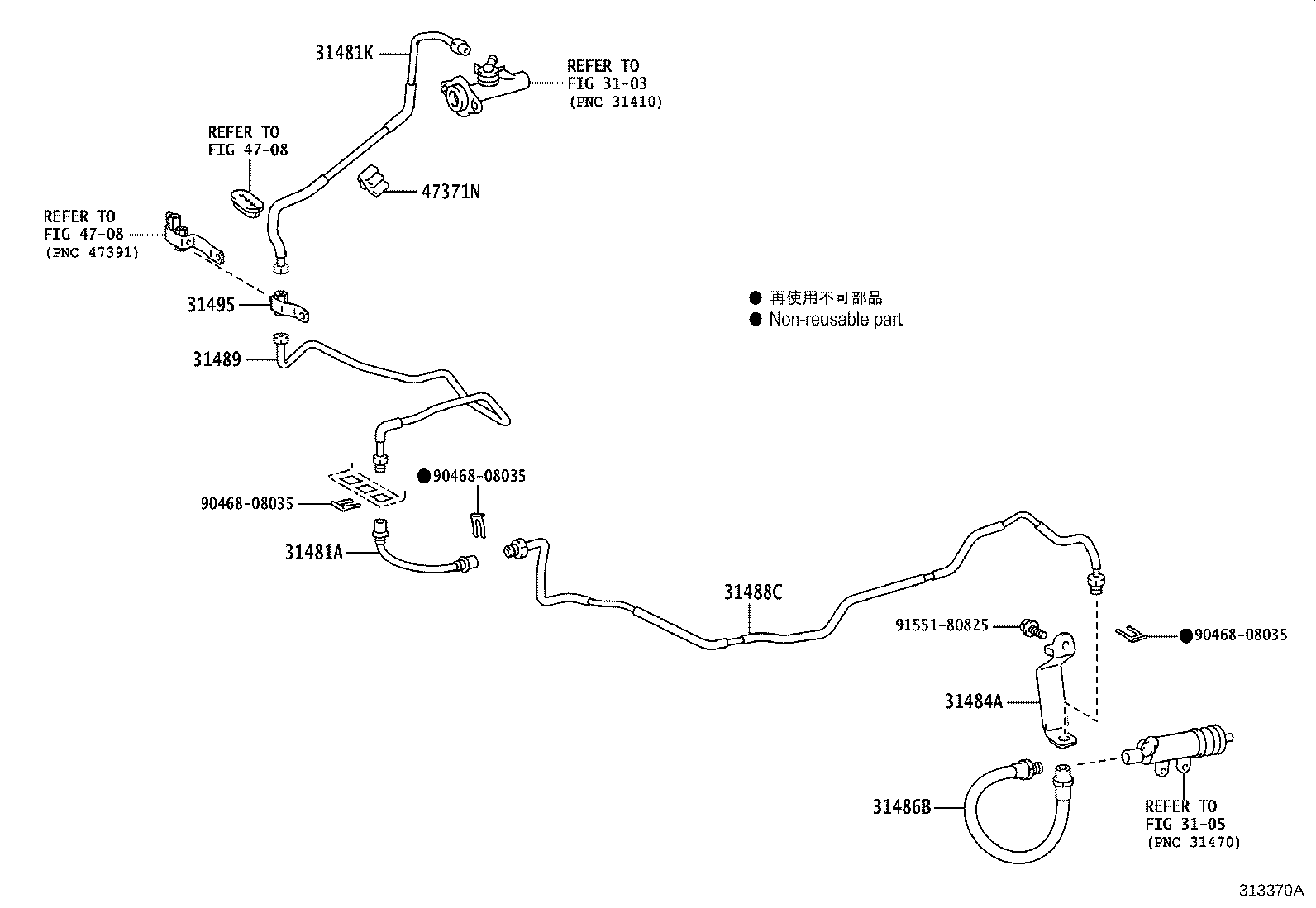

ILLUST NO. 2 OF 2(1905- )XZC675,XZU675,685,695..DCRWD

Click highlighted areas on diagram

diagram 3103 3105 31481A 31481K 31484A 31486B 31488C 31489 31495 4708 4708 47371N 9046808035 9046808035 9046808035 9155180825
Part # Description Qty Price
31481A - HOSE, CLUTCH, NO.1
31486-37151

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO)

 1
31481K - TUBE, MASTER CYLINDER TO TUBE CONNECTOR
31481-37410

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO)

 1
31484A - BRACKET, FLEXIBLE HOSE, NO.1(FOR CLUTCH)
31484-37470

XZC675,XZU675,685,695..DCRWD

 1
31486B - HOSE, MASTER CYLINDER TO RELEASE CYLINDER
31486-37050

XZU600,640..6F..(DCRWD,DCVTO)..(CBU,IV3,IV6);XZC60#,630,645,655,675,XZU602,605,630,642,645,65#,675,685,695..MTM..(DCRWD,DCVTO)

 1
31488C - TUBE, FLEXIBLE HOSE TO FLEXIBLE HOSE
31482-37490

XZC675,XZU675,685,695..DCRWD

 1
31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE
31481-37421

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO)..(CBU,IV3,IV4,IV5,IV6)

 1
31495 - WAY, CLUTCH TUBE
31495-37010

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO)

 1
47371N - CLAMP, BRAKE TUBE
47371-37140

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO)

 1
Common parts
90468-08035
91551-80825
Linked diagrams
3103
3105
4708
