XZU695-PKMMX3 (2019)
Toyota Dyna/Toyoace

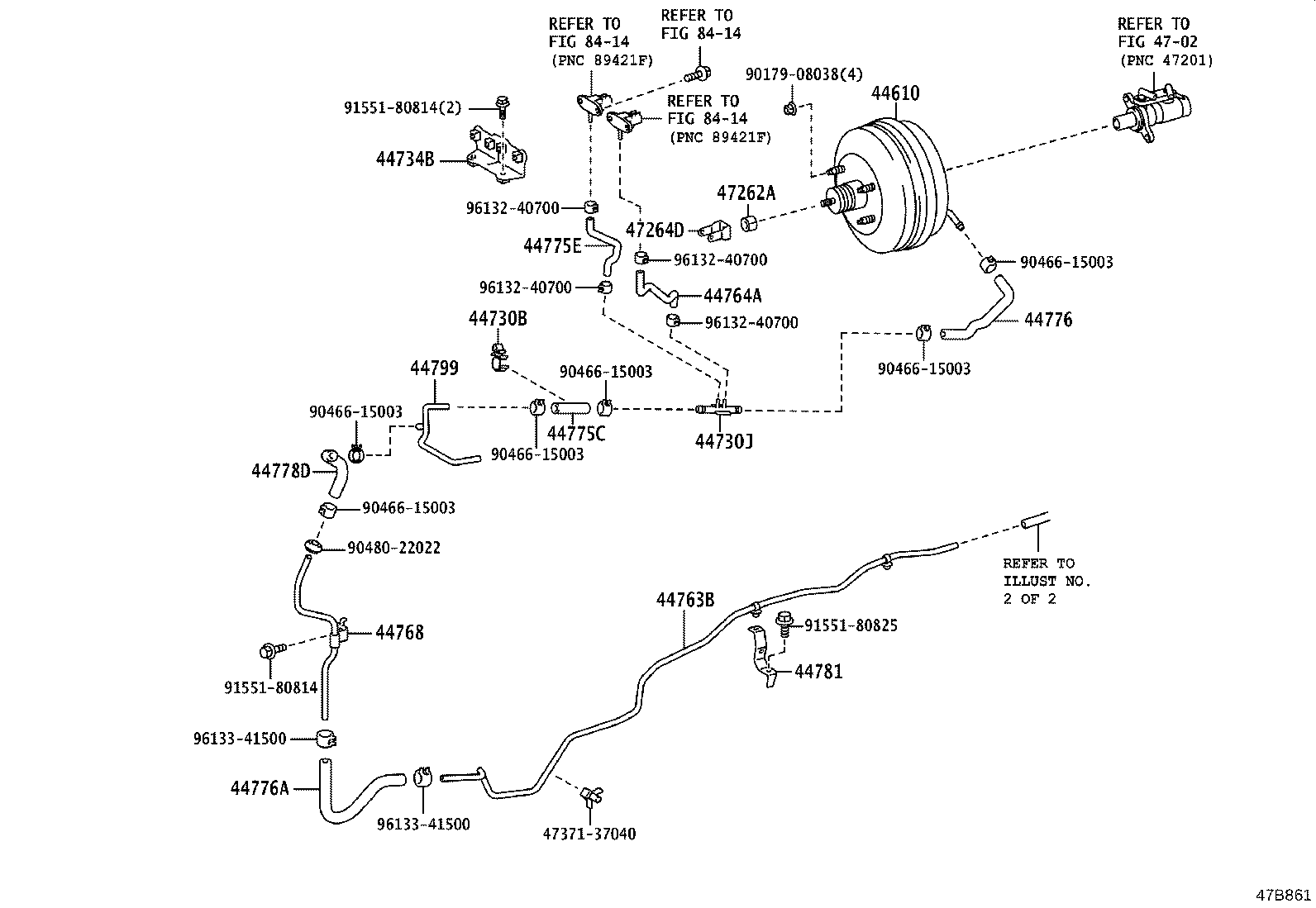

ILLUST NO. 1 OF 2(1905- )XZC675,XZU675,685,695..DCRWD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-37280 |
XZC675,XZU600,605,630,645,650,655,675,685,695..20T..DCRWD |
1 | ||
| 44730B - CLAMP, VACUUM HOSE | ||||
| 44597-37021 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 44730J - WAY(FOR BOOSTER VACUUM) | ||||
| 90414-10043 |
XZC675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 44734B - BRACKET, BOOSTER SUPPORT | ||||
| 44734-37020 |
XZC675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 44763B - TUBE, TUBE CONNECTOR TO TUBE CONNECTOR | ||||
| 44764-37C20 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 44764A - HOSE, BOOSTER VACUUM | ||||
| 44776-37330 |
XZC675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 44768 - TUBE, BOOSTER VACUUM | ||||
| 44768-37250 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 44775C - HOSE, CONNECTOR TO WAY | ||||
| 44775-37030 |
XZC675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
1 | ||
| 44775E - HOSE, WAY TO CONNECTOR | ||||
| 44776-37340 |
XZC675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 44776-37350 |
XZC675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 44776A - HOSE, VACUUM RESERVOIR TO BRAKE BOOSTER | ||||
| 44776-37190 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 44778D - HOSE, VACUUM TUBE TO CONNECTOR TUBE | ||||
| 44778-37251 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
1 | ||
| 44781 - BRACKET, HOSE | ||||
| 44781-37150 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 44799 - WAY, BRAKE VACUUM HOSE | ||||
| 44799-37050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
1 | ||
| 44799-37060 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
1 | ||
| 47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK | ||||
| 90179-10065 |
XZC675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-50010 |
XZC675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| Common parts | ||||
| 47371-37040 | ||||
| 90179-08038 | ||||
| 90466-15003 | ||||
| 90480-22022 | ||||
| 91551-80814 | ||||
| 91551-80825 | ||||
| 96132-40700 | ||||
| 96133-41500 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 8414 | ||||

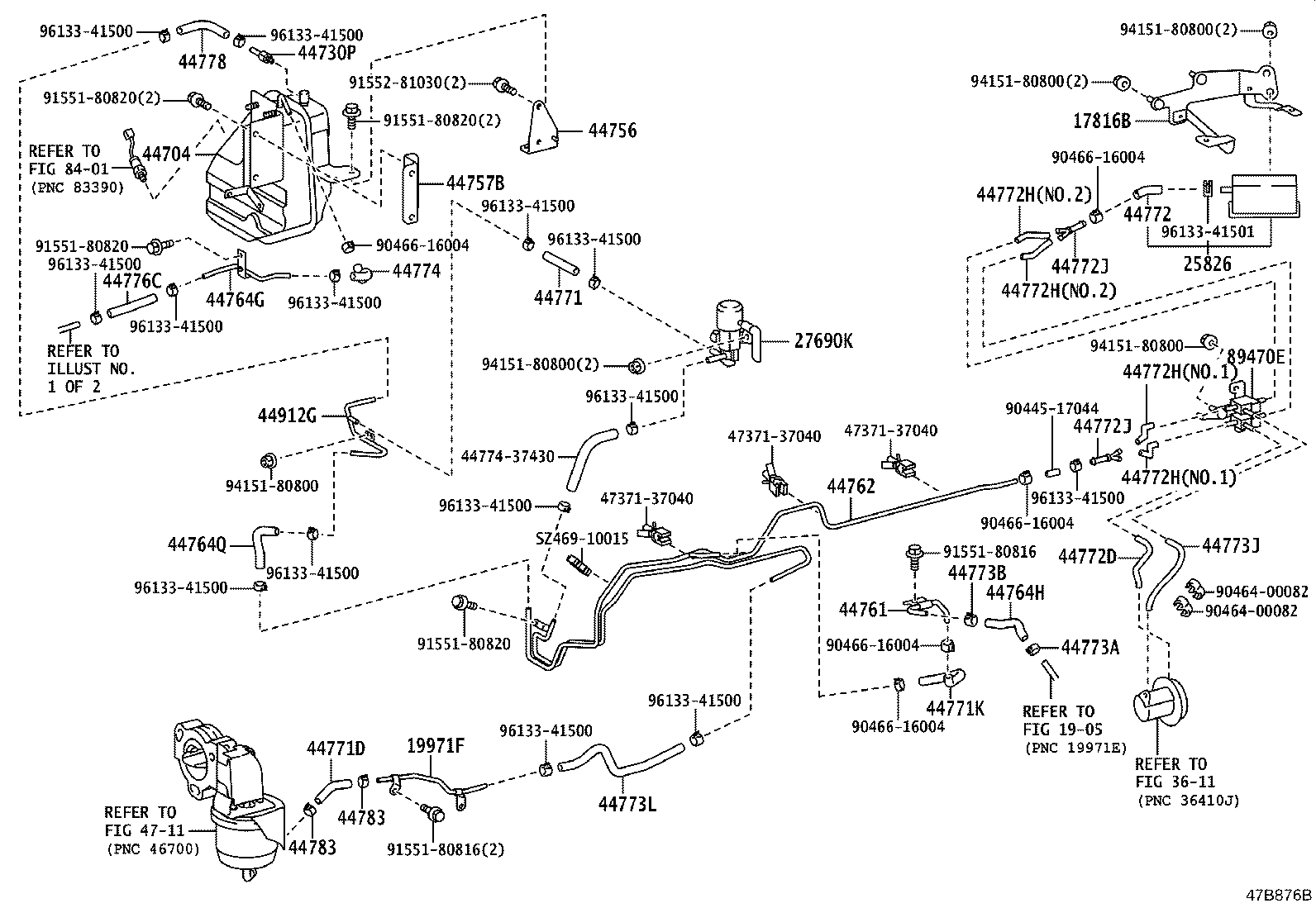

ILLUST NO. 2 OF 2(1905- )XZU685,695..T3..20T..DCRWD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17816B - BRACKET, AIR FILTER, NO.1 | ||||
| 17816-78020 |
N04C..XZC675,XZU675,685,695..DCRWD |
1 | ||
| 19971F - PIPE, VACUUM | ||||
| 19971-78281 |
N04C..XZC675,XZU675,685,695..DCRWD |
1 | ||
| 25826 - FILTER, NO.1 | ||||
| 25826-78020 |
N04C..XZC675,XZU675,685,695..DCRWD |
1 | ||
| 27690K - SOLENOID ASSY, W/BRACKET(FOR EXHAUST BRAKE) | ||||
| 27690-78032 |
N04C..XZU605,655,685,695..DCB..20T..DCRWD |
1 | ||
| 44704 - RESERVOIR SUB-ASSY, VACUUM | ||||
| 44704-37260 |
XZU605,655,685,695..DCB..20T..DCRWD |
1 | ||
| 44730P - VALVE ASSY, VACUUM CHECK, NO.1 | ||||
| 44730-60050 |
XZU600,605,640,655,685,695..DCB..DCRWD |
1 | ||
| 44756 - BRACKET, VACUUM RESERVOIR | ||||
| 44756-37280 |
XZU605,655,685,695..DCB..20T..DCRWD |
1 | ||
| 44757B - BRACKET, VACUUM TANK CLAMP, NO.2 | ||||
| 44757-37180 |
XZU605,655,685,695..DCB..20T..DCRWD |
1 | ||
| 44761 - TUBE, INTAKE MANIFOLD OR VACUUM PUMP TO CONNECTOR | ||||
| 44761-37580 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) |
1 | ||
| 44762 - TUBE, BOOSTER VACUUM | ||||
| 44702-37740 |
XZU685,695..T3..20T..DCRWD |
1 | ||
| 44764G - TUBE, CONNECTOR TO BRAKE BOOSTER | ||||
| 44761-37520 |
XZU605,655,685,695..DCB..20T..DCRWD |
1 | ||
| 44764H - HOSE(FOR CONNECTOR TO BRAKE BOOSTER TUBE) | ||||
| 95446-09120 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) |
1 | ||
| 44764Q - HOSE(FOR CONNECTOR TO VACUUM RESERVOIR TUBE) | ||||
| 95446-09160 |
XZU605,655,685,695..DCB..20T..DCRWD |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 90445-17039 |
XZU605,655,685,695..DCB..20T..DCRWD |
1 | ||
| 44771D - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-37A61 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 44771K - HOSE, VACUUM TUBE TO VACUUM PUMP | ||||
| 44771-37D80 |
XZC675,XZU675,685,695..DCRWD..(CBU,IV3,IV6) |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-37080 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 44772D - HOSE, CHECK VALVE TO ACTUATOR | ||||
| 44772-37210 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 44772H - HOSE, CHECK VALVE TO 3 WAY | ||||
| 44772-37140 |
XZC675,XZU675,685,695..DCRWD NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 44772-37220 |
XZC675,XZU675,685,695..DCRWD NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 44772H - HOSE, CHECK VALVE TO 3 WAY | ||||
| 44772-37140 |
XZC675,XZU675,685,695..DCRWD NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 44772-37220 |
XZC675,XZU675,685,695..DCRWD NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 44772H - HOSE, CHECK VALVE TO 3 WAY | ||||
| 44772-37140 |
XZC675,XZU675,685,695..DCRWD NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 44772-37220 |
XZC675,XZU675,685,695..DCRWD NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 44772H - HOSE, CHECK VALVE TO 3 WAY | ||||
| 44772-37140 |
XZC675,XZU675,685,695..DCRWD NO.1:ｲﾗｽﾄ参照 |
2 | ||
| 44772-37220 |
XZC675,XZU675,685,695..DCRWD NO.2:ｲﾗｽﾄ参照 |
2 | ||
| 44772J - WAY, 3(FOR VACUUM CHECK VALVE TO 3 WAY HOSE) | ||||
| 90413-05007 |
XZC675,XZU675,685,695..DCRWD |
2 | ||
| 44772J - WAY, 3(FOR VACUUM CHECK VALVE TO 3 WAY HOSE) | ||||
| 90413-05007 |
XZC675,XZU675,685,695..DCRWD |
2 | ||
| 44773A - CLIP, NO.1(FOR VACUUM HOSE, NO.2) | ||||
| 90466-16004 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) |
1 | ||
| 44773B - CLIP, NO.2(FOR VACUUM HOSE, NO.2) | ||||
| 90466-16004 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) |
1 | ||
| 44773J - HOSE, VACUUM, NO.3 | ||||
| 44772-37200 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 44773L - HOSE, SOLENOID TO EXHAUST RETARDER | ||||
| 44773-37370 |
XZU600,640..DCRWD..IV4;XZC675,XZU675,685,695..DCRWD |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-37300 |
XZU685,695..T3..20T..DCRWD |
1 | ||
| 44776C - HOSE, VACUUM RESERVOIR TO CONNECTOR | ||||
| 44774-37430 |
XZU605,655,685,695..DCB..20T..DCRWD |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-37060 |
XZU605,655,685,695..DCB..20T..DCRWD |
1 | ||
| 44783 - CLAMP, VACUUM HOSE | ||||
| 96138-51701 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 44783 - CLAMP, VACUUM HOSE | ||||
| 96138-51701 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 44912G - TUBE, 3 WAY TO MAGNETIC VALVE | ||||
| 44912-37A30 |
XZU605,655,685,695..DCB..20T..DCRWD |
1 | ||
| 89470E - VALVE ASSY, VACUUM SWITCHING W/BRACKET, NO.1 | ||||
| 89470-37100 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| Common parts | ||||
| 44774-37430 | ||||
| 47371-37040 | ||||
| 90445-17044 | ||||
| 90464-00082 | ||||
| 90466-16004 | ||||
| 91551-80816 | ||||
| 91551-80820 | ||||
| 91552-81030 | ||||
| 94151-80800 | ||||
| 96133-41500 | ||||
| 96133-41501 | ||||
| SZ469-10015 | ||||
| Linked diagrams | ||||
| 1905 | ||||
| 3611 | ||||
| 4711 | ||||
| 8401 | ||||
