XZU695-PKMMX (2019)
Toyota Dyna/Toyoace

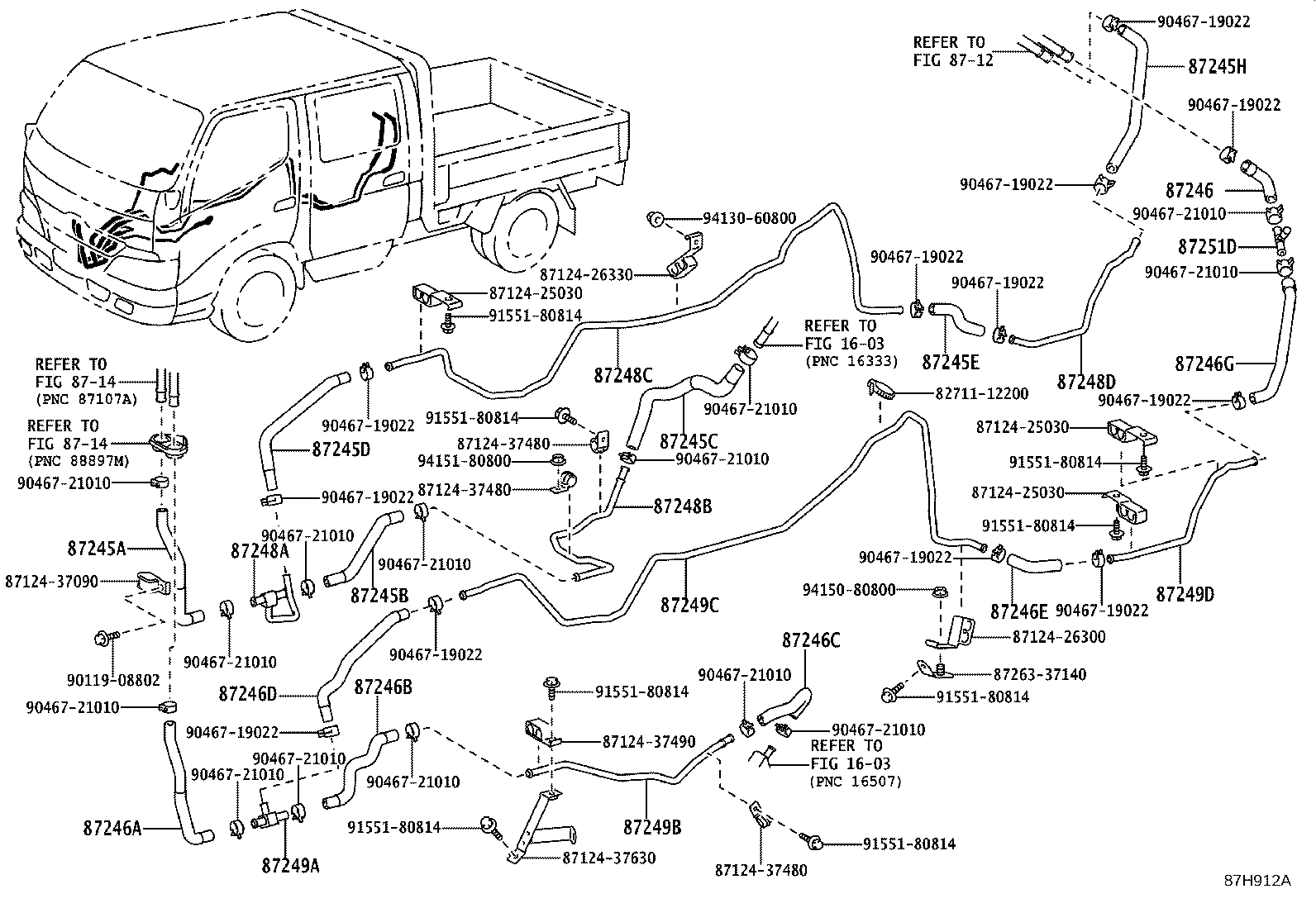

(1905- )XZU685,695..T3..20T..DCRWD
ｱﾘ(ﾘﾔﾋｰﾀ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-37D40 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87245-37E40 |
XZU600,640,685,695..DCB..DCRWD |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-37E50 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87245-37J71 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 87245-37J70 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 87245C - HOSE, HEATER WATER ,INLET C | ||||
| 87245-37J71 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87245-37J70 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87245D - HOSE, HEATER WATER, INLET D | ||||
| 87245-37G90 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 99556-20200 |
XZU685,695..T3..20T..DCRWD *H,L=200,ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87245H - HOSE, HEATER WATER, INLET H | ||||
| 87245-37690 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87246 - HOSE, HEATER WATER, OUTLET | ||||
| 87245-37D70 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-37J00 |
XZU600,640,685,695..DCB..DCRWD |
1 | ||
| 87246-37740 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87246-37771 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 87246-37770 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 87245-37C40 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87246C - HOSE, HEATER WATER, OUTLET C | ||||
| 87246-37770 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87246-37771 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87246D - HOSE, HEATER WATER, OUTLET D | ||||
| 87246-37A40 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 99556-20200 |
XZU685,695..T3..20T..DCRWD *H,L=200,ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87246G - HOSE, HEATER WATER, OUTLET G | ||||
| 87245-37D80 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-37J60 |
XZU600,640,685,695..DCB..DCRWD |
1 | ||
| 87248-37J61 |
XZU600,640,685,695..DCB..DCRWD |
1 | ||
| 87248-37B20 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87248-37J60 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87248-37J61 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87248C - PIPE, HEATER WATER INLET, C | ||||
| 87248-37F60 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87248D - PIPE, HEATER WATER INLET, D | ||||
| 87248-37760 |
XZU685,695..T3..20T..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-52010 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87248-37J50 |
XZU600,640,685,695..DCB..DCRWD |
1 | ||
| 87249B - PIPE, HEATER WATER OUTLET, B | ||||
| 87248-37J50 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87249C - PIPE, HEATER WATER OUTLET, C | ||||
| 87248-37F70 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87249D - PIPE, HEATER WATER OUTLET, D | ||||
| 87248-37770 |
XZU685,695..T3..20T..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87251D - JOINT, WATER, NO.1 | ||||
| 87251-12050 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 87124-25030 | ||||
| 87124-26300 | ||||
| 87124-26330 | ||||
| 87124-37090 | ||||
| 87124-37480 | ||||
| 87124-37490 | ||||
| 87124-37630 | ||||
| 87263-37140 | ||||
| 90119-08802 | ||||
| 90467-19022 | ||||
| 90467-21010 | ||||
| 91551-80814 | ||||
| 94130-60800 | ||||
| 94150-80800 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8712 | ||||
| 8714 | ||||

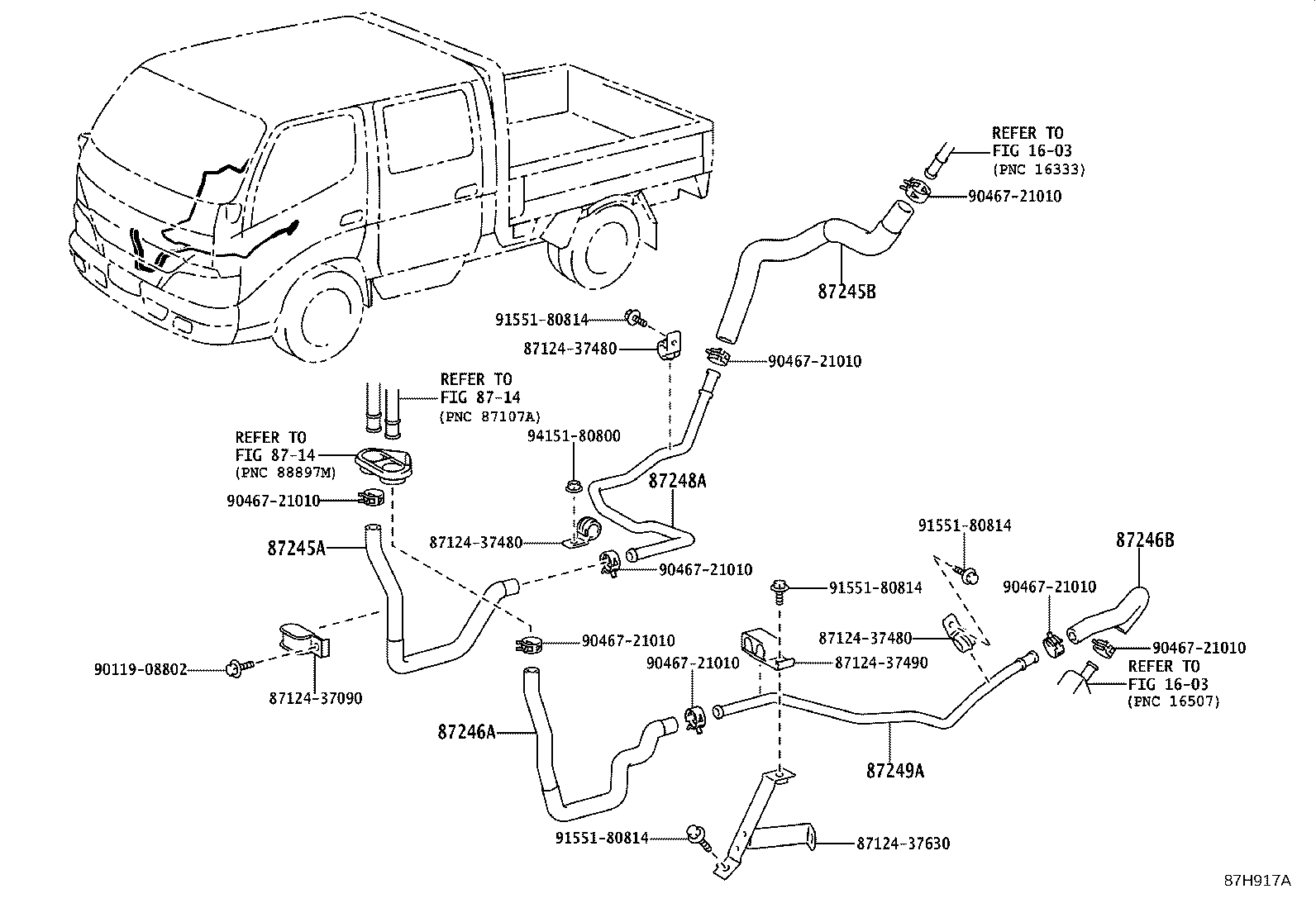

(1905- )XZU600,640,685,695..DCB..DCRWD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-37D40 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87245-37E40 |
XZU600,640,685,695..DCB..DCRWD |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-37E50 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87245-37J71 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 87245-37J70 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-37J00 |
XZU600,640,685,695..DCB..DCRWD |
1 | ||
| 87246-37740 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87246B - HOSE, HEATER WATER, OUTLET B | ||||
| 87246-37771 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 87246-37770 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 87245-37C40 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87248-37J60 |
XZU600,640,685,695..DCB..DCRWD |
1 | ||
| 87248-37J61 |
XZU600,640,685,695..DCB..DCRWD |
1 | ||
| 87248-37B20 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87248-52010 |
XZU685,695..DCB..DCRWD ﾘﾔﾋｰﾀ−有り |
1 | ||
| 87248-37J50 |
XZU600,640,685,695..DCB..DCRWD |
1 | ||
| Common parts | ||||
| 87124-37090 | ||||
| 87124-37480 | ||||
| 87124-37490 | ||||
| 87124-37630 | ||||
| 90119-08802 | ||||
| 90467-21010 | ||||
| 91551-80814 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
| 8714 | ||||
