XZU695-PKMMX (2019)
Toyota Dyna/Toyoace

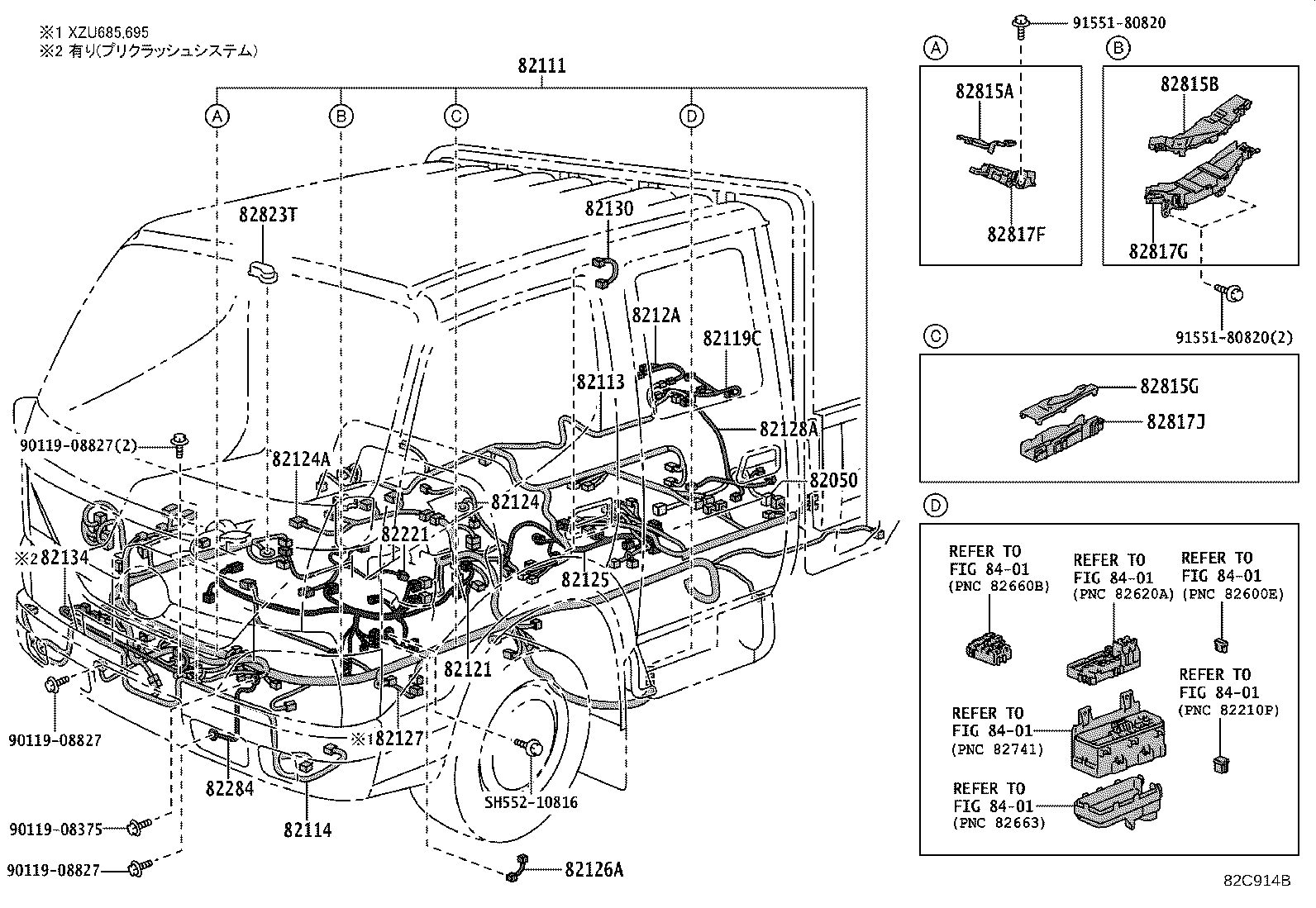

ILLUST NO. 1 OF10(1905- )DCB..DCRWD
ｴﾝｼﾞﾝﾙｰﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82050 - WIRE ASSY, ENGINE | ||||
| 82050-37010 |
XZU675..T4..DCRWD;XZU600..6FC..30T..DCRWD..IV6;XZC600,630,XZU600,630,675..(DM3,DM5,DM7,T3)..DCRWD..IV3;XZC605,645,655,675,XZU605,64#,65#,685,695..(DCRWD,DCVTO)..(CBU,IV3) ﾏﾆｭｱﾙｱｲﾄﾞﾙｱｯﾌﾟ−有り(電動,ｺﾝﾄﾛｰﾙﾚﾊﾞｰ付き) |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82116-37N31 |
XZU695..T3..20T..DCRWD |
1 | ||
| 82116-37N30 |
XZU695..T3..20T..DCRWD |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-37P80 |
XZU685,695..T3..20T..DCRWD |
1 | ||
| 82114 - WIRE, ENGINE ROOM, NO.4 | ||||
| 82114-37270 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
1 | ||
| 82114-37280 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&ﾌﾛﾝﾄﾌｫｸﾞﾗﾝﾌﾟ−有り(LED) |
1 | ||
| 82114-37290 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) |
1 | ||
| 82114-37290 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 82119C - WIRE, ENGINE ROOM, NO.5 | ||||
| 82119-37060 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-37K20 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82121-37K70 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) 寒冷地仕様 |
1 | ||
| 82121-37K60 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) |
1 | ||
| 82124A - WIRE, ENGINE, NO.5 | ||||
| 82121-37L50 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 82125 - WIRE, TRANSMISSION | ||||
| 82125-37640 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 82126A - WIRE, ENGINE, NO.6 | ||||
| 82121-37M00 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD |
1 | ||
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-37011 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 82128A - WIRE, ENGINE, NO.8 | ||||
| 82128-37020 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 8212A - WIRE, ENGINE, NO.9 | ||||
| 8212A-37010 |
XZC675,XZU675,685,695..DCRWD;XZU600,605,640,655..DCB..DCRWD |
1 | ||
| 82134 - WIRE, COWL, NO.4 | ||||
| 82134-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 82134-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) |
1 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-37270 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 82284 - WIRE, EARTH | ||||
| 82284-37250 |
XZU600,640,685,695..DCB..DCRWD |
1 | ||
| 82815A - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-37130 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 82815B - COVER, WIRING HARNESS PROTECTOR | ||||
| 82815-37150 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 82815G - COVER, WIRING HARNESS PROTECTOR NO.5 | ||||
| 82815-37180 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 82817F - PROTECTOR, WIRING HARNESS, NO.7 | ||||
| 82817-37500 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 82817G - PROTECTOR, WIRING HARNESS, NO.8 | ||||
| 82817-37510 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 82817J - PROTECTOR, WIRING HARNESS, NO.9 | ||||
| 82817-37530 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| Common parts | ||||
| 90119-08375 | ||||
| 90119-08827 | ||||
| 91551-80820 | ||||
| SH552-10816 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 2 OF10(1905- )DCRWD,DCVTO
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ & ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82148-37B20 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) |
1 | ||
| 82148-37B60 |
XZC645,655,XZU602,64#,65#,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV6);XZC60#,630,675,XZU600,605,630,675..(DCRWD,DCVTO)..(IV3,IV5,IV6) ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57 & *LOS & *TM) |
1 | ||
| 82148-37B60 |
XZC645,655,XZU602,64#,65#,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV6);XZC60#,630,675,XZU600,605,630,675..(DCRWD,DCVTO)..(IV3,IV5,IV6) ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57 & *LOS & *TM(*WVM)) |
1 | ||
| 82148-37B60 |
XZC645,655,XZU602,64#,65#,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV6);XZC60#,630,675,XZU600,605,630,675..(DCRWD,DCVTO)..(IV3,IV5,IV6) ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57 & *LOS & *TM(*WVM)) |
1 | ||
| 82148-37B60 |
XZC645,655,XZU602,64#,65#,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV6);XZC60#,630,675,XZU600,605,630,675..(DCRWD,DCVTO)..(IV3,IV5,IV6) ｱｳﾀﾐﾗｰ−*DRS(*TM,*PAS(*57 & *LOS & *TM)､*CR(DOP) |
1 | ||
| 82148-37C00 |
XZC645,655,XZU602,64#,65#,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV6);XZC60#,630,675,XZU600,605,630,675..(DCRWD,DCVTO)..(IV3,IV5,IV6) ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH) |
1 | ||
| 82148-37C00 |
XZC645,655,XZU602,64#,65#,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV6);XZC60#,630,675,XZU600,605,630,675..(DCRWD,DCVTO)..(IV3,IV5,IV6) ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH & *CR(DOP)) |
1 | ||
| 82132 - WIRE, COWL, NO.2 | ||||
| 82132-37310 |
XZC675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
1 | ||
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-3VA00 |
XZU605,655..DCB..6F;XZU600,605..(DM3,DM5,DM6)..6F..(CBU,IV3,IV5);XZC600,630,675,XZU630,642,675,685,695..MTM..DCRWD..(CBU,IV3) ｸﾗｯﾁｽﾀｰﾄｼｽﾃﾑ−無し |
1 | ||
| 82141-3VA50 |
XZC600,630,645..6F;XZC605,655,675,XZU600,605,630,64#,65#,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3,IV5) |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-3V590 |
XZU685,695..T3..20T..DCRWD |
1 | ||
| 82142-3V580 |
XZU685,695..T3..20T..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 82213B - WIRE, HEATER | ||||
| 82213-37280 |
XZC600,630..DCRWD;XZC605,XZU605,655..T2..6FC..DCRWD;XZC605,645,655,675,XZU60#,630,64#,65#,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(DCRWD,DCVTO)..(CBU,IV3,IV4,IV5,IV6) |
1 | ||
| 82234 - WIRE, COMPUTER, NO.2 | ||||
| 82234-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 82234-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-37330 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-37330 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 82817D - PROTECTOR, WIRING HARNESS, NO.5 | ||||
| 82817-37440 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| Common parts | ||||
| 82712-37010 | ||||
| 82712-37420 | ||||
| 90119-06923 | ||||
| 90467-07041P5 | ||||
| 91551-80616 | ||||

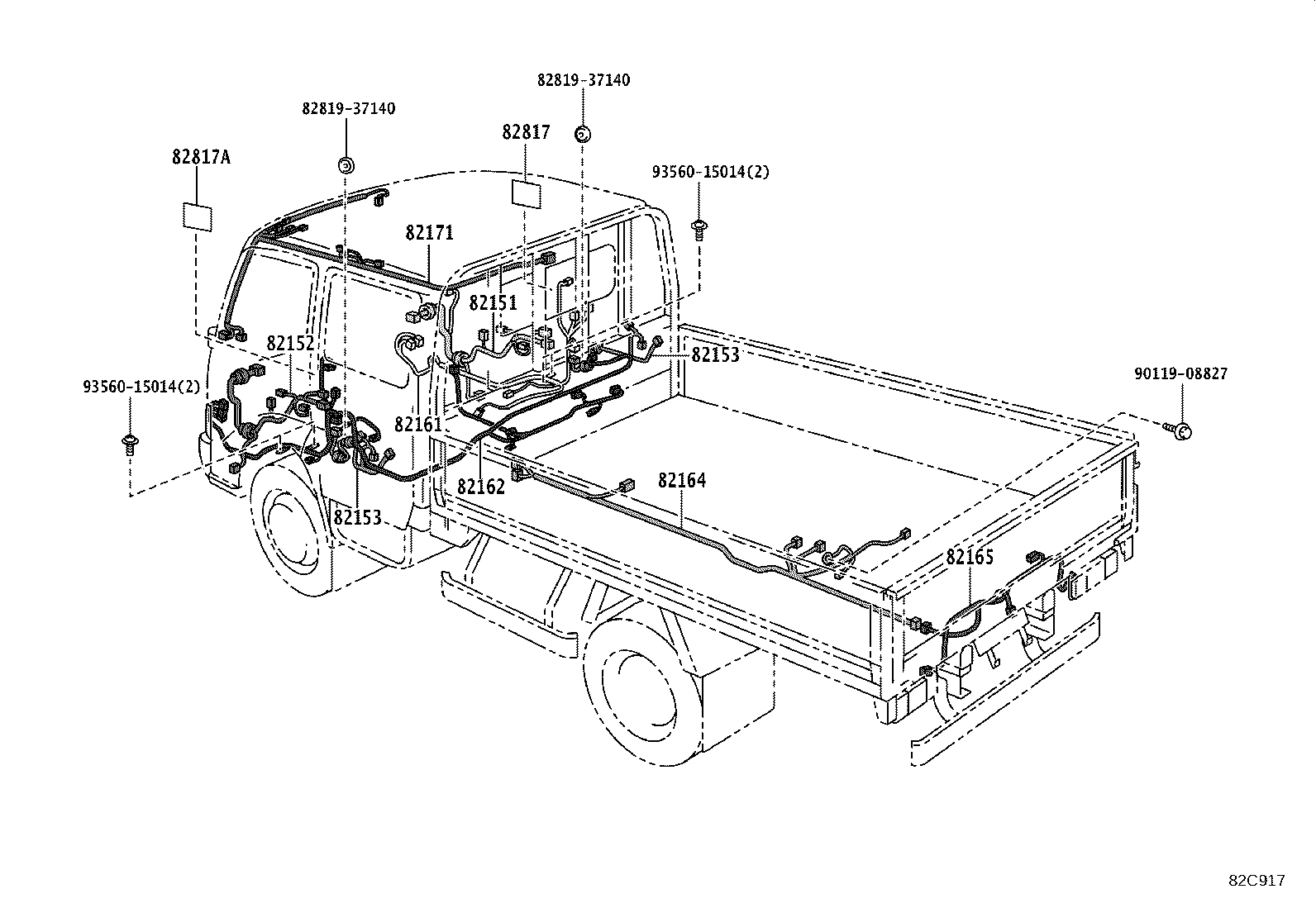

ILLUST NO. 3 OF10(1905- )DCB..DCRWD
ﾎﾞﾃﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-37B11 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 82151-37B31 |
XZC645,655,XZU602,64#,65#,685,695..DCRWD,DCVTO;XZC60#,630,675,XZU600,605,630,675..(DCRWD,DCVTO)..(IV3,IV4,IV5,IV6,IV7) ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH & *CR(DOP)) |
1 | ||
| 82151-37J90 |
XZU600,605,640,655,685,695..DCB..DCRWD ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き) |
1 | ||
| 82151-37B31 |
XZC645,655,XZU602,64#,65#,685,695..DCRWD,DCVTO;XZC60#,630,675,XZU600,605,630,675..(DCRWD,DCVTO)..(IV3,IV4,IV5,IV6,IV7) ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH) |
1 | ||
| 82151-37K20 |
XZU655,685,695..DCB..DCRWD;XZU600,605,640..DCB..DCRWD..(IV3,IV4) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH) |
1 | ||
| 82151-37K20 |
XZU655,685,695..DCB..DCRWD;XZU600,605,640..DCB..DCRWD..(IV3,IV4) ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ付き)&ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH & *CR(DOP)) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-37A10 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-37190 |
XZU600,605,640,655,685,695..DCB..DCRWD ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 82153-37180 |
XZU600,605,640,655,685,695..DCB..DCRWD |
2 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-37190 |
XZU600,605,640,655,685,695..DCB..DCRWD ﾊﾟﾜｰｳｨﾝﾄﾞｳ−有り(ﾌﾛﾝﾄ & ﾘﾔ) |
2 | ||
| 82153-37180 |
XZU600,605,640,655,685,695..DCB..DCRWD |
2 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-37C10 |
XZU600,605,640,655,685,695..DCB..DCRWD |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-37G40 |
XZU605,655,685,695..DCB..20T..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し&VSC−無し |
1 | ||
| 82162-37G50 |
XZU605,655,685,695..DCB..20T..DCRWD |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-3VN40 |
XZC655,XZU65#,695..MTM..(DCRWD,DCVTO)..CBU ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ&ﾊﾞｯｸﾓﾆﾀ−無し |
1 | ||
| 82164-3VN50 |
XZC655,XZU65#,695..(DCRWD,DCVTO)..CBU |
1 | ||
| 82164-3VN30 |
XZC655,XZU65#,695..(DCRWD,DCVTO)..CBU ﾊﾞｯｸﾓﾆﾀ−無し |
1 | ||
| 82164-3VN40 |
XZC655,XZU65#,695..(T3,T4)..MTM..(DCRWD,DCVTO)..CBU ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG 直結ﾀｲﾌﾟ&ﾊﾞｯｸﾓﾆﾀ−無し |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-37870 |
XZU645..30T..DCRWD..CBU;XZC655,XZU640,65#,685,695..(DCRWD,DCVTO)..CBU |
1 | ||
| 82165-37860 |
XZU645..30T..DCRWD..CBU;XZC655,XZU640,65#,685,695..(DCRWD,DCVTO)..CBU ﾊﾞｯｸﾓﾆﾀ−無し |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-37A92 |
XZU605,655,685,695..DCB..20T..DCRWD ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 82171-37F80 |
XZU605,655,685,695..DCB..20T..DCRWD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-12400 |
XZU600,605,640,655,685,695..DCB..DCRWD |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12400 |
XZU600,605,640,655,685,695..DCB..DCRWD |
1 | ||
| Common parts | ||||
| 82819-37140 | ||||
| 90119-08827 | ||||
| 93560-15014 | ||||
