XZU695-PKMMX (2019)
Toyota Dyna/Toyoace
(1905- )XZC675,XZU675,685,695..DCRWD

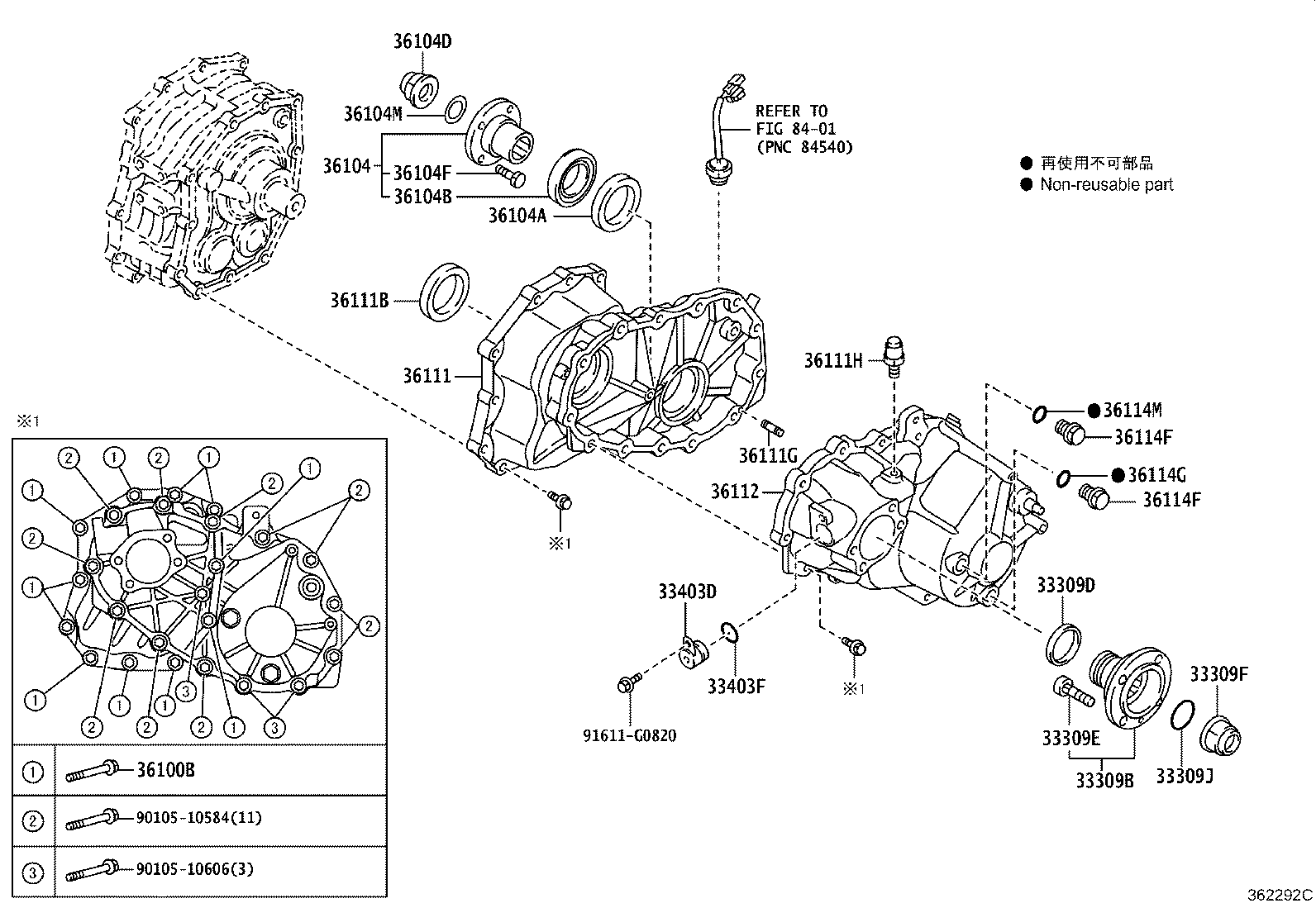

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33309B - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-37040 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90311-49009 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 33309E - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90114-12051 |
XZC675,XZU675,685,695..DCRWD |
4 | ||
| 33309F - NUT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90177-27001 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 33309J - RING, O (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE NO. | ||||
| 90301-30010 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 33403D - COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE | ||||
| 33403-37010 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 33403F - RING,O (FOR SPEEDOMETER DRIVEN HOLE COVER) | ||||
| 96723-35024 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 36100B - BOLT (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90105-10605 |
XZC675,XZU675,685,695..DCRWD |
11 | ||
| 36104 - FLANGE, COMPANION (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33309-37050 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 36104A - SEAL, TYPE T, OIL (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90311-44011 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 36104B - DEFLECTOR, DUST (FOR TRANSFER OUTPUT SHAFT) | ||||
| 33325-37020 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90177-27002 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 36104F - BOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90101-10203 |
XZC675,XZU675,685,695..DCRWD |
4 | ||
| 36104M - RING, O (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE NO. | ||||
| 90301-29018 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 36111 - CASE, TRANSFER | ||||
| 36111-37020 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-55007 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10041 |
XZC675,XZU675,685,695..DCRWD |
2 | ||
| 36111H - PLUG, BREATHER (FOR TRANSFER CASE) | ||||
| 90930-03237 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36112-37020 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-20017 |
XZC675,XZU675,685,695..DCRWD |
2 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-20017 |
XZC675,XZU675,685,695..DCRWD |
2 | ||
| 36114G - GASKET (FOR TRANSFER DRAIN PLUG) | ||||
| 90301-17023 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 36114M - GASKET (FOR TRANSFER FILLER PLUG) | ||||
| 90301-17023 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| Common parts | ||||
| 90105-10584 | ||||
| 90105-10606 | ||||
| 91611-G0820 | ||||
| Linked diagrams | ||||
| 8401 | ||||
