XZU675D-TWMMC3 (2011)
Toyota Dyna/Toyoace
ILLUST NO. 1 OF 3(1107-1505)
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89183A - SENSOR, YAWRATE | ||||
| 89183-37010 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5 |
1 | ||
| 89183-37010 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5 VSC−無し |
1 | ||
| 89421F - SENSOR, VACUUM (FOR SKID CONTROL) | ||||
| 89421-37030 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC675,XZU60#,610,620,630,645,655,675,685,695..20T,30T |
2 | ||
| 89421F - SENSOR, VACUUM (FOR SKID CONTROL) | ||||
| 89421-37030 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC675,XZU60#,610,620,630,645,655,675,685,695..20T,30T |
2 | ||
| 89437F - COVER, SENSOR | ||||
| 89437-37021 |
XZU645,655..30T;XZU645,65#..6FC..20T;XZC675,XZU675,685,695;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
1 | ||
| 89441A - SENSOR, DECELERATION | ||||
| 89441-E0010 |
XZC675,XZU675,685,695;XZC60#,610,630,645,655,XZU60#,610,64#,65#..6FC |
1 | ||
| 89441-E0010 |
XZC675,XZU675,685,695;XZU60#,650..MTM..(20T,30T,35T)..(IV5,IV6);XZC60#,610,630,645,655,XZU60#,610,620,64#,65#..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..(6F,6FC)..(20T,30T,40T) VSC−無し |
1 | ||
| Common parts | ||||
| 87615-37010 | ||||
| 91551-80616 | ||||
| 91621-40616 | ||||
ILLUST NO. 2 OF 3(1107- )XZC675,XZU675,685,695
ﾌﾛﾝﾄｽﾋﾟｰﾄﾞｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89542 - SENSOR, SPEED, FRONT RH | ||||
| 89542-37190 |
XZC675,XZU675,685,695 |
1 | ||
| 89543 - SENSOR, SPEED, FRONT LH | ||||
| 89543-37270 |
XZC675,XZU675,685,695 |
1 | ||
| 89549 - BRACKET, SKID CONTROL COMPUTER | ||||
| 89549-37030 |
XZC675,XZU675,685,695 左側 |
1 | ||
| 89549-37020 |
XZC675,XZU675,685,695 右側 |
1 | ||
| 89549 - BRACKET, SKID CONTROL COMPUTER | ||||
| 89549-37030 |
XZC675,XZU675,685,695 左側 |
1 | ||
| 89549-37020 |
XZC675,XZU675,685,695 右側 |
1 | ||
| Common parts | ||||
| 90129-08007 | ||||
| 91551-80620 | ||||
| 91551-80825 | ||||

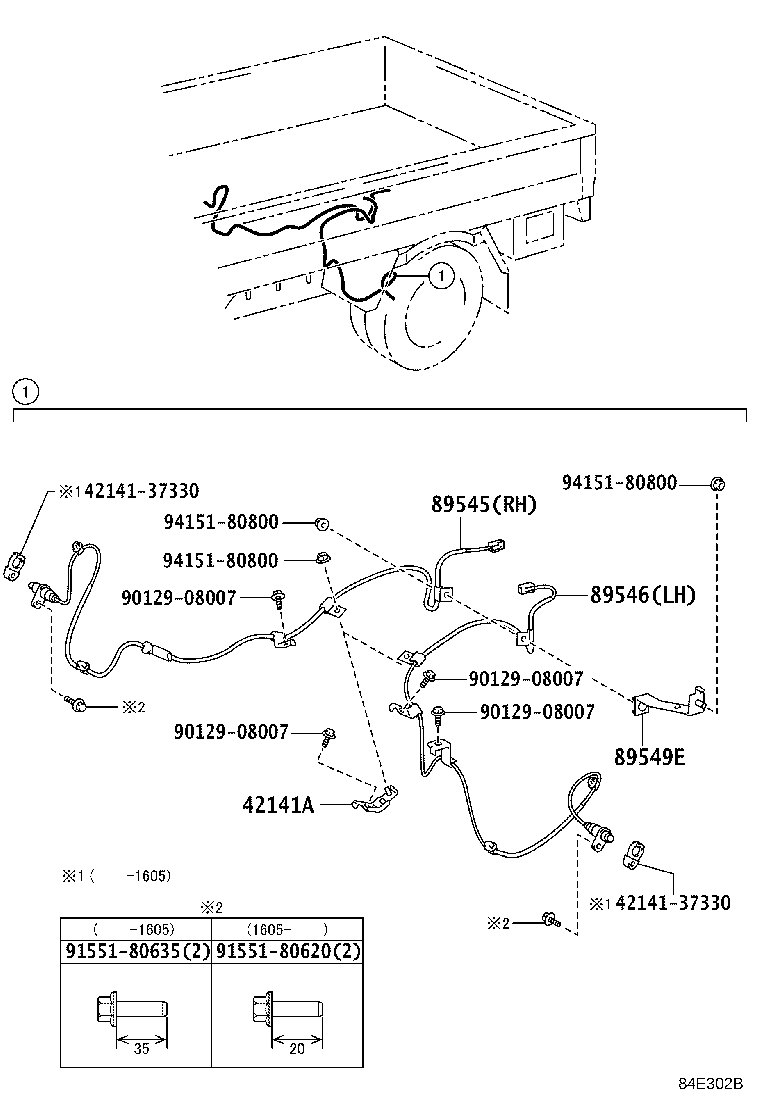

ILLUST NO. 3 OF 3(1107-1605)DM3 ; (1107-1605)XZC675,XZU675,685,695..T3,T4..CBU,IV3,IV6 ; (1107-1705)
ﾘﾔｽﾋﾟｰﾄﾞｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42141A - ATTACHMENT, SKID CONTROL WIRE, NO.1 | ||||
| 42141-37230 |
XZC610,630,675,XZU610,620,630,675..DM5,DM7 |
1 | ||
| 42141-37230 |
XZC610,630,675,XZU610,620,630,675..DM5,DM7 |
1 | ||
| 42141-37230 |
XZC610,630,675,XZU610,620,630,675..DM5,DM7 |
1 | ||
| 42141-37230 |
XZC610,630,675,XZU610,620,630,675..DM5,DM7 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-37180 |
XZC675,XZU675..DM5 |
1 | ||
| 89545-37180 |
XZC675,XZU675..DM5 |
1 | ||
| 89545-37180 |
XZC675,XZU675..DM5 |
1 | ||
| 89545-37180 |
XZC675,XZU675..DM5 |
1 | ||
| 89545-37181 |
XZC675,XZU675..DM5 |
1 | ||
| 89545-37181 |
XZC675,XZU675..DM5 |
1 | ||
| 89545-37181 |
XZC675,XZU675..DM5 |
1 | ||
| 89545-37181 |
XZC675,XZU675..DM5 |
1 | ||
| 89545-37450 |
XZC675,XZU675..DM5 |
1 | ||
| 89545-37450 |
XZC675,XZU675..DM5 |
1 | ||
| 89545-37450 |
XZC675,XZU675..DM5 |
1 | ||
| 89545-37450 |
XZC675,XZU675..DM5 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-37180 |
XZC675,XZU675..DM5 |
1 | ||
| 89545-37180 |
XZC675,XZU675..DM5 |
1 | ||
| 89545-37180 |
XZC675,XZU675..DM5 |
1 | ||
| 89545-37180 |
XZC675,XZU675..DM5 |
1 | ||
| 89545-37181 |
XZC675,XZU675..DM5 |
1 | ||
| 89545-37181 |
XZC675,XZU675..DM5 |
1 | ||
| 89545-37181 |
XZC675,XZU675..DM5 |
1 | ||
| 89545-37181 |
XZC675,XZU675..DM5 |
1 | ||
| 89545-37450 |
XZC675,XZU675..DM5 |
1 | ||
| 89545-37450 |
XZC675,XZU675..DM5 |
1 | ||
| 89545-37450 |
XZC675,XZU675..DM5 |
1 | ||
| 89545-37450 |
XZC675,XZU675..DM5 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-37180 |
XZC675,XZU675..DM5 |
1 | ||
| 89546-37180 |
XZC675,XZU675..DM5 |
1 | ||
| 89546-37180 |
XZC675,XZU675..DM5 |
1 | ||
| 89546-37171 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546-37171 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546-37171 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546-37171 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546-37180 |
XZC675,XZU675..DM5 |
1 | ||
| 89546-37172 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546-37172 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546-37172 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546-37172 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546-37440 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546-37440 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546-37440 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546-37440 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-37180 |
XZC675,XZU675..DM5 |
1 | ||
| 89546-37180 |
XZC675,XZU675..DM5 |
1 | ||
| 89546-37180 |
XZC675,XZU675..DM5 |
1 | ||
| 89546-37171 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546-37171 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546-37171 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546-37171 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546-37180 |
XZC675,XZU675..DM5 |
1 | ||
| 89546-37172 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546-37172 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546-37172 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546-37172 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546-37440 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546-37440 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546-37440 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546-37440 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89549E - BRACKET, SPEED SENSOR | ||||
| 82715-3VM10 |
XZC675,XZU675..DM5 |
1 | ||
| 82715-3VM10 |
XZC675,XZU675..DM5 |
1 | ||
| 82715-3VM10 |
XZC675,XZU675..DM5 |
1 | ||
| 82715-3VM10 |
XZC675,XZU675..DM5 |
1 | ||
| Common parts | ||||
| 42141-37330 | ||||
| 90129-08007 | ||||
| 91551-80620 | ||||
| 91551-80635 | ||||
| 94151-80800 | ||||

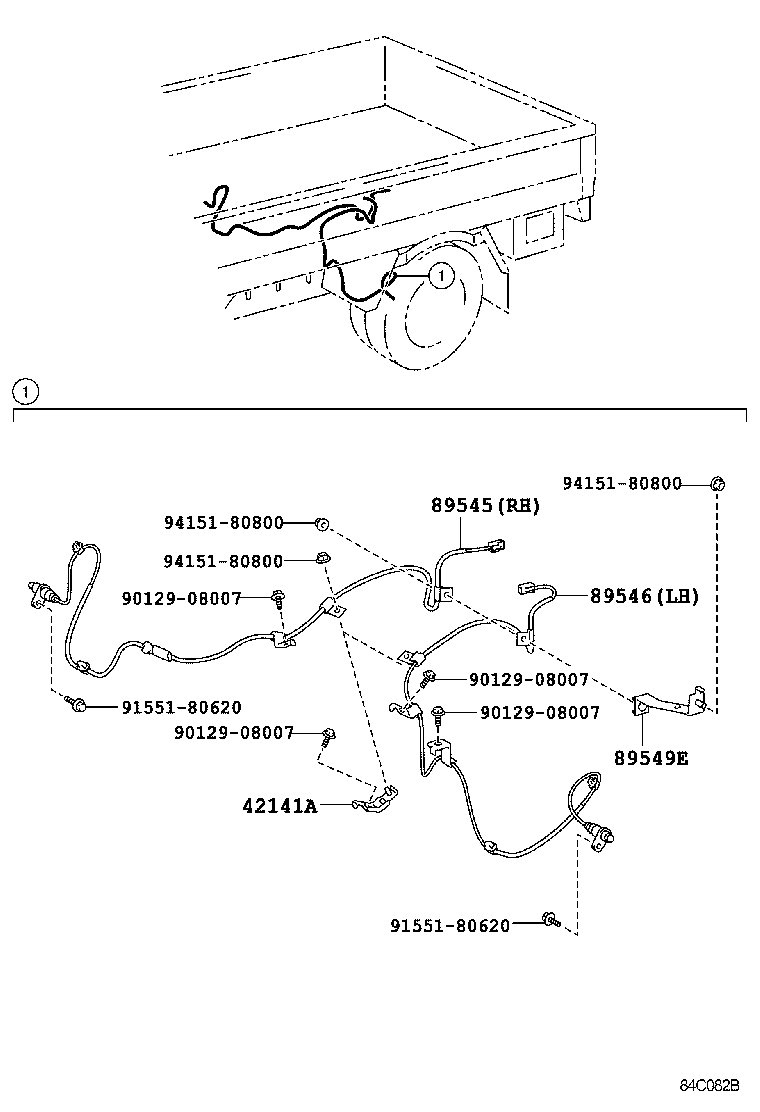

ILLUST NO. 3 OF 3(1107-1302)XZC675,XZU675..DM5
ﾘﾔｽﾋﾟｰﾄﾞｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42141A - ATTACHMENT, SKID CONTROL WIRE, NO.1 | ||||
| 42141-37230 |
XZC610,630,675,XZU610,620,630,675..DM5,DM7 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-37180 |
XZC675,XZU675..DM5 |
1 | ||
| 89545-37181 |
XZC675,XZU675..DM5 |
1 | ||
| 89545-37450 |
XZC675,XZU675..DM5 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-37180 |
XZC675,XZU675..DM5 |
1 | ||
| 89546-37171 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546-37172 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546-37440 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89549E - BRACKET, SPEED SENSOR | ||||
| 82715-3VM10 |
XZC675,XZU675..DM5 |
1 | ||
| Common parts | ||||
| 90129-08007 | ||||
| 91551-80620 | ||||
| 94151-80800 | ||||
ILLUST NO. 3 OF 3(1302- )XZC675,XZU675..DM5
ﾘﾔｽﾋﾟｰﾄﾞｾﾝｻ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42141A - ATTACHMENT, SKID CONTROL WIRE, NO.1 | ||||
| 42141-37230 |
XZC610,630,675,XZU610,620,630,675..DM5,DM7 |
1 | ||
| 89545 - SENSOR, SPEED, REAR RH | ||||
| 89545-37180 |
XZC675,XZU675..DM5 |
1 | ||
| 89545-37181 |
XZC675,XZU675..DM5 |
1 | ||
| 89545-37450 |
XZC675,XZU675..DM5 |
1 | ||
| 89546 - SENSOR, SPEED, REAR LH | ||||
| 89546-37180 |
XZC675,XZU675..DM5 |
1 | ||
| 89546-37171 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546-37172 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89546-37440 |
XZC675,XZU610,620,675..DM5 |
1 | ||
| 89549E - BRACKET, SPEED SENSOR | ||||
| 82715-3VM10 |
XZC675,XZU675..DM5 |
1 | ||
| Common parts | ||||
| 42141-37330 | ||||
| 90129-08007 | ||||
| 91551-80620 | ||||
| 91551-80635 | ||||
| 94151-80800 | ||||
ILLUST NO. 1 OF 3(1505- )
ｶｳﾙ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 89183A - SENSOR, YAWRATE | ||||
| 89183-37010 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5 |
1 | ||
| 89183-37010 |
XZC60#,610,630,645,655,675,XZU60#,610,620,630,64#,65#,675,685,695..03S,DM3,DM5,DM6,DM7,T2,T3,T4,T5 VSC−無し |
1 | ||
| 89421F - SENSOR, VACUUM (FOR SKID CONTROL) | ||||
| 89421-37030 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC675,XZU60#,610,620,630,645,655,675,685,695..20T,30T |
2 | ||
| 89421F - SENSOR, VACUUM (FOR SKID CONTROL) | ||||
| 89421-37030 |
XZU600..6F;XZC600..5F..ST;XZU650..20T,35T;XZU640..5F..DCRTK;XZU640..T4..5F..IV3;XZU650..T3..30T..DCRTJ..CBU;XZU640..T3..(6F,6FC)..(IV3,IV4,IV6);XZC675,XZU60#,610,620,630,645,655,675,685,695..20T,30T |
2 | ||
| 89437F - COVER, SENSOR | ||||
| 89437-37021 |
XZU645,655..30T;XZU645,65#..6FC..20T;XZC675,XZU675,685,695;XZU640..T3..6FC..(IV3,IV4);XZU650..T3..6FC..DCRTJ..CBU;XZC60#,610,630,645,655,XZU60#,610,620..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..6FC..(20T,30T)..WT |
1 | ||
| 89441A - SENSOR, DECELERATION | ||||
| 89441-E0010 |
XZC675,XZU675,685,695;XZC60#,610,630,645,655,XZU60#,610,64#,65#..6FC |
1 | ||
| 89441-E0010 |
XZC675,XZU675,685,695;XZU60#,650..MTM..(20T,30T,35T)..(IV5,IV6);XZC60#,610,630,645,655,XZU60#,610,620,64#,65#..(03S,DM5,DM6,DM7,T2,T3,T4,T5)..(6F,6FC)..(20T,30T,40T) VSC−無し |
1 | ||
| Common parts | ||||
| 87615-37010 | ||||
| 91551-80616 | ||||
| 91621-40616 | ||||
