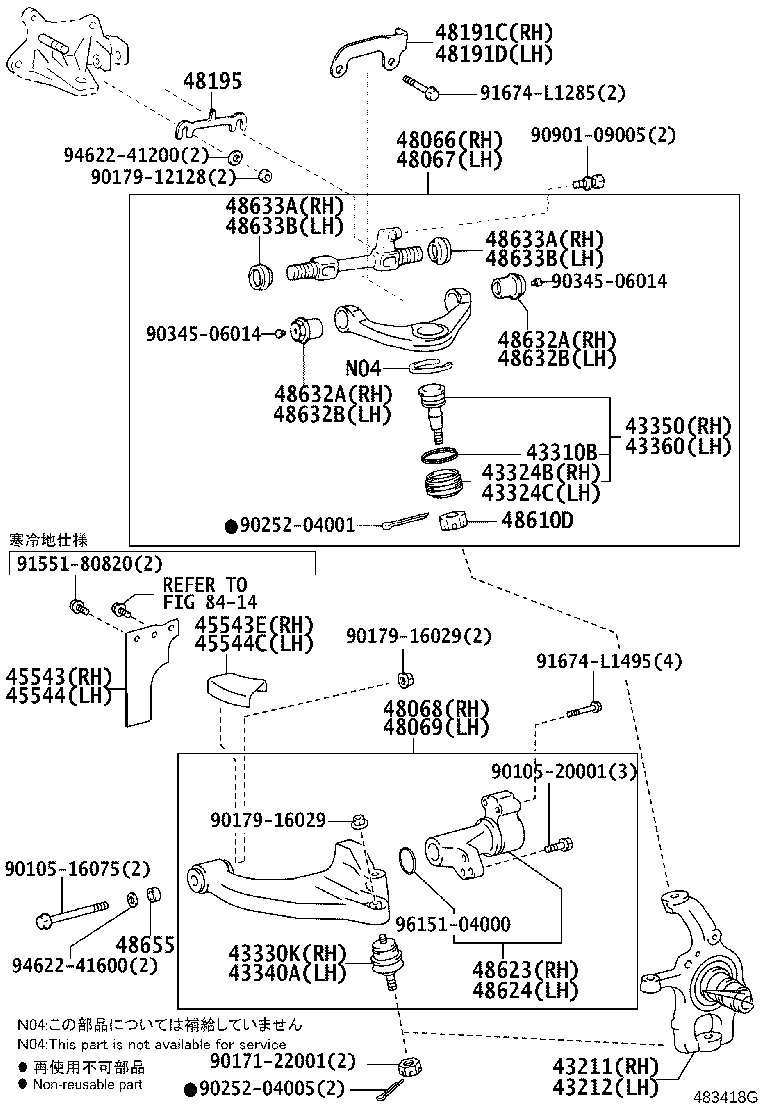

Toyota Dyna/toyoace XZU675 FRONT AXLE ARM & STEERING KNUCKLE

Part #	Description	Period	Qty
43211 - KNUCKLE, STEERING, RH
43211-37110	XZC675,XZU675,685,695	07/2011 - 05/2017	1
43212 - KNUCKLE, STEERING, LH
43212-37110	XZC675,XZU675,685,695	07/2011 - 05/2017	1
43310B - RING, SET (FOR DUST COVER)
90522-32002	XZC605,645,655,675,XZU605,645,655,675,685,695	07/2011 - 05/2017	2
43324B - COVER, FRONT UPPER BALL JOINT DUST, RH
43324-37020	XZC605,645,655,675,XZU605,645,655,675,685,695	07/2011 - 05/2017	1
43324C - COVER, FRONT UPPER BALL JOINT DUST, LH
43324-37020	XZC605,645,655,675,XZU605,645,655,675,685,695	07/2011 - 05/2017	1
43330K - JOINT ASSY, LOWER BALL, FRONT RH
43330-37020	XZC675,XZU675,685,695	07/2011 - 05/2017	1
43340A - JOINT ASSY, LOWER BALL, FRONT LH
43330-37020	XZC675,XZU675,685,695	07/2011 - 05/2017	1
43350 - JOINT ASSY, FRONT UPPER BALL, RH
43310-39095	XZC605,645,655,675,XZU605,645,655,675,685,695	07/2011 - 05/2017	1
43360 - JOINT ASSY, FRONT UPPER BALL, LH
43310-39095	XZC605,645,655,675,XZU605,645,655,675,685,695	07/2011 - 05/2017	1
45543 - PROTECTOR, STEERING RACK BOOT, RH
45543-37020	XZC675,XZU675,685,695 寒冷地仕様	07/2011 - 05/2017	1
45543E - PROTECTOR, STEERING RACK BOOT,RH NO.2
45544-37010	XZC675,XZU675,685,695 寒冷地仕様	07/2011 - 05/2017	1
45544 - PROTECTOR, STEERING RACK BOOT, LH
45543-37020	XZC675,XZU675,685,695 寒冷地仕様	07/2011 - 05/2017	1
45544C - PROTECTOR, STEERING RACK BOOT, LH NO.2
45544-37010	XZC675,XZU675,685,695 寒冷地仕様	07/2011 - 05/2017	1
48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH
48066-89015	XZC675,XZU675,685,695	07/2011 - 05/2017	1
48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH
48067-89015	XZC675,XZU675,685,695	07/2011 - 05/2017	1
48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48620-37051	XZC675,XZU675,685,695	07/2011 - 12/2015	1
48620-37052	XZC675,XZU675,685,695	01/2016 - 05/2017	1
48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48640-37051	XZC675,XZU675,685,695	07/2011 - 12/2015	1
48640-37052	XZC675,XZU675,685,695	01/2016 - 05/2017	1
48191C - PLATE, FRONT SUPENSION CASTER ADJUST, RH
48191-37040	XZC675,XZU675,685,695	07/2011 - 05/2017	1
48191D - PLATE, FRONT SUPENSION CASTER ADJUST, LH
48192-37080	XZC675,XZU675,685,695	07/2011 - 05/2017	1
48195 - SHIM, CAMBER ADJUST
90905-65002	XZC675,XZU675,685,695 厚さ=0.8	07/2011 - 05/2017	1
90905-65001	XZC675,XZU675,685,695 厚さ=4.0	07/2011 - 05/2017	1
90905-65004	XZC675,XZU675,685,695 厚さ=2.0	07/2011 - 05/2017	1
90905-65003	XZC675,XZU675,685,695 厚さ=1.2	07/2011 - 05/2017	1
48610D - NUT(FOR SUSPENSION UPPER ARM)
90171-18003	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	2
48623 - ARM, FRONT SUSPENSION, LOWER NO.2 RH
48660-37011	XZC675,XZU675,685,695	01/2016 - 05/2017	1
48660-37010	XZC675,XZU675,685,695	07/2011 - 12/2015	1
48624 - ARM, FRONT SUSPENSION, LOWER NO.2 LH
48670-37011	XZC675,XZU675,685,695	01/2016 - 05/2017	1
48670-37010	XZC675,XZU675,685,695	07/2011 - 12/2015	1
48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH
48632-37020	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	2
48632A - BUSH, FRONT SUSPENSION UPPER ARM, RH
48632-37020	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	2
48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH
48632-37020	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	2
48632B - BUSH, FRONT SUSPENSION UPPER ARM, LH
48632-37020	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	2
48633A - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, RH
48633-37010	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	2
48633A - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, RH
48633-37010	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	2
48633B - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, LH
48633-37010	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	2
48633B - SEAL, FRONT SUSPENSION UPPER ARM PIVOT DUST, LH
48633-37010	XZC605,645,655,675,XZU605,645,655,675,685,695..03S,DM5,T2,T3,T4,T5	07/2011 - 05/2017	2
48655 - BUSH, LOWER ARM, NO.2
48655-65010	XZC675,XZU675,685,695	07/2011 - 05/2017	2
Common parts
90105-16075
90105-20001
90171-22001
90179-12128
90179-16029
90252-04001
90252-04005
90345-06014
90901-09005
91551-80820
91674-L1285
91674-L1495
94622-41200
94622-41600
96151-04000
Linked diagrams
8414

XZU675D-TWMMB3 (2011)

(1107- )XZC675,XZU675,685,695..DCRTJ,DCRTK

(1107- )BZU600,TRC600,TRU600,XZC600,610,630,XZU600,602,610,620,630,640,642,650,6
