XZU675D-TWMMB (2011)
Toyota Dyna/Toyoace

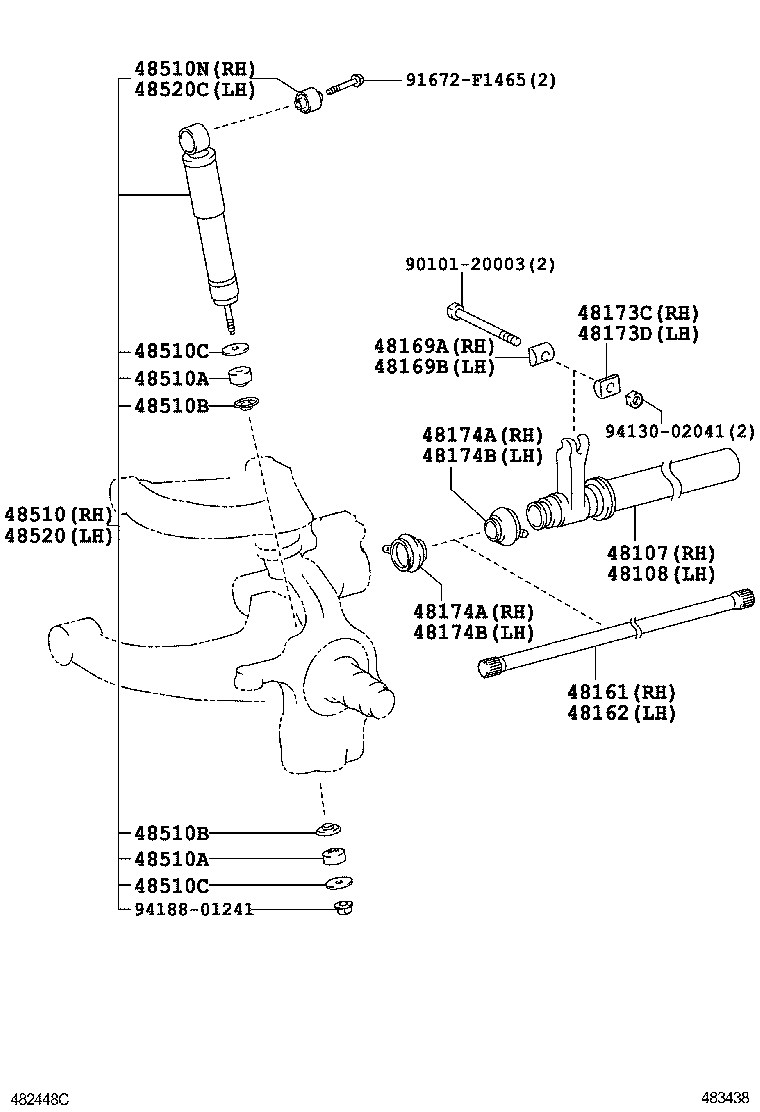

ILLUST NO. 1 OF 2(1107- )BZU600,TRC600,TRU600,XZC600,610,630,XZU600,602,610,620,630,640,642,650,6
ｱﾘ(ｽﾀﾋﾞﾗｲｻﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80349 |
XZC675,XZU675,685,695 ﾏｰｸ 48510−37060 |
1 | ||
| 48510-80768 |
XZC675,XZU675,685,695 ﾏｰｸ 48510−37061 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01059 |
XZC675,XZU675,685,695 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01059 |
XZC675,XZU675,685,695 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02077 |
XZC675,XZU675,685,695 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90560-12076 |
XZC675,XZU675,685,695 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90560-12076 |
XZC675,XZU675,685,695 |
4 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90389-14055 |
XZC675,XZU675,685,695 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-80349 |
XZC675,XZU675,685,695 ﾏｰｸ 48510−37060 |
1 | ||
| 48510-80768 |
XZC675,XZU675,685,695 ﾏｰｸ 48510−37061 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90389-14055 |
XZC675,XZU675,685,695 |
1 | ||
| Common parts | ||||
| 90105-16067 | ||||
| 90119-12088 | ||||
| 90177-14005 | ||||
| 90178-16004 | ||||
| 90178-16007 | ||||
| 90179-12016 | ||||
| 90201-16035 | ||||
| 91112-81045 | ||||
| 91651-B0820 | ||||
| 94184-01001 | ||||
ILLUST NO. 1 OF 2(1107- )BZU600,TRC600,TRU600,XZC600,610,630,XZU600,602,610,620,630,640,642,650,6
ﾅｼ(ｽﾀﾋﾞﾗｲｻﾞ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80349 |
XZC675,XZU675,685,695 ﾏｰｸ 48510−37060 |
1 | ||
| 48510-80768 |
XZC675,XZU675,685,695 ﾏｰｸ 48510−37061 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01059 |
XZC675,XZU675,685,695 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01059 |
XZC675,XZU675,685,695 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02077 |
XZC675,XZU675,685,695 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90560-12076 |
XZC675,XZU675,685,695 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90560-12076 |
XZC675,XZU675,685,695 |
4 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90389-14055 |
XZC675,XZU675,685,695 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-80349 |
XZC675,XZU675,685,695 ﾏｰｸ 48510−37060 |
1 | ||
| 48510-80768 |
XZC675,XZU675,685,695 ﾏｰｸ 48510−37061 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90389-14055 |
XZC675,XZU675,685,695 |
1 | ||
| Common parts | ||||
| 90105-16067 | ||||
| 90119-12088 | ||||
| 90178-16004 | ||||
| 90178-16007 | ||||
| 90179-12016 | ||||
| 90201-16035 | ||||
| 91651-B0820 | ||||
(1107- )XZC675,XZU675,685,695
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48107 - ARM SUB-ASSY, ANCHOR, RH | ||||
| 48107-37040 |
XZC675,XZU675,685,695 |
1 | ||
| 48107-37042 |
XZC675,XZU675,685,695 |
1 | ||
| 48107-37041 |
XZC675,XZU675,685,695 |
1 | ||
| 48108 - ARM SUB-ASSY, ANCHOR, LH | ||||
| 48108-37041 |
XZC675,XZU675,685,695 |
1 | ||
| 48108-37040 |
XZC675,XZU675,685,695 |
1 | ||
| 48108-37042 |
XZC675,XZU675,685,695 |
1 | ||
| 48161 - SPRING, TORSION BAR, RH | ||||
| 48161-37100 |
XZC675,XZU675,685,695..20T |
1 | ||
| 48162 - SPRING, TORSION BAR, LH | ||||
| 48162-37100 |
XZC675,XZU675,685,695..20T |
1 | ||
| 48169A - SWIVEL, ANCHOR ARM, RH | ||||
| 48169-37020 |
XZC675,XZU675,685,695 |
1 | ||
| 48169B - SWIVEL, ANCHOR ARM, LH | ||||
| 48169-37020 |
XZC675,XZU675,685,695 |
1 | ||
| 48173C - SEAT, ANCHOR ARM ADJUSTER, RH | ||||
| 48173-37020 |
XZC675,XZU675,685,695 |
1 | ||
| 48173D - SEAT, ANCHOR ARM ADJUSTER, LH | ||||
| 48173-37020 |
XZC675,XZU675,685,695 |
1 | ||
| 48174A - COVER, TORSION BAR DUST, RH | ||||
| 48174-36010 |
XZC675,XZU675,685,695 |
2 | ||
| 48174A - COVER, TORSION BAR DUST, RH | ||||
| 48174-36010 |
XZC675,XZU675,685,695 |
2 | ||
| 48174B - COVER, TORSION BAR DUST, LH | ||||
| 48174-36010 |
XZC675,XZU675,685,695 |
2 | ||
| 48174B - COVER, TORSION BAR DUST, LH | ||||
| 48174-36010 |
XZC675,XZU675,685,695 |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80349 |
XZC675,XZU675,685,695 ﾏｰｸ 48510−37060 |
1 | ||
| 48510-80768 |
XZC675,XZU675,685,695 ﾏｰｸ 48510−37061 |
1 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01059 |
XZC675,XZU675,685,695 |
4 | ||
| 48510A - CUSHION, FRONT SHOCK ABSORBER | ||||
| 90948-01059 |
XZC675,XZU675,685,695 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02077 |
XZC675,XZU675,685,695 |
4 | ||
| 48510B - RETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER) | ||||
| 90948-02077 |
XZC675,XZU675,685,695 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90560-12076 |
XZC675,XZU675,685,695 |
4 | ||
| 48510C - RETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER) | ||||
| 90560-12076 |
XZC675,XZU675,685,695 |
4 | ||
| 48510N - BUSH(FOR FRONT SHOCK ABSORBER RH) | ||||
| 90389-14055 |
XZC675,XZU675,685,695 |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48510-80349 |
XZC675,XZU675,685,695 ﾏｰｸ 48510−37060 |
1 | ||
| 48510-80768 |
XZC675,XZU675,685,695 ﾏｰｸ 48510−37061 |
1 | ||
| 48520C - BUSH(FOR FRONT SHOCK ABSORBER LH) | ||||
| 90389-14055 |
XZC675,XZU675,685,695 |
1 | ||
| Common parts | ||||
| 90101-20003 | ||||
| 91672-F1465 | ||||
| 94130-02041 | ||||
| 94188-01241 | ||||
