XZU675-TQMMX3 (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

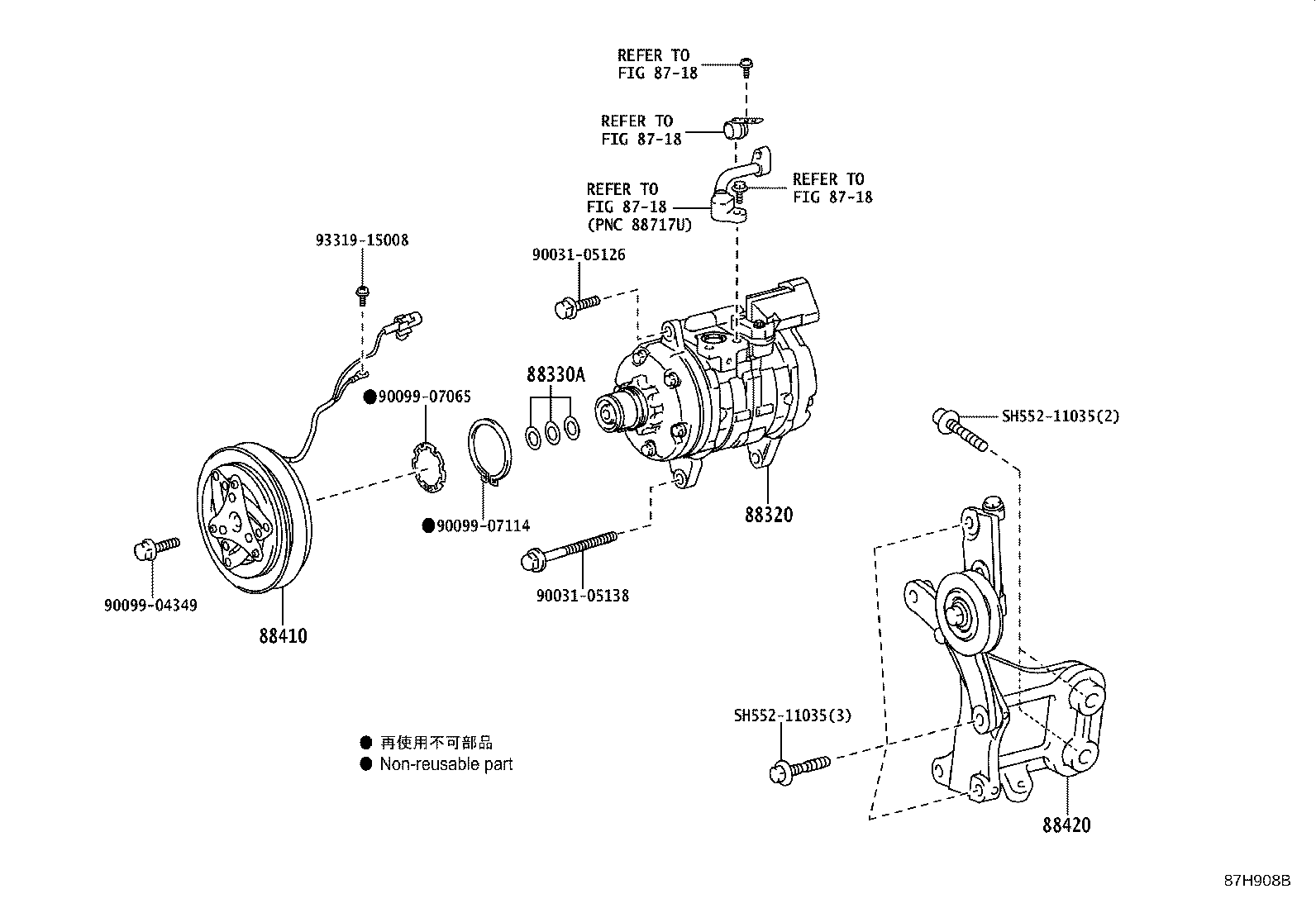

ILLUST NO. 1 OF 2(1905- )XZC675,XZU675,685,695..DCRWD

Click highlighted areas on diagram

ｺﾝﾌﾟﾚｯｻ

diagram 8718 8718 8718 8718 88320 88330A 88410 88420 9003105126 9003105138 9009904349 9009907065 9009907114 9331915008 SH55211035 SH55211035
Part # Description Qty Price
88320 - COMPRESSOR ASSY, COOLER
88320-37120

XZC675,XZU675,685,695..DCRWD

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-14020

XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO

 1
88410 - CLUTCH ASSY, MAGNET
88410-37141

XZC675,XZU675,685,695..DCRWD

 1
88420 - PULLEY ASSY, IDLE, W/BRACKET
88420-37330

XZC675,XZU675,685,695..DCRWD

 1
Common parts
90031-05126
90031-05138
90099-04349
90099-07065
90099-07114
93319-15008
SH552-11035
Linked diagrams
8718

ILLUST NO. 2 OF 2(1905- )DCRWD,DCVTO

Click highlighted areas on diagram

ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ(ﾚｲﾄｳｺﾝﾌﾟﾚｯｻ)

diagram 13471H 13471H 16603F 16630E 16630E 88036 88036 88345A 88345A 88469C 9003105124 9003105124 9003105142 9003105142 9003105146 9003105146 9030183001 9155180816 SH55211045 SH55211050 SH55211050 SH55211060
Part # Description Qty Price
13471H - PULLEY, CRANKSHAFT
13471-78060

N04C..XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)

 1
13471-78060

N04C..XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)

 1
13471-78060

N04C..XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)

 1
13471H - PULLEY, CRANKSHAFT
13471-78060

N04C..XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)

 1
13471-78060

N04C..XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)

 1
13471-78060

N04C..XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)

 1
16603F - PULLEY SUB-ASSY, IDLER
16603-78110

N04C..XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)

 1
16603-78110

N04C..XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)

 1
16630E - PULLEY ASSY, IDLER
16630-78260

N04C..XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)

 1
16630-78260

N04C..XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)

 1
16630-78260

N04C..XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)

 1
16630E - PULLEY ASSY, IDLER
16630-78260

N04C..XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)

 1
16630-78260

N04C..XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)

 1
16630-78260

N04C..XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)

 1
88036 - COMPRESSOR MOUNTING SET
88036-37231

XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)

 1
88036-37230

XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)

 1
88036-37230

XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)

 1
88036-37231

XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)

 1
88036-37220

XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

***,冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)

 1
88036 - COMPRESSOR MOUNTING SET
88036-37231

XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)

 1
88036-37230

XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)

 1
88036-37230

XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)

 1
88036-37231

XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

***,冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)

 1
88036-37220

XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

***,冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)

 1
88345A - BRACKET, COMPRESSOR MOUNTING
88431-37271

XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.1

 1
88345-37271

XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.2

 1
88431-37271

XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.1

 1
88345-37271

XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.2

 1
88431-37272

XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.1

 1
88431-37272

XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.1

 1
88345A - BRACKET, COMPRESSOR MOUNTING
88431-37271

XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.1

 1
88345-37271

XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.2

 1
88431-37271

XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.1

 1
88345-37271

XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.2

 1
88431-37272

XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ),NO.1

 1
88431-37272

XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ),NO.1

 1
88469C - SPACER
65167-37040

XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)

 1
65167-37040

XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T2,T3,T4,T5)..(DCRWD,DCVTO)..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)

 1
Common parts
90031-05124
90031-05142
90031-05146
90301-83001
91551-80816
SH552-11045
SH552-11050
SH552-11060
