XZU675-TQMMX3 (2019)
Toyota Dyna/Toyoace
ILLUST NO. 6 OF10(1905- )DCRWD,DCVTO
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83950M - LAMP ASSY, TELLTALE | ||||
| 83950-37030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO SRSｴｱﾊﾞｯｸﾞ−有り(運転席 & 助手席) |
1 | ||
| 84150D - SWITCH ASSY, HEADLAMP CLEANER | ||||
| 84150-37011 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-37081 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 84160 - SWITCH ASSY, ROOM LAMP | ||||
| 84270-37260 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) ﾙｰﾑﾗﾝﾌﾟ−ﾏｯﾌﾟﾗﾝﾌﾟ & ﾙｰﾑﾗﾝﾌﾟ(LED) |
1 | ||
| 84270A - SWITCH ASSY, MIRROR HEATER | ||||
| 84270-37240 |
XZC645,655,XZU602,64#,65#,685,695..DCRWD,DCVTO;XZC60#,630,675,XZU600,605,630,675..(DCRWD,DCVTO)..(IV3,IV4,IV5,IV6,IV7) ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH & *CR(DOP)) |
1 | ||
| 84270-37240 |
XZC645,655,XZU602,64#,65#,685,695..DCRWD,DCVTO;XZC60#,630,675,XZU600,605,630,675..(DCRWD,DCVTO)..(IV3,IV4,IV5,IV6,IV7) ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH) |
1 | ||
| 84270-37240 |
XZC60#,630,675,XZU600,605,630,675..(DM3,DM5,DM6,DM7,T2,T4,T5)..DCRWD ｱｳﾀﾐﾗｰ−*DRP(*273 & *SHS & *WIH) |
1 | ||
| 84270-37240 |
XZC60#,630,675,XZU600,605,630,675..(DM3,DM5,DM6,DM7,T2,T4,T5)..DCRWD ｱｳﾀﾐﾗｰ−*DRP(*273 & *SHS & *WIH & *CR(DOP)) |
1 | ||
| 84270D - SWITCH ASSY, ES START TIMING | ||||
| 84270-37320 |
XZC60#,630,645,655,675,XZU600,605,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO)..(CBU,IV3,IV4,IV5,IV7) 坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 84270K - SWITCH ASSY, DPR | ||||
| 84270-37460 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 84270L - SWITCH ASSY, IDLE STOP | ||||
| 84270-37270 |
XZC600,630..DCRWD;XZC605,XZU605,655..T2..6FC..DCRWD;XZC605,645,655,675,XZU60#,630,64#,65#,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(DCRWD,DCVTO)..(CBU,IV3,IV4,IV5,IV6) |
1 | ||
| 84270L - SWITCH ASSY, IDLE STOP | ||||
| 84270-37270 |
XZC600,630..DCRWD;XZC605,XZU605,655..T2..6FC..DCRWD;XZC605,645,655,675,XZU60#,630,64#,65#,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(DCRWD,DCVTO)..(CBU,IV3,IV4,IV5,IV6) |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-37110 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 84490J - SWITCH ASSY, CLEARANCE SONAR | ||||
| 84270-37490 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 84270-37490 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) |
1 | ||
| 84724 - SWITCH, 4 WHEEL DRIVE CONTROL | ||||
| 84270-37400 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 84770A - SWITCH ASSY, PRE-COLLISION SYSTEM CANCEL | ||||
| 84270-37510 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) |
1 | ||
| 84873A - SWITCH, RETRACTABLE OUTER MIRROR | ||||
| 84873-37030 |
XZC60#,630,675,XZU600,605,630,675..(DM3,DM5,DM6,DM7,T2,T4,T5)..DCRWD ｱｳﾀﾐﾗｰ−*DRP(*273 & *SHS & *WIH) |
1 | ||
| 84873-37030 |
XZC60#,630,675,XZU600,605,630,675..(DM3,DM5,DM6,DM7,T2,T4,T5)..DCRWD ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57 & *SHS & *TM) |
1 | ||
| 84873-37030 |
XZC60#,630,675,XZU600,605,630,675..(DM3,DM5,DM6,DM7,T2,T4,T5)..DCRWD ｱｳﾀﾐﾗｰ−*DRP(*273 & *SHS & *WIH & *CR(DOP)) |
1 | ||
| 84873-37030 |
XZC645,655,XZU602,64#,65#,685,695..DCRWD,DCVTO;XZC60#,630,675,XZU600,605,630,675..(DCRWD,DCVTO)..(IV3,IV4,IV5,IV6,IV7) ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH & *CR(DOP)) |
1 | ||
| 84873-37030 |
XZC645,655,XZU602,64#,65#,685,695..DCRWD,DCVTO;XZC60#,630,675,XZU600,605,630,675..(DCRWD,DCVTO)..(IV3,IV4,IV5,IV6,IV7) ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57 & *LOS & *TM) |
1 | ||
| 84873-37030 |
XZC60#,630,675,XZU600,605,630,675..(DM3,DM5,DM6,DM7,T2,T4,T5)..DCRWD ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57 & *SHS & *TM(*WVM)) |
1 | ||
| 84873-37030 |
XZC60#,630,675,XZU600,605,630,675..(DM3,DM5,DM6,DM7,T2,T4,T5)..DCRWD ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57 & *SHS &*TM),*CR(DOP) |
1 | ||
| 84873-37030 |
XZC645,655,XZU602,64#,65#,685,695..DCRWD,DCVTO;XZC60#,630,675,XZU600,605,630,675..(DCRWD,DCVTO)..(IV3,IV4,IV5,IV6,IV7) ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH) |
1 | ||
| 84873-37030 |
XZC645,655,XZU602,64#,65#,685,695..DCRWD,DCVTO;XZC60#,630,675,XZU600,605,630,675..(DCRWD,DCVTO)..(IV3,IV4,IV5,IV6,IV7) ｱｳﾀﾐﾗｰ−*DRS(*TM,*PAS(*57 & *LOS & *TM)､*CR(DOP) |
1 | ||
| 84873-37030 |
XZC645,655,XZU602,64#,65#,685,695..DCRWD,DCVTO;XZC60#,630,675,XZU600,605,630,675..(DCRWD,DCVTO)..(IV3,IV4,IV5,IV6,IV7) ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57 & *LOS & *TM(*WVM)) |
1 | ||
| 84873-37030 |
XZC60#,630,675,XZU600,605,630,675..(DM3,DM5,DM6,DM7,T2,T4,T5)..DCRWD ｱｳﾀﾐﾗｰ−*DRS(*TM),*PAS(*57 & *SHS & *WVM) |
1 | ||
| 84873-37030 |
XZC645,655,XZU602,64#,65#,685,695..DCRWD,DCVTO;XZC60#,630,675,XZU600,605,630,675..(DCRWD,DCVTO)..(IV3,IV4,IV5,IV6,IV7) ｱｳﾀﾐﾗｰ−*DRS(*WVM),*PAS(*57 & *LOS & *TM(*WVM)) |
1 | ||
| 84986C - SWITCH, VSC OFF | ||||
| 84270-37300 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 87290F - SWITCH ASSY, ECO | ||||
| 84270-37410 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
1 | ||
| 87290F - SWITCH ASSY, ECO | ||||
| 84270-37410 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
1 | ||
| 87290F - SWITCH ASSY, ECO | ||||
| 84270-37410 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
1 | ||
| Linked diagrams | ||||
| 8413 | ||||
| 8420 | ||||
ILLUST NO. 4 OF10(1905- )SCB..DCRWD,DCVTO
ﾘﾚｰﾌﾞﾛｯｸ(24V)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-78130 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 28371 - RELAY, IGNITION, NO.1 | ||||
| 85900-37150 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 28490B - RELAY, POWER TAKE-OFF SIGNAL REVERSE | ||||
| 85900-37150 |
N04C..XZU675..T4..DCRWD..IV3 高所作業車仕様&ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| 85900-37150 |
N04C..XZU675..T4..DCRWD..IV3 高所作業車仕様&ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ |
1 | ||
| 28610 - RELAY ASSY, INTAKE HEATER OR GLOW PLUG | ||||
| 28610-E0010 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 寒冷地仕様 |
1 | ||
| 82210P - ENGINE ROOM FUSIBLE LINK | ||||
| 82627-37030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 20A,ﾒｽ端子 |
1 | ||
| 82627-37040 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 60A,ﾒｽ端子 |
1 | ||
| 90982-08203 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 80A,ｵｽ端子,黒 |
1 | ||
| 90982-08274 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 120A,ｵｽ端子,白 |
1 | ||
| 90982-08295 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 30A,ﾒｽ端子,桃 |
1 | ||
| 90982-08296 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 50A,ﾒｽ端子,赤 |
1 | ||
| 90982-08300 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 50A−30A−30A,ﾒｽ端子,赤 |
1 | ||
| 90982-08294 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 40A,ﾒｽ端子,緑 |
1 | ||
| 82600E - ENGINE ROOM FUSE | ||||
| 90982-09025 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09023 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09021 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09022 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 82620A - BLOCK ASSY, FUSIBLE LINK | ||||
| 82620-37200 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 82660B - BLOCK ASSY, RELAY | ||||
| 82660-37220 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-37690 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-37180 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 82715 - BRACKET,WIRING HARNESS CLAMP | ||||
| 82715-3VU90 |
XZC675,XZU675..T4..DCRWD;XZC60#,630,645,655,XZU60#,630,64#,65#,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-37040 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 82823K - CAP, TERMINAL | ||||
| 82823-37080 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 84520C - RELAY, NEUTRAL SIGNAL REVERSE | ||||
| 90987-04008 |
XZU675..T4..DCRWD..IV3 高所作業車仕様&ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ |
1 | ||
| 90987-04008 |
XZU675..T4..DCRWD..IV3 高所作業車仕様&ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ |
1 | ||
| 85900J - RELAY, BRAKE LOCK | ||||
| 85900-37150 |
XZC600,630..DCRWD;XZC605,XZU605,655..T2..6FC..DCRWD;XZC605,645,655,675,XZU60#,630,64#,65#,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(DCRWD,DCVTO)..(CBU,IV3,IV4,IV5,IV6) |
1 | ||
| 85900K - RELAY ASSY, CONTROL UNIT (FOR ELECTRIC PARKING BRAKE) | ||||
| 85900-37150 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 85900-37150 |
XZC675,XZU675,685,695..SCB..DCRWD ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 85909A - BRACKET SUB-ASSY, RELAY BLOCK | ||||
| 82760-37360 |
XZC675,XZU675..T4..DCRWD;XZC60#,630,645,655,XZU60#,630,64#,65#,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 82760-37361 |
XZC675,XZU675..T4..DCRWD;XZC60#,630,645,655,XZU60#,630,64#,65#,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04007 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 85911P - RELAY, ACTUATOR POWER | ||||
| 85900-37150 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 85931B - RELAY, FUEL HEATER | ||||
| 85900-37150 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO ﾌｭｰｴﾙﾋｰﾀ−有り |
1 | ||
| 85934A - RELAY CONDENSER FAN | ||||
| 90987-02017 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85270-37020 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 89463B - RELAY, NITROGEN OXIDES | ||||
| 85900-37150 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| Common parts | ||||
| 82715-3VT90 | ||||
| 91551-80825 | ||||
| 91552-81025 | ||||
| 93568-55016 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| SZ182-06003 | ||||
ILLUST NO. 3 OF10(1905- )MTM..DCRWD,DCVTO
ﾄﾗﾝｽﾐｯｼｮﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84113A - BRACKET, SWITCH, NO.1 | ||||
| 84113-37120 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-37050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
1 | ||
| 84220C - SWITCH ASSY, TRANSMISSION POSITION INDICATOR | ||||
| 84220-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
2 | ||
| 84220C - SWITCH ASSY, TRANSMISSION POSITION INDICATOR | ||||
| 84220-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
2 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-37090 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-37090 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
1 | ||
| Common parts | ||||
| 82711-1E340 | ||||
| 91551-80816 | ||||

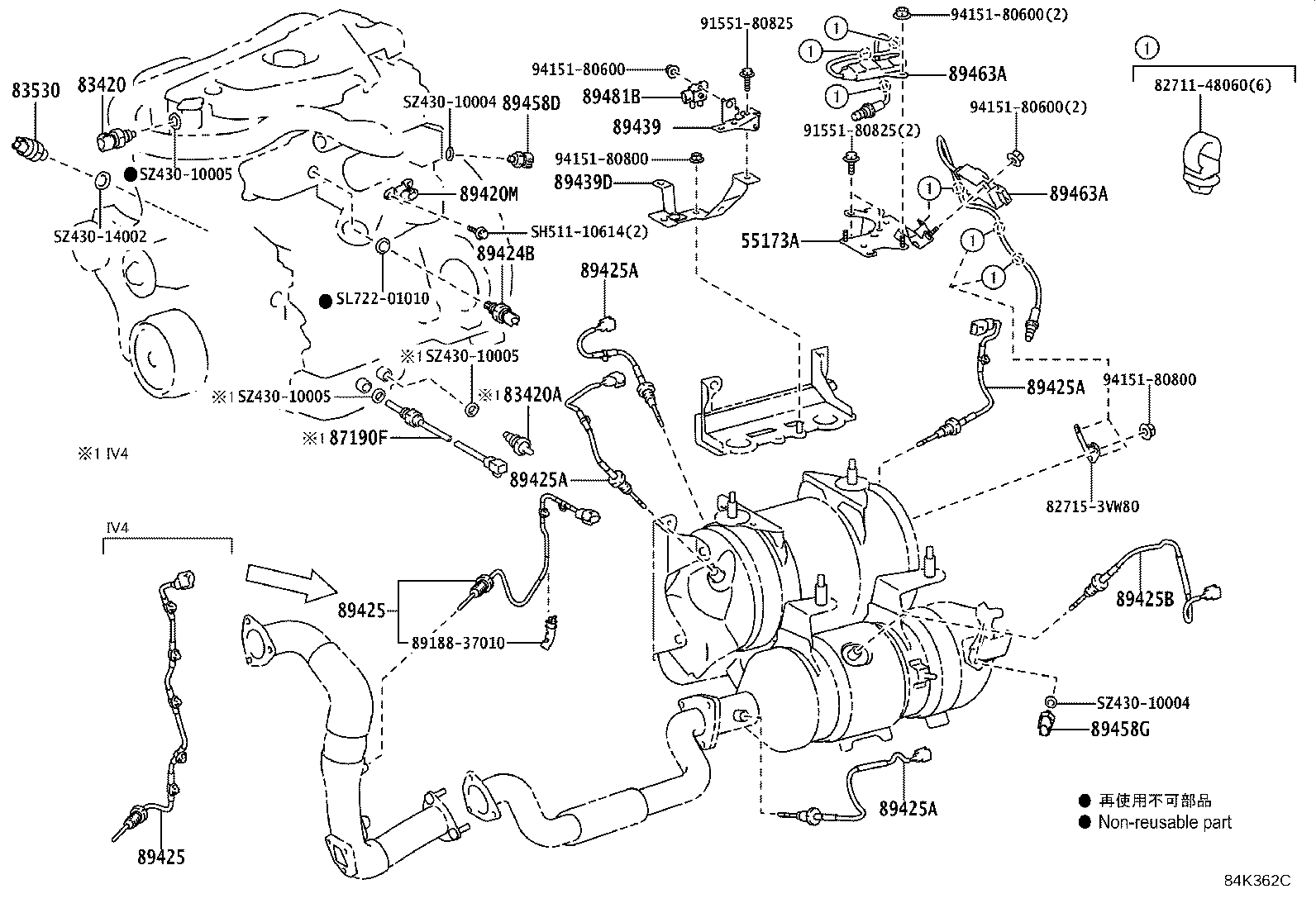

ILLUST NO. 1 OF10(1905- )XZC675,XZU675,685,695..DCRWD
ｴﾝｼﾞﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55173A - BRACKET | ||||
| 55173-37711 |
XZC675,XZU675,685,695..DCRWD;XZU600,605,640,655..DCB..DCRWD |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| S8342-01250 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-E0250 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 83530-E0220 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 89420M - SENSOR ASSY, AIR PRESSURE | ||||
| 89421-E0050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 89424B - SWITCH, INLET AIR TEMPERATURE | ||||
| 89424-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-37310 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) |
1 | ||
| 89425-37400 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD..(CBU,IV3,IV5,IV6) |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-37310 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6) |
1 | ||
| 89425-37400 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD..(CBU,IV3,IV5,IV6) |
1 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZC675,XZU675,685,695..DCRWD |
4 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZC675,XZU675,685,695..DCRWD |
4 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZC675,XZU675,685,695..DCRWD |
4 | ||
| 89425A - SENSOR, EXHAUST GAS TEMPERATURE, NO.2 | ||||
| 89425-37350 |
XZC675,XZU675,685,695..DCRWD |
4 | ||
| 89425B - SENSOR, EXHAUST GAS TEMPERATURE, NO.3 | ||||
| 89425-E0350 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 89439 - BRACKET, SENSOR | ||||
| 89439-37330 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 89458D - SENSOR, FUEL PRESSURE | ||||
| 89458-E0050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 89458G - SENSOR, FUEL PRESSURE, NO.2 | ||||
| 89458-E0050 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 89463A - SENSOR, NITROGEN OXIDES | ||||
| 89463-E0610 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 89463-E0611 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 89463A - SENSOR, NITROGEN OXIDES | ||||
| 89463-E0610 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 89463-E0611 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 89481B - SENSOR, DIFFERENTIAL PRESSURE | ||||
| 89481-E0021 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| Common parts | ||||
| 82711-48060 | ||||
| 82715-3VW80 | ||||
| 89188-37010 | ||||
| 91551-80825 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| SH511-10614 | ||||
| SL722-01010 | ||||
| SZ430-10004 | ||||
| SZ430-10005 | ||||
| SZ430-14002 | ||||
ILLUST NO.10 OF10(1905- )DCRWD,DCVTO
ﾘﾔﾎﾞﾃﾞｰ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80374 |
XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC60#,630,645,655,XZU630,64#,65#,695..DCRWD,DCVTO;XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3) |
1 | ||
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80374 |
XZU685..SCB..DCRWD;XZU685..DCRWD..IV4;XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC60#,630,645,655,XZU630,64#,65#,695..DCRWD,DCVTO;XZC675,XZU605,675..SCB..(T2,T4,T5)..DCRWD..(CBU,IV3) |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
XZU600..DCRWD..(CBU,IV3,IV4,IV7);XZC675,XZU605,675..(T2,T4,T5)..DCRWD..(CBU,IV3);XZC60#,630,645,655,XZU630,64#,65#,685,695..DCRWD,DCVTO |
1 | ||
| 86650H - BUZZER ASSY, BACK | ||||
| 86650-37181 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| Common parts | ||||
| 91611-B0816 | ||||
| 93319-A4010 | ||||
| 94130-00802 | ||||
| SZ119-05003 | ||||
ILLUST NO. 5 OF10(1905- )DCRWD,DCVTO
ｶｳﾙ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300D - RELAY, STARTER CUT | ||||
| 90987-04008 |
N04C..XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 84520B - RELAY, CLUTCH START | ||||
| 85900-37150 |
XZC60#,630,645,655,675,XZU600,605,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV7) |
1 | ||
| 85900-37150 |
XZC60#,630,645,655,675,XZU600,605,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV7) ｸﾗｯﾁｽﾀｰﾄｼｽﾃﾑ−無し |
1 | ||
| 85440B - RELAY(FOR FOUR WHEEL DRIVE CONTROL) | ||||
| 90987-04008 |
XZC675,XZU675,685,695..DCRWD |
1 | ||
| 85900E - RELAY, IDLE STOP | ||||
| 85900-37150 |
XZC600,630..DCRWD;XZC605,XZU605,655..T2..6FC..DCRWD;XZC605,645,655,675,XZU60#,630,64#,65#,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(DCRWD,DCVTO)..(CBU,IV3,IV4,IV5,IV6) |
2 | ||
| 85900E - RELAY, IDLE STOP | ||||
| 85900-37150 |
XZC600,630..DCRWD;XZC605,XZU605,655..T2..6FC..DCRWD;XZC605,645,655,675,XZU60#,630,64#,65#,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(DCRWD,DCVTO)..(CBU,IV3,IV4,IV5,IV6) |
2 | ||
| 85900Q - RELAY, TAIL | ||||
| 85900-37150 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04007 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 85900-37150 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
2 | ||
| 85919E - RELAY, STOP LAMP | ||||
| S8592-02570 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 85930G - RELAY, ACC | ||||
| 85900-37150 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02017 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 85934B - RELAY, IDLE STOP | ||||
| 90987-04008 |
XZC600,630..DCRWD;XZC605,XZU605,655..T2..6FC..DCRWD;XZC605,645,655,675,XZU60#,630,64#,65#,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(DCRWD,DCVTO)..(CBU,IV3,IV4,IV5,IV6) |
2 | ||
ILLUST NO. 6 OF10(1905- )DCRWD,DCVTO
ｲﾝｽﾄﾙﾒﾝﾄﾊﾟﾈﾙ 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84580E - SWITCH ASSY, THROTTLE POSITION | ||||
| 84581-37030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(IV3,IV4,IV6,IV7) |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-34010 |
XZC645,655,XZU602,64#,65#,685,695..DCRWD,DCVTO;XZC60#,630,675,XZU600,605,630,675..(DCRWD,DCVTO)..(IV3,IV4,IV5,IV6,IV7) ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH) |
1 | ||
| 84870-34010 |
XZC60#,630,675,XZU600,605,630,675..(DM3,DM5,DM6,DM7,T2,T4,T5)..DCRWD ｱｳﾀﾐﾗｰ−*DRP(*273 & *SHS & *WIH) |
1 | ||
| 84870-34010 |
XZC645,655,XZU602,64#,65#,685,695..DCRWD,DCVTO;XZC60#,630,675,XZU600,605,630,675..(DCRWD,DCVTO)..(IV3,IV4,IV5,IV6,IV7) ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH & *CR(DOP)) |
1 | ||
| 84870-34010 |
XZC60#,630,675,XZU600,605,630,675..(DM3,DM5,DM6,DM7,T2,T4,T5)..DCRWD ｱｳﾀﾐﾗｰ−*DRP(*273 & *SHS & *WIH & *CR(DOP)) |
1 | ||
| 84870D - SWITCH ASSY, OUTER MIRROR, NO.2 | ||||
| 84872-52030 |
XZC60#,630,675,XZU600,605,630,675..(DM3,DM5,DM6,DM7,T2,T4,T5)..DCRWD ｱｳﾀﾐﾗｰ−*DRP(*273 & *SHS & *WIH & *CR(DOP)) |
1 | ||
| 84872-52030 |
XZC645,655,XZU602,64#,65#,685,695..DCRWD,DCVTO;XZC60#,630,675,XZU600,605,630,675..(DCRWD,DCVTO)..(IV3,IV4,IV5,IV6,IV7) ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH) |
1 | ||
| 84872-52030 |
XZC60#,630,675,XZU600,605,630,675..(DM3,DM5,DM6,DM7,T2,T4,T5)..DCRWD ｱｳﾀﾐﾗｰ−*DRP(*273 & *SHS & *WIH) |
1 | ||
| 84872-52030 |
XZC645,655,XZU602,64#,65#,685,695..DCRWD,DCVTO;XZC60#,630,675,XZU600,605,630,675..(DCRWD,DCVTO)..(IV3,IV4,IV5,IV6,IV7) ｱｳﾀﾐﾗｰ−*DRP(*273 & *LOS & *WIH & *CR(DOP)) |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-37060 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 灰皿−有り |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 灰皿−有り |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-95400 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 灰皿−有り |
1 | ||
| 85530D - SOCKET ASSY, POWER OUTLET, NO.2 | ||||
| 85530-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 灰皿−有り |
1 | ||
| 85533-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-26010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 灰皿−有り |
1 | ||
| 85533-37010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 85535E - COVER, POWER OUTLET SOCKET, NO.2 | ||||
| 85535-37020 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| Linked diagrams | ||||
| 7851 | ||||
ILLUST NO. 5 OF10(1905- )DCRWD,DCVTO
ｶｳﾙ 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81713 - HOLDER, FUSEE | ||||
| SZ950-79033 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09024 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09023 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09022 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82600D - INSTRUMENT PANEL FUSE | ||||
| 90982-09024 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 25A,ﾐﾆ ﾋｭｰｽﾞ |
1 | ||
| 90982-09023 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09022 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09021 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-37480 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-58010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-37110 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 82641-37120 |
XZU650..30T..DCRWD;XZU650..T4..DCRWD..IV3;XZU650..T3..6F..DCRWD..IV3;XZC605,645,655,675,XZU605,640,645,655,675,685,695..SCB..(T2,T3,T4,T5)..DCRWD..IV3 ﾊﾟﾜｰﾄﾞｱﾛｯｸ−有り(ﾜｲﾔﾚｽﾄﾞｱﾛｯｸ = 宅配仕様) |
1 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-37060 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO VSC−無し |
1 | ||
| 82730-37291 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 82730-37281 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO VSC−無し |
1 | ||
| 82730-37140 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-37060 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 84345 - ADJUSTER, STOP LAMP SWITCH MOUNTING | ||||
| 84345-51010 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 84640C - SWITCH ASSY, EXHAUST RETARDER | ||||
| 84640-37080 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO) |
1 | ||
| 86210E - CONVERTER ASSY, VOLTAGE | ||||
| 86210-37080 |
XZC600,630..DCRWD;XZC605,XZU605,655..T2..6FC..DCRWD;XZC605,645,655,675,XZU60#,630,64#,65#,675,685,695..(DM3,DM5,DM6,DM7,T3,T4,T5)..(DCRWD,DCVTO)..(CBU,IV3,IV4,IV5,IV6) |
1 | ||
| 88150A - COMPUTER ASSY, DRIVING SUPPORT | ||||
| 88150-37040 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) |
1 | ||
| 88150-37061 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) |
1 | ||
| 88150-37060 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) |
1 | ||
| 88150-37061 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 88150-37060 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 88150-37040 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7) ﾌﾟﾘｸﾗｯｼｭｼｽﾃﾑ−無し |
1 | ||
| 89050 - COMPUTER ASSY, PARKING BRAKE | ||||
| 89050-37030 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..SCB..(DCRWD,DCVTO) |
1 | ||
| 89050-37030 |
XZC675,XZU675,685,695..SCB..DCRWD ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 89280 - SENSOR ASSY, CLUTCH PEDAL STROKE | ||||
| 89280-37020 |
XZC60#,630,645,655,675,XZU600,605,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO)..(CBU,IV3,IV4,IV5,IV7) 坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89539E - BRACKET, COMPUTER | ||||
| 89539-37131 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO |
1 | ||
| 89539Q - BRACKET, COMPUTER | ||||
| 89539-37062 |
XZU685..DCRWD..IV4;XZU605,655,685,695..SCB..DCRWD;XZC60#,630,645,655,675,XZU600,602,630,64#,650,652,675..DCRWD,DCVTO NO.1 |
1 | ||
| 89539-37062 |
XZC675,XZU675,685,695..SCB..DCRWD ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ),NO.1 |
1 | ||
| 89539-37070 |
XZU685..DCRWD..IV4;XZU605,655,685,695..SCB..DCRWD;XZC60#,630,645,655,675,XZU600,602,630,64#,650,652,675..DCRWD,DCVTO NO.2 |
1 | ||
| 89539Q - BRACKET, COMPUTER | ||||
| 89539-37062 |
XZU685..DCRWD..IV4;XZU605,655,685,695..SCB..DCRWD;XZC60#,630,645,655,675,XZU600,602,630,64#,650,652,675..DCRWD,DCVTO NO.1 |
1 | ||
| 89539-37062 |
XZC675,XZU675,685,695..SCB..DCRWD ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ),NO.1 |
1 | ||
| 89539-37070 |
XZU685..DCRWD..IV4;XZU605,655,685,695..SCB..DCRWD;XZC60#,630,645,655,675,XZU600,602,630,64#,650,652,675..DCRWD,DCVTO NO.2 |
1 | ||
| 89880 - COMPUTER ASSY, ELECTRIC VEHICLE CONTROL | ||||
| 89880-37G91 |
XZU650..(20T,30T,35T)..(DCRWD,DCVTO);XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675,685,695..DCRWD,DCVTO ﾃﾞｭﾄﾛ専用&寒冷地仕様 |
1 | ||
| 89880-37G91 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G91 |
XZC675,XZU675,685,695..SCB..DCRWD ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 89880-37G91 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G91 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89880-37G91 |
XZC60#,630,645,655,675,XZU600,605,630,64#,65#,675,685,695..MTM..DCRWD..(CBU,IV3,IV4,IV5,IV7) ﾃﾞｭﾄﾛ専用&寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G91 |
XZU650..DCVTO..CBU;XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T3,T4,T5)..MTM..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G91 |
XZU650..DCVTO..CBU;XZU640..(DCRWD,DCVTO)..(IV3,IV6);XZU600,650..(T3,T4)..(20T,35T,40T)..(DCRWD,DCVTO)..(IV3,IV6);XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..SCB..(T3,T4,T5)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G91 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G91 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G91 |
XZC675,XZU675,685,695..SCB..DCRWD ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 89880-37G91 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G91 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G91 |
XZU650..DCVTO..CBU;XZU640..(DCRWD,DCVTO)..(IV3,IV6);XZU600,650..(T3,T4)..(20T,35T,40T)..(DCRWD,DCVTO)..(IV3,IV6);XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..SCB..(T3,T4,T5)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G91 |
XZC60#,630,645,655,675,XZU600,605,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO)..(CBU,IV3,IV4,IV5,IV7) ﾃﾞｭﾄﾛ専用&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G91 |
XZU650..DCVTO..CBU;XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T3,T4,T5)..MTM..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37R10 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37R00 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 89880-37T90 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) |
1 | ||
| 89880-37S50 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) 寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 89880-37S60 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37U00 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37V20 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 寒冷地仕様&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37V10 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) 寒冷地仕様 |
1 | ||
| 89880-37W30 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37W20 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37X70 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) 寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37X80 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31LX 2 |
1 | ||
| 89880-37Z30 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37Z20 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) 坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-3V060 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-3V050 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) 寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G94 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89880-37G94 |
XZC675,XZU675,685,695..SCB..DCRWD ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 89880-37G94 |
XZU650..(20T,30T,35T)..(DCRWD,DCVTO);XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675,685,695..DCRWD,DCVTO ﾃﾞｭﾄﾛ専用&寒冷地仕様 |
1 | ||
| 89880-37G94 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G94 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G94 |
XZU650..DCVTO..CBU;XZU640..(DCRWD,DCVTO)..(IV3,IV6);XZU600,650..(T3,T4)..(20T,35T,40T)..(DCRWD,DCVTO)..(IV3,IV6);XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..SCB..(T3,T4,T5)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G94 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G94 |
XZU650..DCVTO..CBU;XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T3,T4,T5)..MTM..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G94 |
XZC675,XZU675,685,695..SCB..DCRWD ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 89880-37G94 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G94 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G94 |
XZC60#,630,645,655,675,XZU600,605,630,64#,65#,675,685,695..MTM..DCRWD..(CBU,IV3,IV4,IV5,IV7) ﾃﾞｭﾄﾛ専用&寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G94 |
XZC60#,630,645,655,675,XZU600,605,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO)..(CBU,IV3,IV4,IV5,IV7) ﾃﾞｭﾄﾛ専用&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G94 |
XZU650..DCVTO..CBU;XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T3,T4,T5)..MTM..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G94 |
XZU650..DCVTO..CBU;XZU640..(DCRWD,DCVTO)..(IV3,IV6);XZU600,650..(T3,T4)..(20T,35T,40T)..(DCRWD,DCVTO)..(IV3,IV6);XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..SCB..(T3,T4,T5)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G94 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37R11 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37R01 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 89880-37S51 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) 寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 89880-37T91 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) |
1 | ||
| 89880-37U01 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37V21 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 寒冷地仕様&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37V11 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) 寒冷地仕様 |
1 | ||
| 89880-37S61 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37W21 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37W31 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37X71 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) 寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37X81 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31LX 2 |
1 | ||
| 89880-37Z21 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) 坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-3V061 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-3V051 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) 寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37Z31 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G95 |
XZU650..(20T,30T,35T)..(DCRWD,DCVTO);XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675,685,695..DCRWD,DCVTO ﾃﾞｭﾄﾛ専用&寒冷地仕様 |
1 | ||
| 89880-37G95 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G95 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G95 |
XZC675,XZU675,685,695..SCB..DCRWD ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 89880-37G95 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89880-37G95 |
XZU650..DCVTO..CBU;XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T3,T4,T5)..MTM..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G95 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G95 |
XZC675,XZU675,685,695..SCB..DCRWD ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 89880-37G95 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G95 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G95 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G95 |
XZU650..DCVTO..CBU;XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T3,T4,T5)..MTM..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G95 |
XZU650..DCVTO..CBU;XZU640..(DCRWD,DCVTO)..(IV3,IV6);XZU600,650..(T3,T4)..(20T,35T,40T)..(DCRWD,DCVTO)..(IV3,IV6);XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..SCB..(T3,T4,T5)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G95 |
XZC60#,630,645,655,675,XZU600,605,630,64#,65#,675,685,695..MTM..DCRWD..(CBU,IV3,IV4,IV5,IV7) ﾃﾞｭﾄﾛ専用&寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G95 |
XZC60#,630,645,655,675,XZU600,605,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO)..(CBU,IV3,IV4,IV5,IV7) ﾃﾞｭﾄﾛ専用&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G95 |
XZU650..DCVTO..CBU;XZU640..(DCRWD,DCVTO)..(IV3,IV6);XZU600,650..(T3,T4)..(20T,35T,40T)..(DCRWD,DCVTO)..(IV3,IV6);XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..SCB..(T3,T4,T5)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37R12 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37R02 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 89880-37S52 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) 寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 89880-37U02 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37T92 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) |
1 | ||
| 89880-37S62 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37V22 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 寒冷地仕様&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37W32 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37W22 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37V12 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) 寒冷地仕様 |
1 | ||
| 89880-37X72 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) 寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37X82 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31LX 2 |
1 | ||
| 89880-37Z32 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37Z22 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) 坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-3V052 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) 寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G96 |
XZU650..(20T,30T,35T)..(DCRWD,DCVTO);XZC60#,630,645,655,675,XZU60#,630,64#,652,655,675,685,695..DCRWD,DCVTO ﾃﾞｭﾄﾛ専用&寒冷地仕様 |
1 | ||
| 89880-3V062 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G96 |
XZC60#,630,645,655,675,XZU60#,630,64#,65#,675,685,695..DCRWD,DCVTO ﾃﾞｭﾄﾛ専用 |
1 | ||
| 89880-37G96 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G96 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G96 |
XZC675,XZU675,685,695..SCB..DCRWD ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 89880-37G96 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G96 |
XZU650..DCVTO..CBU;XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T3,T4,T5)..MTM..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G96 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G96 |
XZU650..DCVTO..CBU;XZU640..(DCRWD,DCVTO)..(IV3,IV6);XZU600,650..(T3,T4)..(20T,35T,40T)..(DCRWD,DCVTO)..(IV3,IV6);XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..SCB..(T3,T4,T5)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&寒冷地仕様&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G96 |
XZC60#,630,645,655,675,XZU600,605,630,64#,65#,675,685,695..MTM..DCRWD..(CBU,IV3,IV4,IV5,IV7) ﾃﾞｭﾄﾛ専用&寒冷地仕様&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G96 |
XZC675,XZU675,685,695..SCB..DCRWD ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ) |
1 | ||
| 89880-37G96 |
XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G96 |
XZU650..DCVTO..CBU;XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..SCB..(T3,T4,T5)..MTM..(DCRWD,DCVTO)..IV3 ﾃﾞｭﾄﾛ専用&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ)&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| 89880-37G96 |
XZC60#,630,645,655,675,XZU600,605,630,64#,65#,675,685,695..MTM..(DCRWD,DCVTO)..(CBU,IV3,IV4,IV5,IV7) ﾃﾞｭﾄﾛ専用&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G96 |
XZC675,XZU675,685,695..SCB..DCRWD..(CBU,IV3) ﾃﾞｭﾄﾛ専用&ﾊﾟｰｷﾝｸﾞﾌﾞﾚｰｷ−固定式ﾚﾊﾞｰ(ﾄﾞﾗﾑ内径190ﾐﾘ)&坂道発進補助装置−有り(ESｽﾀｰﾄ & ｷﾞﾔｲﾝｱｲﾄﾞﾙｱｯﾌﾟ) |
1 | ||
| 89880-37G96 |
XZU650..DCVTO..CBU;XZU640..(DCRWD,DCVTO)..(IV3,IV6);XZU600,650..(T3,T4)..(20T,35T,40T)..(DCRWD,DCVTO)..(IV3,IV6);XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..SCB..(T3,T4,T5)..DCRWD..IV3 ﾃﾞｭﾄﾛ専用&ﾊﾞｯﾃﾘ−115D31L X 2 |
1 | ||
| Common parts | ||||
| 90119-06536 | ||||
| 90148-60013 | ||||
| 90159-50322 | ||||
| 90467-07211 | ||||
| 91551-80610 | ||||
| 91551-80612 | ||||
| 91551-80814 | ||||
| 91551-80816 | ||||
| 94120-41000 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8413 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
