XZU675-TQMMX3 (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999
Engine N04C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

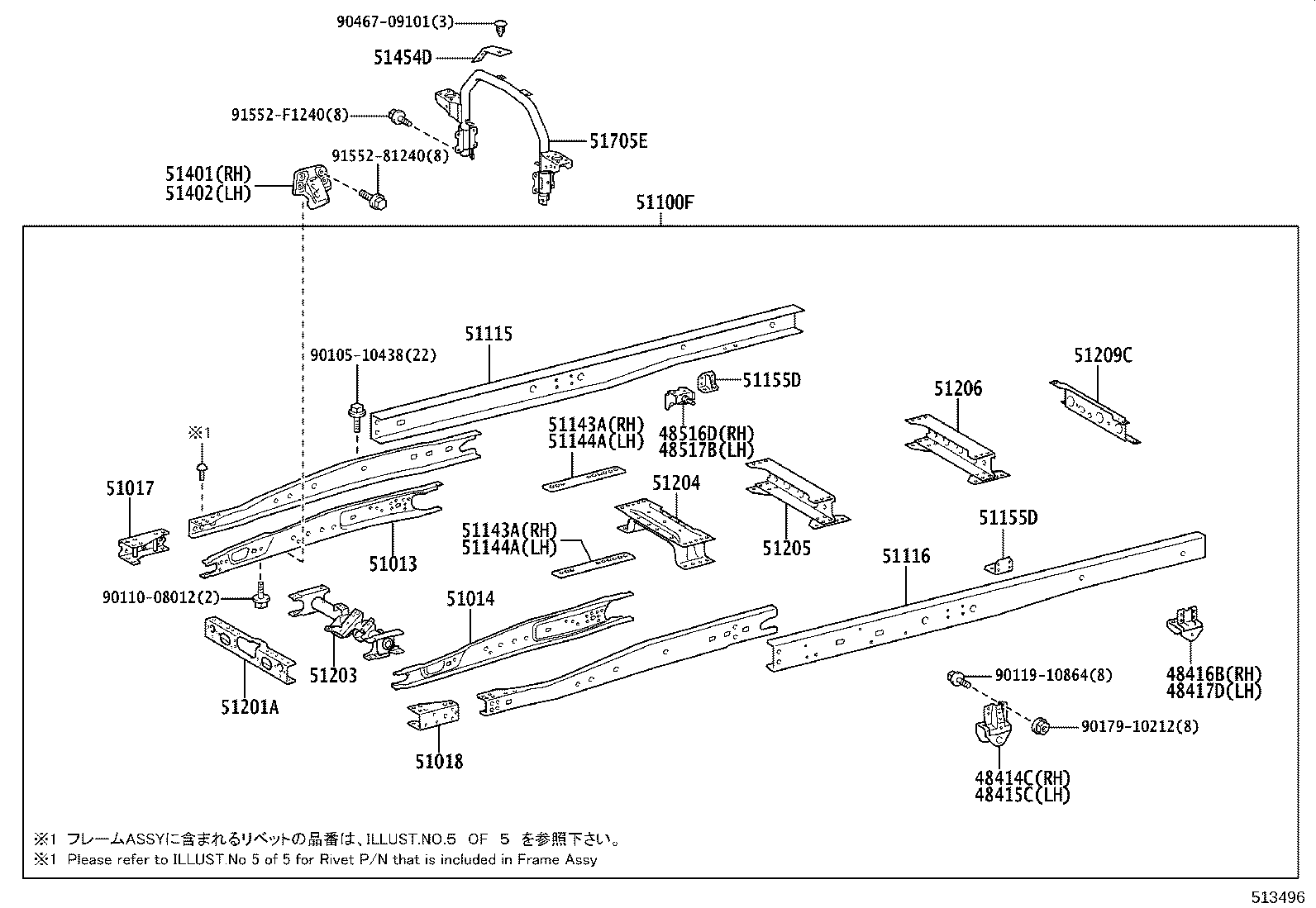

ILLUST NO. 2 OF 5(1905- )XZC675..DCRWD ; (1905- )XZU675..T4..DCRWD

Click highlighted areas on diagram

diagram 48414C 48415C 48416B 48417D 48516D 48517B 51013 51014 51017 51018 51100F 51115 51116 51143A 51143A 51144A 51144A 51155D 51155D 51201A 51203 51204 51205 51206 51209C 51401 51402 51454D 51705E 9010510438 9011008012 9011910864 9017910212 9046709101 9155281240 91552F1240
Part # Description Qty Price
48414C - BRACKET, SPRING, NO.3 RH
48414-37240

XZU645..20T..DCRWD;XZC60#,645,675,XZU600,605,675..(DM3,DM5,DM6,T2,T4,T5)..DCRWD

 1
48415C - BRACKET, SPRING, NO.3 LH
48414-37240

XZU645..20T..DCRWD;XZC60#,645,675,XZU600,605,675..(DM3,DM5,DM6,T2,T4,T5)..DCRWD

 1
48416B - BRACKET, SPRING, NO.4 RH
48416-37200

XZU645..20T..DCRWD;XZC60#,645,675,XZU600,605,675..(DM3,DM5,DM6,T2,T4,T5)..DCRWD

 1
48417D - BRACKET, SPRING, NO.4 LH
48416-37200

XZU645..20T..DCRWD;XZC60#,645,675,XZU600,605,675..(DM3,DM5,DM6,T2,T4,T5)..DCRWD

 1
48516D - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH
48505-37130

XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM3,DM6,DM7,T2,T3,T4,T5)..(DCRWD,DCVTO)

 1
48517B - BRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH
48505-37130

XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM3,DM6,DM7,T2,T3,T4,T5)..(DCRWD,DCVTO)

 1
51013 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH
51013-37580

XZC675,XZU675,685,695..DCRWD

 1
51014 - CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH
51014-37550

XZC675,XZU675,685,695..DCRWD

 1
51017 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51017-37150

XZC675,XZU675,685,695..DCRWD

 1
51018 - REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51018-37240

XZC675,XZU675,685,695..DCRWD

 1
51100F - FRAME SUB-ASSY
51002-3VJ10

XZC675,XZU675..T4..DCRWD

 1
51143A - REINFORCEMENT, SIDE RAIL, FRONT RH
51141-37410

XZC675,XZU675,685,695..DCRWD

 2
51143A - REINFORCEMENT, SIDE RAIL, FRONT RH
51141-37410

XZC675,XZU675,685,695..DCRWD

 2
51144A - REINFORCEMENT, SIDE RAIL, FRONT LH
51141-37410

XZC675,XZU675,685,695..DCRWD

 2
51144A - REINFORCEMENT, SIDE RAIL, FRONT LH
51141-37410

XZC675,XZU675,685,695..DCRWD

 2
51155D - STIFFENER, FRAME SIDE RAIL, REAR NO.1
51155-37060

XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM3,DM6,T2,T3,T4,T5)..(DCRWD,DCVTO)

 2
51155D - STIFFENER, FRAME SIDE RAIL, REAR NO.1
51155-37060

XZC605,645,655,675,XZU60#,64#,65#,675,685,695..(DM3,DM6,T2,T3,T4,T5)..(DCRWD,DCVTO)

 2
51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT
51201-37210

XZC675,XZU675,685,695..DCRWD

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-37280

XZU600..DM5..IV3;XZU640..DCRWD..IV4;XZU600..(DM5,T3)..DCRWD..(CBU,IV4);XZC60#,630,645,655,675,XZU605,630,645,655,675,685,695..DCRWD

 1
51204 - CROSSMEMBER SUB-ASSY, FRAME, NO.3
51203-37390

XZU600,640..SCB..(DCRWD,DCVTO);XZC60#,645,655,675,XZU602,605,642,645,65#,675,685,695..DCRWD,DCVTO

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51205-37200

XZU645..20T..DCRWD;XZC605,645,675,XZU600,605,675..(DM3,DM6,T2,T4,T5)..DCRWD

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51206-37090

XZU645..20T..DCRWD;XZC605,645,675,XZU600,605,675..(DM3,DM6,T2,T4,T5)..DCRWD

 1
51209C - CROSSMEMBER SUB-ASSY, FRAME, REAR
51291-37140

XZU605..DCB..DCRWD..CBU;XZU605..30T..DCRWD..(CBU,IV3);XZC605,XZU605..T5..20T..DCRWD..CBU;XZC605,XZU605..20T..DCRWD..(IV3,IV6);XZC675,XZU600,675..(DM3,DM6,T4)..DCRWD

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51421-37191

XZC675,XZU675,685,695..DCRWD

TYPE C:ｲﾗｽﾄ参照

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51422-37191

XZC675,XZU675,685,695..DCRWD

TYPE C:ｲﾗｽﾄ参照

 1
51454D - SILENCER, ENGINE REAR COVER
51454-37300

XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)

 1
51454-37300

XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3

冷凍車仕様,有り(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ & Vﾘﾌﾞﾄﾞﾍﾞﾙﾄ)

 1
51454-37300

XZC675,XZU675,685,695..SCB..(T3,T4)..DCRWD..IV3

冷凍車仕様,無し(ｺﾝﾌﾟﾚｯｻﾌﾞﾗｹｯﾄ)

 1
51454-37300

XZC675,XZU675,685,695..SCB..DCRWD

 1
51705E - BRACKET SUB-ASSY, CAB REAR MOUNTING
51705-37B60

XZC675,XZU675,685,695..SCB..DCRWD

 1
Common parts
90105-10438
90110-08012
90119-10864
90179-10212
90467-09101
91552-81240
91552-F1240

ILLUST NO. 4 OF 5(1905- )DCRWD,DCVTO

Click highlighted areas on diagram

ﾌﾟﾛﾍﾟﾗｼｬﾌﾄｶﾞｰﾄﾞ

diagram 51569 51569C 9155180825 9155180825
Part # Description Qty Price
51569 - GUARD, PROPELLER SHAFT
51569-37430

XZU640..SCB..DCRWD;XZC605,645,675,XZU60#,645,675,685..(DM3,DM6,T2,T3,T4,T5)..(DCRWD,DCVTO)..(CBU,IV3,IV5,IV6,IV7)

 1
Common parts
91551-80825
