Toyota Dyna/toyoace XZU675 POWER TAKE-OFF LEVER & LINK

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU675-TQMMX3 (2019)
3605 - POWER TAKE-OFF LEVER & LINK

XZU675-TQMMX3 (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999

Engine N04C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(1905- )DM5..6F..30T ; (1905- )XZC600,630,XZU602,630..6F..DCRWD ; (1905- )

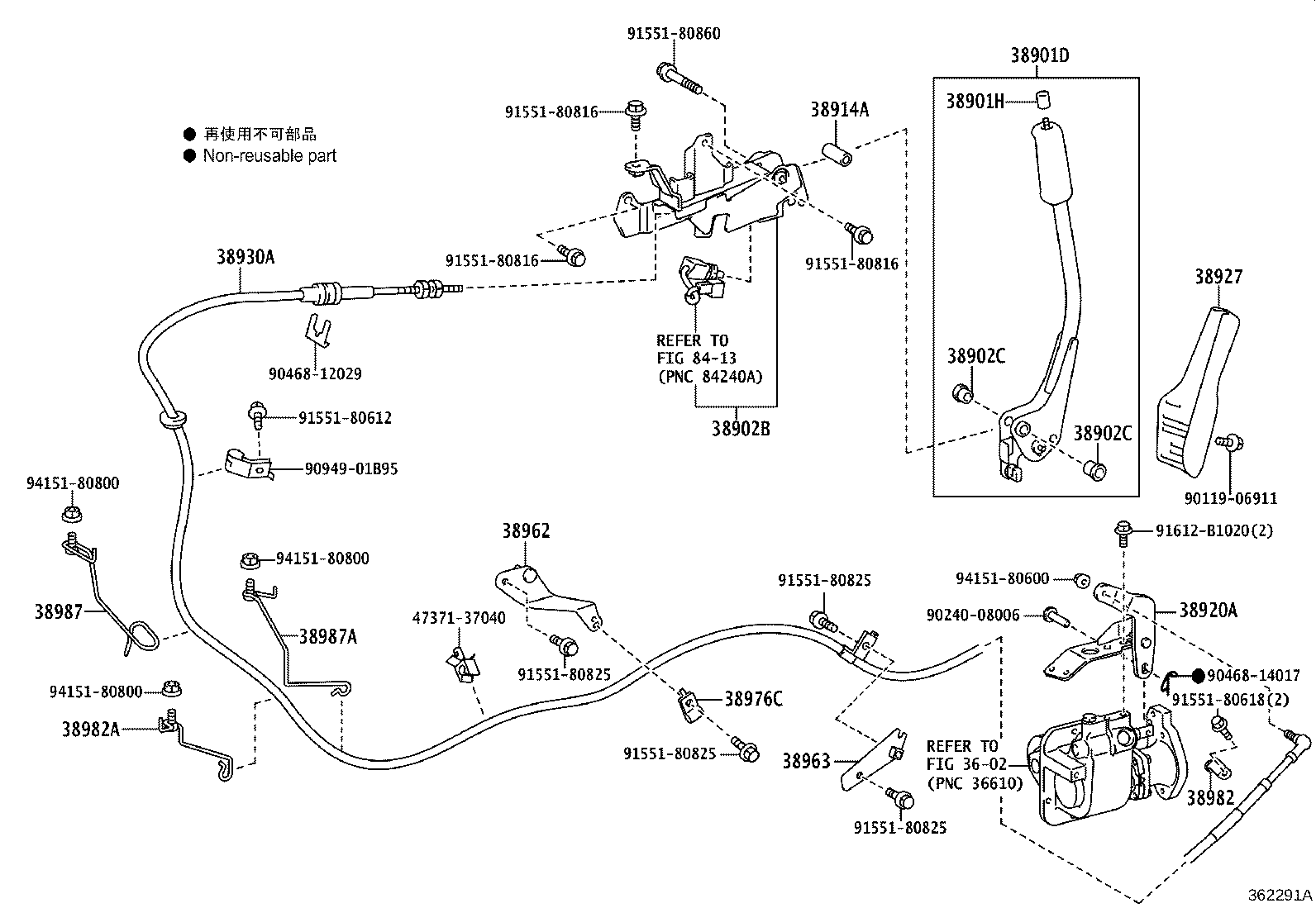

Click highlighted areas on diagram

ｵｲﾙﾎﾟﾝﾌﾟｲｯﾀｲｼｷ

Part #	Description	Period	Qty
38901D - LEVER SUB-ASSY, VALVE CONTROL
38901-37131C0	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ,BLACK,TRIM1#	05/2019 - 12/2999	1
38901-37131C0	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ,BLACK,TRIM1#	05/2019 - 12/2999	1
38901-37131C0	XZU655..DCB..DCRWD..IV3;XZU605..T5..6F..30T..IV3;XZU605..T5..20T..DCRWD..IV3;XZU605..SCB..(T2,T4)..DCRWD..IV3;XZC605,XZU600,685..SCB..(T2,T3,T4,T5)..DCRWD..IV3;XZC675,XZU602,642,675..(T3,T4)..(5F,6FC)..DCRWD..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ),BLACK,TRIM1#	05/2019 - 12/2999	1
38901H - KNOB, VALVE CONTROL LEVER
46217-20020C0	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ,BLACK,TRIM1#	05/2019 - 12/2999	1
46217-20020C0	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ,BLACK,TRIM1#	05/2019 - 12/2999	1
46217-20020C0	XZU655..DCB..DCRWD..IV3;XZU605..T5..6F..30T..IV3;XZU605..T5..20T..DCRWD..IV3;XZU605..SCB..(T2,T4)..DCRWD..IV3;XZC605,XZU600,685..SCB..(T2,T3,T4,T5)..DCRWD..IV3;XZC675,XZU602,642,675..(T3,T4)..(5F,6FC)..DCRWD..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ),BLACK,TRIM1#	05/2019 - 12/2999	1
38902B - BRACKET SUB-ASSY, VALVE CONTROL LEVER
38902-37111	XZU655..DCB..DCRWD..IV3;XZU605..T5..20T..DCRWD..IV3;XZU650,652..6F..(DCRWD,DCVTO)..IV6;XZU600,605..(DM5,T5)..6F..30T..IV3;XZU600,605,675,685..SCB..(T2,T3,T4)..DCRWD..IV3;XZC600,XZU600..(DM5,T3)..6F..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6);XZC605,675,XZU602,640,642..(T2,T3,T4,T5)..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 12/2999	1
38902-37141	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
38902-37141	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-12034	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90386-12034	XZU655..DCB..DCRWD..IV3;XZU605..T5..6F..30T..IV3;XZU605..T5..20T..DCRWD..IV3;XZU605..SCB..(T2,T4)..DCRWD..IV3;XZC605,XZU600,685..SCB..(T2,T3,T4,T5)..DCRWD..IV3;XZC675,XZU602,642,675..(T3,T4)..(5F,6FC)..DCRWD..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 12/2999	2
90386-12034	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	2
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-12034	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90386-12034	XZU655..DCB..DCRWD..IV3;XZU605..T5..6F..30T..IV3;XZU605..T5..20T..DCRWD..IV3;XZU605..SCB..(T2,T4)..DCRWD..IV3;XZC605,XZU600,685..SCB..(T2,T3,T4,T5)..DCRWD..IV3;XZC675,XZU602,642,675..(T3,T4)..(5F,6FC)..DCRWD..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 12/2999	2
90386-12034	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	2
38914A - PIPE, VALVE CONTROL LEVER
38914-37010	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
38914-37010	XZU655..DCB..DCRWD..IV3;XZU605..T5..6F..30T..IV3;XZU605..T5..20T..DCRWD..IV3;XZU605..SCB..(T2,T4)..DCRWD..IV3;XZC605,XZU600,685..SCB..(T2,T3,T4,T5)..DCRWD..IV3;XZC675,XZU602,642,675..(T3,T4)..(5F,6FC)..DCRWD..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 12/2999	1
38914-37010	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
38927 - COVER, VALVE CONTROL LEVER
38927-37010	XZU655..DCB..DCRWD..IV3;XZU605..T5..6F..30T..IV3;XZU605..T5..20T..DCRWD..IV3;XZU605..SCB..(T2,T4)..DCRWD..IV3;XZC605,XZU600,685..SCB..(T2,T3,T4,T5)..DCRWD..IV3;XZC675,XZU602,642,675..(T3,T4)..(5F,6FC)..DCRWD..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 12/2999	1
38927-37010	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
38927-37010	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
38930A - CABLE ASSY, PUSH PULL
38930-37720	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
38930-37720	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
38962 - BRACKET, CABLE CLAMP, NO.2
38962-37381	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
38962-37381	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
38963 - BRACKET, CABLE CLAMP, NO.3
38962-37430	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
38962-37430	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
38976C - CLAMP, PUSH PULL CABLE
38976-37030	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
38976-37030	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
38976C - CLAMP, PUSH PULL CABLE
38976-37030	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
38976-37030	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
38982A - CLAMP, PUSH PULL CABLE, NO.2
38976-37170	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
38976-37170	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
38987 - CLAMP, CABLE PUSH PULL
38976-37190	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
38976-37190	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
38987A - CLAMP, PUSH PULL CABLE
38976-37180	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
38976-37180	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
Common parts
47371-37040
90119-06911
90464-00840
90468-12029
90949-01B95
91551-80612
91551-80816
91551-80825
91551-80860
94151-80800
Linked diagrams
3602
8413

(1905- )XZU685..DCRWD..IV6 ; (1905- )XZU675..T4..DCRWD..IV3

Click highlighted areas on diagram

Part #	Description	Period	Qty
38901D - LEVER SUB-ASSY, VALVE CONTROL
38901-37131C0	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ,BLACK,TRIM1#	05/2019 - 12/2999	1
38901-37131C0	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ,BLACK,TRIM1#	05/2019 - 12/2999	1
38901-37131C0	XZU655..DCB..DCRWD..IV3;XZU605..T5..6F..30T..IV3;XZU605..T5..20T..DCRWD..IV3;XZU605..SCB..(T2,T4)..DCRWD..IV3;XZC605,XZU600,685..SCB..(T2,T3,T4,T5)..DCRWD..IV3;XZC675,XZU602,642,675..(T3,T4)..(5F,6FC)..DCRWD..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ),BLACK,TRIM1#	05/2019 - 12/2999	1
38901H - KNOB, VALVE CONTROL LEVER
46217-20020C0	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ,BLACK,TRIM1#	05/2019 - 12/2999	1
46217-20020C0	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ,BLACK,TRIM1#	05/2019 - 12/2999	1
46217-20020C0	XZU655..DCB..DCRWD..IV3;XZU605..T5..6F..30T..IV3;XZU605..T5..20T..DCRWD..IV3;XZU605..SCB..(T2,T4)..DCRWD..IV3;XZC605,XZU600,685..SCB..(T2,T3,T4,T5)..DCRWD..IV3;XZC675,XZU602,642,675..(T3,T4)..(5F,6FC)..DCRWD..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ),BLACK,TRIM1#	05/2019 - 12/2999	1
38902B - BRACKET SUB-ASSY, VALVE CONTROL LEVER
38902-37111	XZU655..DCB..DCRWD..IV3;XZU605..T5..20T..DCRWD..IV3;XZU650,652..6F..(DCRWD,DCVTO)..IV6;XZU600,605..(DM5,T5)..6F..30T..IV3;XZU600,605,675,685..SCB..(T2,T3,T4)..DCRWD..IV3;XZC600,XZU600..(DM5,T3)..6F..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6);XZC605,675,XZU602,640,642..(T2,T3,T4,T5)..(20T,40T)..(DCRWD,DCVTO)..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 12/2999	1
38902-37141	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
38902-37141	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-12034	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90386-12034	XZU655..DCB..DCRWD..IV3;XZU605..T5..6F..30T..IV3;XZU605..T5..20T..DCRWD..IV3;XZU605..SCB..(T2,T4)..DCRWD..IV3;XZC605,XZU600,685..SCB..(T2,T3,T4,T5)..DCRWD..IV3;XZC675,XZU602,642,675..(T3,T4)..(5F,6FC)..DCRWD..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 12/2999	2
90386-12034	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	2
38902C - BUSH (FOR VALVE CONTROL LEVER)
90386-12034	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90386-12034	XZU655..DCB..DCRWD..IV3;XZU605..T5..6F..30T..IV3;XZU605..T5..20T..DCRWD..IV3;XZU605..SCB..(T2,T4)..DCRWD..IV3;XZC605,XZU600,685..SCB..(T2,T3,T4,T5)..DCRWD..IV3;XZC675,XZU602,642,675..(T3,T4)..(5F,6FC)..DCRWD..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 12/2999	2
90386-12034	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	2
38914A - PIPE, VALVE CONTROL LEVER
38914-37010	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
38914-37010	XZU655..DCB..DCRWD..IV3;XZU605..T5..6F..30T..IV3;XZU605..T5..20T..DCRWD..IV3;XZU605..SCB..(T2,T4)..DCRWD..IV3;XZC605,XZU600,685..SCB..(T2,T3,T4,T5)..DCRWD..IV3;XZC675,XZU602,642,675..(T3,T4)..(5F,6FC)..DCRWD..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 12/2999	1
38914-37010	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
38920A - LEVER ASSY, POWER TAKE-OFF CONTROL, NO.1
38920-37060	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
38920-37060	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
38927 - COVER, VALVE CONTROL LEVER
38927-37010	XZU655..DCB..DCRWD..IV3;XZU605..T5..6F..30T..IV3;XZU605..T5..20T..DCRWD..IV3;XZU605..SCB..(T2,T4)..DCRWD..IV3;XZC605,XZU600,685..SCB..(T2,T3,T4,T5)..DCRWD..IV3;XZC675,XZU602,642,675..(T3,T4)..(5F,6FC)..DCRWD..(IV3,IV6) ﾊﾟﾜｰﾃｲｸｵﾌ−無し(ﾀﾞﾝﾌﾟﾚﾊﾞｰのみ)	05/2019 - 12/2999	1
38927-37010	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
38927-37010	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
38930A - CABLE ASSY, PUSH PULL
38930-37720	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
38930-37720	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
38962 - BRACKET, CABLE CLAMP, NO.2
38962-37381	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
38962-37381	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
38963 - BRACKET, CABLE CLAMP, NO.3
38962-37430	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
38962-37430	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
38976C - CLAMP, PUSH PULL CABLE
38976-37030	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
38976-37030	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
38982 - CLAMP, PUSH PULL CABLE, NO.1
38982-96302	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
38982-96302	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
38982A - CLAMP, PUSH PULL CABLE, NO.2
38976-37170	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
38976-37170	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
38987 - CLAMP, CABLE PUSH PULL
38976-37190	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
38976-37190	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
38987A - CLAMP, PUSH PULL CABLE
38976-37180	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
38976-37180	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
Common parts
47371-37040
90119-06911
90240-08006
90468-12029
90468-14017
90949-01B95
91551-80612
91551-80618
91551-80816
91551-80825
91551-80860
91612-B1020
94151-80600
94151-80800
Linked diagrams
3602
8413

XZU675-TQMMX3 (2019)

(1905- )DM5..6F..30T ; (1905- )XZC600,630,XZU602,630..6F..DCRWD ; (1905- )

(1905- )XZU685..DCRWD..IV6 ; (1905- )XZU675..T4..DCRWD..IV3
