Toyota Dyna/toyoace XZU675 POWER TAKE-OFF CASE & GEAR

Manufacturers Home
Toyota
JP
DYNA/TOYOACE
XZU675-TQMMX3 (2019)
3602 - POWER TAKE-OFF CASE & GEAR

XZU675-TQMMX3 (2019)

Toyota Dyna/Toyoace

Production May 2019 - Sep 9999

Engine N04C

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(1905- )XZU685..DCRWD..IV6 ; (1905- )XZU675..T4..DCRWD..IV3

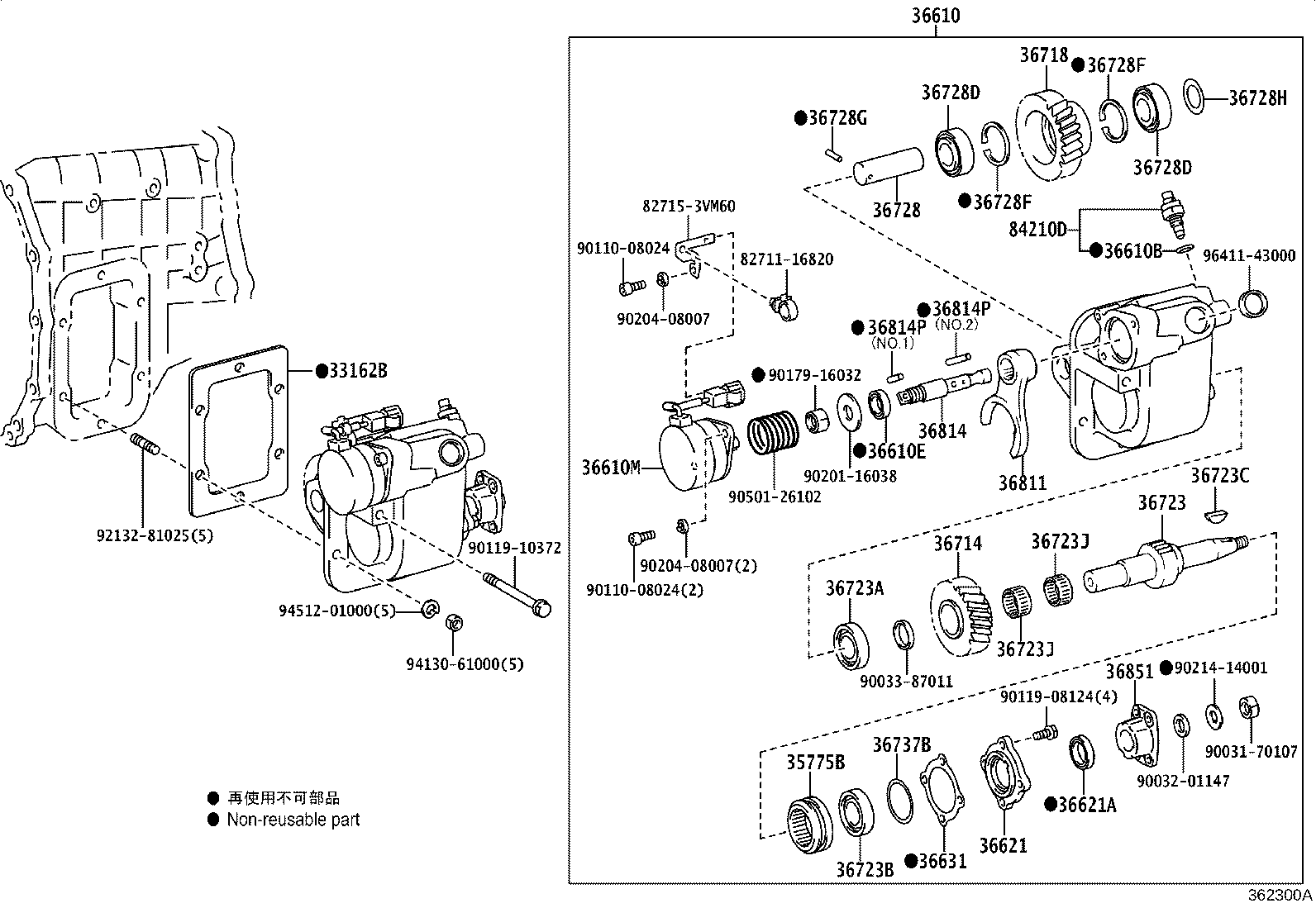

Click highlighted areas on diagram

ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ(ﾌﾗﾝｼﾞﾀｲﾌﾟ) 25KG

Part #	Description	Period	Qty
33162B - GASKET, POWER TAKE-OFF COVER
33162-37050	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
33162-37050	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
33162-37050	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
35775B - SLEEVE, OUTPUT SHAFT
35775-37030	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 06/2019	1
35775-37030	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 06/2019	1
35775-37031	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	06/2019 - 12/2999	1
35775-37031	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	06/2019 - 12/2999	1
35775-37031	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	06/2019 - 12/2999	1
35775-37030	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 06/2019	1
36610 - POWER TAKE-OFF ASSY
36610-37600	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 10/2019	1
36610-37520	XZU685..DCRWD..IV6;XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36610-37590	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36610-37601	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	11/2019 - 12/2999	1
36610B - GASKET, SEAT (FOR POWER TAKE-OFF)
90430-12001	XZU675..T4..DCRWD..IV3 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90430-12004	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90430-12001	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90430-12004	XZU675..T4..DCRWD..IV3 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90430-12006	XZU675..T4..DCRWD..IV3 厚さ=1,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90430-18008	XZU640,650..SCB..6F..(DCRWD,DCVTO);XZU600,642..6F..40T..(DCRWD,DCVTO)..IV6;XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..(T2,T3,T4,T5)..MTM..DCRWD..(CBU,IV3) 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90430-12006	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=1,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36610C - SPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF)
90035-01053	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90035-01053	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36610D - BALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF)
90360-10001	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90360-10001	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36610E - SEAL, OIL (FOR POWER TAKE-OFF)
90311-20010	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90311-20010	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90311-20010	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-37090	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36621-37080	XZU685..DCRWD..IV6;XZU675..T4..DCRWD..IV3;XZU600,602,640,642,650,652..6F..(35T,40T)..(DCRWD,DCVTO)..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36621-37080	XZU640,650..SCB..6F..(DCRWD,DCVTO);XZU600,642..6F..40T..(DCRWD,DCVTO)..IV6;XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..(T2,T3,T4,T5)..MTM..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
90311-25110	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90311-25110	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90311-25110	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36632-37030	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36632-37030	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36632-37030	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-37241	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36714-37241	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36714-37241	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-37161	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36718-37161	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36718-37161	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-37140	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36723-37140	XZU685..DCRWD..IV6;XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36723-37180	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
90366-22001	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90366-22001	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90366-22001	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36723B - BEARING (FOR OUTPUT SHAFT REAR)
90366-22001	XZU675..T4..DCRWD..IV3 厚さ=16.25,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90366-22001	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) 厚さ=16.25,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90366-22001	XZU675..T4..DCRWD..IV3 厚さ=16.25,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT)
90280-07011	XZU685..DCRWD..IV6;XZU675..T4..DCRWD..IV3;XZU600,602,640,642,650,652..6F..(35T,40T)..(DCRWD,DCVTO)..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90280-07011	XZU640,650..SCB..6F..(DCRWD,DCVTO);XZU600,642..6F..40T..(DCRWD,DCVTO)..IV6;XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..(T2,T3,T4,T5)..MTM..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90364-28020	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90364-28020	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	2
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90364-28020	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90364-28020	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	2
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-37060	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36728-37060	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36728-37060	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-25011	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90366-25011	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90366-25011	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	2
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-25011	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90366-25011	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90366-25011	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90521-56108	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90521-56108	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90521-56108	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90521-56108	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	2
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
90254-04002	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90254-04002	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90254-04002	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
90564-25001	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25002	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25001	XZU675..T4..DCRWD..IV3 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25002	XZU675..T4..DCRWD..IV3 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25002	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25003	XZU675..T4..DCRWD..IV3 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25003	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25001	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25003	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25004	XZU675..T4..DCRWD..IV3 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25004	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25004	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)
90564-42001	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-42001	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲv	05/2019 - 12/2999	1
90564-42001	XZU675..T4..DCRWD..IV3 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞ^ｲﾌﾟ	05/2019 - 12/2999	1
90564-42002	XZU675..T4..DCRWD..IV3 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞ^ｲﾌﾟ	05/2019 - 12/2999	1
90564-42002	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲv	05/2019 - 12/2999	1
90564-42002	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-42003	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-42003	XZU675..T4..DCRWD..IV3 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞ^ｲﾌﾟ	05/2019 - 12/2999	1
90564-42003	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲv	05/2019 - 12/2999	1
90564-42004	XZU675..T4..DCRWD..IV3 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞ^ｲﾌﾟ	05/2019 - 12/2999	1
90564-42004	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-42004	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲv	05/2019 - 12/2999	1
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-37030	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36811-37030	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36811-37030	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-37090	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36814-37090	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36814-37100	XZU640,650..SCB..6F..(DCRWD,DCVTO);XZU600,642..6F..40T..(DCRWD,DCVTO)..IV6;XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..(T2,T3,T4,T5)..MTM..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36814P - PIN (FOR POWER TAKE-OFF SHIFT SHAFT)
90254-06006	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90254-05022	XZU640,650..SCB..6F..(DCRWD,DCVTO);XZU600,642..6F..40T..(DCRWD,DCVTO)..IV6;XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..(T2,T3,T4,T5)..MTM..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ,NO.1	05/2019 - 12/2999	1
90254-06006	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90254-06006	XZU640,650..SCB..6F..(DCRWD,DCVTO);XZU600,642..6F..40T..(DCRWD,DCVTO)..IV6;XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..(T2,T3,T4,T5)..MTM..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ,NO.2	05/2019 - 12/2999	1
36851 - RETAINER, POWER TAKE-OFF JOINT
36851-37010	XZU640,650..SCB..6F..(DCRWD,DCVTO);XZU600,642..6F..40T..(DCRWD,DCVTO)..IV6;XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..(T2,T3,T4,T5)..MTM..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36851-37010	XZU685..DCRWD..IV6;XZU675..T4..DCRWD..IV3;XZU600,602,640,642,650,652..6F..(35T,40T)..(DCRWD,DCVTO)..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
Common parts
90031-01180
90031-70107
90032-01147
90033-87011
90119-08124
90119-10372
90214-14001
92132-81025
94130-61000
94512-01000
96411-43000

(1905- )XZU685..DCRWD..IV6 ; (1905- )XZU675..T4..DCRWD..IV3

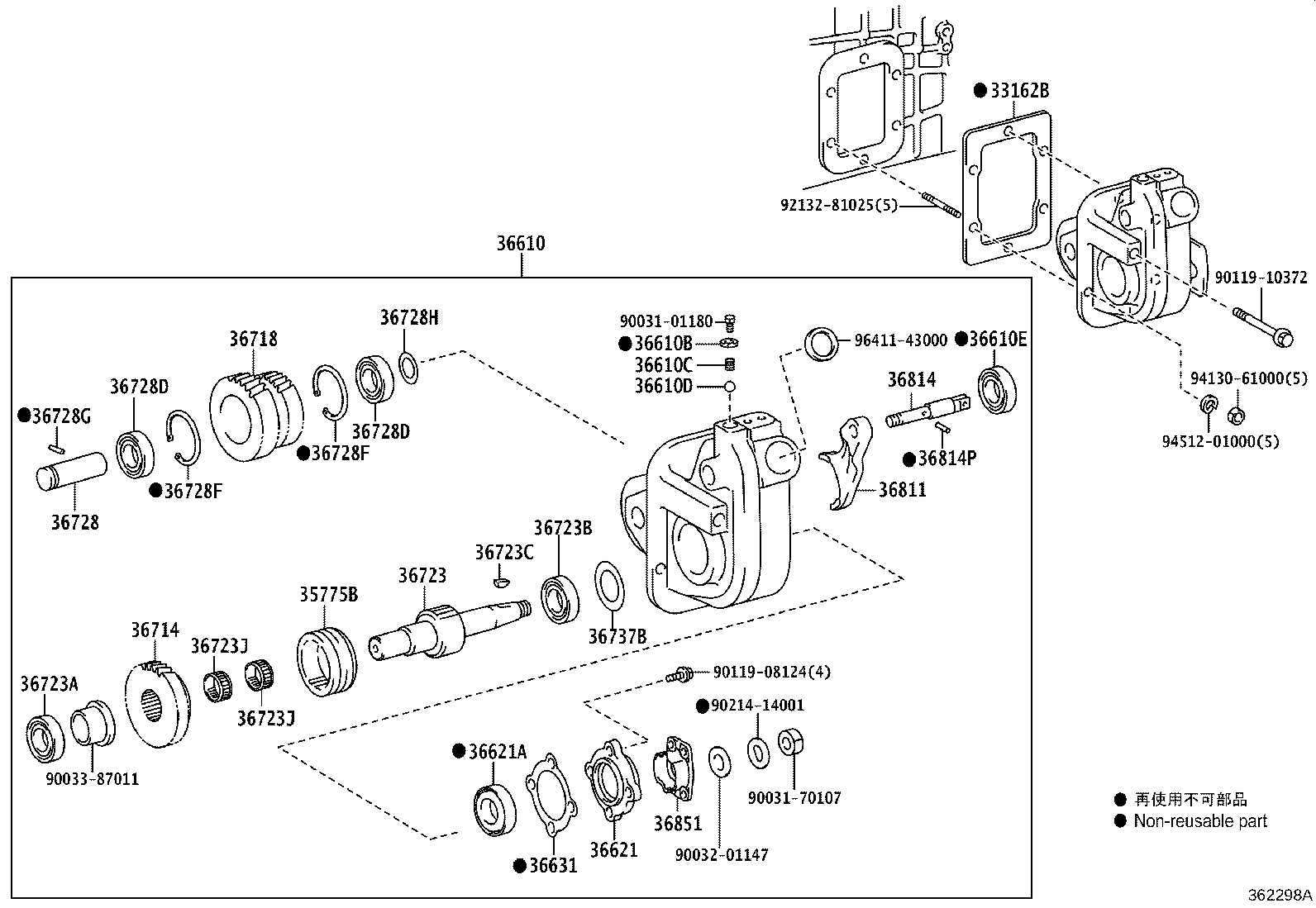

Click highlighted areas on diagram

ﾏﾆｭｱﾙﾚﾊﾞｰｼｷ(ｱﾀﾞﾌﾟﾀﾀｲﾌﾟ) 25KG

Part #	Description	Period	Qty
33162B - GASKET, POWER TAKE-OFF COVER
33162-37050	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
33162-37050	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
33162-37050	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
35775B - SLEEVE, OUTPUT SHAFT
35775-37030	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 06/2019	1
35775-37030	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 06/2019	1
35775-37031	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	06/2019 - 12/2999	1
35775-37031	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	06/2019 - 12/2999	1
35775-37031	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	06/2019 - 12/2999	1
35775-37030	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 06/2019	1
36610 - POWER TAKE-OFF ASSY
36610-37600	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 10/2019	1
36610-37520	XZU685..DCRWD..IV6;XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36610-37590	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36610-37601	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	11/2019 - 12/2999	1
36610B - GASKET, SEAT (FOR POWER TAKE-OFF)
90430-12001	XZU675..T4..DCRWD..IV3 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90430-12004	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90430-12001	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90430-12004	XZU675..T4..DCRWD..IV3 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90430-12006	XZU675..T4..DCRWD..IV3 厚さ=1,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90430-18008	XZU640,650..SCB..6F..(DCRWD,DCVTO);XZU600,642..6F..40T..(DCRWD,DCVTO)..IV6;XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..(T2,T3,T4,T5)..MTM..DCRWD..(CBU,IV3) 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90430-12006	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=1,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36610C - SPRING, GEAR SHIFT FORK LOCK BALL (FOR POWER TAKE-OFF)
90035-01053	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90035-01053	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36610D - BALL, GEAR SHIFT FORK LOCK (FOR POWER TAKE-OFF)
90360-10001	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90360-10001	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36610E - SEAL, OIL (FOR POWER TAKE-OFF)
90311-20010	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90311-20010	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90311-20010	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-37090	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36621-37080	XZU685..DCRWD..IV6;XZU675..T4..DCRWD..IV3;XZU600,602,640,642,650,652..6F..(35T,40T)..(DCRWD,DCVTO)..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36621-37080	XZU640,650..SCB..6F..(DCRWD,DCVTO);XZU600,642..6F..40T..(DCRWD,DCVTO)..IV6;XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..(T2,T3,T4,T5)..MTM..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
90311-25110	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90311-25110	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90311-25110	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36632-37030	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36632-37030	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36632-37030	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36647 - ADAPTER, POWER TAKE-OFF PUMP
36647-37010	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36648 - BRACKET, POWER TAKE-OFF PUMP ADAPTER
36648-37010	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-37241	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36714-37241	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36714-37241	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-37161	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36718-37161	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36718-37161	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-37140	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36723-37140	XZU685..DCRWD..IV6;XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36723-37180	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
90366-22001	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90366-22001	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90366-22001	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36723B - BEARING (FOR OUTPUT SHAFT REAR)
90366-22001	XZU675..T4..DCRWD..IV3 厚さ=16.25,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90366-22001	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) 厚さ=16.25,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90366-22001	XZU675..T4..DCRWD..IV3 厚さ=16.25,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90364-28020	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90364-28020	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	2
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90364-28020	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90364-28020	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	2
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-37060	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36728-37060	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36728-37060	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-25011	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90366-25011	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90366-25011	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	2
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-25011	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90366-25011	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90366-25011	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90521-56108	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90521-56108	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90521-56108	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90521-56108	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	2
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
90254-04002	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90254-04002	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90254-04002	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
90564-25001	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25002	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25001	XZU675..T4..DCRWD..IV3 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25002	XZU675..T4..DCRWD..IV3 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25002	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25003	XZU675..T4..DCRWD..IV3 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25003	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25001	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25003	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25004	XZU675..T4..DCRWD..IV3 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25004	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25004	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)
90564-42001	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-42001	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲv	05/2019 - 12/2999	1
90564-42001	XZU675..T4..DCRWD..IV3 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞ^ｲﾌﾟ	05/2019 - 12/2999	1
90564-42002	XZU675..T4..DCRWD..IV3 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞ^ｲﾌﾟ	05/2019 - 12/2999	1
90564-42002	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲv	05/2019 - 12/2999	1
90564-42002	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-42003	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-42003	XZU675..T4..DCRWD..IV3 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞ^ｲﾌﾟ	05/2019 - 12/2999	1
90564-42003	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲv	05/2019 - 12/2999	1
90564-42004	XZU675..T4..DCRWD..IV3 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞ^ｲﾌﾟ	05/2019 - 12/2999	1
90564-42004	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-42004	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲv	05/2019 - 12/2999	1
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-37030	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36811-37030	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36811-37030	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-37090	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36814-37090	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36814-37100	XZU640,650..SCB..6F..(DCRWD,DCVTO);XZU600,642..6F..40T..(DCRWD,DCVTO)..IV6;XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..(T2,T3,T4,T5)..MTM..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36814P - PIN (FOR POWER TAKE-OFF SHIFT SHAFT)
90254-06006	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90254-05022	XZU640,650..SCB..6F..(DCRWD,DCVTO);XZU600,642..6F..40T..(DCRWD,DCVTO)..IV6;XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..(T2,T3,T4,T5)..MTM..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ,NO.1	05/2019 - 12/2999	1
90254-06006	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90254-06006	XZU640,650..SCB..6F..(DCRWD,DCVTO);XZU600,642..6F..40T..(DCRWD,DCVTO)..IV6;XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..(T2,T3,T4,T5)..MTM..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ,NO.2	05/2019 - 12/2999	1
36852 - COUPLING, POWER TAKE-OFF OUTPUT SHAFT
36852-37010	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
Common parts
90031-01180
90031-19132
90033-87011
90105-10315
90119-10372
92132-81025
94130-61000
94512-01000
96411-43000

(1905- )XZC675,XZU675,685,695..T3,T4..DCRWD..CBU,IV3

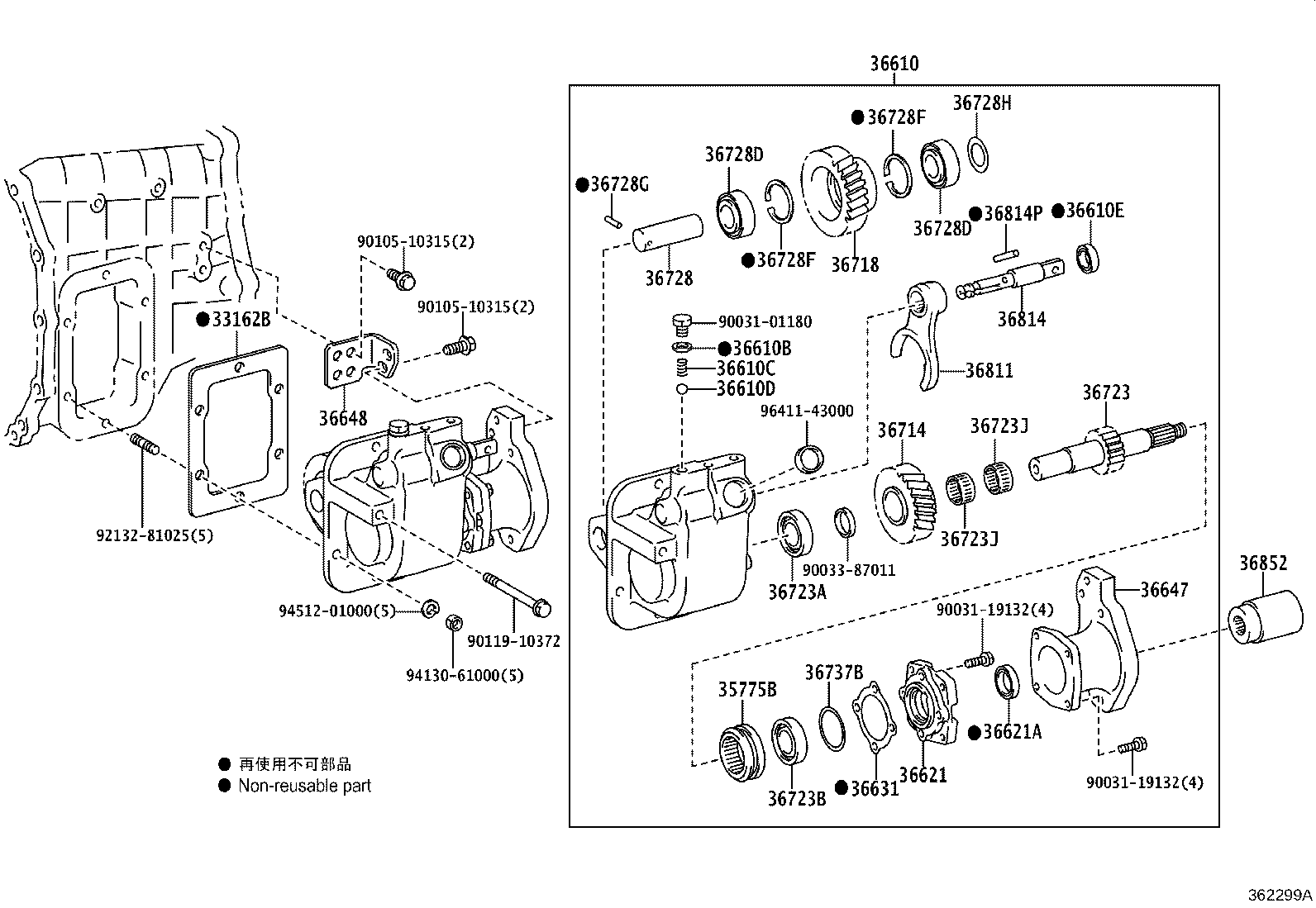

Click highlighted areas on diagram

ﾃﾞﾝｷｼｷ(ﾌﾗﾝｼﾞﾀｲﾌﾟ) 25KG

Part #	Description	Period	Qty
33162B - GASKET, POWER TAKE-OFF COVER
33162-37050	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
33162-37050	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
33162-37050	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
35775B - SLEEVE, OUTPUT SHAFT
35775-37030	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 06/2019	1
35775-37030	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 06/2019	1
35775-37031	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	06/2019 - 12/2999	1
35775-37031	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	06/2019 - 12/2999	1
35775-37031	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	06/2019 - 12/2999	1
35775-37030	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 06/2019	1
36610 - POWER TAKE-OFF ASSY
36610-37600	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 10/2019	1
36610-37520	XZU685..DCRWD..IV6;XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36610-37590	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36610-37601	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	11/2019 - 12/2999	1
36610B - GASKET, SEAT (FOR POWER TAKE-OFF)
90430-12001	XZU675..T4..DCRWD..IV3 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90430-12004	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90430-12001	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90430-12004	XZU675..T4..DCRWD..IV3 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90430-12006	XZU675..T4..DCRWD..IV3 厚さ=1,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90430-18008	XZU640,650..SCB..6F..(DCRWD,DCVTO);XZU600,642..6F..40T..(DCRWD,DCVTO)..IV6;XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..(T2,T3,T4,T5)..MTM..DCRWD..(CBU,IV3) 厚さ=2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90430-12006	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=1,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36610E - SEAL, OIL (FOR POWER TAKE-OFF)
90311-20010	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90311-20010	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90311-20010	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36610M - SOLENOID ASSY, POWER TAKE-OFF
36800-37010	XZU640,650..SCB..6F..(DCRWD,DCVTO);XZU600,642..6F..40T..(DCRWD,DCVTO)..IV6;XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..(T2,T3,T4,T5)..MTM..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36621 - RETAINER, POWER TAKE-OFF BEARING
36621-37090	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36621-37080	XZU685..DCRWD..IV6;XZU675..T4..DCRWD..IV3;XZU600,602,640,642,650,652..6F..(35T,40T)..(DCRWD,DCVTO)..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36621-37080	XZU640,650..SCB..6F..(DCRWD,DCVTO);XZU600,642..6F..40T..(DCRWD,DCVTO)..IV6;XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..(T2,T3,T4,T5)..MTM..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36621A - SEAL, OIL (FOR POWER TAKE-OFF BEARING RETAINER)
90311-25110	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90311-25110	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90311-25110	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36631 - GASKET, POWER TAKE-OFF BEARING RETAINER
36632-37030	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36632-37030	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36632-37030	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36714 - GEAR, POWER TAKE-OFF OUTPUT
36714-37241	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36714-37241	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36714-37241	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36718 - GEAR, POWER TAKE-OFF IDLER
36718-37161	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36718-37161	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36718-37161	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36723 - SHAFT, POWER TAKE-OFF OUTPUT, NO.1
36723-37140	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36723-37140	XZU685..DCRWD..IV6;XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36723-37180	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36723A - BEARING (FOR OUTPUT SHAFT FRONT)
90366-22001	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90366-22001	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90366-22001	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36723B - BEARING (FOR OUTPUT SHAFT REAR)
90366-22001	XZU675..T4..DCRWD..IV3 厚さ=16.25,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90366-22001	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) 厚さ=16.25,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90366-22001	XZU675..T4..DCRWD..IV3 厚さ=16.25,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36723C - KEY, WOODRUFF (FOR POWER TAKE-OFF OUTPUT SHAFT)
90280-07011	XZU685..DCRWD..IV6;XZU675..T4..DCRWD..IV3;XZU600,602,640,642,650,652..6F..(35T,40T)..(DCRWD,DCVTO)..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90280-07011	XZU640,650..SCB..6F..(DCRWD,DCVTO);XZU600,642..6F..40T..(DCRWD,DCVTO)..IV6;XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..(T2,T3,T4,T5)..MTM..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90364-28020	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90364-28020	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	2
36723J - BEARING (FOR POWER TAKE-OFF OUTPUT SHAFT)
90364-28020	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90364-28020	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90364-28020	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	2
36728 - SHAFT, POWER TAKE-OFF IDLER
36728-37060	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36728-37060	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36728-37060	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-25011	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90366-25011	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90366-25011	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	2
36728D - BEARING (FOR POWER TAKE-OFF IDLER SHAFT)
90366-25011	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90366-25011	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90366-25011	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90521-56108	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90521-56108	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	2
36728F - RING, SHAFT SNAP (FOR POWER TAKE-OFF IDLER SHAFT)
90521-56108	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90521-56108	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	2
90521-56108	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	2
36728G - PIN (FOR POWER TAKE-OFF IDLER SHAFT)
90254-04002	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90254-04002	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90254-04002	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36728H - SHIM (FOR POWER TAKE-OFF IDLER SHAFT)
90564-25001	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25002	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25001	XZU675..T4..DCRWD..IV3 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25002	XZU675..T4..DCRWD..IV3 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25002	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) 厚さ=0.1,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25003	XZU675..T4..DCRWD..IV3 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25003	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25001	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) 厚さ=0.05,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25003	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.2,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25004	XZU675..T4..DCRWD..IV3 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25004	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-25004	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) 厚さ=0.5,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36737B - SHIM (FOR POWER TAKE-OFF CLUTCH OUTPUT SHAFT)
90564-42001	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-42001	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲv	05/2019 - 12/2999	1
90564-42001	XZU675..T4..DCRWD..IV3 厚さ=0.02−0.08,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞ^ｲﾌﾟ	05/2019 - 12/2999	1
90564-42002	XZU675..T4..DCRWD..IV3 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞ^ｲﾌﾟ	05/2019 - 12/2999	1
90564-42002	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲv	05/2019 - 12/2999	1
90564-42002	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) 厚さ=0.07−0.13,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-42003	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-42003	XZU675..T4..DCRWD..IV3 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞ^ｲﾌﾟ	05/2019 - 12/2999	1
90564-42003	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.17−0.23,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲv	05/2019 - 12/2999	1
90564-42004	XZU675..T4..DCRWD..IV3 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞ^ｲﾌﾟ	05/2019 - 12/2999	1
90564-42004	XZC605,645,655,675,XZU600,605,640,645,65#,675,685,695..(T2,T3,T4,T5)..MTM..(DCRWD,DCVTO)..(CBU,IV3) 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90564-42004	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 厚さ=0.47−0.53,ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲv	05/2019 - 12/2999	1
36811 - FORK, POWR TAKE-OFF SHIFT, NO.1
36811-37030	XZC675,XZU675,685,695..(T3,T4)..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36811-37030	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36811-37030	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36814 - SHAFT, POWR TAKE-OFF FORK, NO.1
36814-37090	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36814-37090	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
36814-37100	XZU640,650..SCB..6F..(DCRWD,DCVTO);XZU600,642..6F..40T..(DCRWD,DCVTO)..IV6;XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..(T2,T3,T4,T5)..MTM..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36814P - PIN (FOR POWER TAKE-OFF SHIFT SHAFT)
90254-06006	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90254-05022	XZU640,650..SCB..6F..(DCRWD,DCVTO);XZU600,642..6F..40T..(DCRWD,DCVTO)..IV6;XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..(T2,T3,T4,T5)..MTM..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ,NO.1	05/2019 - 12/2999	1
90254-06006	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90254-06006	XZU640,650..SCB..6F..(DCRWD,DCVTO);XZU600,642..6F..40T..(DCRWD,DCVTO)..IV6;XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..(T2,T3,T4,T5)..MTM..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ,NO.2	05/2019 - 12/2999	1
36814P - PIN (FOR POWER TAKE-OFF SHIFT SHAFT)
90254-06006	XZU675..T4..DCRWD..IV3;XZU605..T4..6F..30T..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG 直結ﾀｲﾌﾟ	05/2019 - 12/2999	1
90254-05022	XZU640,650..SCB..6F..(DCRWD,DCVTO);XZU600,642..6F..40T..(DCRWD,DCVTO)..IV6;XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..(T2,T3,T4,T5)..MTM..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ,NO.1	05/2019 - 12/2999	1
90254-06006	XZU675..T4..DCRWD..IV3 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
90254-06006	XZU640,650..SCB..6F..(DCRWD,DCVTO);XZU600,642..6F..40T..(DCRWD,DCVTO)..IV6;XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..(T2,T3,T4,T5)..MTM..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ,NO.2	05/2019 - 12/2999	1
36851 - RETAINER, POWER TAKE-OFF JOINT
36851-37010	XZU640,650..SCB..6F..(DCRWD,DCVTO);XZU600,642..6F..40T..(DCRWD,DCVTO)..IV6;XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..(T2,T3,T4,T5)..MTM..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
36851-37010	XZU685..DCRWD..IV6;XZU675..T4..DCRWD..IV3;XZU600,602,640,642,650,652..6F..(35T,40T)..(DCRWD,DCVTO)..IV6 ﾊﾟﾜｰﾃｲｸｵﾌ−ﾏﾆｭｱﾙﾚﾊﾞｰ式 25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 12/2999	1
84210D - SWITCH ASSY, BACK-UP LAMP
84210-52050	XZU640,650..SCB..6F..(DCRWD,DCVTO);XZU600,642..6F..40T..(DCRWD,DCVTO)..IV6;XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..(T2,T3,T4,T5)..MTM..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	11/2019 - 12/2999	1
84210-52050	XZU640,650..SCB..6F..(DCRWD,DCVTO);XZU600,642..6F..40T..(DCRWD,DCVTO)..IV6;XZC605,645,655,675,XZU600,605,645,652,655,675,685,695..(T2,T3,T4,T5)..MTM..DCRWD..(CBU,IV3) ﾊﾟﾜｰﾃｲｸｵﾌ−電気式25KG ﾌﾗﾝｼﾞﾀｲﾌﾟ	05/2019 - 10/2019	1
Common parts
82711-16820
82715-3VM60
90031-70107
90032-01147
90033-87011
90110-08024
90119-08124
90119-10372
90179-16032
90201-16038
90204-08007
90214-14001
90501-26102
92132-81025
94130-61000
94512-01000
96411-43000

XZU675-TQMMX3 (2019)

(1905- )XZU685..DCRWD..IV6 ; (1905- )XZU675..T4..DCRWD..IV3

(1905- )XZU685..DCRWD..IV6 ; (1905- )XZU675..T4..DCRWD..IV3

(1905- )XZC675,XZU675,685,695..T3,T4..DCRWD..CBU,IV3

Part Price Details
